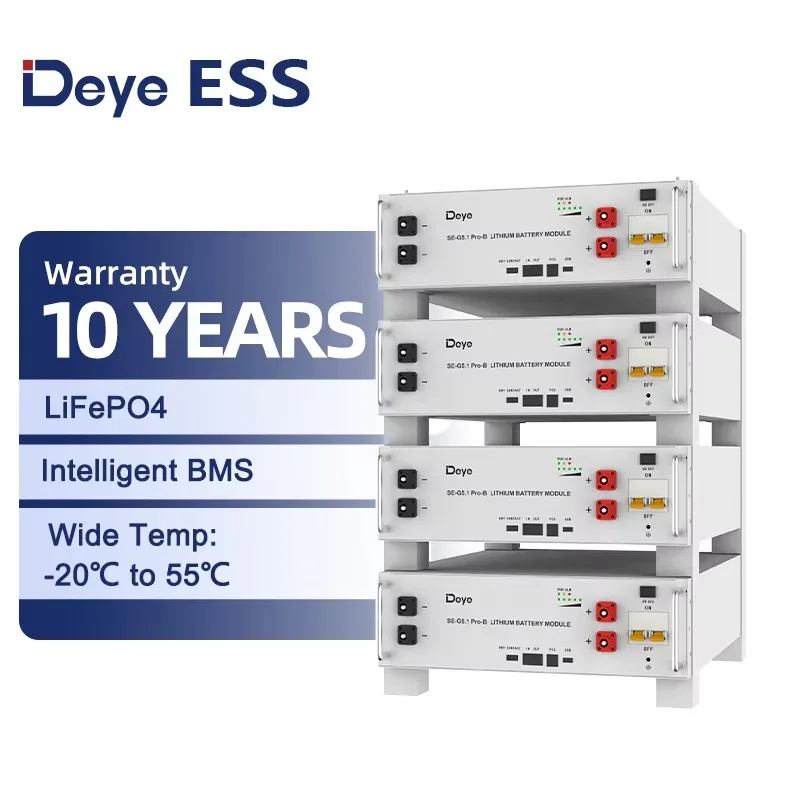

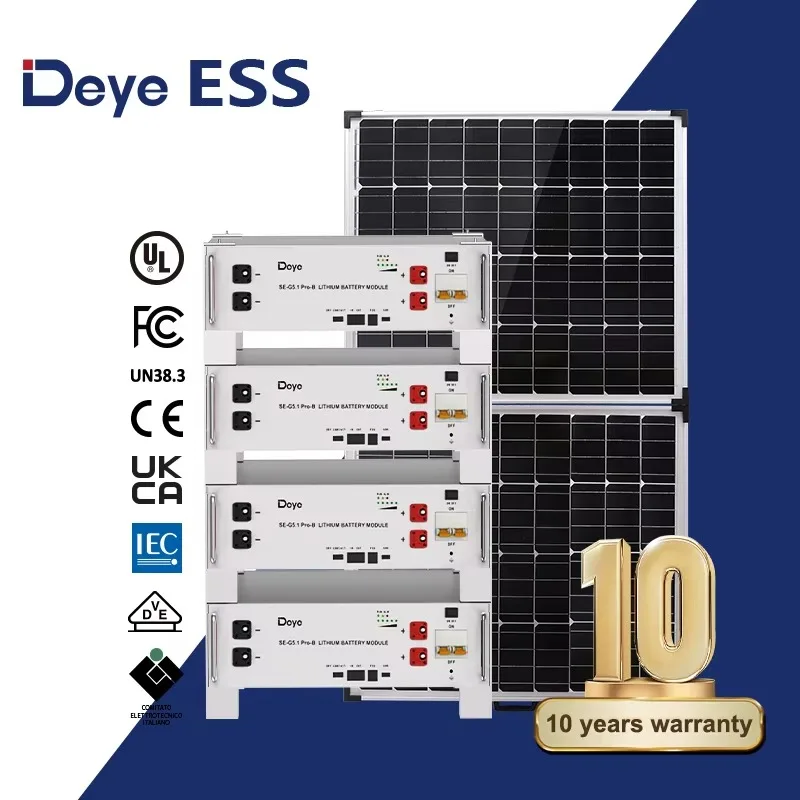

EU warehouse Deye SE G5.1 Pro B LiFePO4 Lithium Ion 5.12kWh Battery Pack 51.2V100Ah with Modular Design
EU warehouse Deye SE-G5.1 Pro-B LiFePO4 Lithium Ion 5.12kWh Battery Pack 51.2V100Ah with Modular Design
EU warehouse Deye SE-G5.1 Pro-B LiFePO4 Lithium Ion 5.12kWh Battery Pack 51.2V100Ah with Modular Design
EU warehouse Deye SE-G5.1 Pro-B LiFePO4 Lithium Ion 5.12kWh Battery Pack 51.2V100Ah with Modular Design
EU warehouse Deye SE-G5.1 Pro-B LiFePO4 Lithium Ion 5.12kWh Battery Pack 51.2V100Ah with Modular Design
EU warehouse Deye SE-G5.1 Pro-B LiFePO4 Lithium Ion 5.12kWh Battery Pack 51.2V100Ah with Modular Design
EU warehouse Deye SE-G5.1 Pro-B LiFePO4 Lithium Ion 5.12kWh Battery Pack 51.2V100Ah with Modular Design

EU warehouse Deye SE G5.1 Pro B LiFePO4 Lithium Ion 5.12kWh Battery Pack 51.2V100Ah with Modular Design

Share on (1600596293277):


Price:$814.20 - $1,015.80

Quantity:


Product Overview

Description





Model

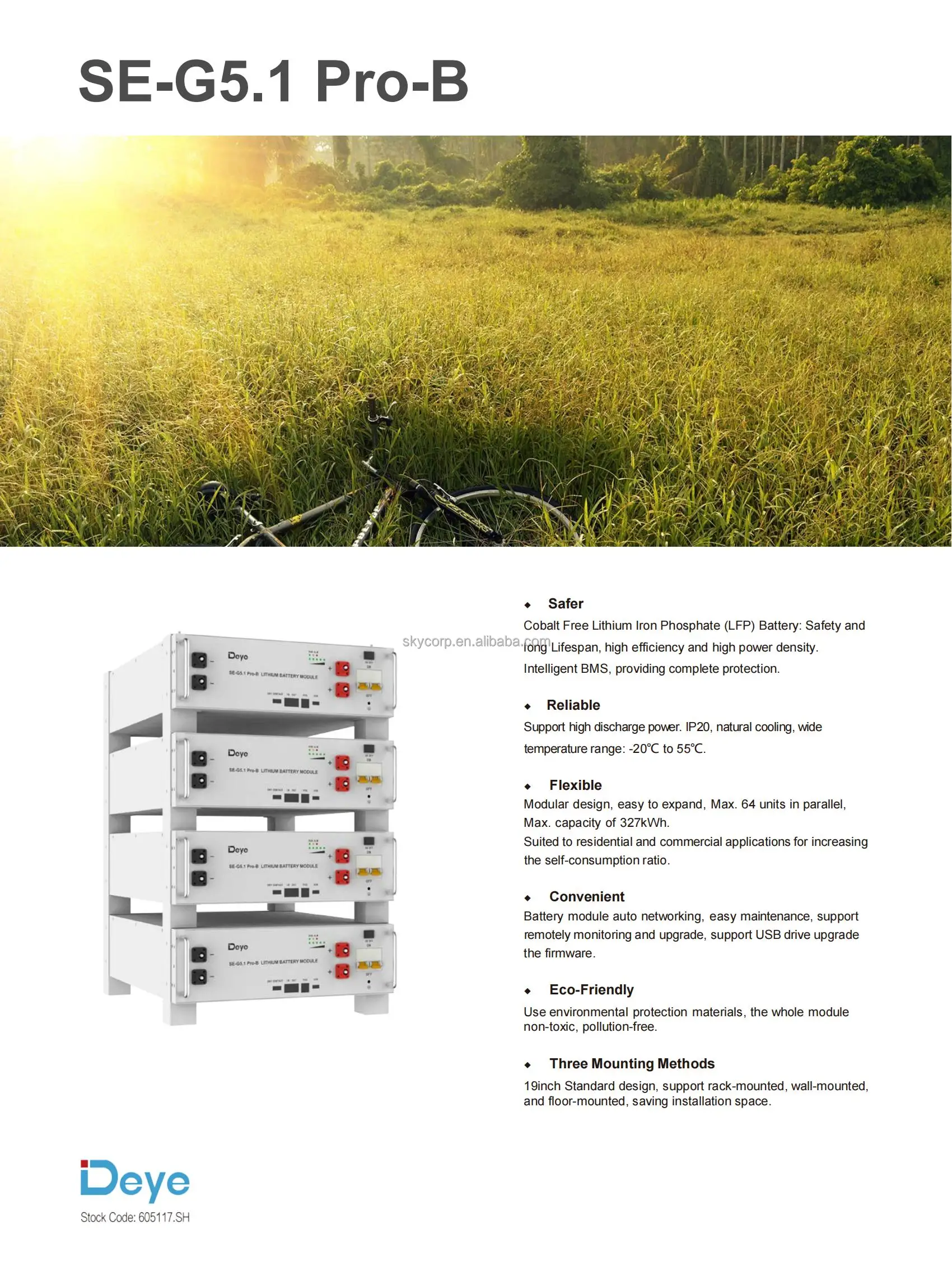

SE-G5.1 Pro-B
Main Parameter
Battery Chemistry
LiFePO4
Capacity (Ah)
100
Scalability
Max. 64 pcs pack (327kWh) in parallel (Max. 32 pcs no external setup)
Nominal Voltage (V)
51.2
Operating Voltage(V)
43.2~57.6
Energy (kWh)
5.12
Usable Energy (kWh)
4.6

Charge/Discharge Current (A)
Recommend 50
Max. 100
Peak(2mins,25℃) 150
Other Parameter
Recommend Depth of Discharge
90%

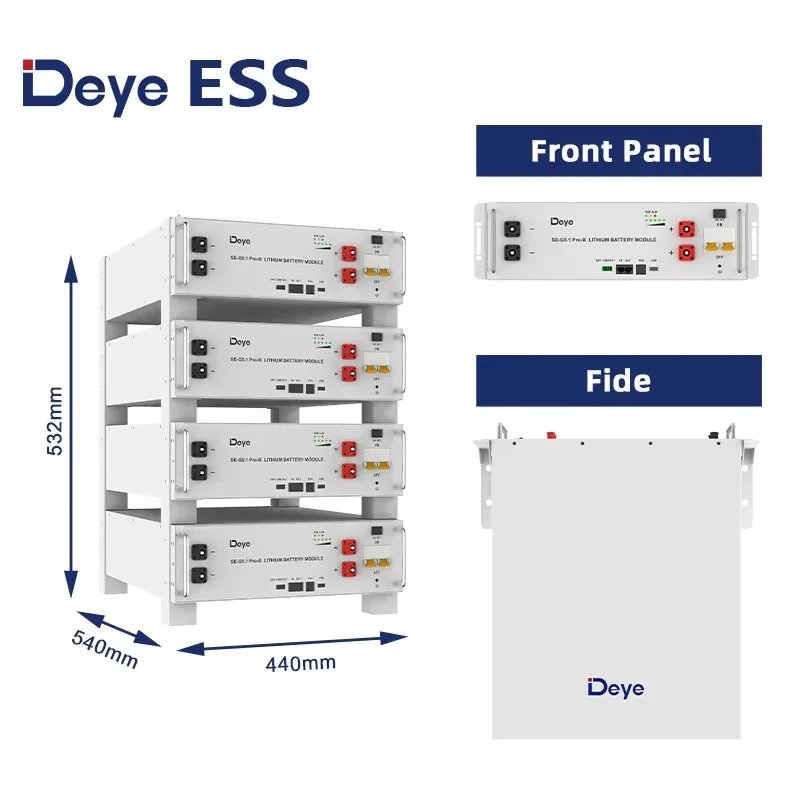

Dimension (W/H/D, mm)
440*133*540
Weight Approximate(kg)
45
Master LED Indicator
5LED(SOC:20%~SOC100%),3LED (working, alarming, protecting)
IP Rating of Enclosure
IP20
Operating Temperature
Charge: 0～55℃ ( Optional heating: -20℃~55℃ ), Discharge: -20℃～55℃
Storage Temperature
0℃～35℃
Humidity
5%~95%
Altitude
≤2000m
Cycle Life
≥6000(25℃±2℃,0.5C/0.5C,90%DOD,70%EOL)

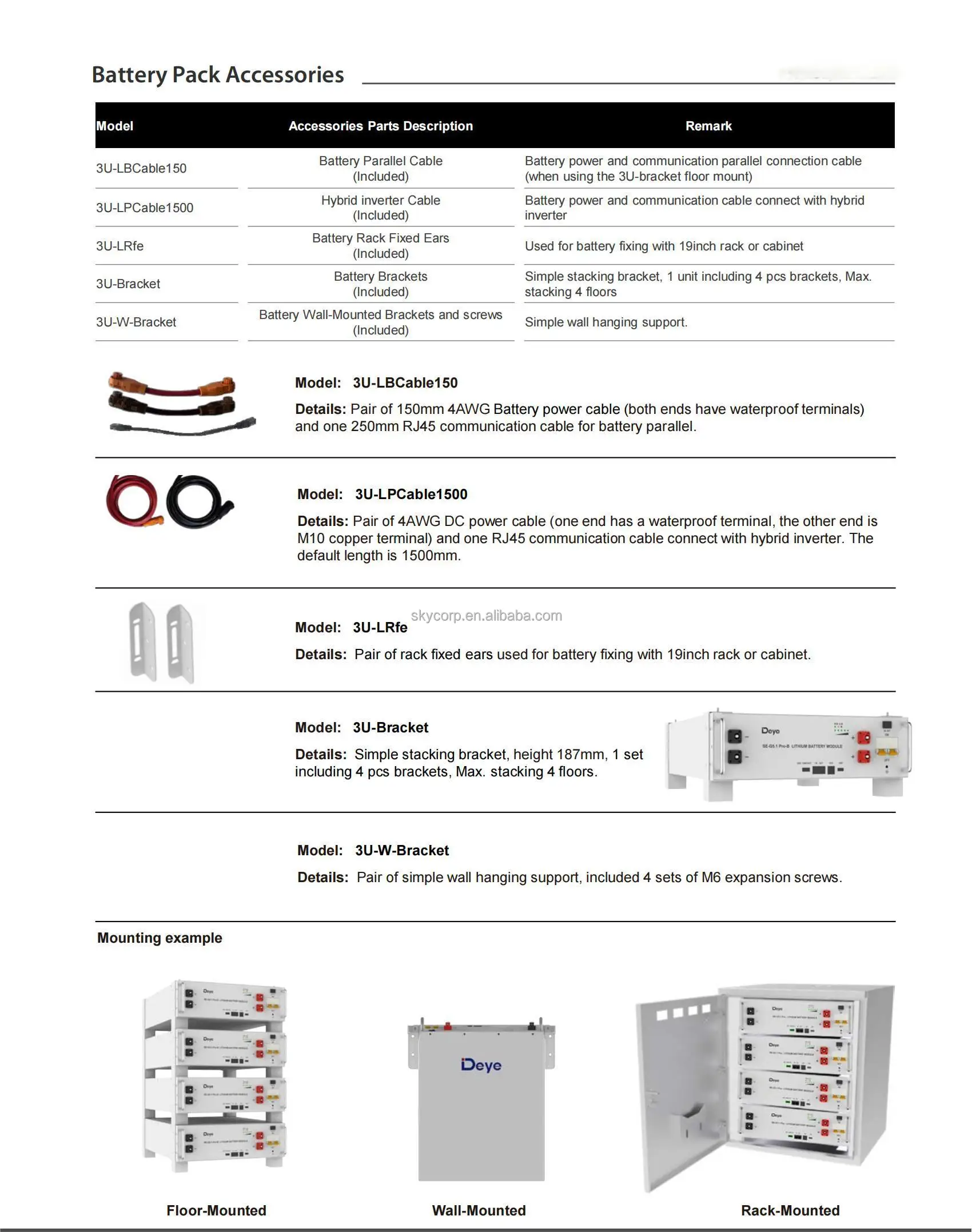

Installation

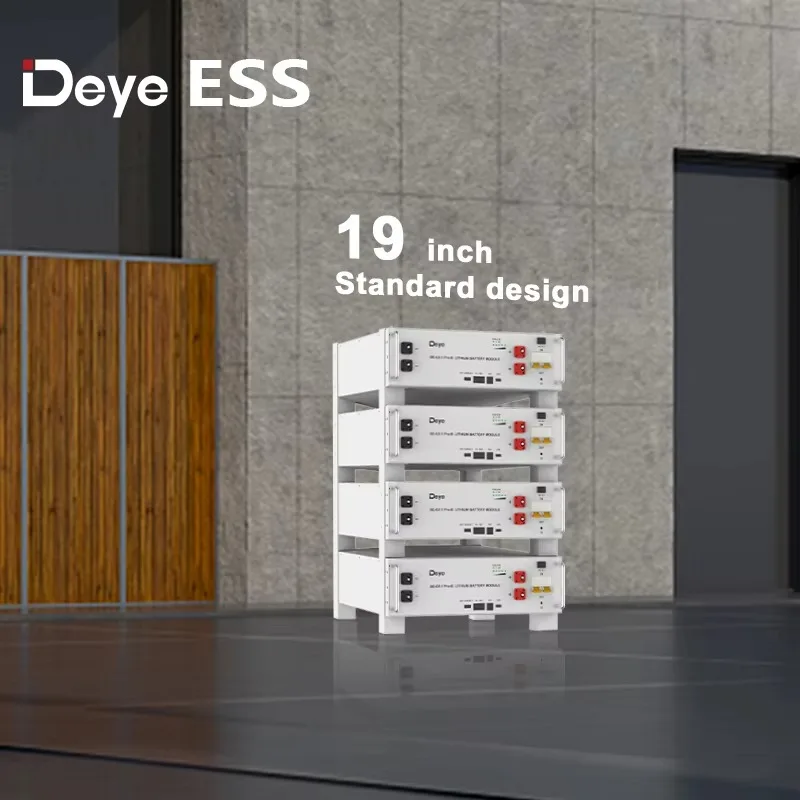

Wall-Mounted, Floor-Mounted, Rack-Mounted (19-inch standard cabinet, cabinet depth ≥600mm )
Communication Port
CAN2.0, RS485
Warranty Period
10 years
Energy Throughput
16MWh@70%EOL
Certification
UN38.3, IEC62619, CE,UK, VDE2510-50, CEI 0-21, FCC, UL1973, UL9540A


















FAQ
1.Do you offer sample for testing purpose?
Yes,we do offer sample machine for testing.Please specify your requirements when contacting our agents.

2.What certificate do you have for micro inverters?
VDE 4105.EN50549-1.VDE0126-1-1.ABNT NBR 16149, ABNT NBR 16150, ABNT NBR62116.RD1699. UNE 206006 IN, UNE 206007-1 IN, IEEE1547.Please double check with our agents for certificates.

3.Do you support OEM?
Yes, we do support OEM, however, there's requirement on quantities of your order.

4.What kind of shipment do you offer?
We offer land, sea and air freight upon your request. Fees varies.

5.How long does it take to receive goods I ordered?
For samples, the fastest you can receive is within one week. For bulk orders,dates may vary depending on quantity.
