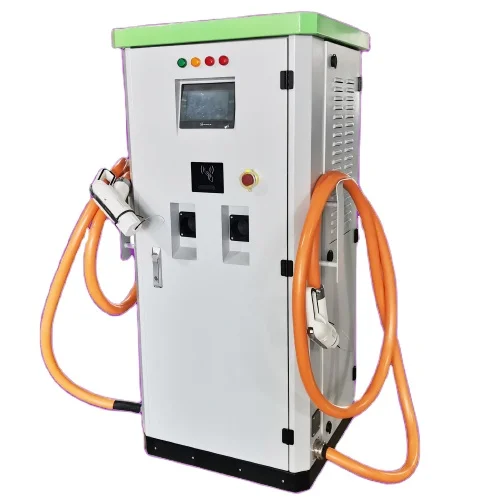

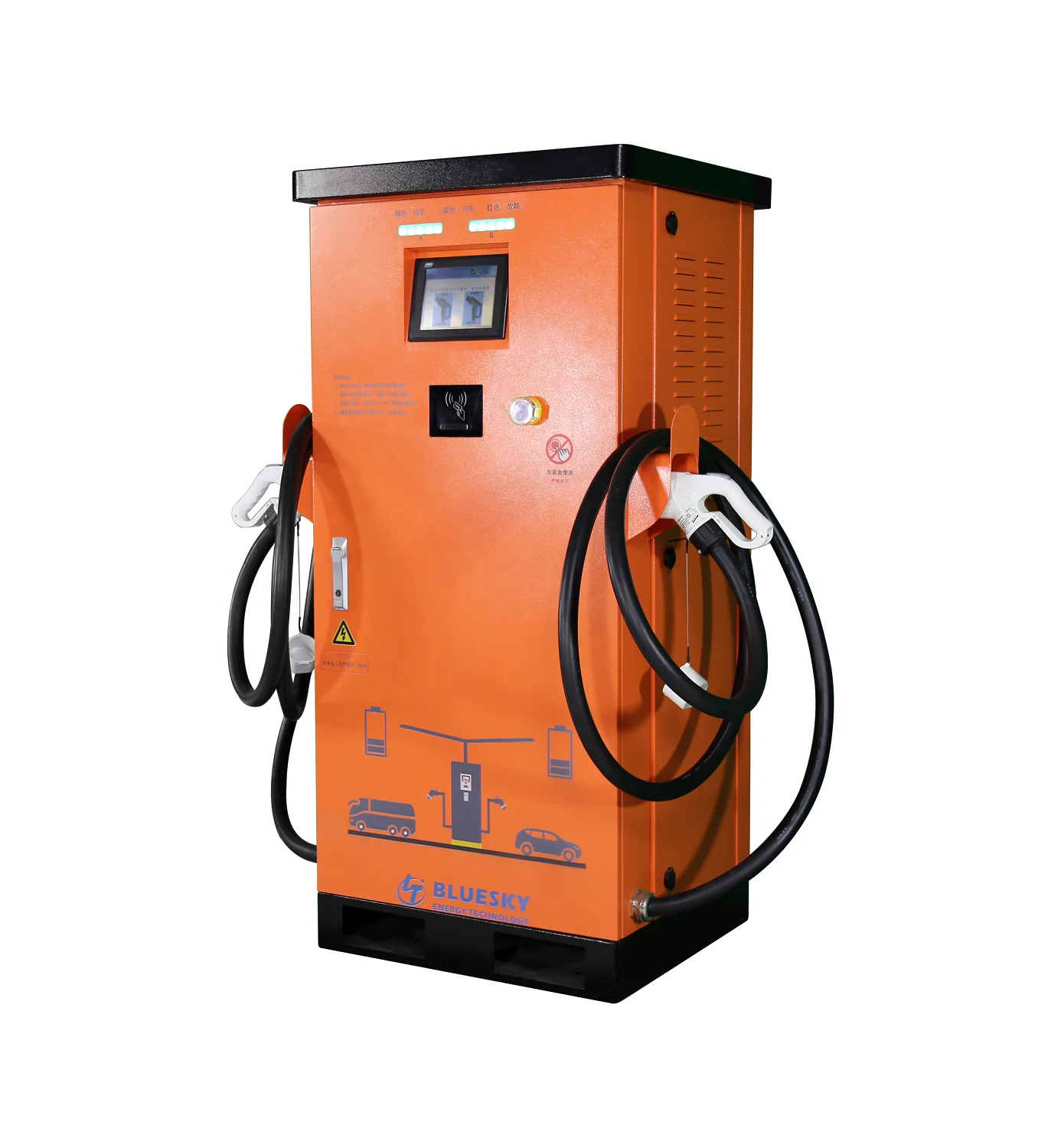

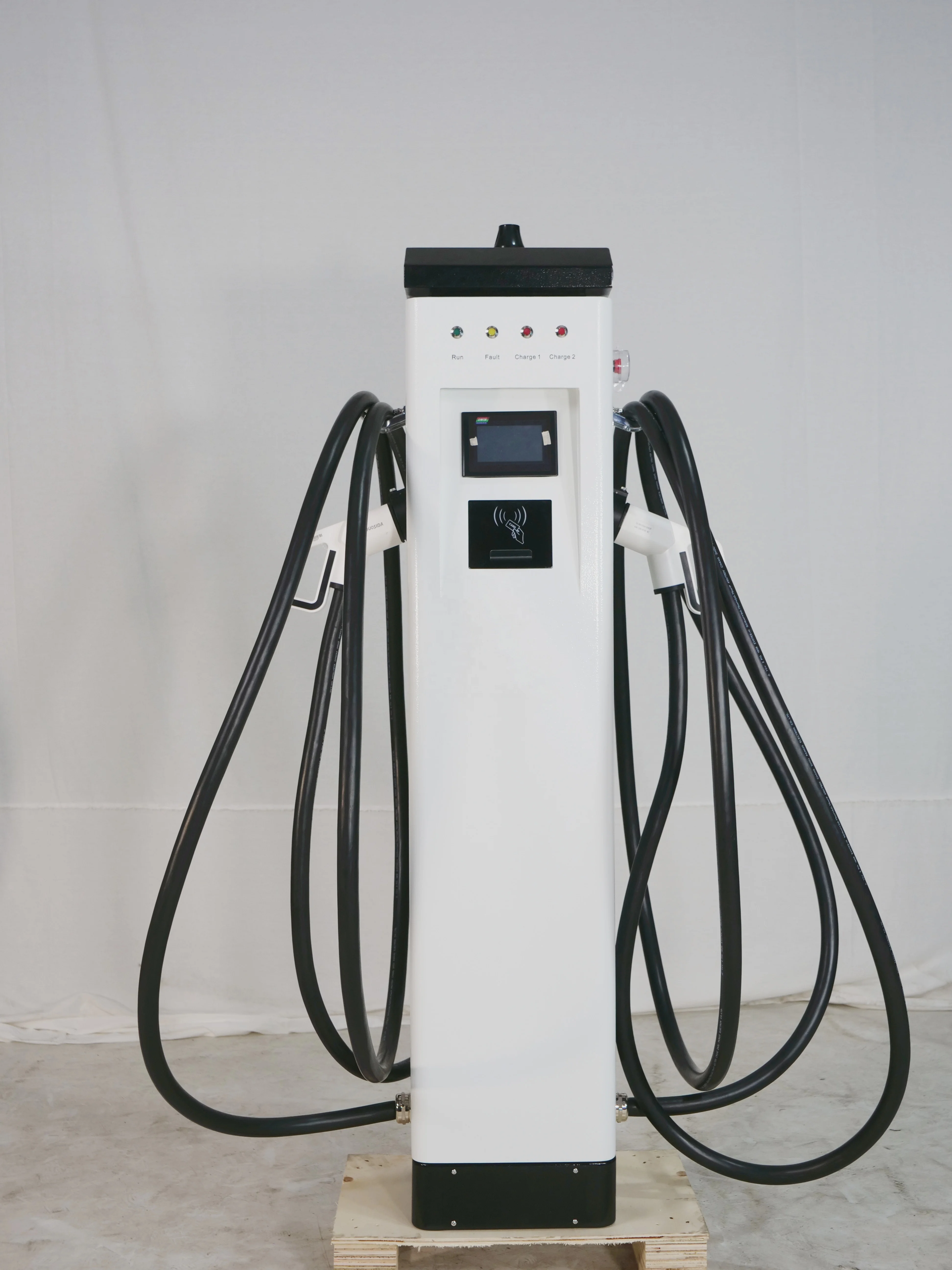

Intelligent Car Charging Piles 120KW CCS DC EV Charging Stations Electric Vehicle Battery EV Charger
- Category: >>>
- Supplier: Wenzhou Bluesky Energy Technology Co. Ltd.
Share on (1600596293988):
Product Overview
Description
AC Input | ||||||||||
Input frequency | 50Hz/60Hz | |||||||||
Input voltage | 3 Phase 400Vac±10% | |||||||||
Power factor | >0.99 | |||||||||
Overall efficiency | 95% | |||||||||
Output | ||||||||||
Output voltage | 50-500/750Vdc | 50-750/1000Vdc | ||||||||
DC output power | 30+30KW | 60+60KW | 80+80KW | 90+90KW | 120+120KW | |||||
DC output gun | GB/T+CCS 1, GB/T+CCS 2, GB/T+CHAdeMO or CHAdeMO+CHAdeMO | |||||||||
AC output power | 7KW | 22kw , 43kw | ||||||||
AC output gun | Type 1,Type 2, GB/T | Type 2, GB/T | ||||||||
General | ||||||||||
Cooling | Air cooling | |||||||||
Applicable Scene | Indoor/Outdoor | |||||||||
Working temperature | -35℃~+50℃(-35℃~-20℃,heating required) | |||||||||
Storage temperature | -40℃~+70℃ | Air cooling | ||||||||
Operating humidity | ≤95% non-condensing | |||||||||
Dimension(W/H/D) | 950*700*1600 | |||||||||
Weight | 250KG | |||||||||
Certificate | CE,TUV,ISO,IP55,IK10 | |||||||||
Maximum altitude | Up to 2000m | |||||||||
