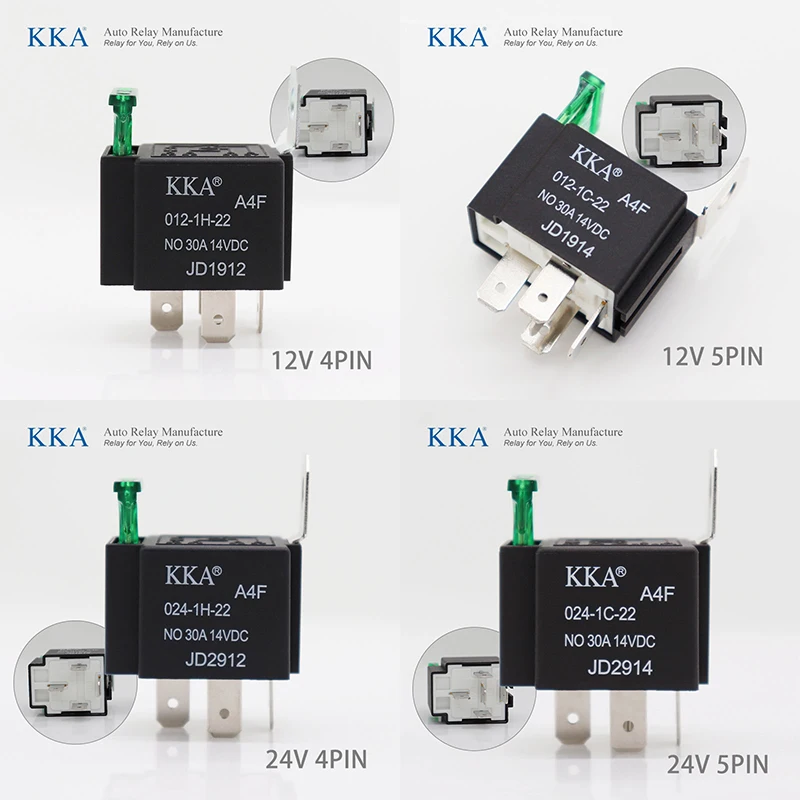

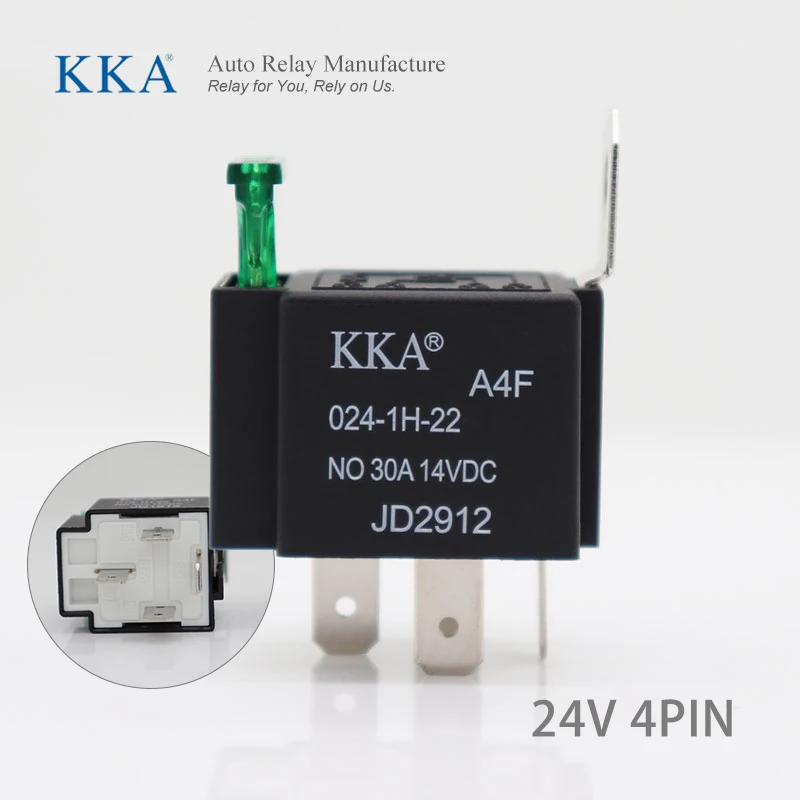

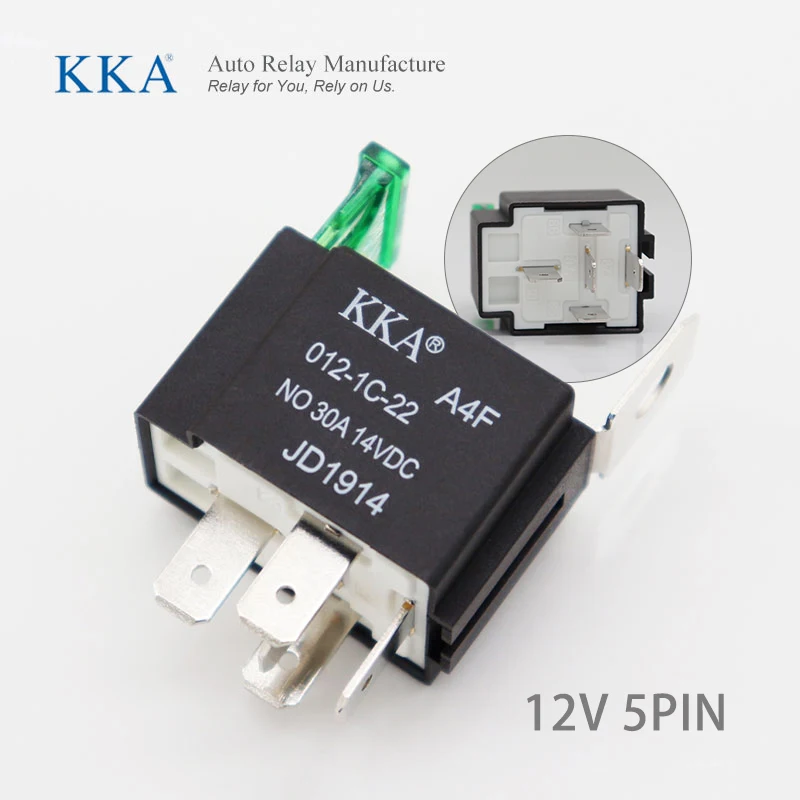

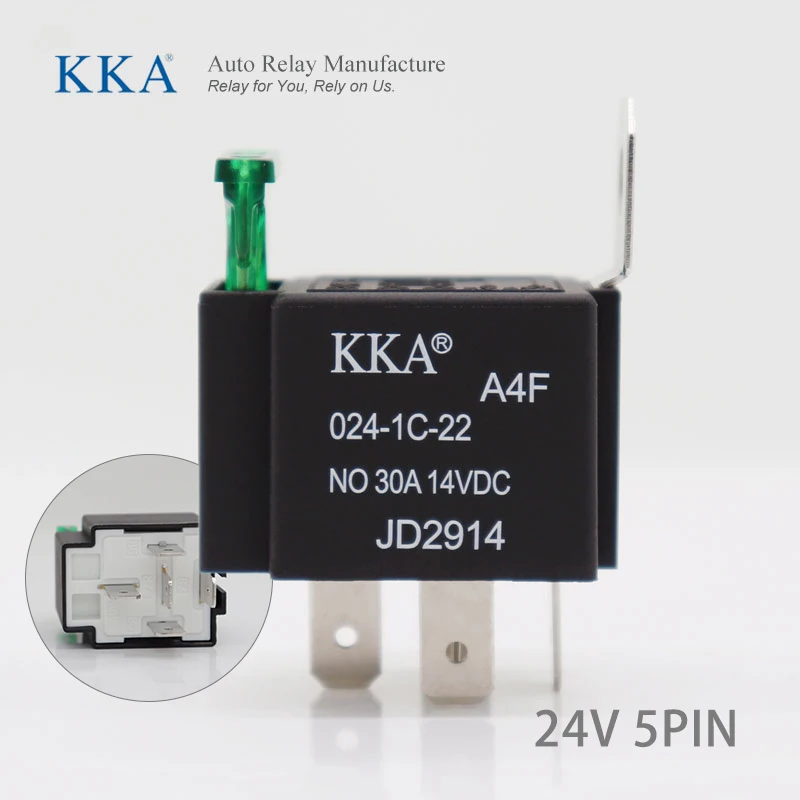

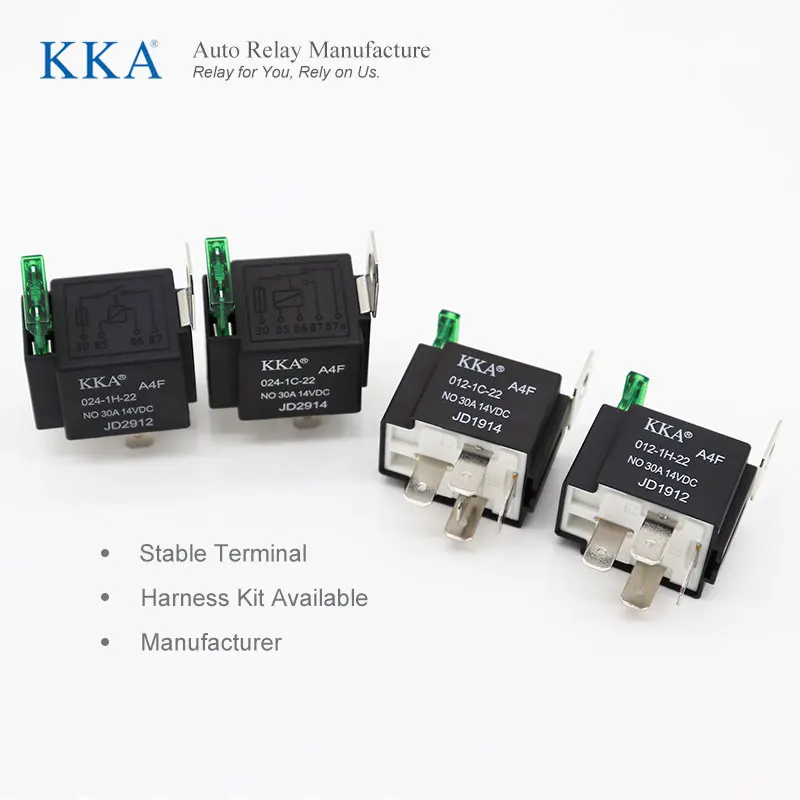

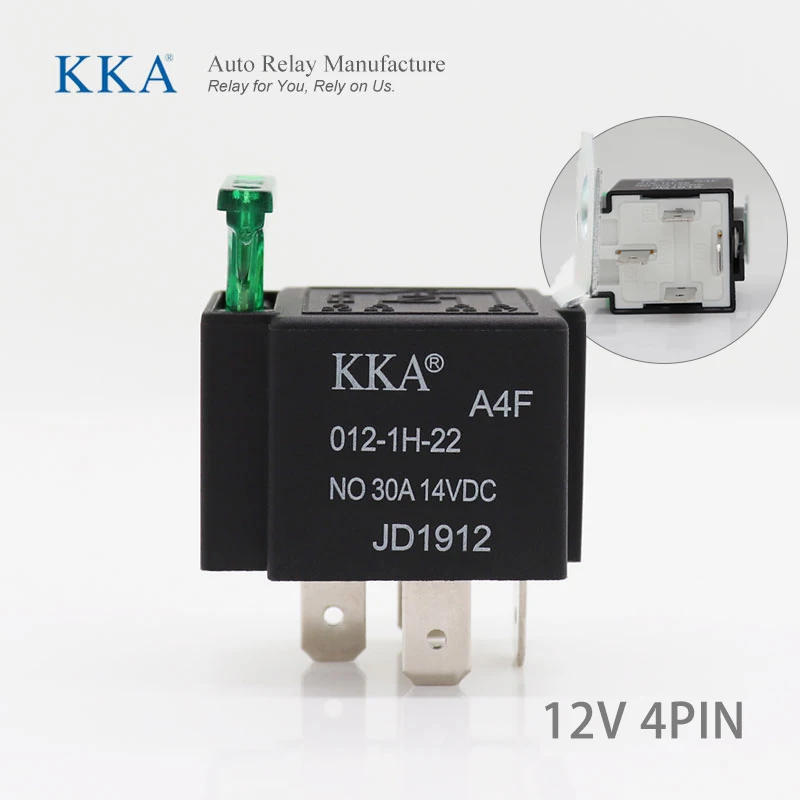

KKA A4F 30A Automotive Fuse Relay 12V/24V 4pin/5pin and Wire Harness Kit, Car Relay with Metal Bracket
- Category: Auto Relays >>>
- Supplier: Zhejiang KKA Electrics Technology Co. Ltd.
Share on (1600596337692):
Product Overview
Description
Please Use Online Customization to Choose Pins/Voltage/Wire Socket.
If no mention of which type auto relays, we will send 12V 4pin 30A Fuse Auto relay without wire socket.
If no mention of which type auto relays, we will send 12V 4pin 30A Fuse Auto relay without wire socket.
About this item

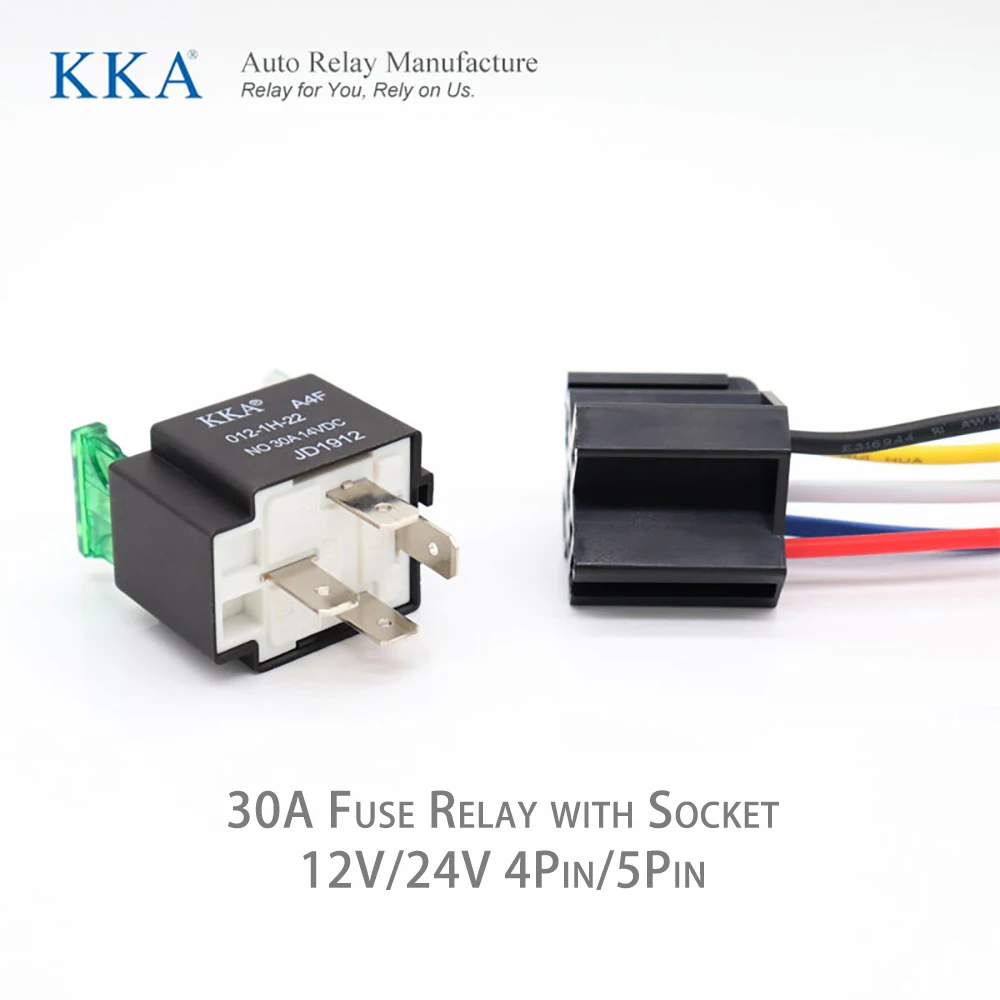

● Upgraded Version - Automotive relays built in fuse socket included 30A blade fuses with heavy duty 14AWG wires for main contact.
● Mounting Design Feature - The interlocking mounting design of unique male and female slot on each socket edge, connect relays together and manage cables easily, offering clean and neat installation.
● Easy Wiring - The relay sockets come with color-labeled wires for load/accessories convenient wiring. Black - Ground (85), Red -VDC (30), White - Trigger (86), Blue - Output N/O (87)
● Wide Application - Widely used in car keys power control, over-load protection, trunk release, polarity change, power doorlock/actuator control, change a low current output to high current, add ignition/accessory outputs, control motors/other
electronics etc.
● Mounting Design Feature - The interlocking mounting design of unique male and female slot on each socket edge, connect relays together and manage cables easily, offering clean and neat installation.
● Easy Wiring - The relay sockets come with color-labeled wires for load/accessories convenient wiring. Black - Ground (85), Red -VDC (30), White - Trigger (86), Blue - Output N/O (87)
● Wide Application - Widely used in car keys power control, over-load protection, trunk release, polarity change, power doorlock/actuator control, change a low current output to high current, add ignition/accessory outputs, control motors/other
electronics etc.
COIL RATING | ||
Coil Volt. | 12VDC/24VDC | |
Coil Power | 1.8W | |
Coil Resistance | 80Ω/320Ω (Q±10%) | |
Pickup Volt. | 8 VDC/16VDC (max.) | |
Release Vol. | 1.2 VDC/2.4VDC (min.) | |
Max. Coil Volt. | 20.2VDC/40.5VDC under 23℃ | |
15.7VDC/31.5VDC under 85℃ | ||
CONTACT RATING | ||
Contact Form | 1A, 1B, 1C | |
Contact material | AgSnO2 | |
Contact Load (resistive) | 13.5VDC | |
Contact Capacity | NO: 30A/14VDC 20A/14VDC | |
Electrical Endurance | 1*105 Item 4.30 of TEC 61810-7 | |
Mechanical Endurance | 1*106 Item 4.31 of TEC 61810-7 | |
25 pcs/box 500 pcs/carton
