Product Overview

Description



Product Description

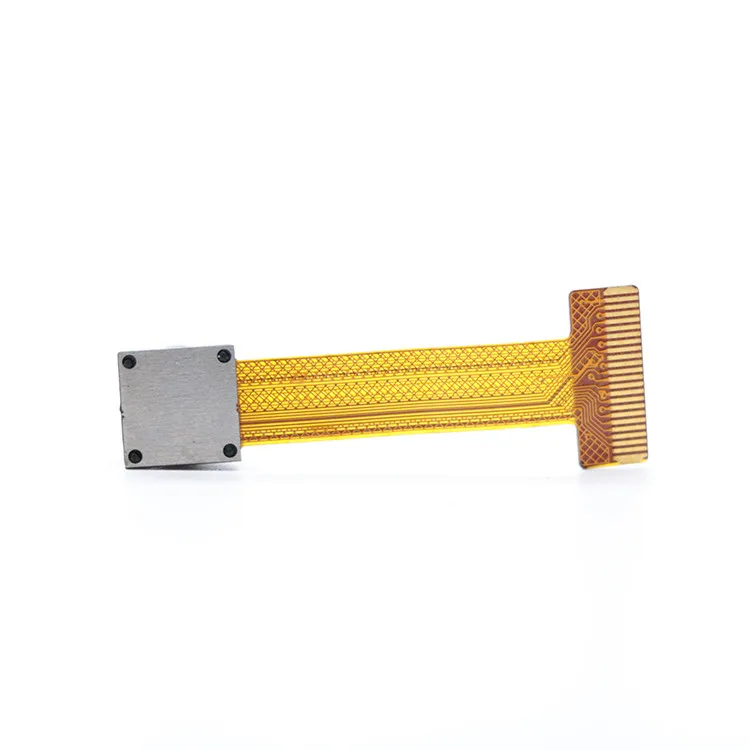

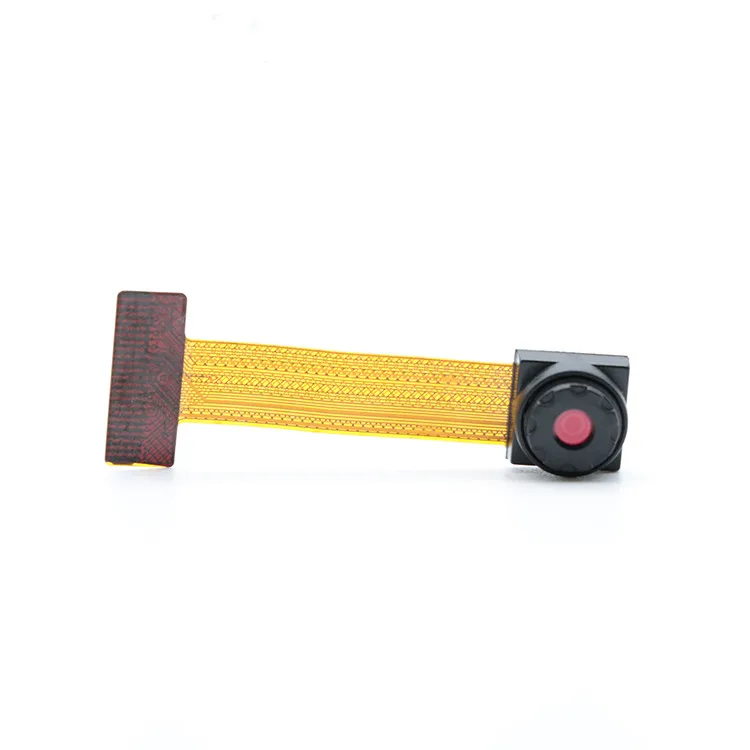

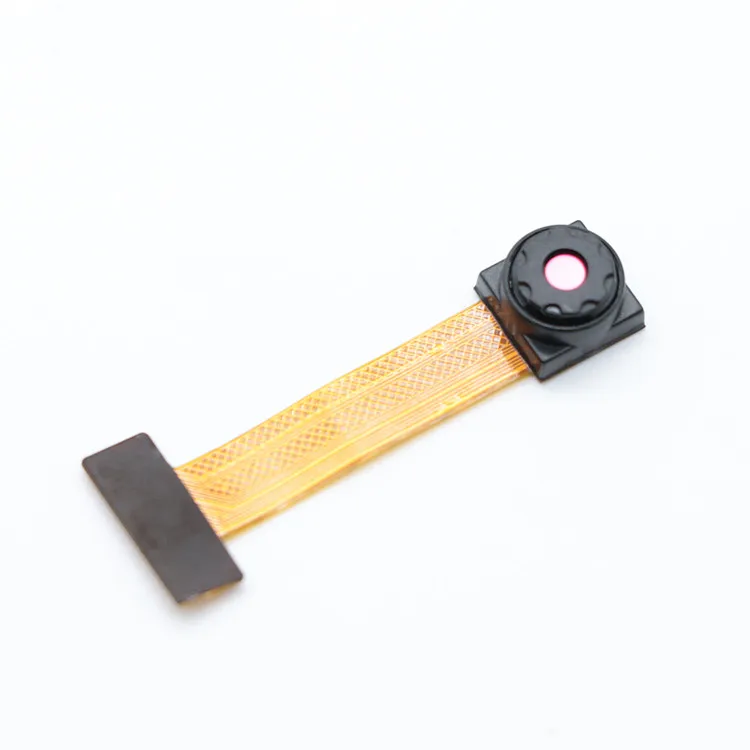

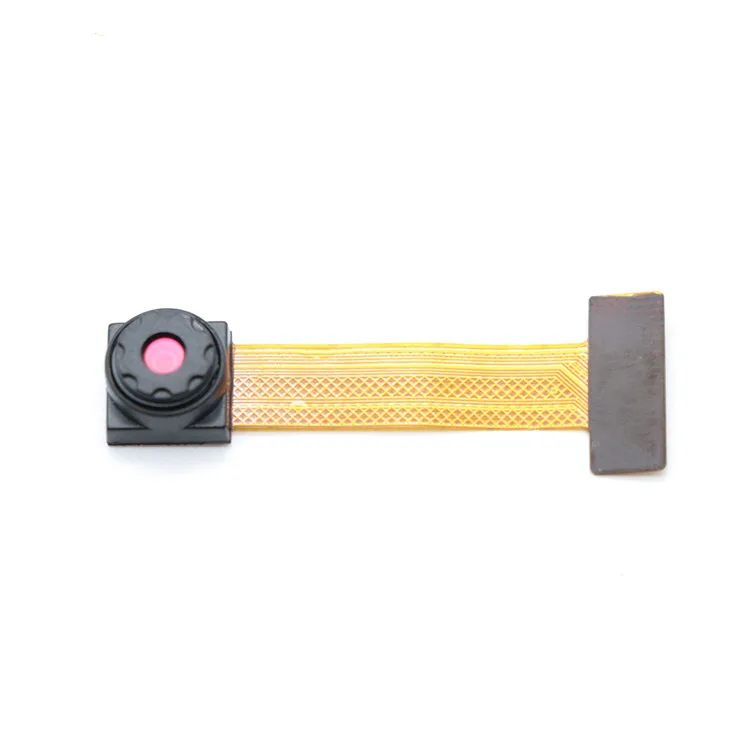

This is a 2MP MIPI camera module with SONY IMX307 sensor. IMX307 has excellent performance in low-light environments, so it is very suitable for face recognition applications. The IMX307LQR-C is a diagonal 6.46 mm (Type 1/2.8) CMOS active pixel type solid-state image sensor with asquare pixel array and 2.13 M effective pixels. This chip operates with analog 2.9 V, digital 1.2V, and interface 1.8 Vtriple power supply, and has low power consumption. High sensitivity, low dark current and no smear are achieved through the adoption of R, G and B primary color mosaic filters. This chip features an electronic shutter with variable charge-integration time.


COMS Sensor
IMX307
Most effective pixels
1920x1080
Pixel Size
2.9pm x 2.9pm
Pixel
2 Mega Pixe
Compression format
MJPEG / YUV2/H.264
Iterface Support
MIPI
Focus
FF
View Angle
FOV: 130° and optional




Product Description

CMOS active pixel type dots
Built-in timing adjustment circuit, H/V driver and serial communication circuit
Input frequency: 74.25 MHz / 37.125 MHz
Number of recommended recording pixels: 1920 (H) × 1080 (V) approx. 2.07M pixel
Readout mode
All-pixel scan mode
720p-HD readout mode
Window cropping mode
Vertical / Horizontal direction-normal / inverted readout mode
Readout rate
Maximum frame rate in Full HD 1080p mode: 60 frame / s
Wide dynamic range (WDR) function
Multiple exposure WDR
Digital overlap WDR
Variable-speed shutter function (resolution 1H units)
10-bit / 12-bit A/D converter
Conversion gain switching (HCG Mode / LCG Mode)
CDS / PGA function
0 dB to 27 dB: Analog Gain 27 dB (step pitch 0.3 dB)
27.3 dB to 69 dB: Analog Gain 27 dB + Digital Gain 0.3 to 42 dB (step pitch 0.3 dB) ◆Supports I/O switching
Low voltage LVDS (150 m Vp-p) serial (2 ch / 4 ch switching) DDR output
CSI-2 serial data output (2 Lane / 4 Lane, RAW10 / RAW12 output)
Recommended exit pupil distance: –30 mm to –∞

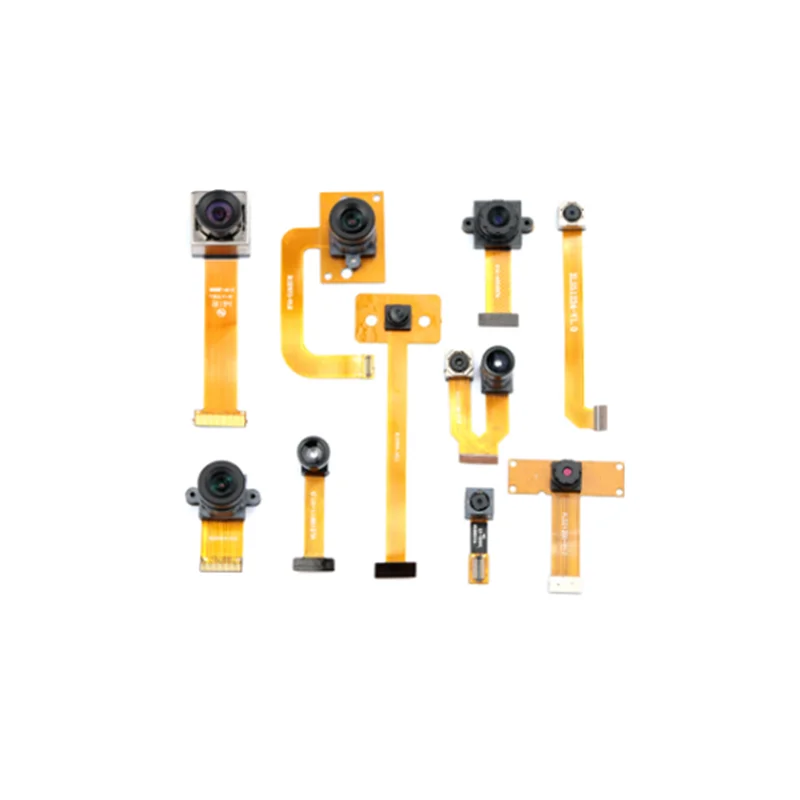

Camera Customization
According to the actual application scene and functional target, the camera module needs to comprehensively consider the connector, the PIN arrangement, PFC construction to adapt your platform. Therefore it need to be customized, we can do ODM/OEM camera module based on your requirements. Including sensor, lens fov. FPC shape, different FPC length, lens FOV, total height, imaging orientation, pins/connector....
Please contact our customer service to inform you which product you want the camera to be used on? What functions are implemented? Any special requirements? According to the cost target and other comprehensive factors,
we help to choose and design the product according to your requirements.

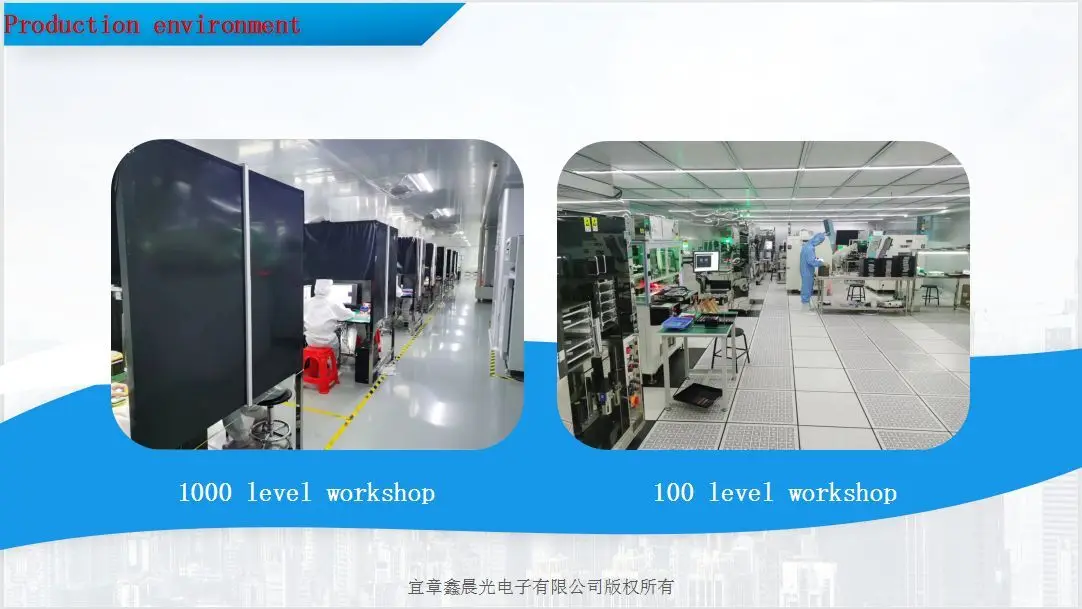

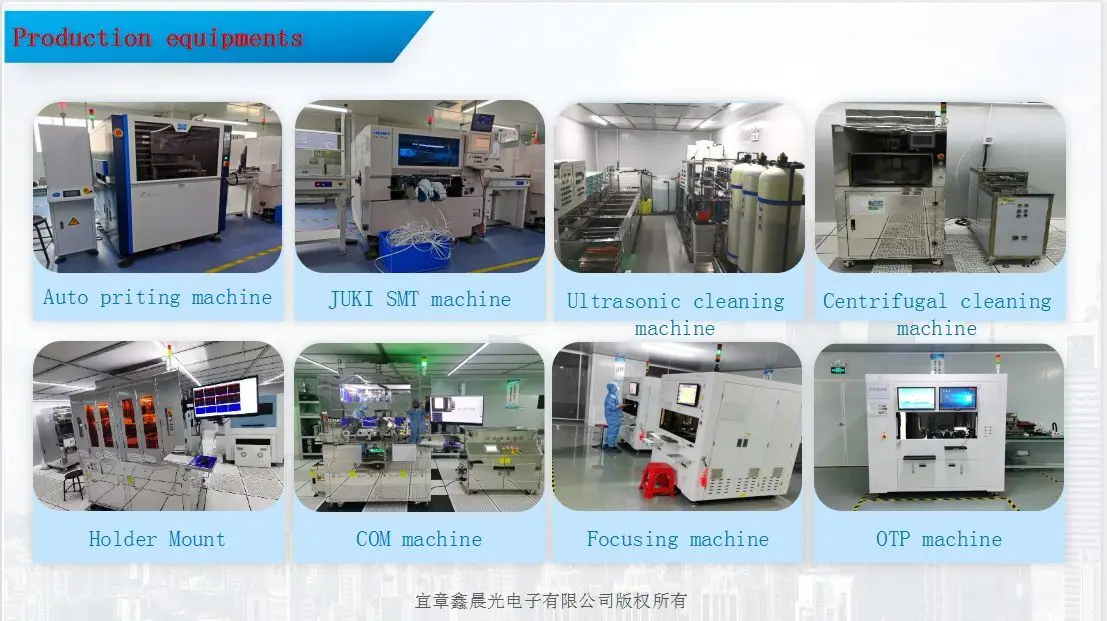

Company Profile
