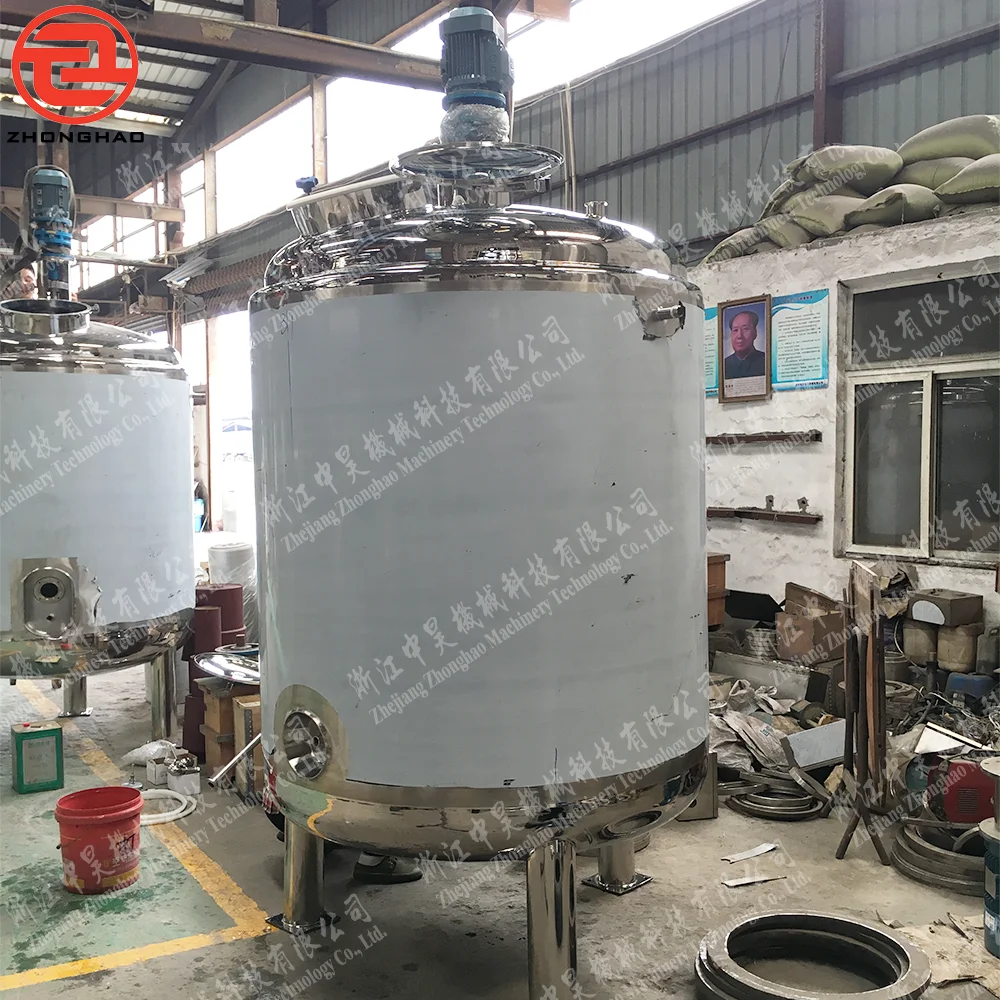

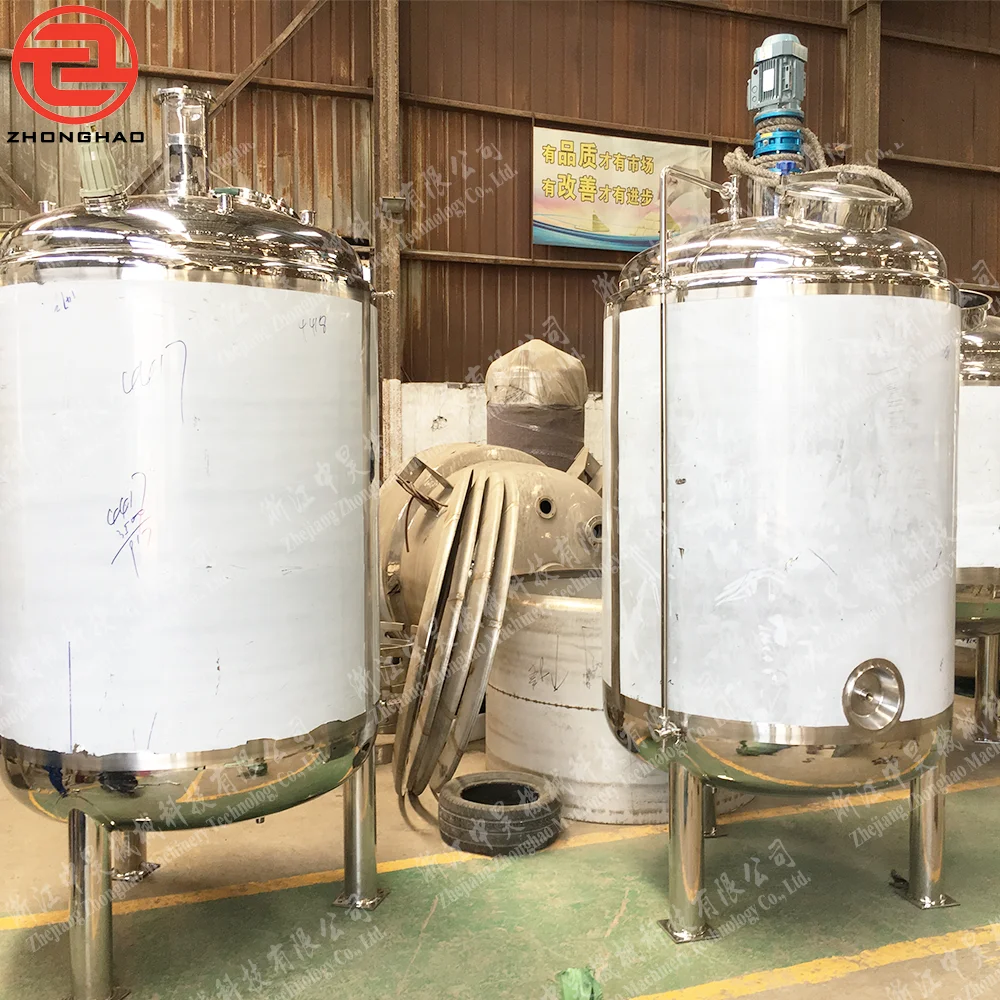

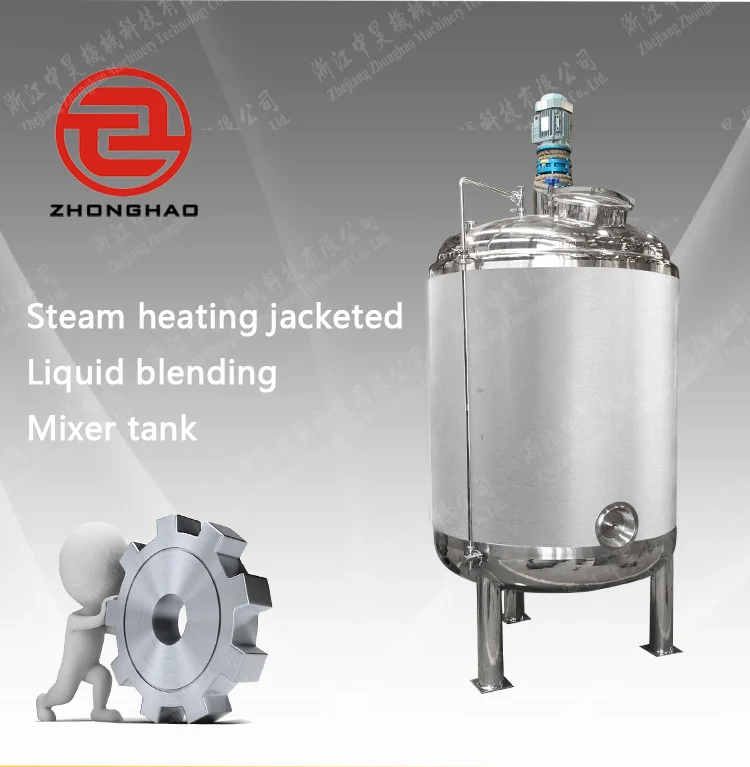

Stainless steel Rice Cake Mixing Equipment Anti Mosquito Paste Manufacturing Machine Perfume Cosmetic Mixing Tank with Agitator

Products Name

Material

SS304/SS316L

Jacket: full jacket ,dimple jacket , coil tube

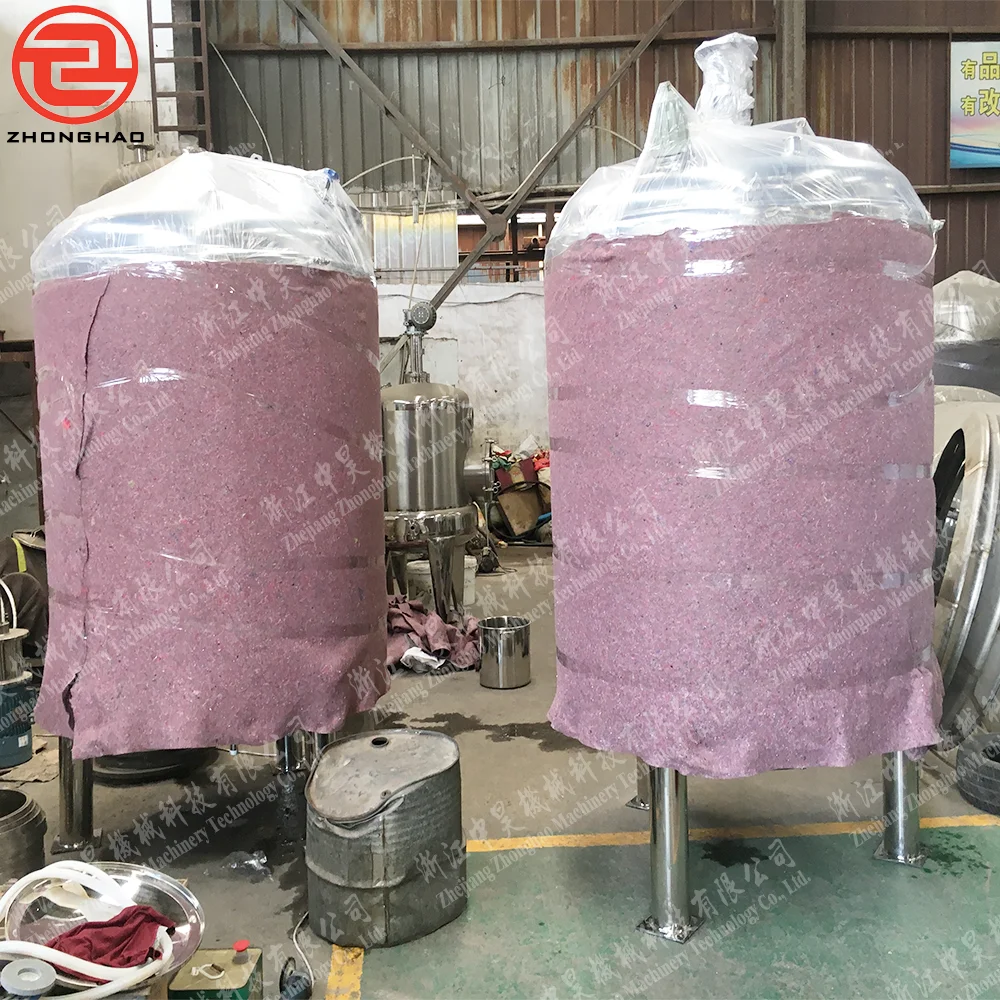

Insulation layer: PU / rockwool

as to the thickness, we can make it according to your requirement.

Description:

Designed according to 3A standard, widely used for transfer viscous media in the food-processing, cosemtics and pharmaceutical industries

Heating mothed:

By electricity (oils or water), by steam , circulation heating (hot water or oil)

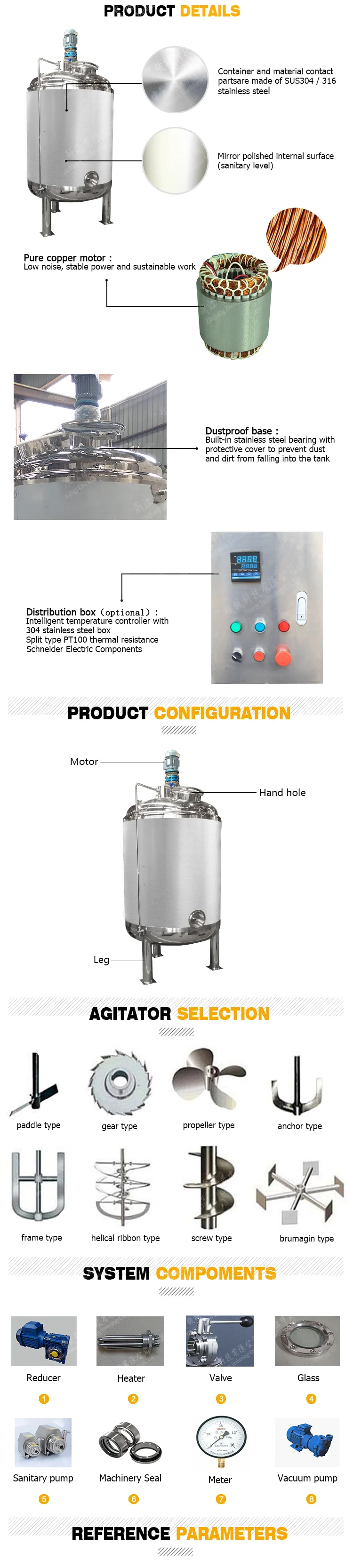

Configuration:

1.manhole

2.CIP spraying ball

3.adjusting feet

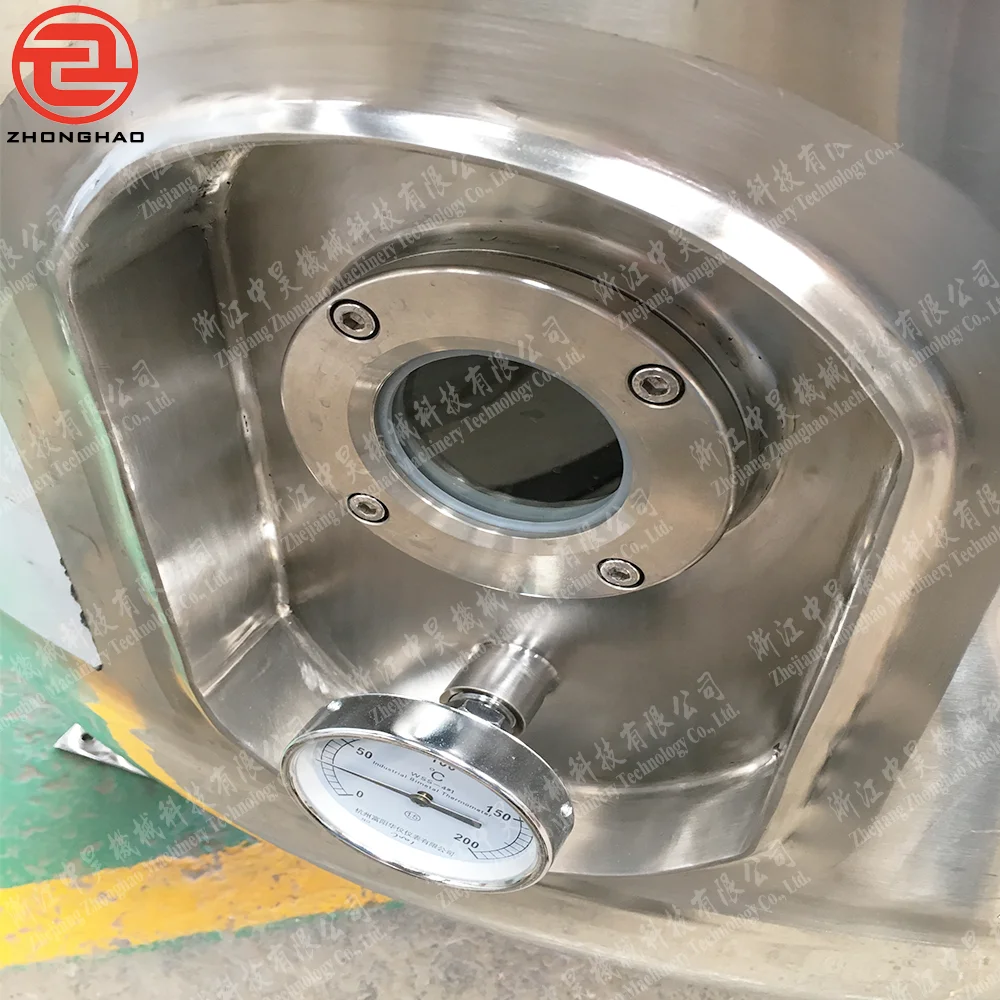

4.sight glass

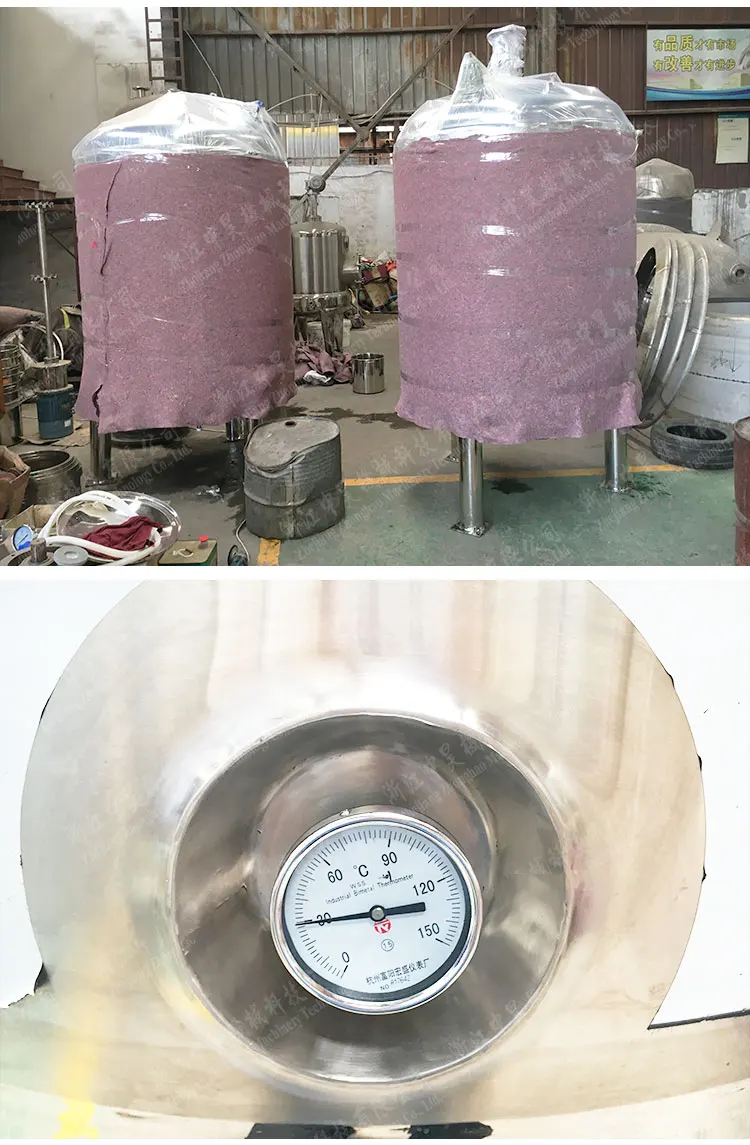

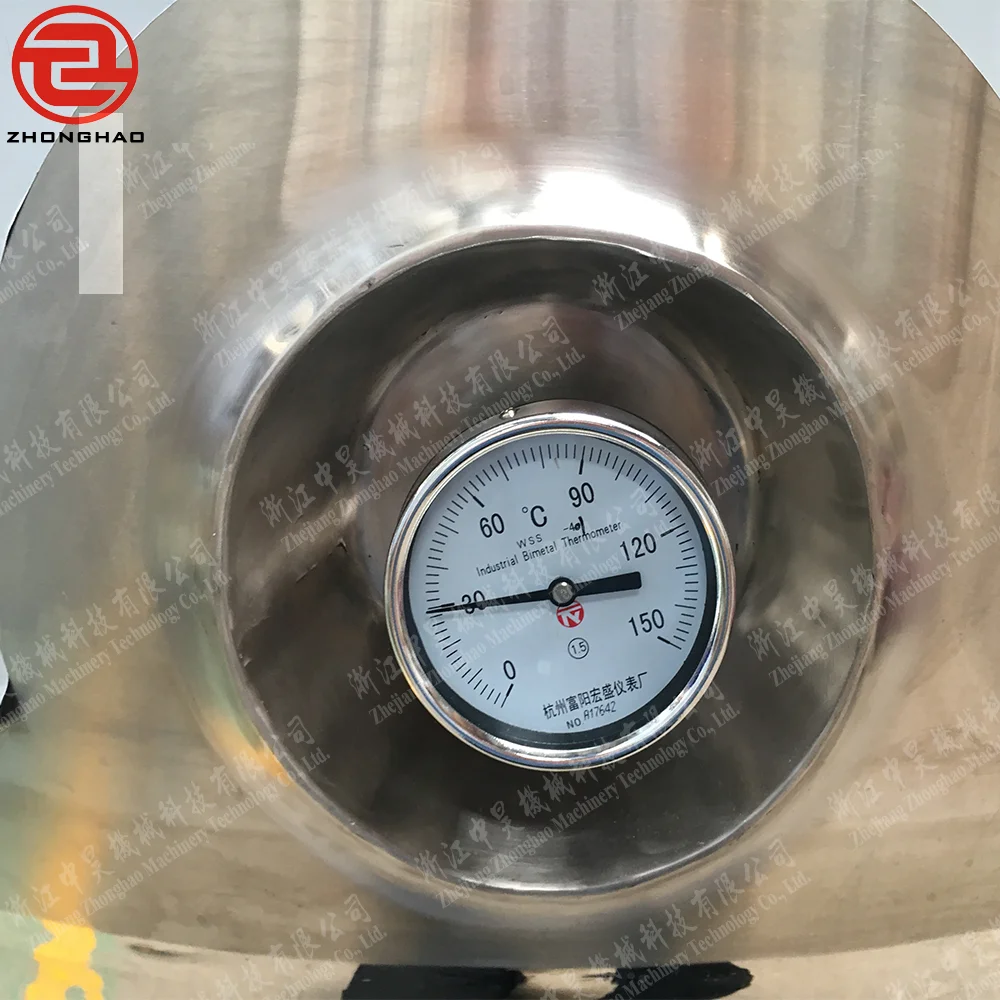

5.temperature gauge

6.pressure gauge / vacuum gauge

7.breather

Capacity:

50L-10000L

Mixer Type:

High shear Homogenizer or Agitator ( anchor , frame , stirrer with side scraper , blade ,impeller )

Mechanical seal:

SIC/SiC/EPDM(Standard)

Agitator power:

0.55kw -75KW

Sealing option:

Sanitary single mechanical seal/Double mechanical seal with cooling system

Voltage:

220V -480V

Motor:

ABB, SIEMENS , SEW , Domestic

Surface treatment:

Inner polished and outside polished

Availably connection:

Clamp, Thread Butt weld, Flange

Availably standard:

DIN, SMS, 3A, RJT, ISO/IDF

Operated:

Electic

Application scope:

Dairy, food, beverage, pharmacy, cosmetic, etc

Packaging Details:

Export Plywood case

Delivery details:

Usually within 25-30 days after receiving T/T down payment
