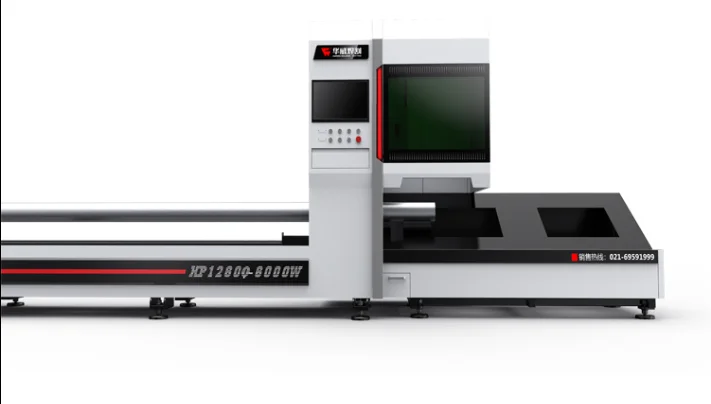

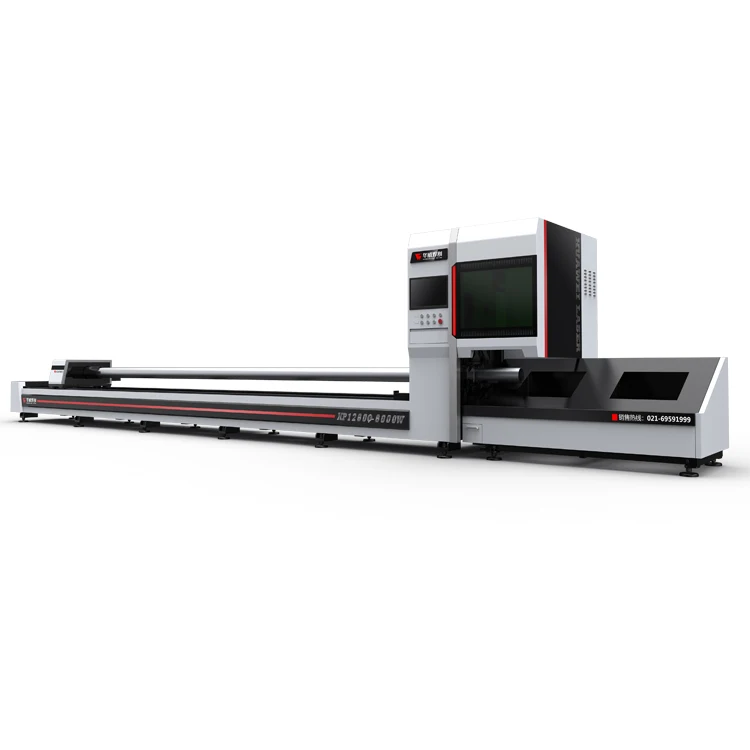

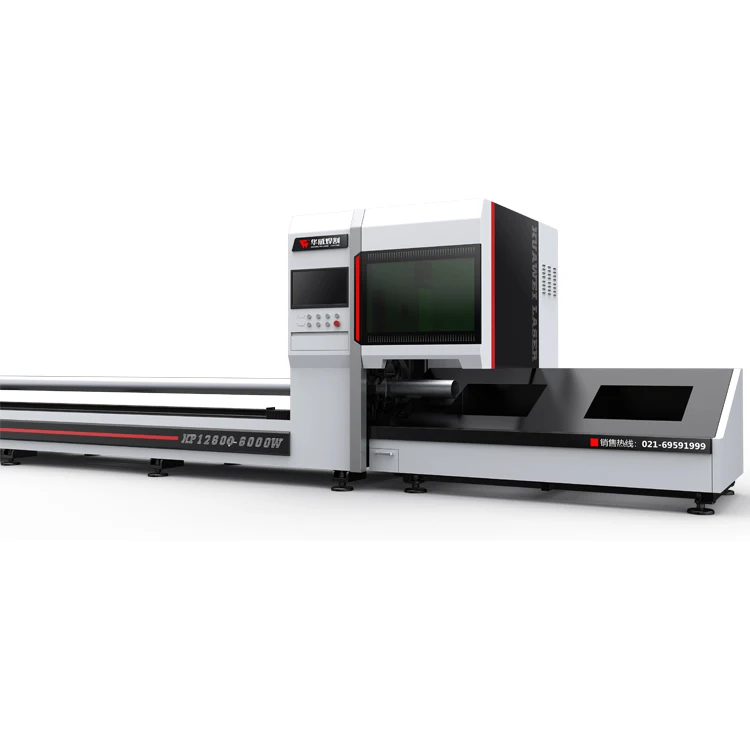

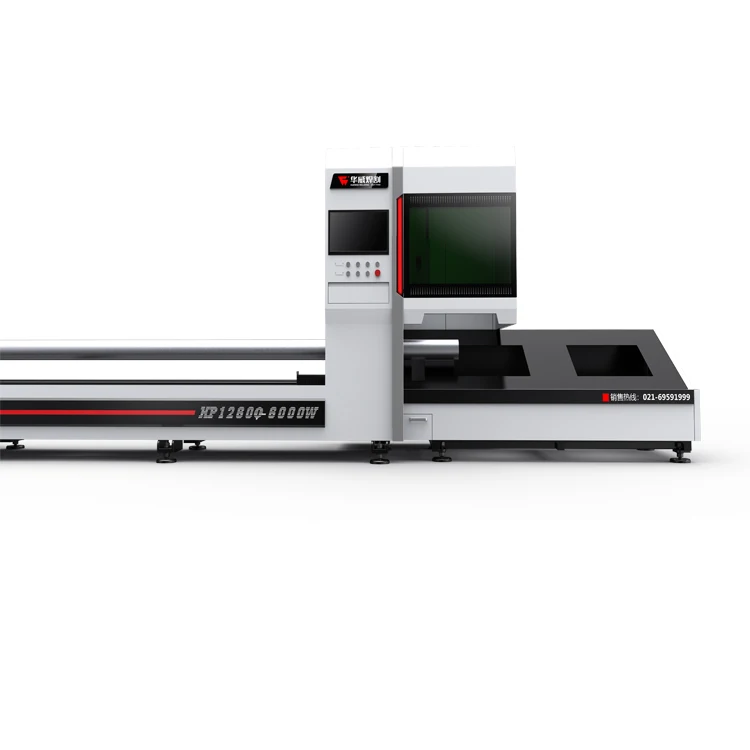

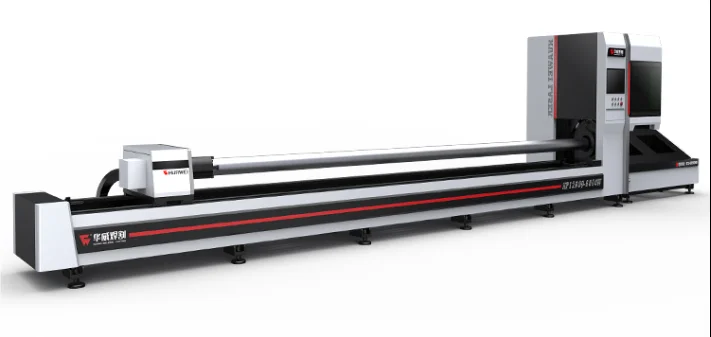

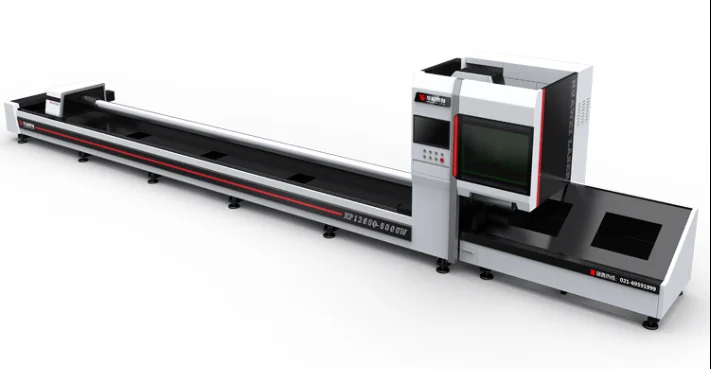

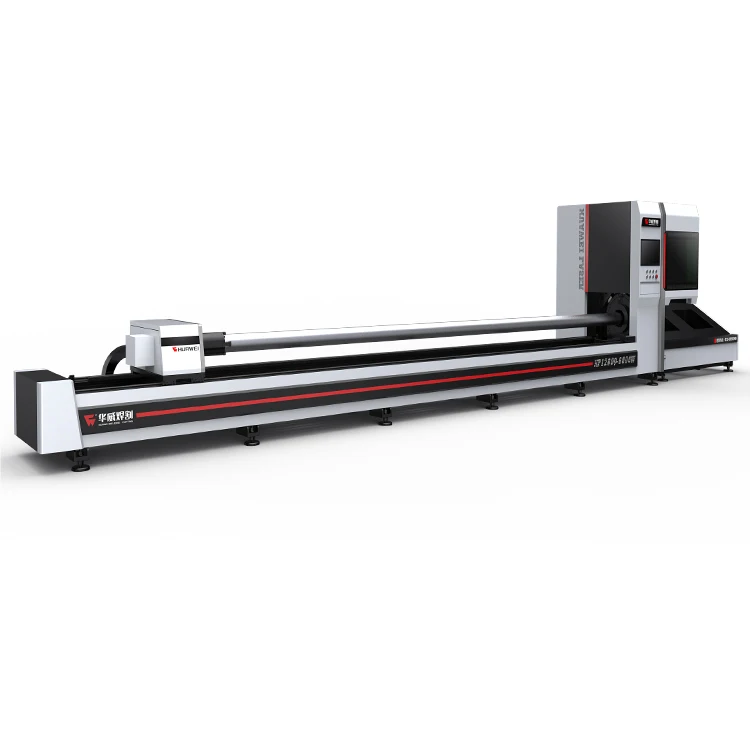

shanghai good cost laser tube pipe cutting machine

Product Overview

Description



Features for fiber metal laser cutting machine

1.Metal Tube and Plate Dual Use

In order to meet the increasingly complex needs of consumers, Gweike is targeted at market demand, independently developed LF3015CR sheet and pipe integrated laser fiber cutting machine, one machine dual purpose, this machine solves double cutting needs by one time.

2.Clamp Design
It adopts an electric clamp design on both sides and it can modulate the center automatically. The diagonal adjustable range is 20-200mm.
3.Exchanging Platform
It adopts an up and down exchange platform, and the converter is responsible for controlling the exchanging motor.
The machine is able to finish the platform exchanging within 15s.
4.3rd Generation Aviation Aluminum Gantry
It is manufactured with aerospace standards and formed by 4300 tons press extrusion molding. After aging treatment, its strength can reach 6061 T6 which is the strongest strength of all gantries. Aviation aluminum has many advantages, such as good toughness, light weight, corrosion resistance, anti-oxidation, low density, and greatly increase the processing speed.
5.Dual Use and Cost-saving
LF3015GCR fiber laser cutting machine can not only cut metal plates, but also metal pipes. It has many uses and can save the space of more than 50%, which effectively improve productivity.
6.Fractional Automatic Support Installation
It employs intelligent tube support design, which can solve the deformation problems in the process of long tube cutting.

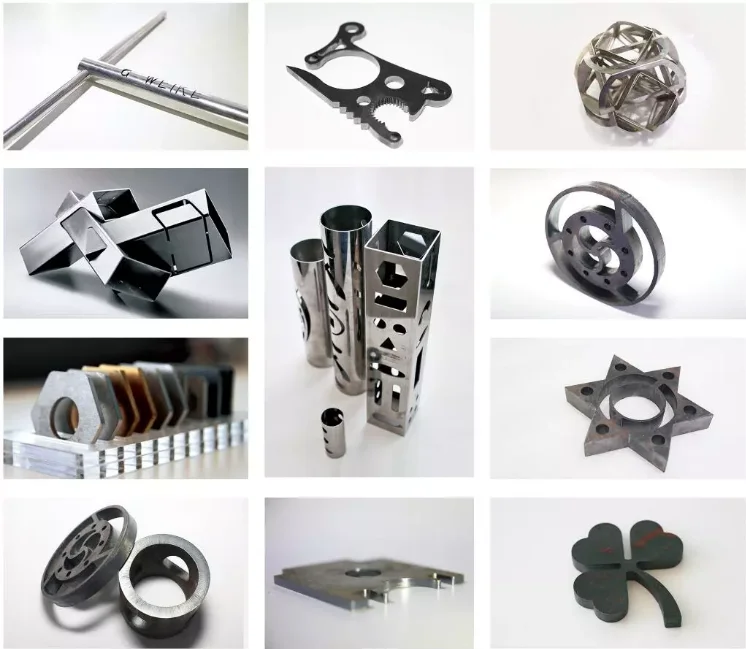

Fiber Laser Cutting Equipment is suitable for metal cutting with Stainless Steel Sheet(tube), Mild Steel Plate(tube), Carbon Steel Sheet(tube), Alloy Steel Plate, Spring Steel Sheet(tube),, Iron Plate(tube),, Galvanized Iron(tube),, Galvanized Sheet, Aluminum Plate(tube),, Copper Sheet(tube),, Brass Sheet, Bronze Plate, Gold Plate, Silver Plate, Titanium Plate, Metal Sheet, Metal Plate, Tubes and Pipes, etc
Application Industries

Fiber Laser Cutting Machine is widely used in manufacturing Billboard, Advertising, Signs, Signage, Metal Letters, LED Letters, Kitchen Ware, Advertising Letters, Sheet Metal Processing, Metals Components and Parts, Ironware, Chassis, Racks & Cabinets Processing, Metal Crafts, Metal Art Ware, Elevator Panel Cutting, Hardware, Auto Parts, Glasses Frame, Electronic Parts, Nameplates, etc



Machine model	LF3015GCR
Laser type	Import original fiber laser
Laser power	1000W/2000W/3000W/4000W
Weight	7800kg
Dimensions	4440mm×2500mm×1860mm/7800x3580x2150mm
Working area	3000×1500mm/4000mm*2000mm
Repeat positioning accuracy	±0.02mm
Maximum speed	80m/min
Maximum acceleration	1.5G
Transmission	Double driver rack gear
Power consumption	<10KW
Power supply	380V/50Hz/60Hz/60A







Quality is our paramount mission that underpinning the lifeline of the company, and it is the most important factor to maintain long-term business relationships with customers. Special attention is paid to the quality of every unit of fiber laser cutting machine.  Standard quality control system and team are responsible to insure the product quality in every process with different instruments like laser interferometer and laser power meter. The laser interferometer and laser collimator are used through the mechanical assembling process. In the laser assembling  process,the laser power meter and optical microscope are adopted.
