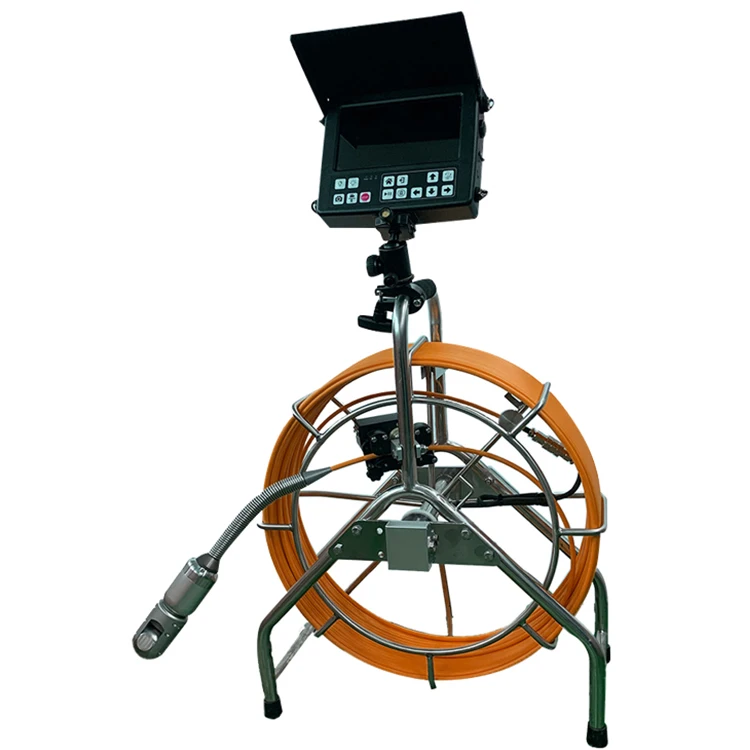

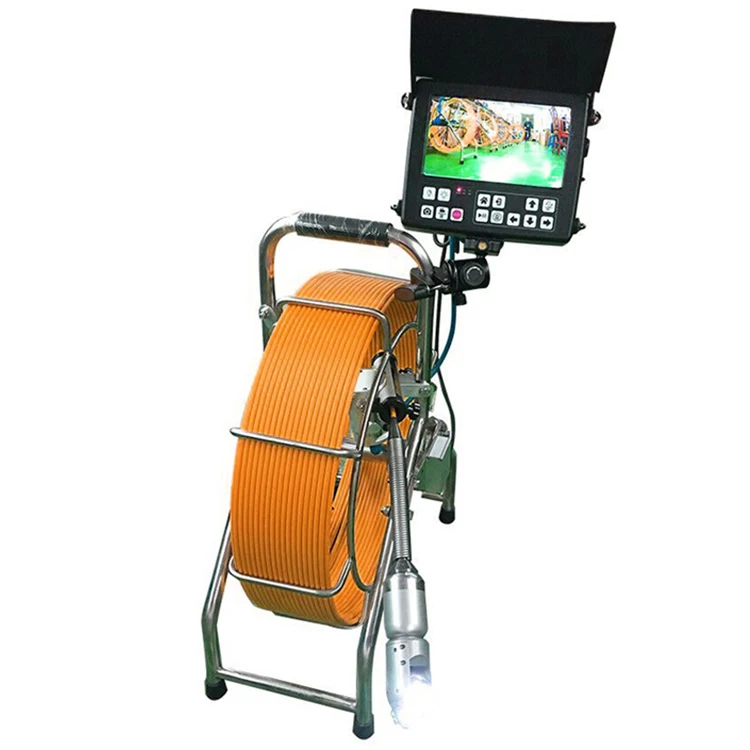

sewer inspection camera for pipe wells underground camera inspection kit
- Category: >>>
- Supplier: Shaanxi Granfoo Intelligent Technology Co. Ltd.
Share on (1600596401037):
Product Overview
Description
1. 360 degree rotation camera head, Pan 360°,Tilt 180° |
2. 1/3 CMOS,1.3MP pixel AHD camera head, waterproof up to 10 bars |
3. 8 inch IPS lcd screen, 1280*720 resolution |
4. DVR control box with audio ,video recording and photography function |
5. USB wireless bluetooth keyboard to typewrite the words |
6. Camera video resolution is 720P |
7. Built in 7000mA li-ion battery inside ,support uint working more than 4 hours |
8. Digital meter counter function, error is less than 1%. |

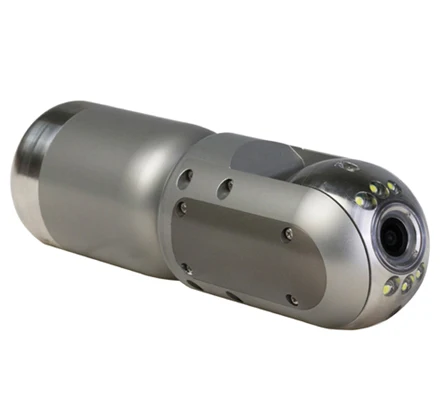

Camera Head
Camera size 50mm x 154mm, sensor 1/3" CMOS ,1.3MP pixel |
Waterproof IP68 up to 10 bar |
View range 120° |
Rotation: Pan 360°, Tilt 180° |
lens position automatic reset |
6pcs high light LED lighting adjustable |
Detachable connection to Cable Reel |
Lens window sapphire glass |
stainless steel LED cover, anti-scratch |
Built-in 512Hz transmitter optional |
Cable Reel
Fiberglass push rod cable |
Cable diameter 7mm |
Cable length 60m |
Reel brake available |
Reel size L510*W250*H640mm |
Updated digital meter counter,error rate less than 1% |

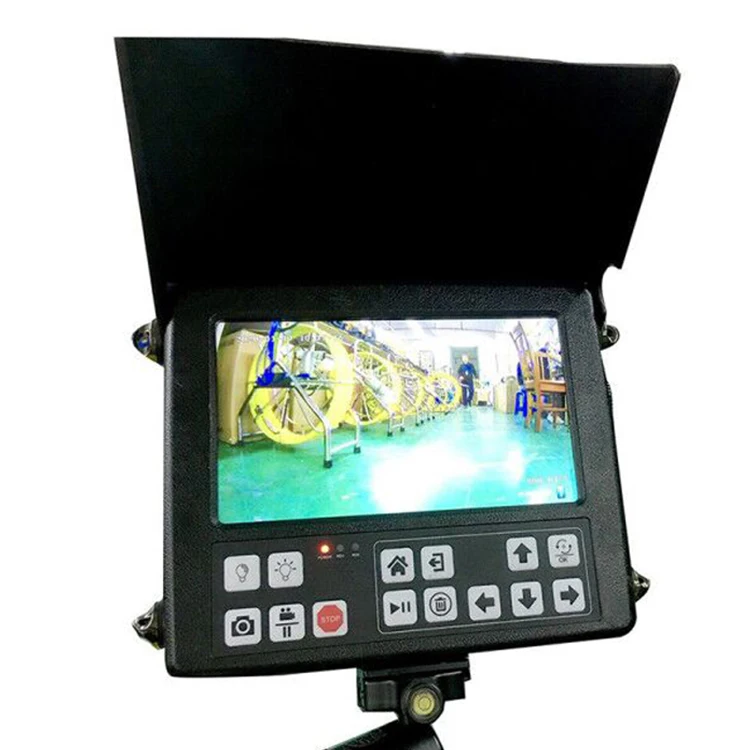

Multiple DVR control unit
8"HD IPS LCD Screen, 1280X720 resolution, 16:9 display model |
HD DVR SYSTEM with recording 720P video |
DVR recording system with AVI video format |
Waterproof LCD panel |
USB wireless Keyboard real time typewriting |
USB port to connect storage device ( 16G USB flash disk) |
Built-in 7000mA rechargeable Li-ion Battery Pack |
Battery level indicator |
Sunshade is included |
Box size 23x20x5cm |
AC 110V-240V 1.5A power charger |
Charging time 7 hours,working time about 4 hours |
Can fix on the cable reel, can be handhold, can hang on the neck(optional) |
Standard skid
Plastic & nylon
Dia. 85mm
Dia.220mm
Dia. 85mm
Dia.220mm
Stainless steel roller skid
Stainless steel & nylon
Size adjustable
Min Dia 280mm Max Dia.450mm
Carrying bag
Size: 32x22x25cm
Easy to carry
Include: Camera head
Control unit
Wireless keyboard
Test cable
Link cables
User manual
Easy to carry
Include: Camera head
Control unit
Wireless keyboard
Test cable
Link cables
User manual
Shaanxi Granfoo Intelligent Technology Co., Ltd. is a High-tech intelligent enterprise. Specialized in designing, R&D,manufacturing and exporting : pipe inspection cameras, underwater cameras,water well inspection cameras,underwater connectors,and water quality monitor muti-parameter sensor, etc.
Our company established in 2009 ,with 12 years exporting experiences. we have obtained CE, ISO ,TUV & Patent Certificate,etc.
Ourproducts are mainly exported to Europe, North America, South America, Japan, Korea, Australia, etc.
We have an independent factories, professional engineers, excellent sales staff , 24- hour after-service. Customer satisfaction is our aim.
Ourproducts are mainly exported to Europe, North America, South America, Japan, Korea, Australia, etc.
We have an independent factories, professional engineers, excellent sales staff , 24- hour after-service. Customer satisfaction is our aim.
More Photos:
Safety certifications: ETL(North America）GS, CE, EMC,CB,SAA (Europe and other markets)
Chemical certifications: RoHS, REACH, AZO, OKOTEX (Europe and other markets)
Factory certifications: BSCI, IS09001
ORDERS ALL OVER THE WORLD
ASIA, AUSTRALIA, EUROPE AND AMERICA ,
ASIA, AUSTRALIA, EUROPE AND AMERICA ,
SO FAR EXPORTED TO MORE THAN 50 COUNTRIES.
PAYMENT:
1.We usually use T/T.
2.T/T 30% deposit before production and balance 70% before delivery or against B/L copy if sea shipment.
3.100%L/C sight of sea shipment.
4.Westunion.
3.100%L/C sight of sea shipment.
4.Westunion.
SHIPPING:
1.If the quantity of order is not very big,we could send them to you by express delivery,such as TNT, DHL,
UPS OR EMS etc.
2.If order is big ,We will advise you use Air Shipping or Sea Shipping through your nominated forwarder
2.If order is big ,We will advise you use Air Shipping or Sea Shipping through your nominated forwarder
agent.Our long-term cooperated agent also available.
FOB port is Shenzhen.
3.Freight collect if bulk shipment.
..........................................................................
Mobile: +86 18192979488(Whatsapp)
E-mail : sales08@granfoo-cn.com
Address:1111,Block A,Lvdi Lanhai,Jinye Road, Xi'an,Shaanxi,China
1. Q: Are you a manufacturer?
A: Yes, we have been offering specialized products in this field for 15 years.
2. Q: How do you packthese products?
A: Usually packed according to export standard or your requirement.
3. Q: Is it customizable?
A: Yes, according to your requirements.
4. Q: After-sales service ?
A: 24-hour technical support by phone, email or skype.
A: Usually packed according to export standard or your requirement.
3. Q: Is it customizable?
A: Yes, according to your requirements.
4. Q: After-sales service ?
A: 24-hour technical support by phone, email or skype.
