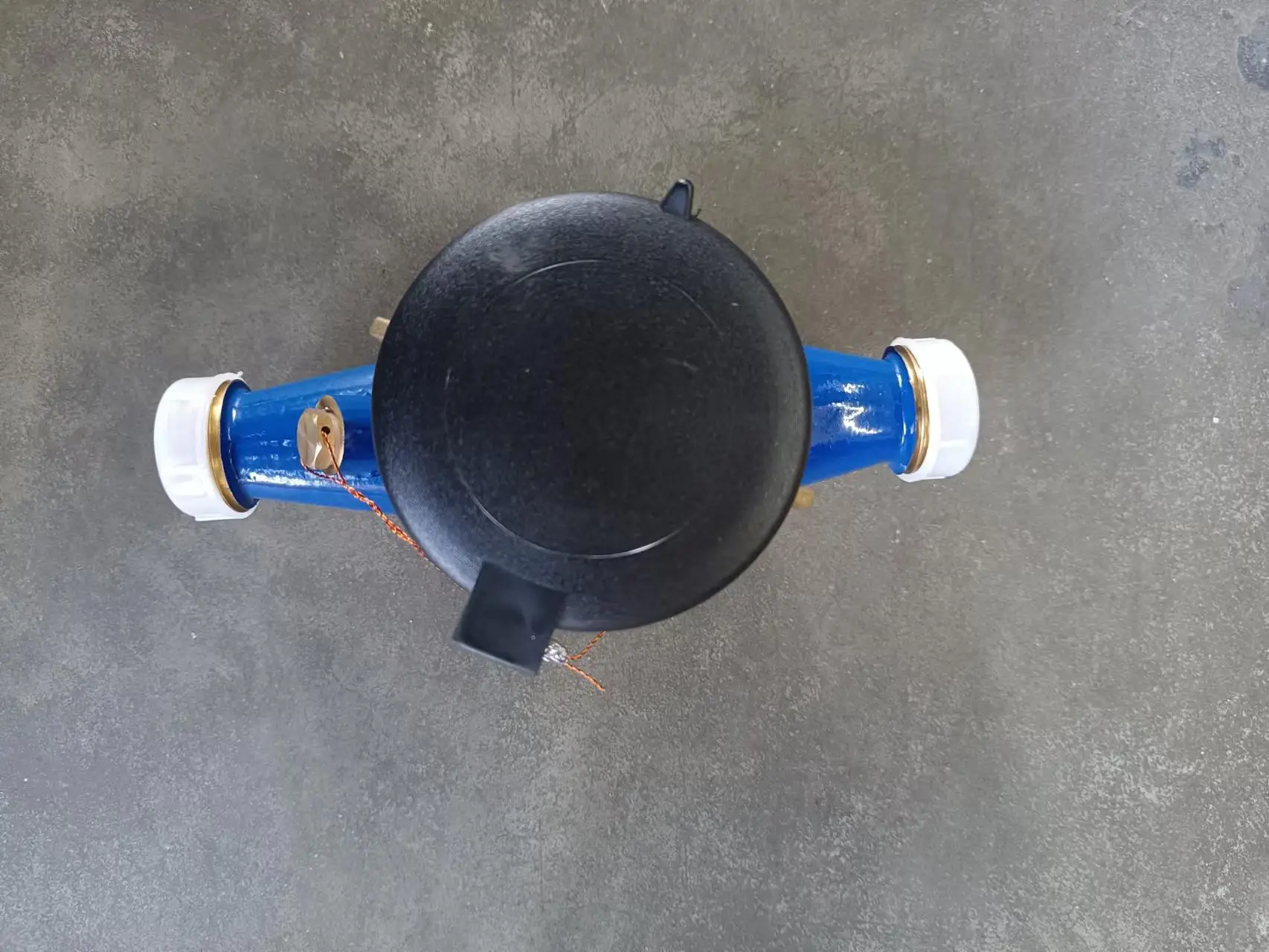

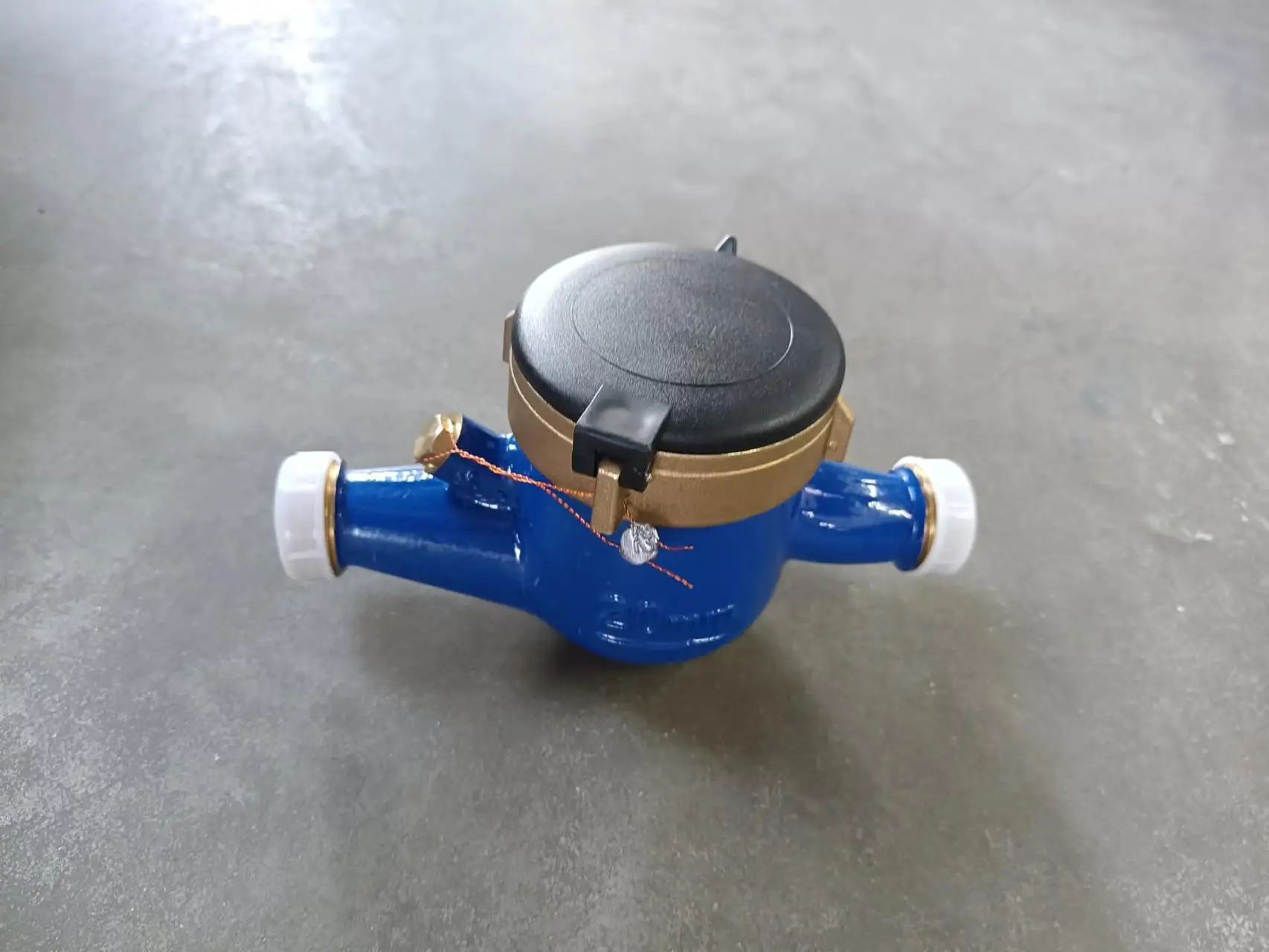

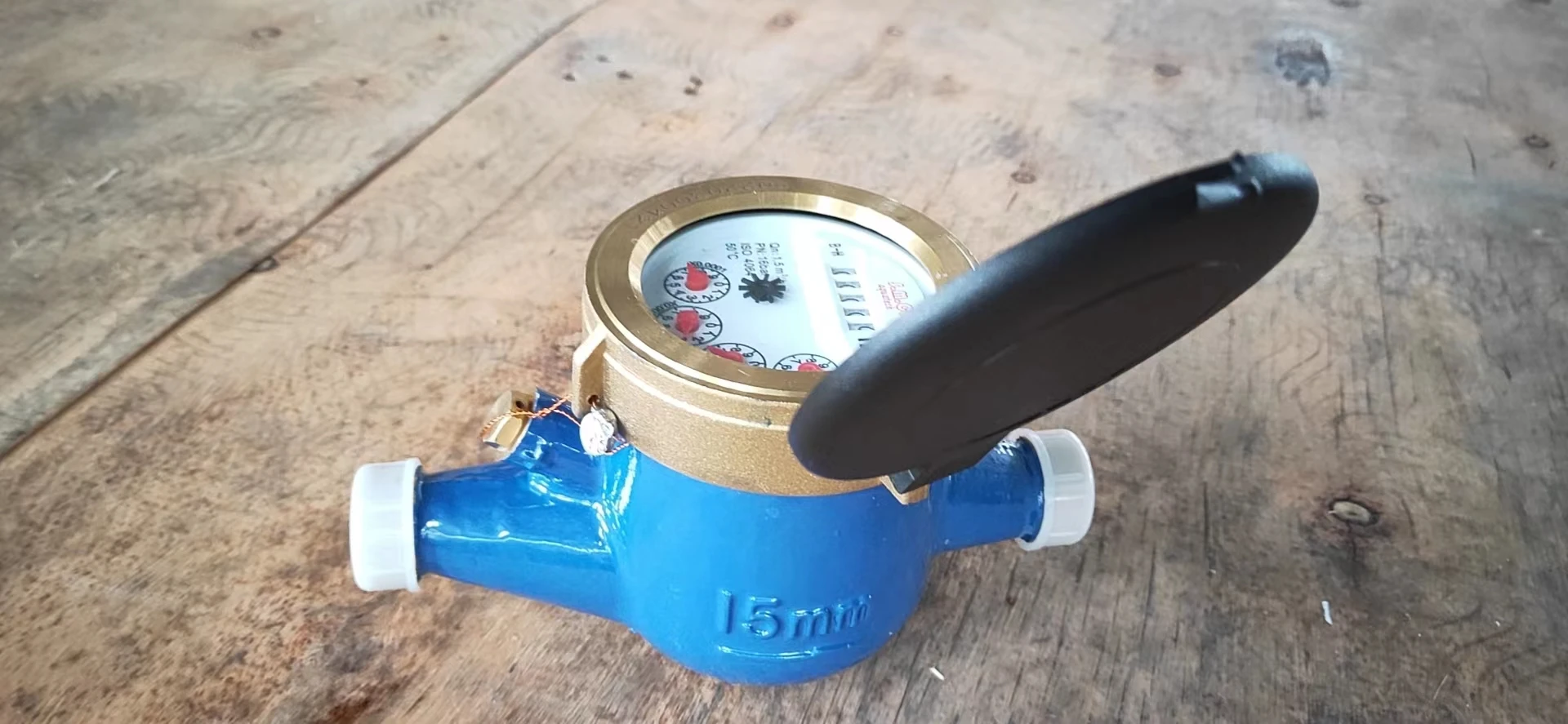

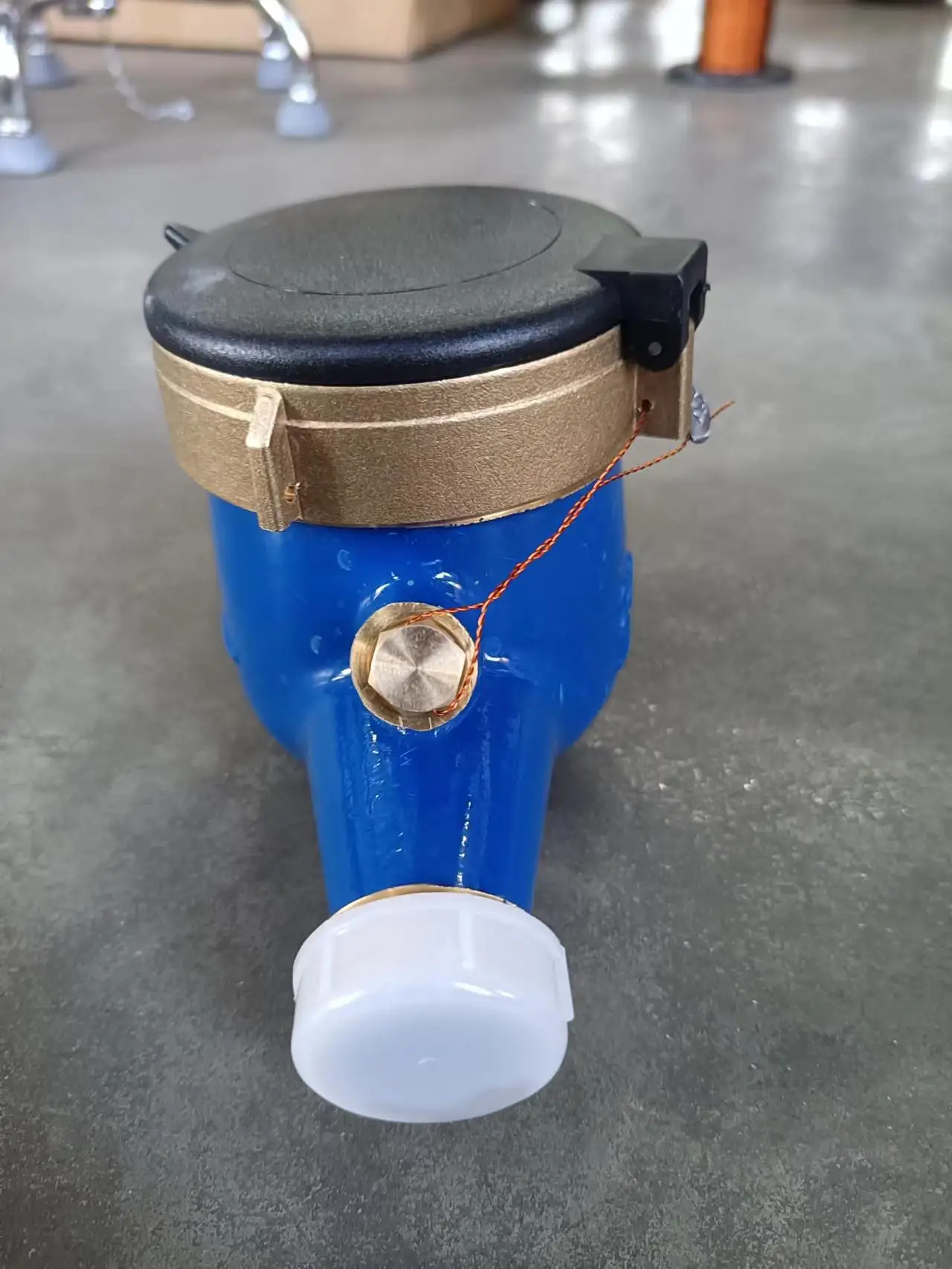

Cold Water Hot Water Multi Jet Single Jet Vane Wheel Dry Dial Water Meter
- Category: >>>
- Supplier: Suntex Import & Export Trading Co. Ltd.
Share on (1600596455659):
Product Overview
Description
Product Description
Application:
--Measuring the total volume of cold(hot) water passing through the pipeline.
--Measuring the total volume of cold(hot) water passing through the pipeline.
Working condition:
Water temperature: T30 T50 T90
Water pressure class: MAP16 MAP10
Pressure-loss Class: △p63
Water temperature: T30 T50 T90
Water pressure class: MAP16 MAP10
Pressure-loss Class: △p63
Maximum permissible error:
(1) From minimum flow-rate(Q1) inclusive to transitional flow-rate(Q2) exclusive±5%.
(2) From transitional flow-rate(Q2) to overload flow-rate(Q4):±2%;
(Hot water meter ±3%)
(1) From minimum flow-rate(Q1) inclusive to transitional flow-rate(Q2) exclusive±5%.
(2) From transitional flow-rate(Q2) to overload flow-rate(Q4):±2%;
(Hot water meter ±3%)
Feature:
--Multi-jet, dry-dial; Magnetic drive.

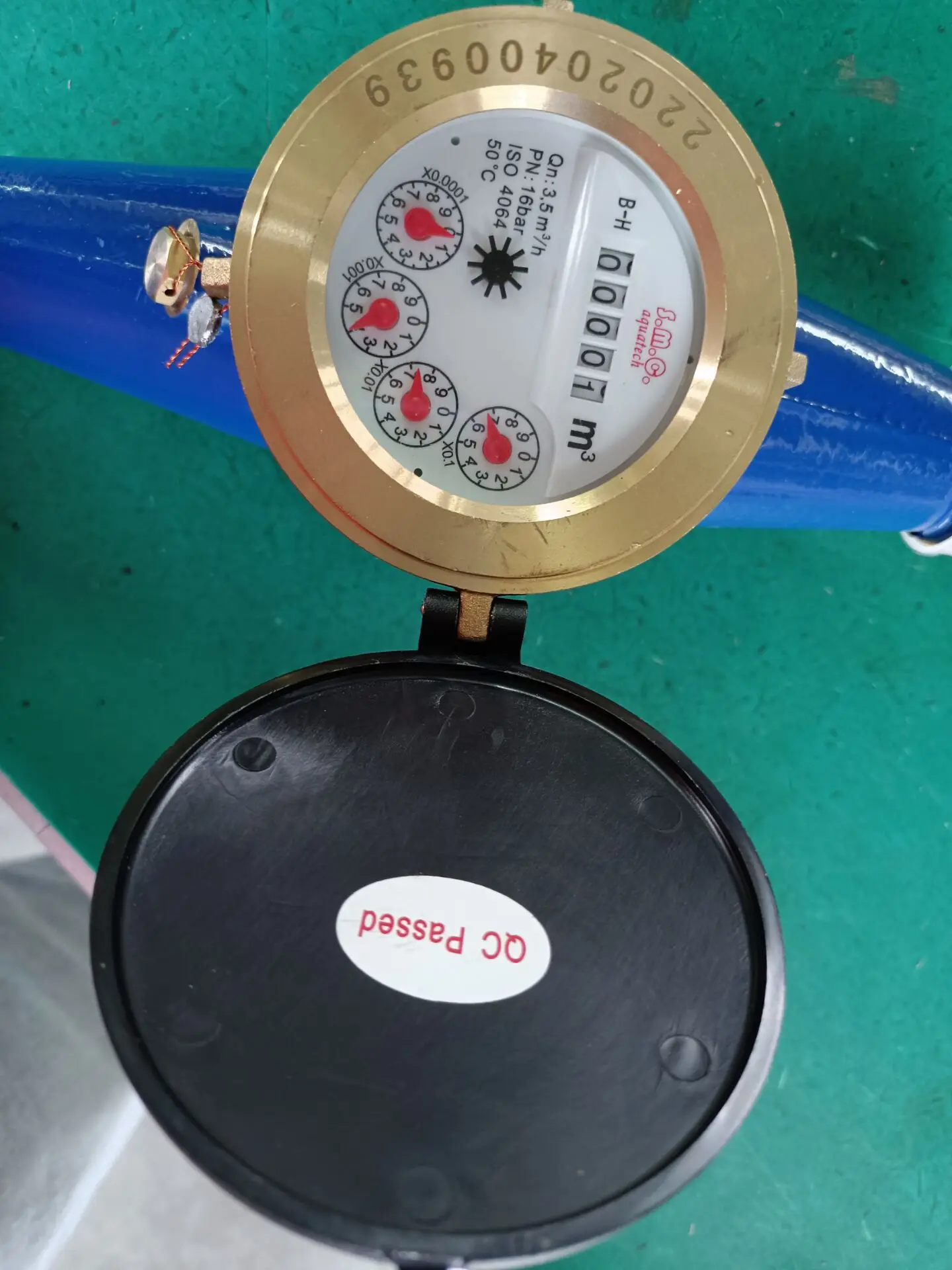

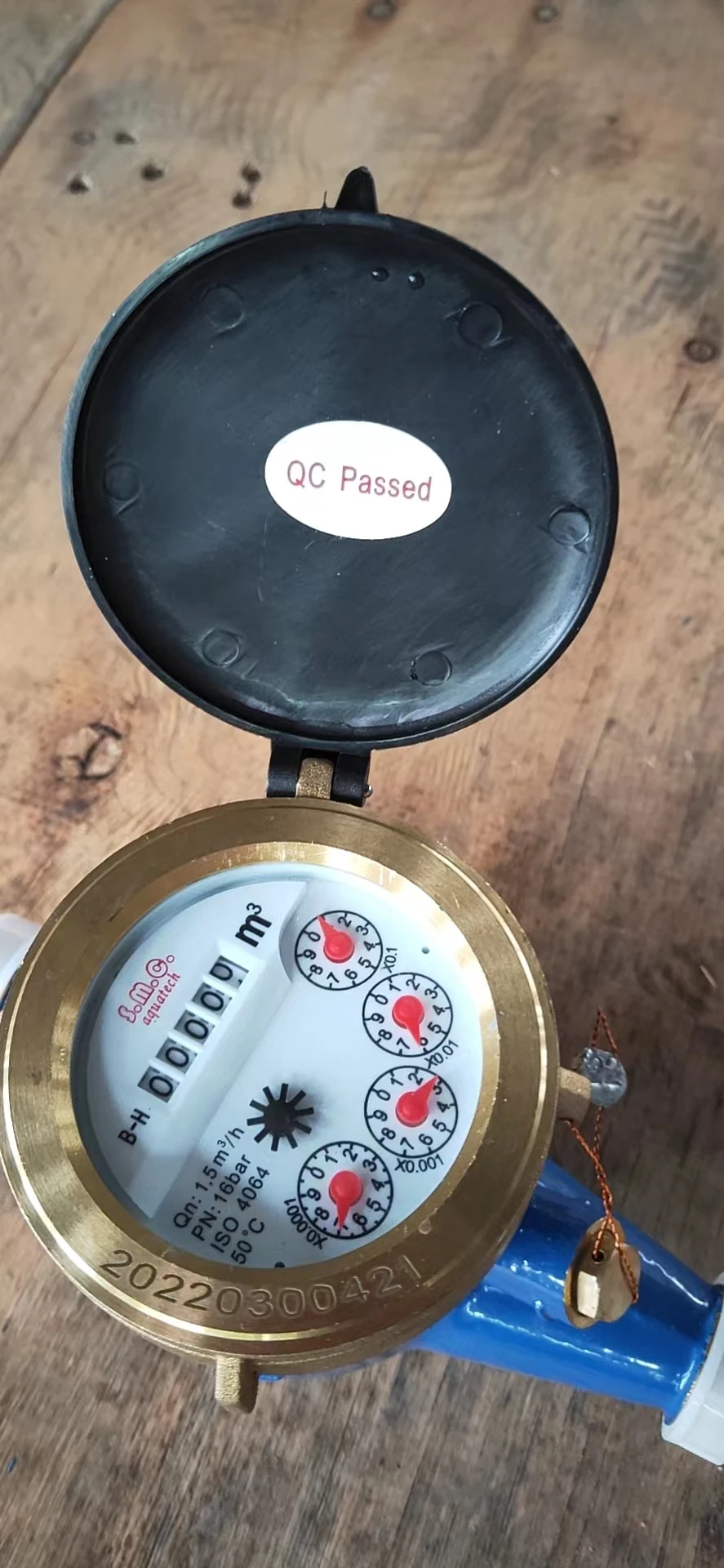

--Vacuum sealed register ensures the dial keep free from fog and frost, Keep the reading clear in a long term service;
--Removable measuring unit,easy installation and maintenance, Anti-magnetic function.
--Measuring high flowtate with low head loss,inner and outside adjustment is optional;
-- Technical data conform to international standard ISO4064 Class B
--Multi-jet, dry-dial; Magnetic drive.
--Vacuum sealed register ensures the dial keep free from fog and frost, Keep the reading clear in a long term service;
--Removable measuring unit,easy installation and maintenance, Anti-magnetic function.
--Measuring high flowtate with low head loss,inner and outside adjustment is optional;
-- Technical data conform to international standard ISO4064 Class B
Type | Size | Length | Width | Height | Connecting Thread | ||
LXSG-15 | ½" | 165 | 98 | 116 | G3/4 | R1/2 | |
LXSG-20 | ¾" | 190 | 98 | 117 | G1 | R3/4 | |
LXSG-25 | 1" | 260 | 104 | 124 | G1-1/4 | R1 | |
LXSG-32 | 1¼" | 260 | 104 | 124 | G1-1/2 | R1-1/4 | |
LXSG-40 | 1½" | 300 | 125 | 162 | G2 | R1-1/2 | |
LXSG-50 | 2" | 300 | 125 | 162 | G2-1/2 | R2 | |
Packing&Shipping
Packing Details : In Carton + Pallet or In Plywood Case
Delivery Details : 30 days after order confirmation
Delivery Details : 30 days after order confirmation
Company Introduction
Suntex Metals Co., Ltd.,a branch of Suntex Import & Export trading Co.,Ltd., is a leading producer of valves and pipe fittings for water,( including DRINKING water supply),gas and oil fields. Founded by more than 15-year experienced experts on water line products, we own a full equiped factory include epoxy coating line and a lost wax foundry.
Our products include EN545 ductile iron pipe fittings, air valves,service valves,gate valves, butterfly valves, flange adaptors, couplings, repair clamps, saddles, stainless steel valve/pump parts and stainless steel decorative products such as handrail fittings and glass facade elements.We invite you to browse our web sites for more information about our products and services.Please be noted that other sizes,dimensions and specifications for our products are available upon request.
Certifications
Customer Photos
FAQ
Q: ARE YOU TRADING COMPANY OR MANUFACTURER ?
A: We are factory.
Q: HOW LONG IS YOUR DELIVERY TIME?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to
quantity.
Q: WHAT IS YOUR TERMS OF PAYMENT ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us as below:
A: We are factory.
Q: HOW LONG IS YOUR DELIVERY TIME?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to
quantity.
Q: WHAT IS YOUR TERMS OF PAYMENT ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us as below:
