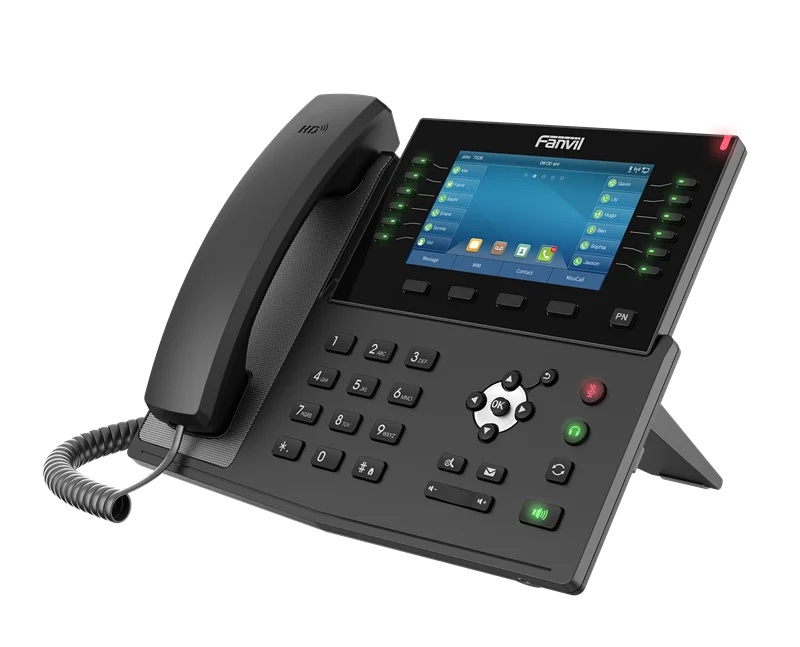

Support 20 Sip Lines High Quality low cost Voip POE Phone Fanvil X7 Touch Screen Enterprise IP Phone
- Category: >>>
- Supplier: Skyline (Shenzhen) Technology Co. Ltd.
Share on (1600596457109):
Product Overview
Description
Specification
item | value |
Place of Origin | China |
Brand Name | Fanvil |
Model Number | X7 |
Product name | VoIP Phone |
Support | POE |
Color | Black |
Model | X7 |
Warranty | 12Months |
Display | 7-inch Touch Color Screen |
Weight | 2.0kg |
Product Description
Support 20 Sip Lines High Quality low cost Voip POE Phone Fanvil X7 Touch Screen Enterprise IP Phone
Order contact: Alison WeChat：Snow_MXi
Highlights:
* 20 SIP lines
* HD audio on speakerphone and handset
* 7 inch capacitive touch screen
* Built-in Bluetooth for connecting Bluetooth headset
* Wi-Fi connectivity(Via Wi-Fi dongle)
* Up to 127 DSS keys entries available at the display
* Video Codec H.264 support for receiving video calls
* Dual Gigabit ports, integrated PoE

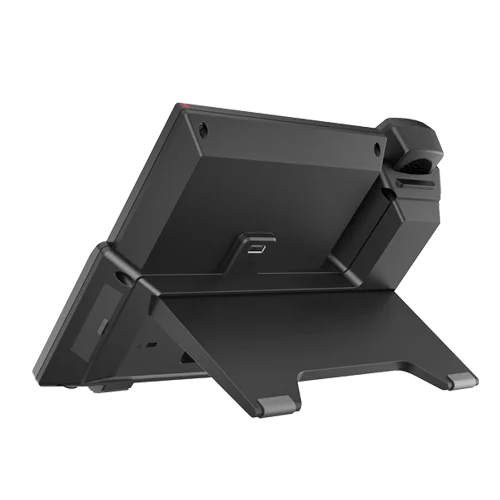

* Stand with 2 adjustable angles of 40 and 50 degrees
* Compatible with major platforms: Asterisk, Broadsoft, 3CX, Metaswitch, Elastix, Avaya etc.Generic
* 20 SIP Lines
* HD Voice
* Support receiving Video call
* PoE Enabled
* 7 inch capacitive touch screen
* Handset / Hands-free / Headset mode
* intelligent DSS Keys
* Optional External Power SupplyPhone Features
* Local Phonebook (2000 entries)
* Remote Phonebook (XML/LDAP, 2000 entries)
* Call logs (In/out/missed, 1000 entries)
* Black/White List Call Filtering
* Screen saver
* Voice Message Waiting Indication (VMWI)
* Programmable DSS/Soft keys
* Network Time Synchronization
* Built-in Bluetooth 2.1: Support Bluetooth headset
* Support Wi-Fi Dongle
* Support Plantronics wireless headset (Through Plantronics APD-80 EHS Cable)
* Support Jabra wireless headset (Through Fanvil EHS20 EHS Cable)
* 20 SIP lines
* HD audio on speakerphone and handset
* 7 inch capacitive touch screen
* Built-in Bluetooth for connecting Bluetooth headset
* Wi-Fi connectivity(Via Wi-Fi dongle)
* Up to 127 DSS keys entries available at the display
* Video Codec H.264 support for receiving video calls
* Dual Gigabit ports, integrated PoE
* Stand with 2 adjustable angles of 40 and 50 degrees
* Compatible with major platforms: Asterisk, Broadsoft, 3CX, Metaswitch, Elastix, Avaya etc.Generic
* 20 SIP Lines
* HD Voice
* Support receiving Video call
* PoE Enabled
* 7 inch capacitive touch screen
* Handset / Hands-free / Headset mode
* intelligent DSS Keys
* Optional External Power SupplyPhone Features
* Local Phonebook (2000 entries)
* Remote Phonebook (XML/LDAP, 2000 entries)
* Call logs (In/out/missed, 1000 entries)
* Black/White List Call Filtering
* Screen saver
* Voice Message Waiting Indication (VMWI)
* Programmable DSS/Soft keys
* Network Time Synchronization
* Built-in Bluetooth 2.1: Support Bluetooth headset
* Support Wi-Fi Dongle
* Support Plantronics wireless headset (Through Plantronics APD-80 EHS Cable)
* Support Jabra wireless headset (Through Fanvil EHS20 EHS Cable)
Audio：
* HD Voice Microphone/Speaker (Handset/Hands-free, 0 ~ 7KHz Frequency Response)
* HAC handset
* Wideband ADC/DAC 16KHz Sampling
* Narrowband Codec: G.711a/u, G.723.1, G.726-32K, G.729AB, AMR, iLBC
* Wideband Codec: G.722, AMR-WB, Opus
* Full-duplex Acoustic Echo Canceller (AEC）
* Voice Activity Detection (VAD) / Comfort Noise Generation (CNG) / Background Noise Estimation (BNE) / Noise Reduction (NR)
* Packet Loss Concealment (PLC)
* Dynamic Adaptive Jitter Buffer up to 300ms
* DTMF: In-band, Out-of-Band – DTMF-Relay(RFC2833) / SIP INFO
* HD Voice Microphone/Speaker (Handset/Hands-free, 0 ~ 7KHz Frequency Response)
* HAC handset
* Wideband ADC/DAC 16KHz Sampling
* Narrowband Codec: G.711a/u, G.723.1, G.726-32K, G.729AB, AMR, iLBC
* Wideband Codec: G.722, AMR-WB, Opus
* Full-duplex Acoustic Echo Canceller (AEC）
* Voice Activity Detection (VAD) / Comfort Noise Generation (CNG) / Background Noise Estimation (BNE) / Noise Reduction (NR)
* Packet Loss Concealment (PLC)
* Dynamic Adaptive Jitter Buffer up to 300ms
* DTMF: In-band, Out-of-Band – DTMF-Relay(RFC2833) / SIP INFO
Networking：
* Physical: 10/100/1000 Mbps Ethernet, dual bridged port for PC bypass
* IP Mode:IPv4/IPv6/IPv4&IPv6
* IP Configuration: Static / DHCP / PPPoE
* Network Access Control: 802.1x
* VPN: L2TP / OpenVPN
* VLAN
* LLDP
* QoS
* RTCP-XR(RFC3611),VQ-RTCPXR(RFC6035
* Physical: 10/100/1000 Mbps Ethernet, dual bridged port for PC bypass
* IP Mode:IPv4/IPv6/IPv4&IPv6
* IP Configuration: Static / DHCP / PPPoE
* Network Access Control: 802.1x
* VPN: L2TP / OpenVPN
* VLAN
* LLDP
* QoS
* RTCP-XR(RFC3611),VQ-RTCPXR(RFC6035
Deployment & Maintenance：
* Auto-Provisioning via FTP/TFTP/HTTP/HTTPS/DHCP OPT66/SIP PNP/TR-069
* Web Management Portal
* Web-based Packet Dump
* Configuration Export / Import
* Phonebook Import/Export
* Firmware Upgrade
* Syslog
* Auto-Provisioning via FTP/TFTP/HTTP/HTTPS/DHCP OPT66/SIP PNP/TR-069
* Web Management Portal
* Web-based Packet Dump
* Configuration Export / Import
* Phonebook Import/Export
* Firmware Upgrade
* Syslog
Protocols:
* SIP2.0 over UDP/TCP/TLS
* RTP/RTCP/SRTP
* STUN
* DHCP
* IPv6
* LLDP
* PPPoE
* 802.1x
* L2TP
* OpenVPN
* SNTP
* FTP/TFTP
* HTTP/HTTPS
* Support Recording (Through Flash Drive or Server Recording)
* Action URL / Active URI
* uaCSTA
Call Features:
* Call out / Answer / Reject
* Mute / Unmute (Microphone)
* Call Hold / Resume
* Call Waiting
* Intercom
* Caller ID Display
* Speed Dial
* Anonymous Call (Hide Caller ID)
* Call Forwarding (Always/Busy/No Answer)
* Call Transfer (Attended/Unattended)
* Call Parking/Pick-up (Depending on server)
* Redial
* Do-Not-Disturb
* Auto-Answering
* Voice Message (On server)
* 3-way Conference
* Hot Line
* Hot desking
* SIP2.0 over UDP/TCP/TLS
* RTP/RTCP/SRTP
* STUN
* DHCP
* IPv6
* LLDP
* PPPoE
* 802.1x
* L2TP
* OpenVPN
* SNTP
* FTP/TFTP
* HTTP/HTTPS
* Support Recording (Through Flash Drive or Server Recording)
* Action URL / Active URI
* uaCSTA
Call Features:
* Call out / Answer / Reject
* Mute / Unmute (Microphone)
* Call Hold / Resume
* Call Waiting
* Intercom
* Caller ID Display
* Speed Dial
* Anonymous Call (Hide Caller ID)
* Call Forwarding (Always/Busy/No Answer)
* Call Transfer (Attended/Unattended)
* Call Parking/Pick-up (Depending on server)
* Redial
* Do-Not-Disturb
* Auto-Answering
* Voice Message (On server)
* 3-way Conference
* Hot Line
* Hot desking
Physical Specifications：
* Main LCD x1: 7.0 inch (800x480) Capacitive touch screen
* Keypad: 26 keys, including
* 5 Function keys (Hold, MWI,Mute,Headset, Redial)
* 4 Navigation keys
* 1 OK key
* 1 Return key
* 12 Standard Phone Digits keys
* 2 Volume Control keys, Up/Down
* 1 Hands-free key
* HD Handset (RJ9) x1
* Standard RJ9 Handset Wire x1
* 1.5M CAT5 Ethernet Cable x1
* Back Rack x1
* RJ9 Port x2: Handset x1, Headset x1
* RJ45 Port x2: Network x1, PC x1 (Bridged to Network)
* USB2.0 Port x1: Standard A, Connect with Wi-Fi USB dongle or Flash Driver
* DC Power Input: 5V/2A
* Power Consumption (PoE): 2.6~ 9W
* Power Consumption (Adapter): 2.4~8W
* Working Temperature: 0~45℃
* Working Humidity: 10~95%
* Installation: Desktop Stand
* Color: Black
* Device Dimensions
* Desktop Stand (Angles 1): 268 x 185 x 189mm
* Desktop Stand (Angles 2): 268 x 201 x 168mm
* Gift Box Dimensions: 304 x 297 x 66mm
* Outer CTN Dimensions: 616 x 358 x 329mm (10 PCS)
* Main LCD x1: 7.0 inch (800x480) Capacitive touch screen
* Keypad: 26 keys, including
* 5 Function keys (Hold, MWI,Mute,Headset, Redial)
* 4 Navigation keys
* 1 OK key
* 1 Return key
* 12 Standard Phone Digits keys
* 2 Volume Control keys, Up/Down
* 1 Hands-free key
* HD Handset (RJ9) x1
* Standard RJ9 Handset Wire x1
* 1.5M CAT5 Ethernet Cable x1
* Back Rack x1
* RJ9 Port x2: Handset x1, Headset x1
* RJ45 Port x2: Network x1, PC x1 (Bridged to Network)
* USB2.0 Port x1: Standard A, Connect with Wi-Fi USB dongle or Flash Driver
* DC Power Input: 5V/2A
* Power Consumption (PoE): 2.6~ 9W
* Power Consumption (Adapter): 2.4~8W
* Working Temperature: 0~45℃
* Working Humidity: 10~95%
* Installation: Desktop Stand
* Color: Black
* Device Dimensions
* Desktop Stand (Angles 1): 268 x 185 x 189mm
* Desktop Stand (Angles 2): 268 x 201 x 168mm
* Gift Box Dimensions: 304 x 297 x 66mm
* Outer CTN Dimensions: 616 x 358 x 329mm (10 PCS)
Video：
* Video codec: H.264
* Video call resolution: QCIF / CIF / VGA
* Video codec: H.264
* Video call resolution: QCIF / CIF / VGA
Packing & Delivery
one unit size is (L)220*(W)187*(H)97mm units a carton
carton size is 33.5*38.5*27CM ,Gross weight is 10KG
carton size is 33.5*38.5*27CM ,Gross weight is 10KG
Company Profile
China Skyline Telecom Co., Ltd. was founded in 2002, and we have 300 employees and more than 10 production lines. More than 1000 companies have established business relationships with us, and they are from all over the world.
Our company is a manufacturer of VOIP Gateways, with well-equipped testing equipment and strong technical force.
With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in communication industry and other industries.
Our products are widely recognized and trusted by users and can meet continuously developing economic and social needs.
We welcome new and old customers from all walks of life to contact us for future business relationships and achieving mutual success!
Our company is a manufacturer of VOIP Gateways, with well-equipped testing equipment and strong technical force.
With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in communication industry and other industries.
Our products are widely recognized and trusted by users and can meet continuously developing economic and social needs.
We welcome new and old customers from all walks of life to contact us for future business relationships and achieving mutual success!
We have A-Z traffic and now we are expanding our business to more and more countries as below, contact us to bring your business to next level!!
FAQ
1. Is there any Discount?
SURE, Everything is negotiable based on the quantity.
2. What is your MOQ?
Sample order for MOQ 1pcs.
3. OEM/ODM Service is available?
Yes,Skyline have strong ability to offer customers ODM&OEM products of highest quality.
And it will require the MOQ.
4. For Trade Terms, such as payment and leadtime.
* Payment Terms:We can accept payment through:Skrill,Web money,Bank wire in HK and USA, Credit card (by alibaba),Payoneer
* Shipping Methods: EMS,DHL,Fedex,TNT,UPS,by air or sea, or your own shipping agent
* Leadtime: Sample order 3 working days; Bulk order 10-25 working days(after full payment)
5. How about the Warranty?
12 months hardware warranty. Free tech-support forever.
SURE, Everything is negotiable based on the quantity.
2. What is your MOQ?
Sample order for MOQ 1pcs.
3. OEM/ODM Service is available?
Yes,Skyline have strong ability to offer customers ODM&OEM products of highest quality.
And it will require the MOQ.
4. For Trade Terms, such as payment and leadtime.
* Payment Terms:We can accept payment through:Skrill,Web money,Bank wire in HK and USA, Credit card (by alibaba),Payoneer
* Shipping Methods: EMS,DHL,Fedex,TNT,UPS,by air or sea, or your own shipping agent
* Leadtime: Sample order 3 working days; Bulk order 10-25 working days(after full payment)
5. How about the Warranty?
12 months hardware warranty. Free tech-support forever.
