1600C High Temperature Laboratory Muffle Furnace Ceramic Fiber Muffle Furnace

Share on (1600596509191):


Price:$3,200.00 - $6,820.00

Quantity:


Product Overview

Description



VR


Product Description

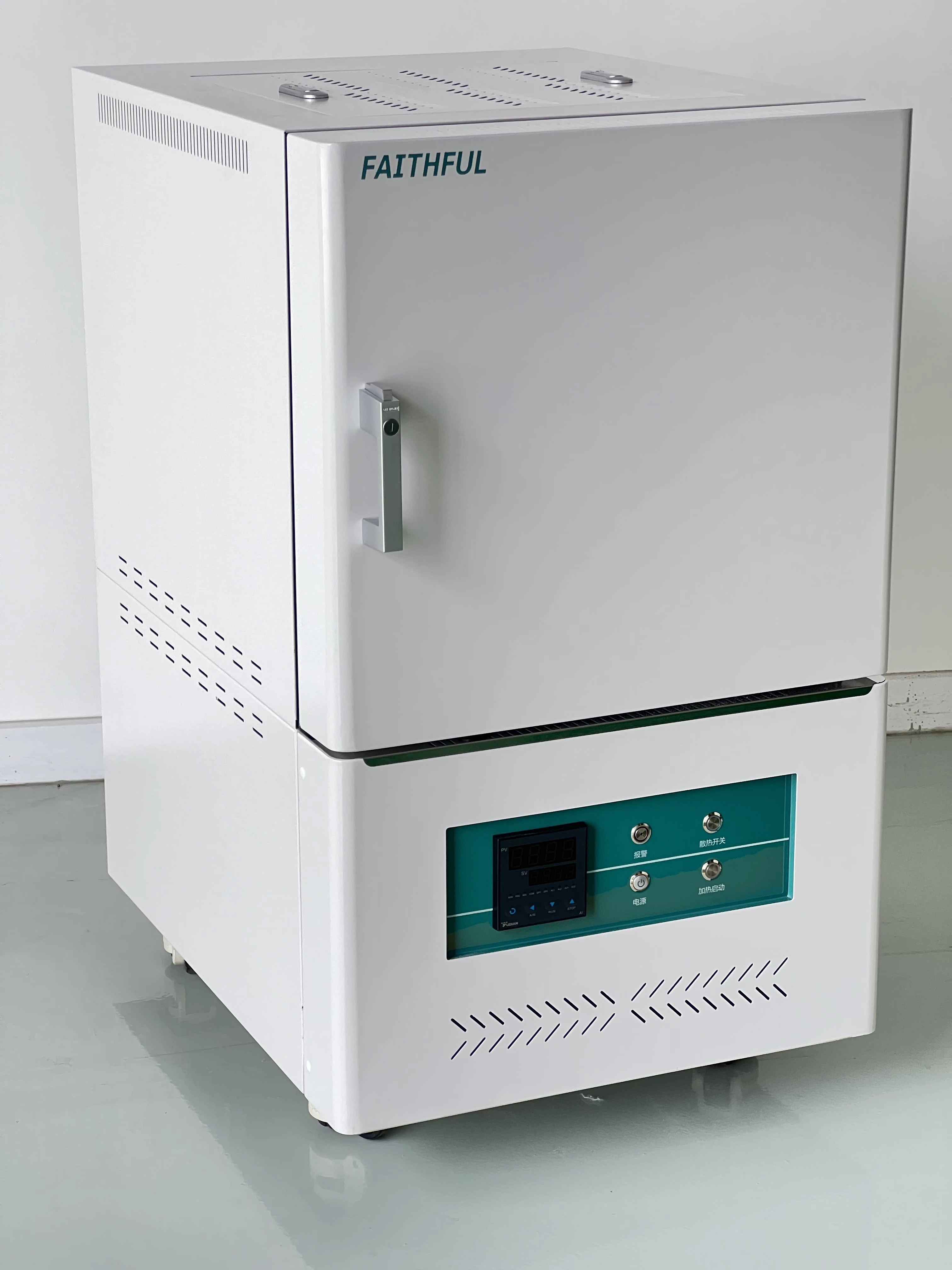

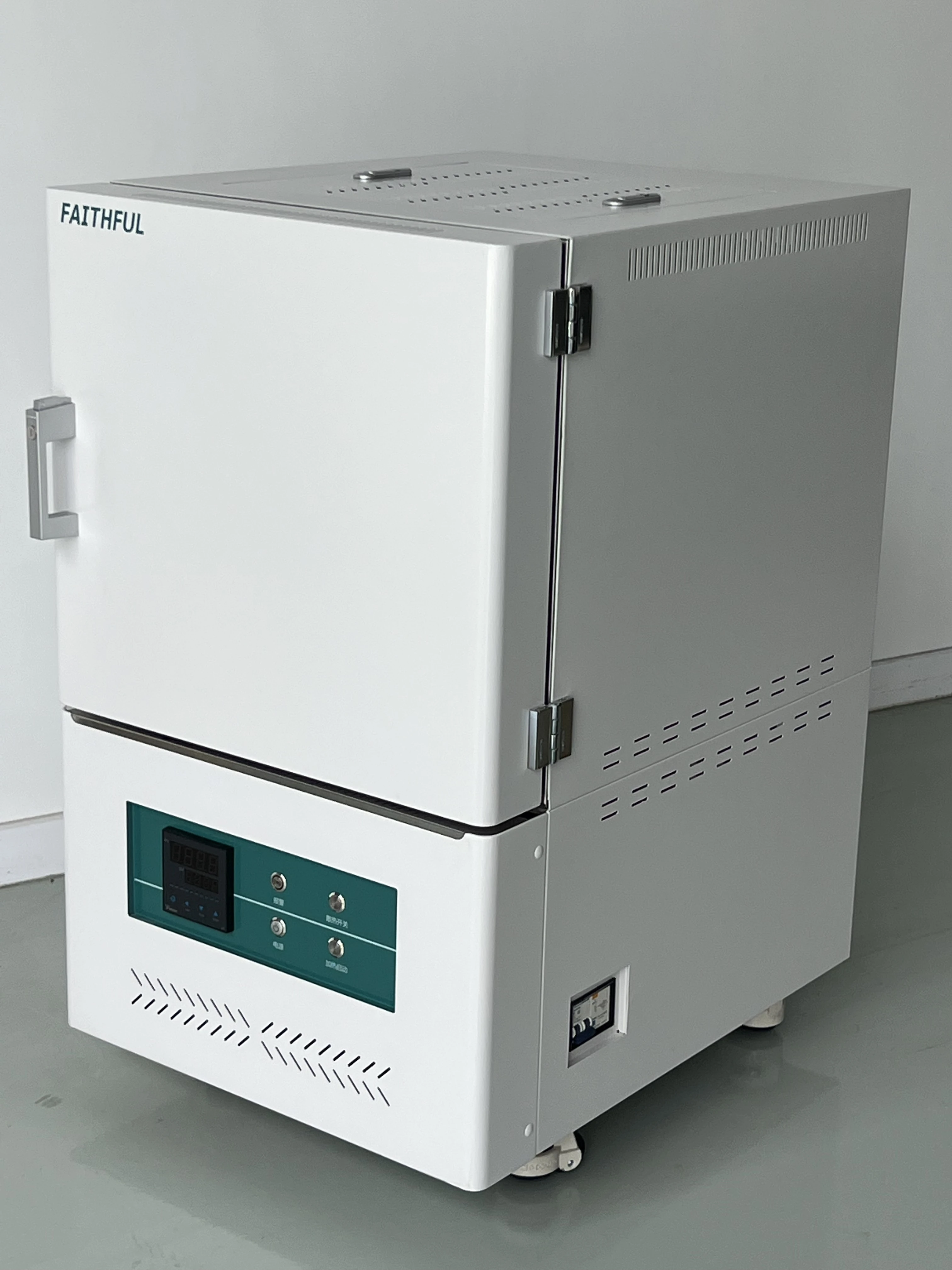

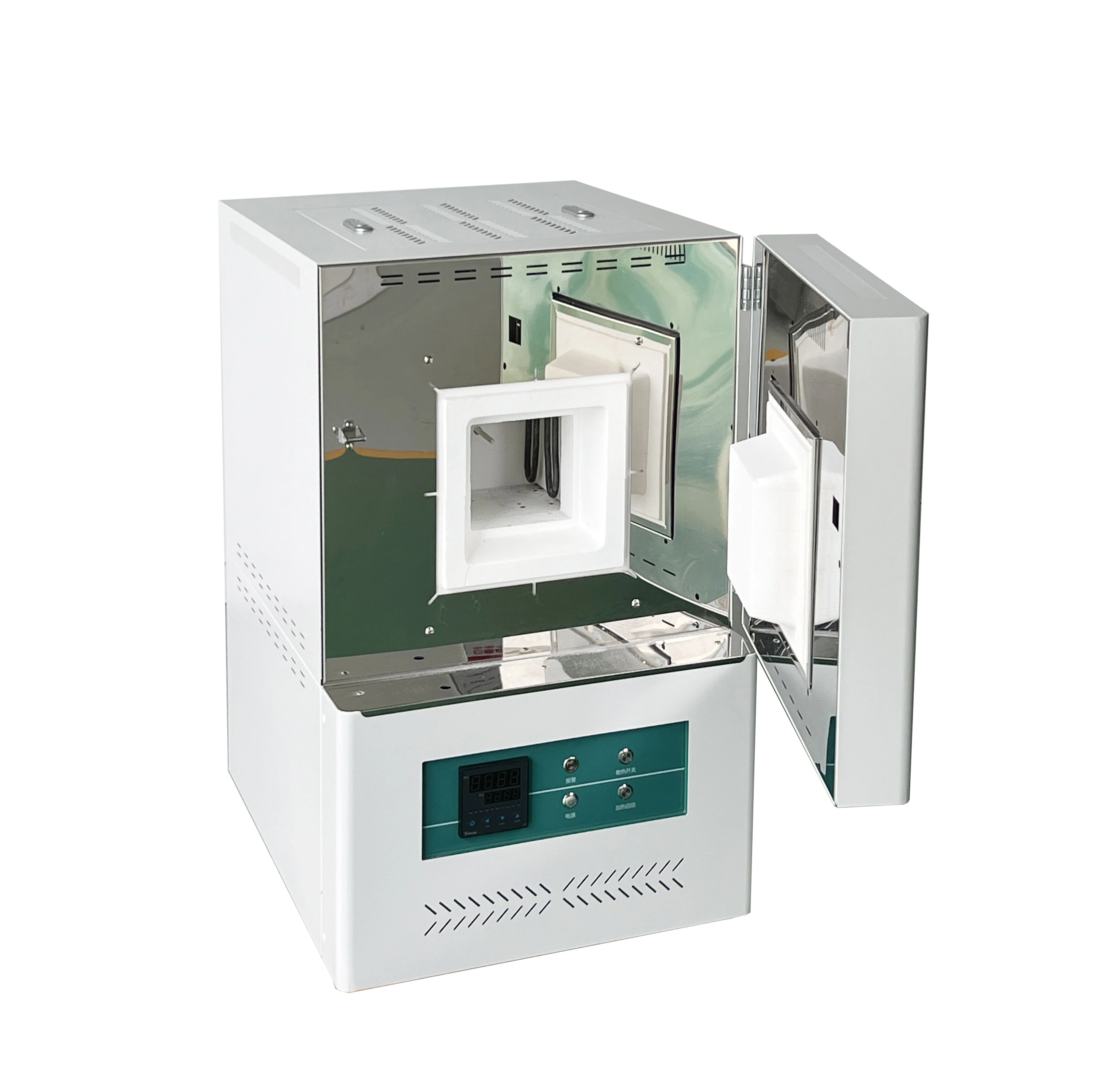

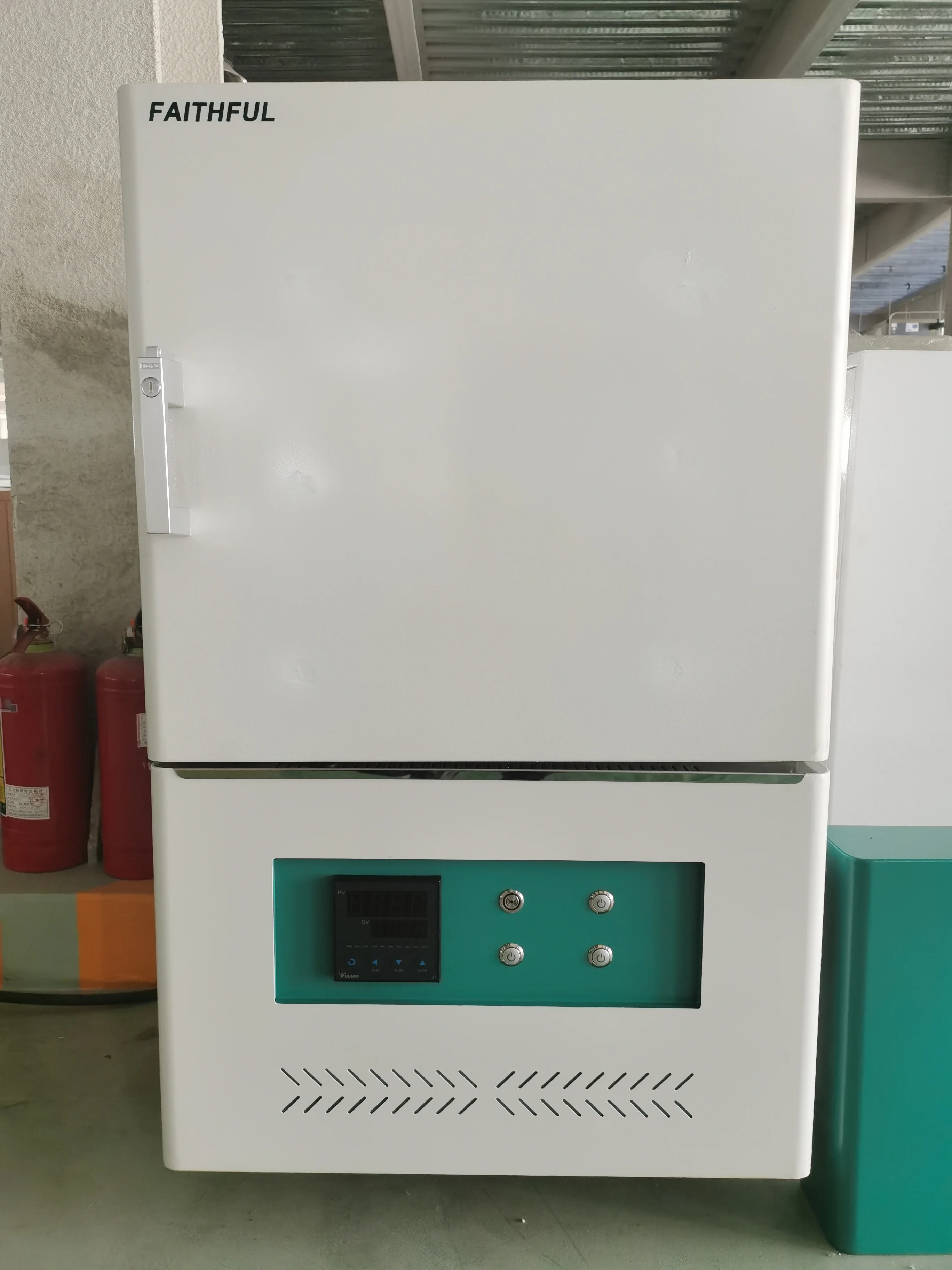

1600℃ Ceramic Fiber Muffle Furnace




Features


1. Mirror stainless steel furnace mouth, long-term use will not change color.
2. Vacuum-forming polycrystalline mullite fiber furnace, high efficiency insulation.
3. Double shell, the air sleeve heat insulation, and double air guiding passage .
4. High-purity silicon-molybdenum rod heating, and with standard exhaust chimney.
5. High precision program controller, with imported sensor and imported voltage regulating module.
6. With leakage protection, thermocouple failure, door opening electrical outage, over-temperature protection and sound-light alarm safety device.
7. Lockable handle, quick detachable structure,easy to maintenance and repair.
8.Insulated gloves,crucible tongs and Alumina load bearing board are standard.


Specification




Model
SX4-2-16
SX4-4-16
SX4-8-16
SX4-12-16
SX4-20-16
SX4-36-16

SX4-2-16P
SX4-4-16P
SX4-8-16P
SX4-12-16P
SX4-20-16P
SX4-36-16P

SX4-2-16PL
SX4-4-16PL
SX4-8-16PL
SX4-12-16PL
SX4-20-16PL
SX4-36-16PL
Temp. Range
Max 1600℃(Long-TERM Max Continuous Service Temperature 1500℃)
Temp. Accuracy
±1℃
Temp. Resolution Ratio
1℃
Temp.RISING Time To Max Temp
<40min





Furnace Body
Polycrystalline Mullite Fiber





Outer Shell
Cold rolling steel with electrostatic Spraying exterior





Chamber Size
150*90*150
150*150*150
300*150*150
300*200*200
300*260*260
300*400*300
Exhaust Hole
Diφ22,Deφ18
Heater
Sillcon Molybdenum Rod





Heating Power
3KW
5.5KW
9KW
10KW
12KW
15KW


Temp.Control
No Letter Model : LED Programmed Controller;

P Type: LCD Imported Programmed Controller ;

PL Type: 7.0-inch touch screen program controller, with curve viewing and USB data storage functions.
Termp. Control Mode
Intelligent Microcomputer PID Control
Display Mode
No Letter Model:4 keysSettings P Type:5 keys Settings PL Type:Touch Type Operation
Timer
No Letter Model:0-9999min P Type:0-99hour59min PL Type:0-9999min





Operation Function
Constant Value Operation Or Program Operation





Sensor
S-type Thermocouple





Additional Function
Heating Start Stop Button, Sensor Fault Alarm,Temperature Overshoot Self Setting,Temperature Correction





Safety Device
Overtemperature Alarm, Leakage Protection, Door Opening Heating
Exterior Size (W*L*H)(mm)
600*755*1100
600*815*1100
750*815*1100
750*865*1150
750*925*1210
750*1065*1250
Packing Size (W*L*H)(mm)
760*925*1310
760*985*1310
910*985*1310
910*1045*1360
910*1105*1420
910*1265*1460
Volume
2L
4L
8L
12L
20L
36L
Curent Rating (50/60HZ)
AC220V 50Hz
AC380V 50Hz
NW/GW (kg )
70/90
80/100
110/130
150/170
175/195
270/320
Optional Type
485 Communication ,U Disk Data Storage


Certificate




Packing & Delivery




carton packing


Company Profile






Huanghua Faithful Instrument Co., LTD, founded in 90s and located in coastal city-HuangHua, our factory covered 40,000 square meters, with more than 200 employees. Huanghua Faithful Instrument Co., LTD is a specialized supplier of scientific and laboratory instruments. Faithful has established enviable reputation for its ability to design and manufacture high quality products, now we are dedicated to developing and manufacturing instruments as well as distributing world-renowned products and offering unmatched scientific performance and proven value.
We have obtained ISO9001 and passed the CE Certificate. Presented as a high level of instruments manufacture, our products cover more than 20 series of Instruments for Laboratory, including 120 categories. We provide a wide range instruments which include Drying Oven, Incubator, Magnetic Stirrer, Heating Mantle, Stainless Steel Water Still, Growth Chamber with Humidity Control, Furnace, Water Bath, Laminar Flow Cabinet, Disintegrator, Vortex Mixer etc. Designed in compliance with the international norms, these products meet the application requirements of research institutes, laboratories and other sectors.


Exhibition
