hydro generator 10kw, generator hydro power plant
- Category: >>>
- Supplier: Fuzhou Jet Electric Machinery Co. Ltd.Fuzhou Ltd.
Share on (1600596601459):
Product Overview
Description
Product Description

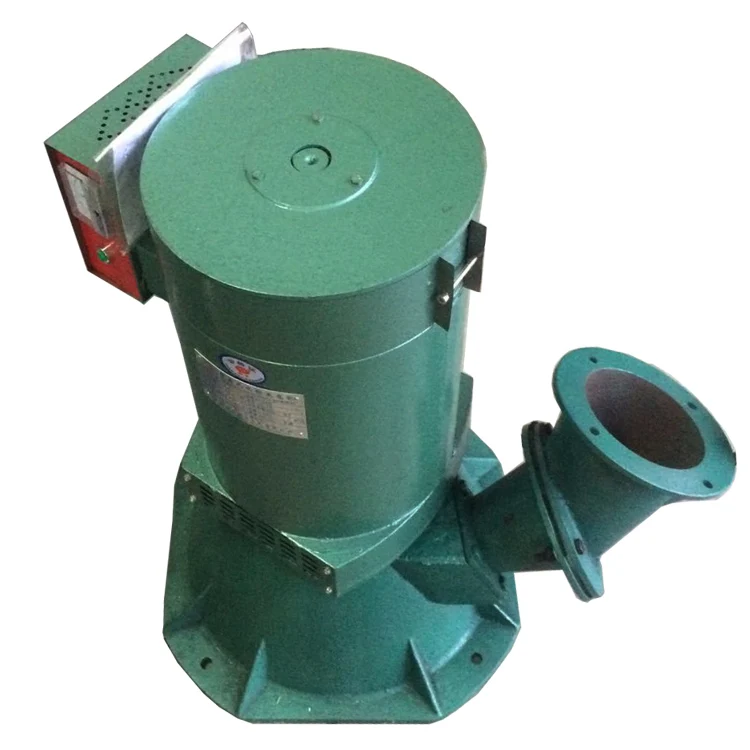

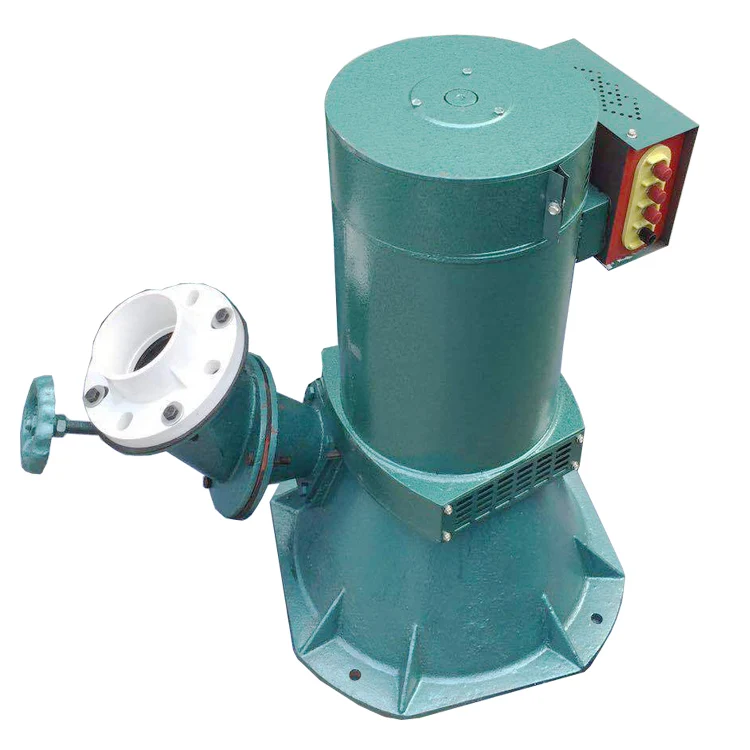

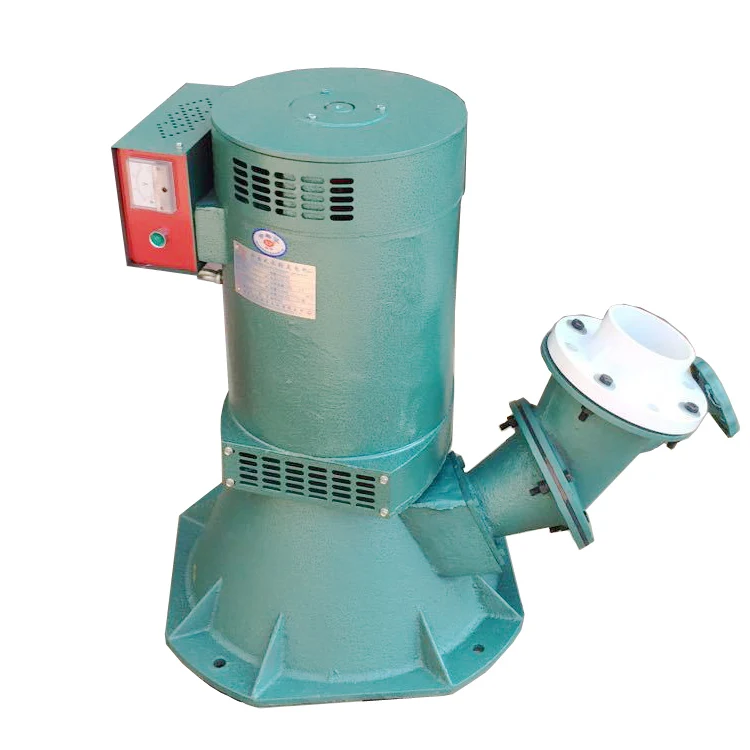

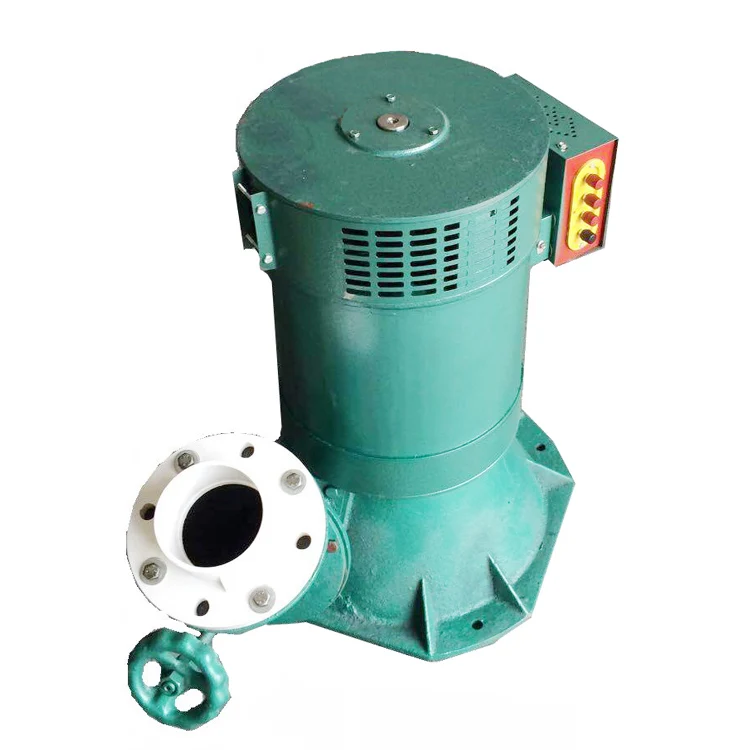

Turgo turbine generator suit for water head over 8m, flow over 0.003m3/s. The main features are:
1. Turbine and generator are integrated, which is more easy to install and maintain 2. Hydraulic direct drive generator, without more drive mechanism and efficiency is much higher, Extremely low failure rate.
3. Auto voltage rectifier is installed within generator, the voltage is more stable.
4. Optional single-phase voltage 220-240V or 3-phase voltage 380V-415V. The generator's unique voltage excitation design, be suitable for provide long-distance voltage transmission.
5. Mainly used in: mountainous water sources sufficient and water head more than 8 meters
3. Auto voltage rectifier is installed within generator, the voltage is more stable.
4. Optional single-phase voltage 220-240V or 3-phase voltage 380V-415V. The generator's unique voltage excitation design, be suitable for provide long-distance voltage transmission.
5. Mainly used in: mountainous water sources sufficient and water head more than 8 meters
Size Information
Model | Rated Output | Max.Output | Voltage / Single phase / 3-phase | Frequency | Water head/Altitude | Water Flow |
WG-3KW | 3KW | 3.3KW | 220-240V / 380-415V | 50Hz ± 5% | 15M-30M | 0.015 - 0.03（m3/s) |
WG-5KW | 5KW | 5.5KW | 220-240V / 380-415V | 50Hz ± 5% | 15M-40M | 0.015 - 0.04（m3/s) |
WG-8KW | 8KW | 8.8KW | 220-240V / 380-415V | 50Hz ± 5% | 25M-55M | 0.025 - 0.05（m3/s) |
WG-10KW | 10KW | 11KW | 220-240V / 380-415V | 50Hz ± 5% | 30M-60M | 0.035 - 0.06（m3/s) |
