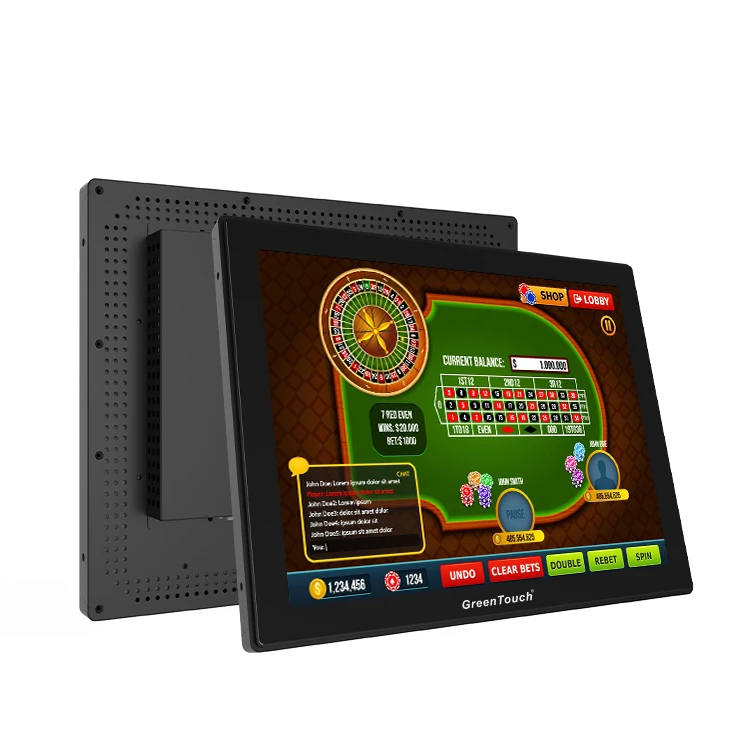

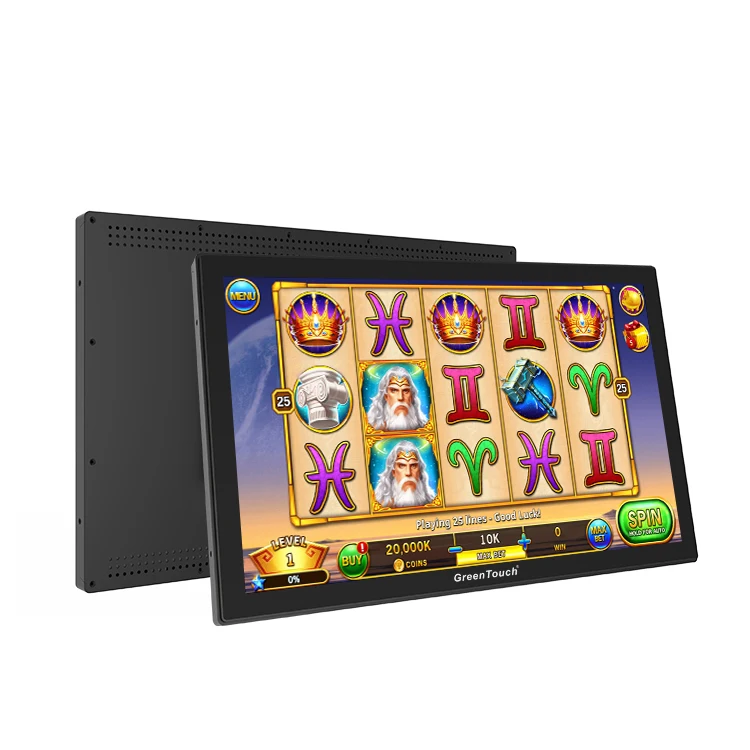

Embedded IPS 22 inch TFT LCD Touch Monitor with CTP Touch Screen for POT O GOLD/ Pog Game

Product Name

LED Frame Touch Screen Monitor

Model No.

GT-3M-2202C-CTW& GT-3M-2202C-CTW-HD&GT-3M-2202C-CTW-HD-DP

Display Type

Active Matrix TFT LCD, LED Backlight

Touch Technology

Projected Capacitive (10 Points)

Case/ frame Color

Black

The Diagonal Dimension

22" diagonal

Aspect Ratio

16:10

Overall Dimensions

526.80mm(W) x350.20 mm(H),Thickness: 50 mm)

Active Area

473.70mm(H) x 296.10mm(V)

Display Colors

16.7M

Resolution(pixel)

1680 x 1050 @ 60Hz

Brightness(Standard)

250 cd/m²

Response time

8 ms

View Angle(from center)

L/R:89/89;U/D:89/89 (Typ.)(CR≥10)

Contrast Ratio

1000:1(Typ.)

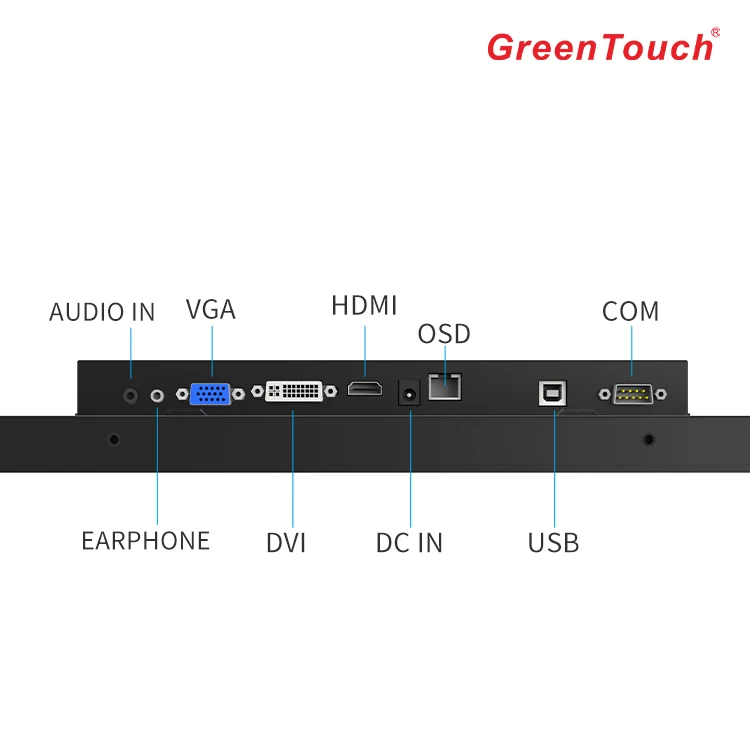

Input

VGA,DVI,HD(optional DP)

Input Video Signal Connector

Female head DE - 15 connector, female head DVI - D, Dual -Link connector, female head HD connector

OSD

Digital OSD

User Controls

OSD Button: Menu, Up, Down, Select, Power

Power connector (on power adapter) - Type: DC cartridge Plug: Cartridge OD: 5.5 mm (± 0.1mm); Needle Inner Diameter:2.1 mm (± 0.1
mm); Cartridge Length: 9.5 mm (± 0.5 mm)

External DC, input voltage DC: 12V; INPUT POWER CONNECTOR SPECIFICATIONS (for all in one PC) - Type: DC cartridge receptacle;
Cartridge ID: 5.5 mm(± 0.3 mm); Needle OD: 2.0 mm (+0.0 -0.1 mm); Cartridge depth: 8.0 mm (± 0.3mm);

Temperature

Work: 0 ° C ~ 40 ° C; Storage: -20 ° C ~ 60 ° C

Humidity

Work: 20% to 80%; Storage: 10% to 90%

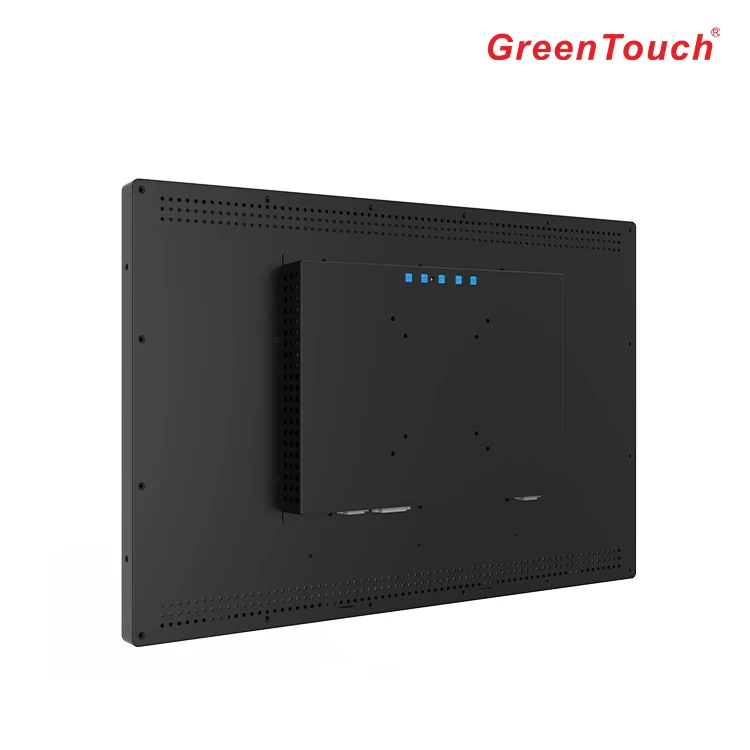

Installation options

VESA Mounting;

Warranty

1 Year

Certificates

FCC, CE,RoHS,CB,HDMI
