Name: Complete LED Screen Setup & LED Wall For Event Rental,Conference Room, Nightclub
SKU: 1600596623073
Price: $400.00 - $480.00 USD
Availability: InStock

Complete LED Screen Setup & LED Wall For Event Rental,Conference Room, Nightclub

Product Description

Parameters

Description	Technical parameter
Unit module	Module size	256x128mm
	Pixel pitch	4mm
	Pixel density	62500dots/m2
	Pixel configuration	1R1G1B
	Display color	Full color
	Led chips	SMD2121 3 in 1
	Pixel resolution	W:64dots*H:32dots

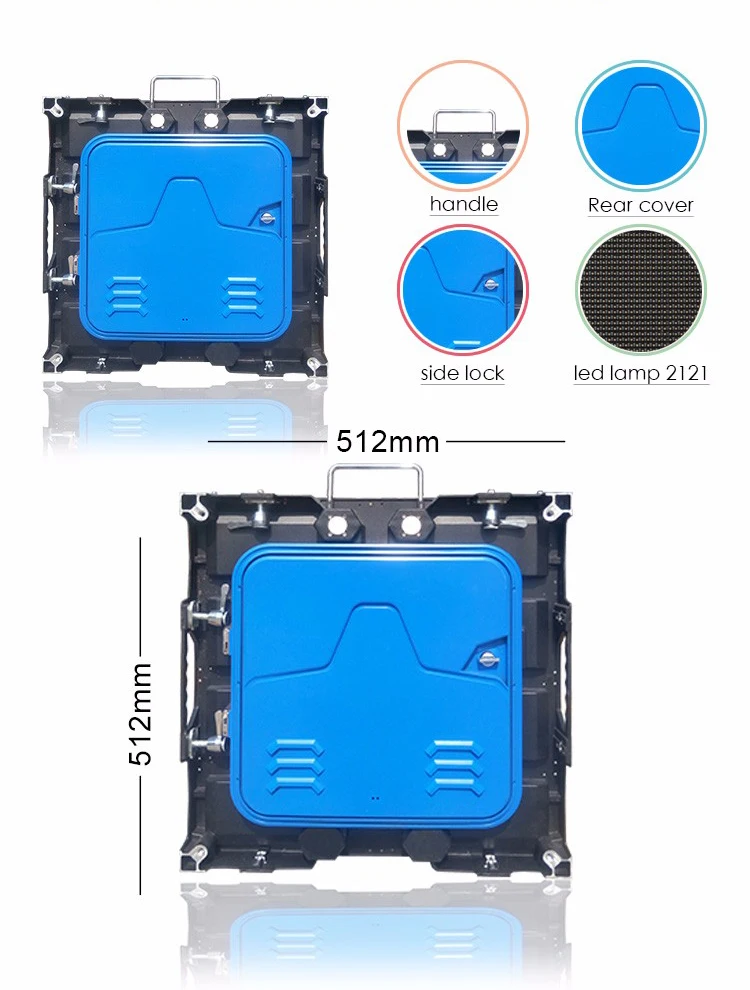

Cabinet	Dimension	512x512mm
	Quantities of module	8 pcs( cabinet size could be customized)
	Cabinet pixels	128x128 dots
	Total weight	7.5kg
	Best viewing angle	>4 m
	Temperature	Storage: -35°C~+85°C
	Temperature	Working: -35°C~+85°C
	Thickness	5cm-6cm
	Remarks: cabinet size can changed, upon project need.
Power	Working voltage	AC220V/110V±10%
	Average power consumption	150-280W
	Max. Power consumption	≤600W/sqm
	Current	≤20mA(single LED)
Control system	CPU	Pentium4 or above
	Operating system	WIN98/2000/NT/XP/WIN7/WIN8/WIN10
	Control method	Synchronization
Main technical parameter	Driving device	1/16 scan
	Drive type	Constant Current driver IC
	Display type	Video/Graphics/Animation/Message/Text
	Refresh frequency	2400-3840Hz
	Grey scale/colors	256 levels of each color(R/G/B)/16.7M color
	Brightness of white balance	2200-2800cd/sqm
	Brightness adjustment	256 levels of each color(R/G/B)by software
	Operating ambient humidity	10%--95%
	Video signal	PAL/NTSC VGA HDM1 DVI S-VIDEO RF RGBHV YUV …etc.
	Control system	DVI display card+full color controller card
	MTBF	≥72hours
	Life span	≥100,000hours(11 years)
	Flatness	Tolerance of inter pixel ≤0.3mm
	Flatness	Tolerance of modules clearance≤0.6mm
	Power switch	Automatic switch
	Communication distance	Unshielded twisted pair net line transmission distance 100m, max transmission distance 200m.
	Communication distance	Multi-mode Optic fiber transmission distance 500m;Single-mode optic fiber transmission distance 10KM
Software	LED media player

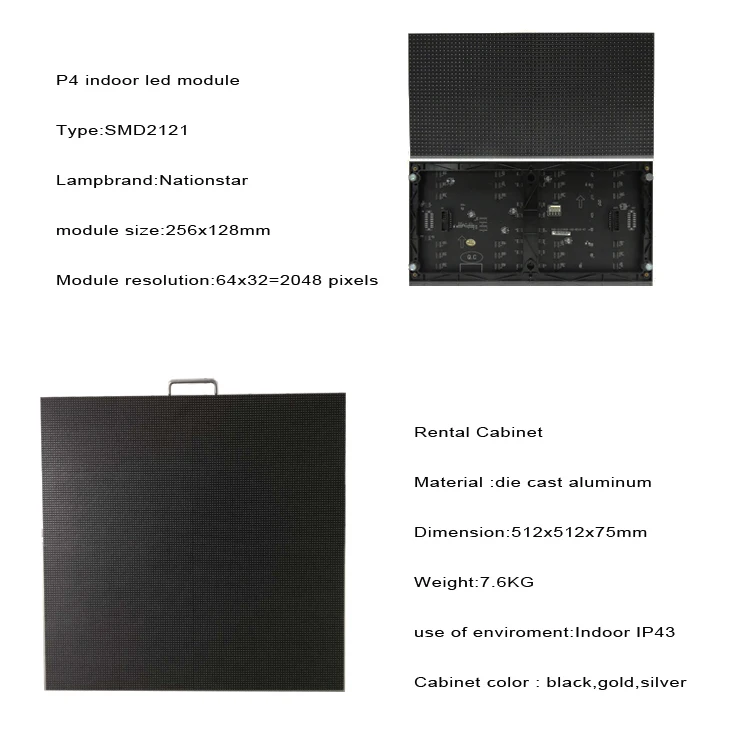

wholesale P4 indoor led display modules

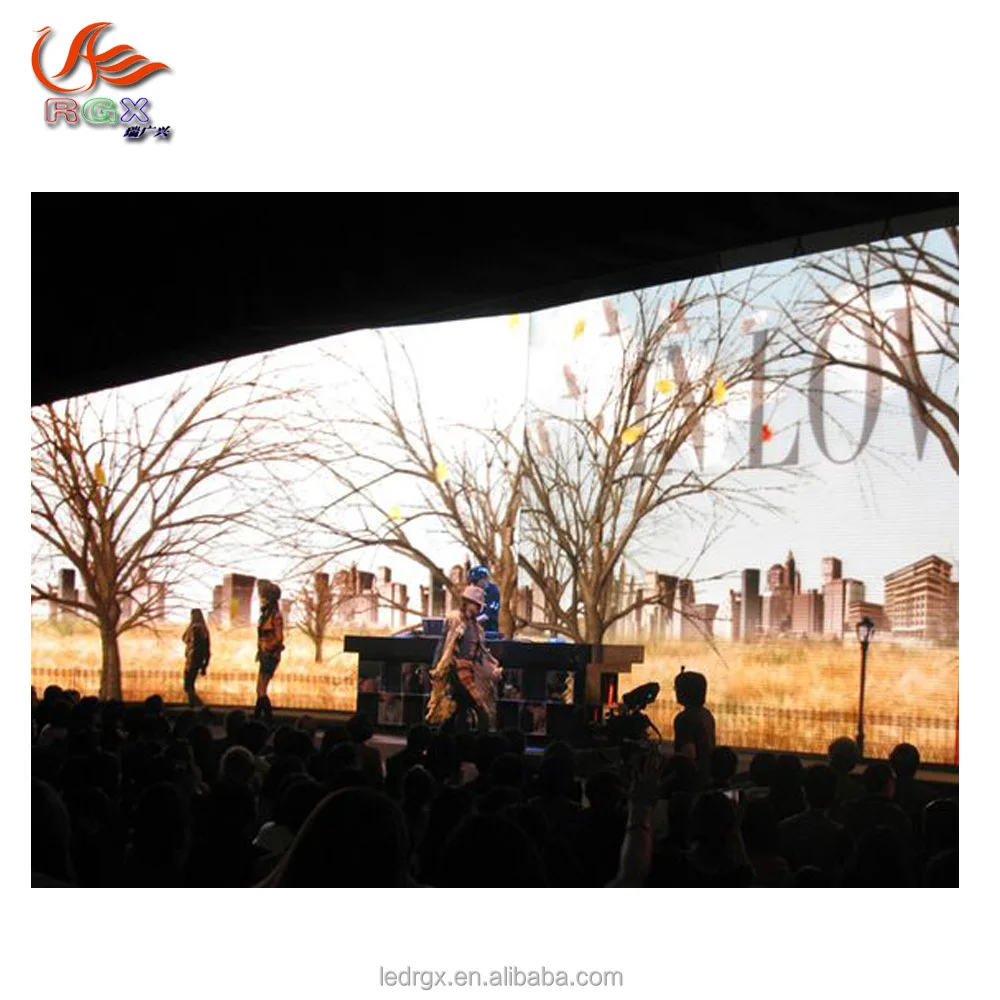

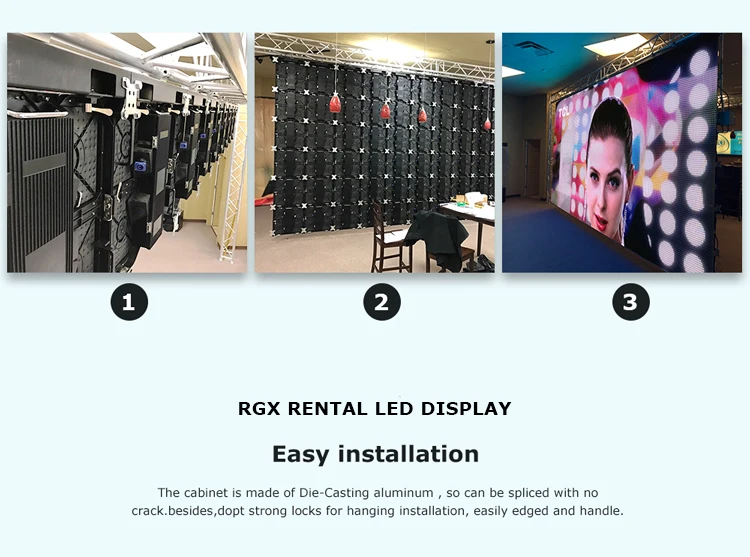

fast installation of Event LED Screen With Slim LED Panel

more P4 rental led panels for your choose!

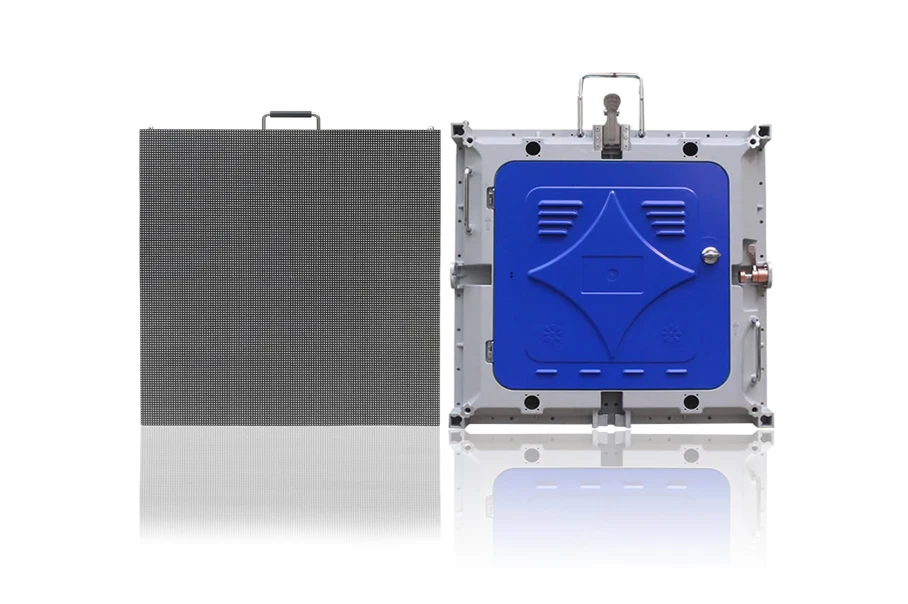

P4 512.jpg

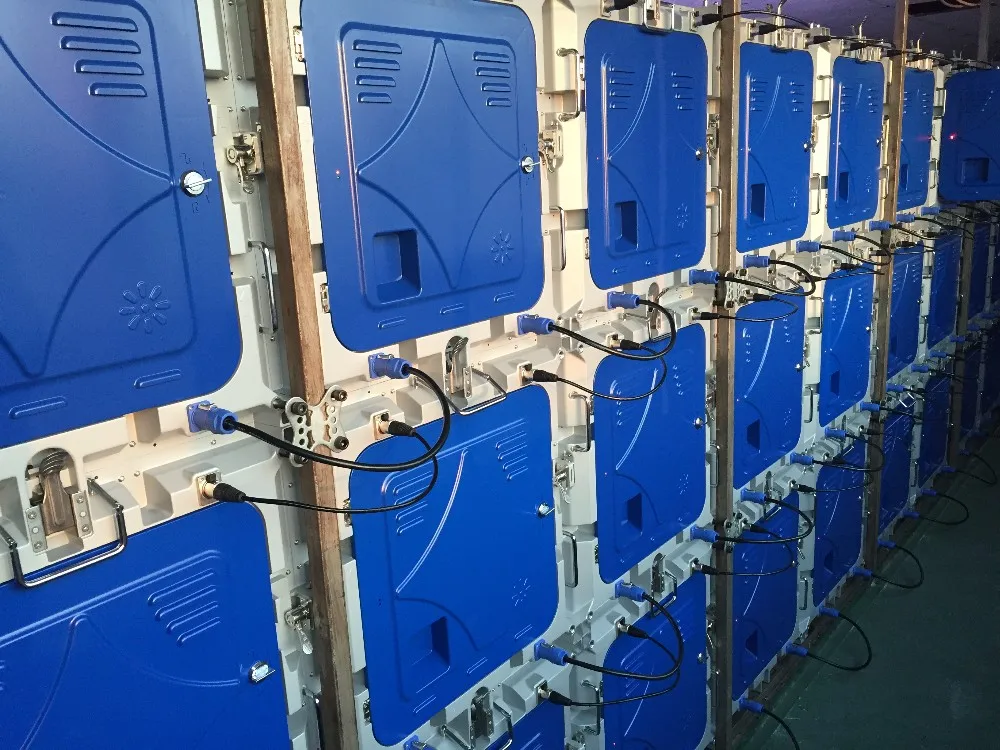

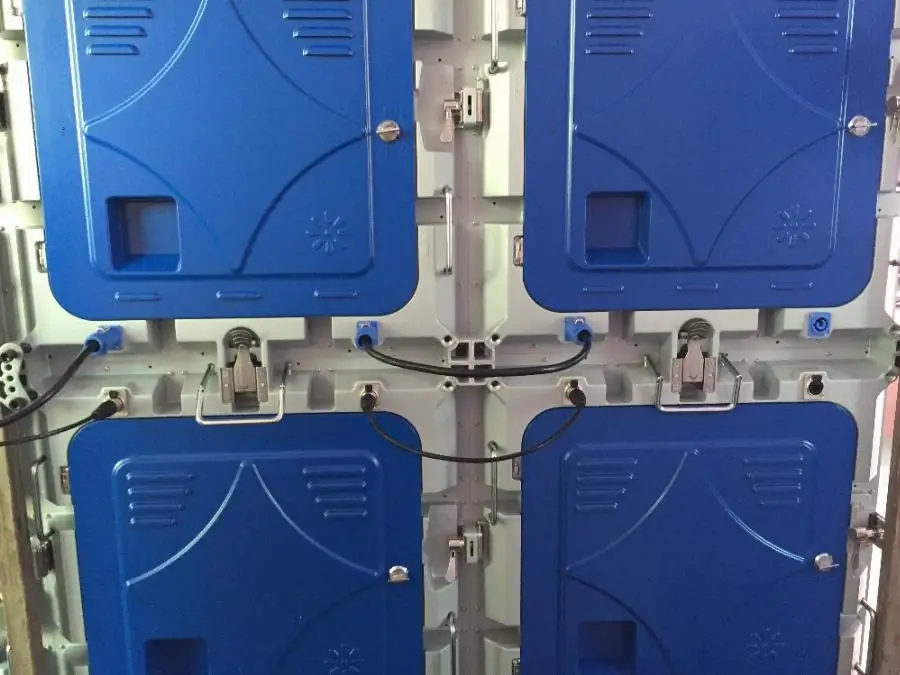

How To Build LED Display Screen Easy and Quick?Plug&Play!

p4 22.jpg

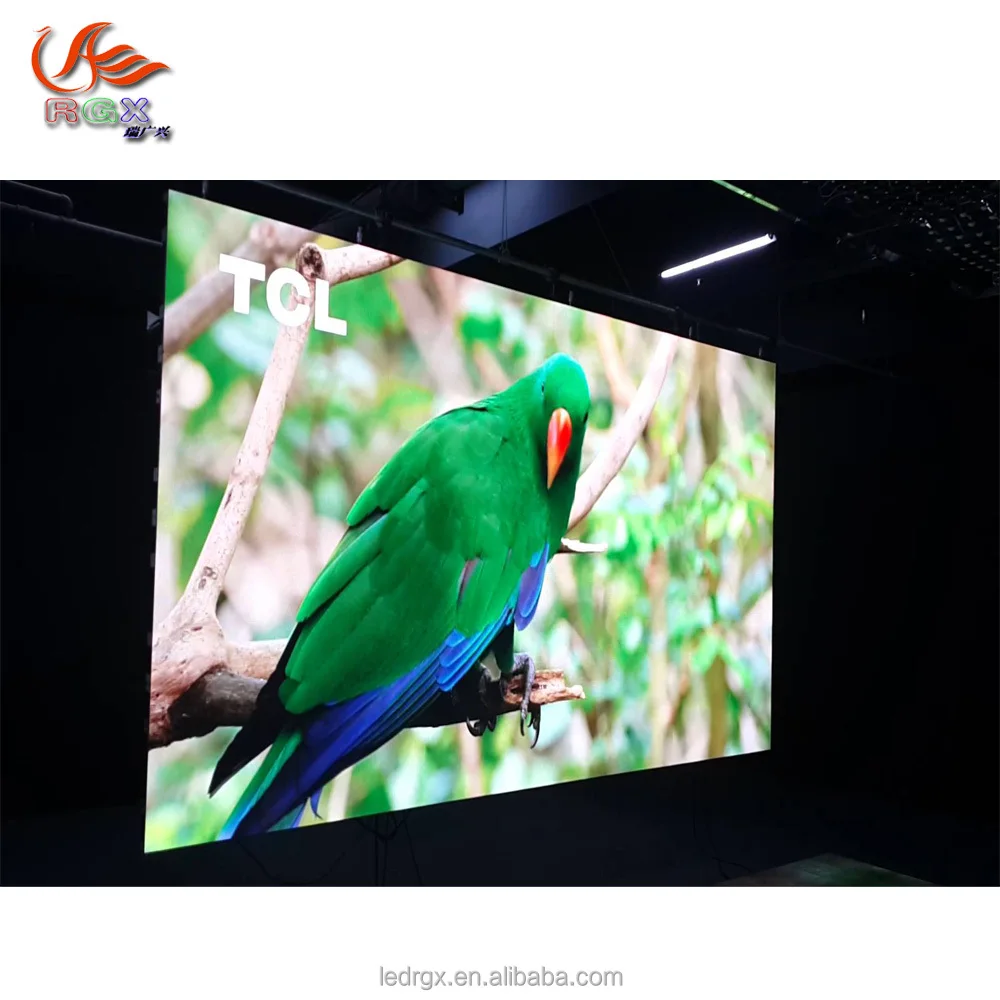

High fresh rate ,make your video more vividly!

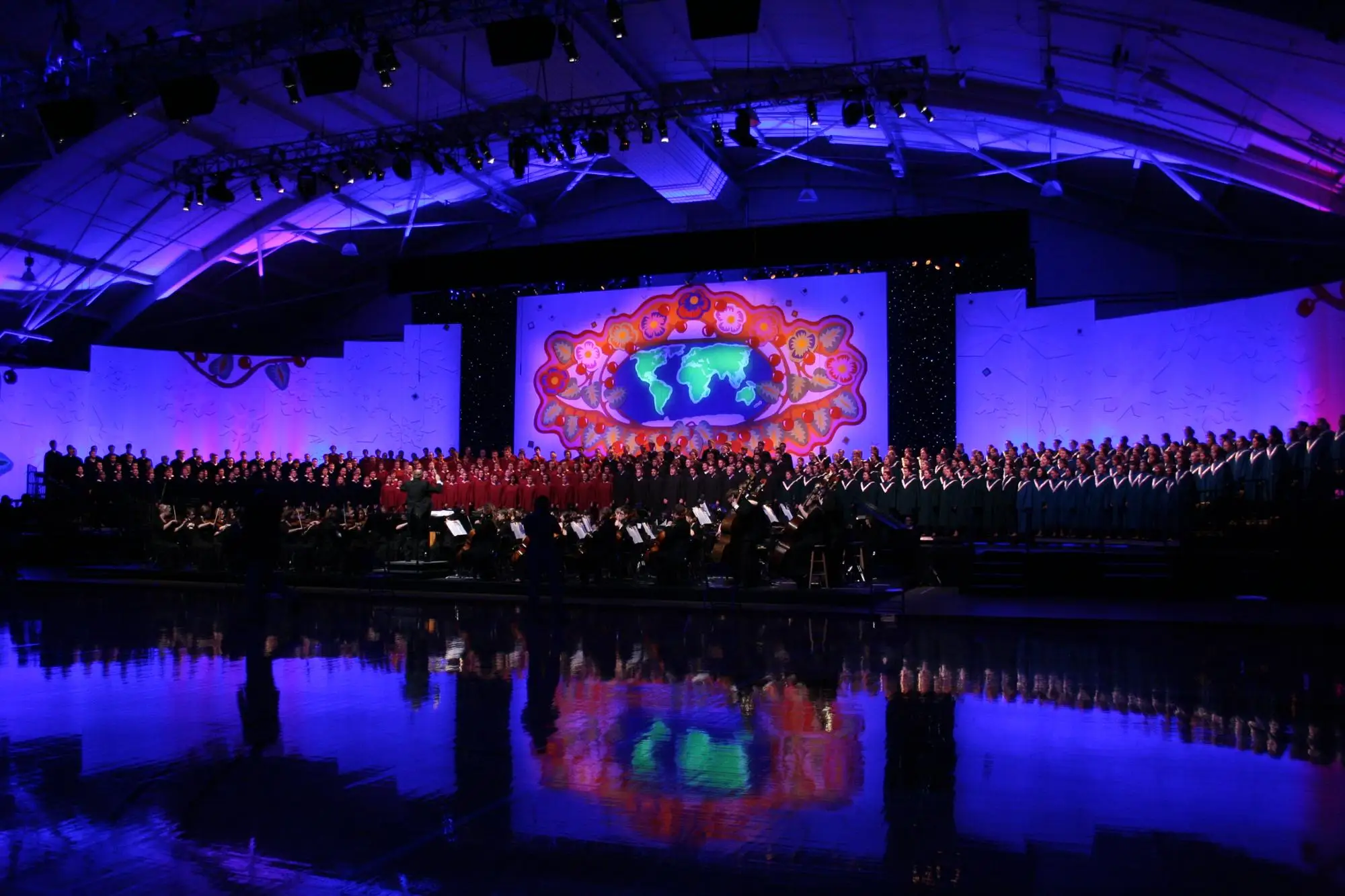

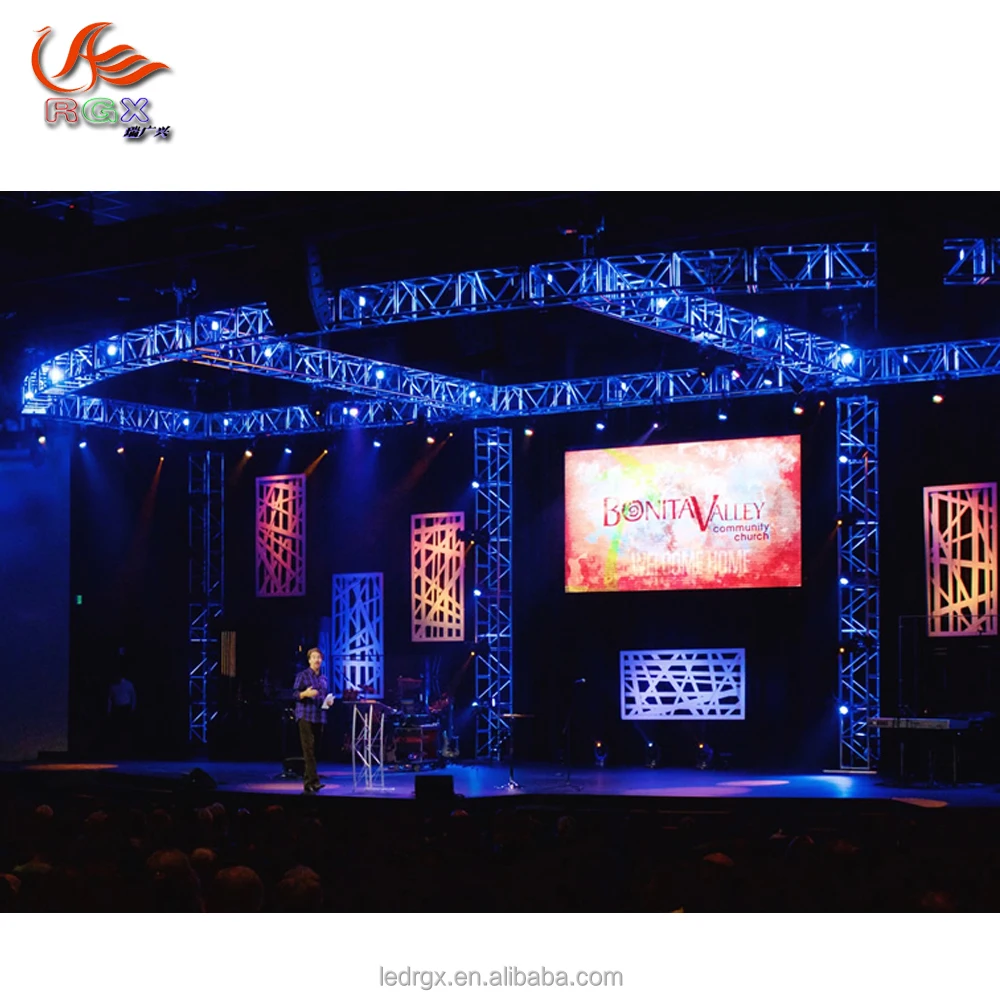

Samll size?big size?Any size will be OK!create your"Magic stage video wall "!

PLS contact me directly for NEWEST price and product details!

Bruce Lei

Tel/whatsapp/wechat:+86 180 3806 9578

Our Services

1. After-sales service:

1) Service principles: response in time, solve problems as soon as possible and ensure the use.

2) Service period: In the Maintenance period of the LED screen body, free of all maintenance charges; After Maintenance period,

only charge the material costs fees free of manual work fees.

3) Service scope: If the users find any problem that cannot be solved, please contact with our company, we can response in 2 hours. In order to shorten the maintenance time, Our Company will deploy some spare parts such as power and chips etc.

4) Under normal use and storage, Our Company will be responsible for the equipment.

2. Pre-sales service:

1) Our company can arrange professionals to conduct site installation and debugging in strict accordance with the requirements of the schemes

and the original manual. If there is any special requirement, it is necessary to make changes of part installation scheme, we will coordinate

with users. Our company can ensure the consistence of completion time and contracted time. Any problems caused by natural factors or man-made,

we will discuss with client to find solutions.

2) Our company can train the users based on the manual. The training include system use, system maintenance and equipment protection
