Product Overview
Description
PXG3.W100-2 BACnet / IP Web Interface with standard functionality PXG3.M PXG3.W200-1
Product Description
PXG3.W100-2BACnet / IP Web Interface with standard functionality

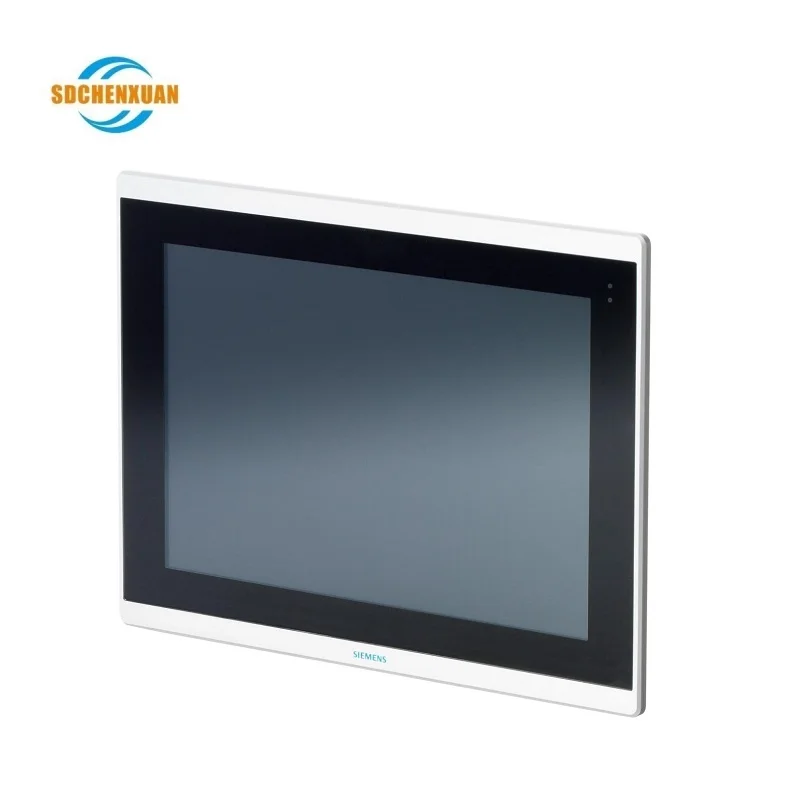

Web-based, graphical operation of BACnet devices using Desigo PXM touch panels and devices with an HTML 5.0 web browser.
- Simultaneous access by various operator units
- Central administration of graphics and data for other operating views
- Commissioning and engineering with ABT Site
- Up and download configuration data over the IP interface
- LED indication for Ethernet link and activity
- 2-port Ethernet switch for low-cost cabling (10Base-T/100Base-Tx)
- Operating voltage AC 24 V or DC 24 V
- Plug-in screw terminal block for supply
- Mounting on DIN rail
Model list:
| Product Model | Product Description | Origin |

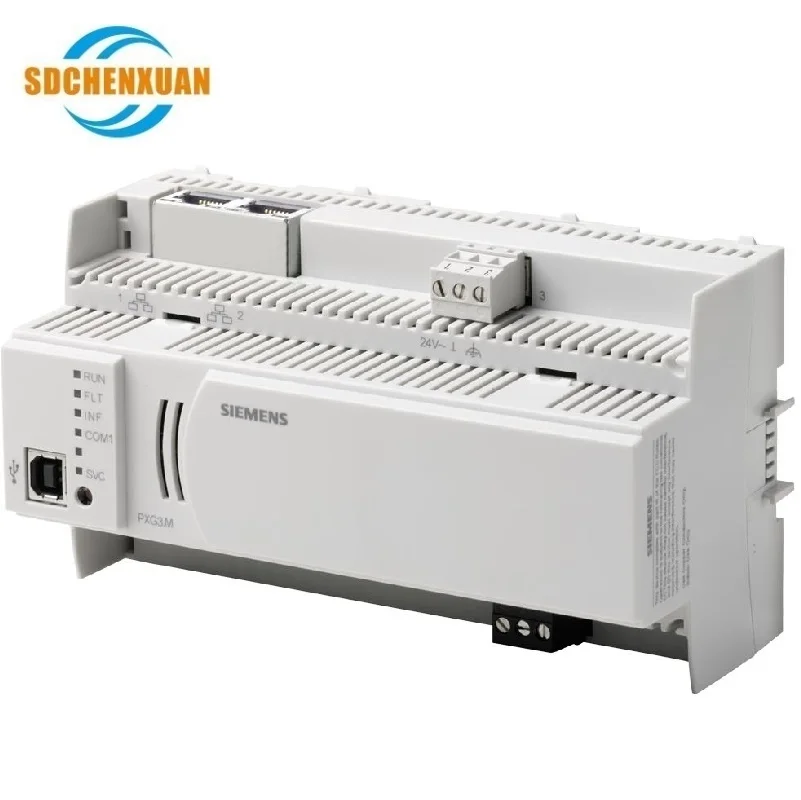

| PXG3.M | BACnet BACnet router | Switzerland |
| PXG3.W100-1 | PXG3.W100-1 BACnet/IPWeb interface interface (basic function) | Switzerland |
| PXG3.W200-1 | PXG3.W200-1 BACnet/IP Web interface interface (advanced function) | Switzerland |
Technical Specifications
Controller for temperature, relative humidity, absolute humidity, enthalpy, pressure, flow and indoor air quality measurement and control. The input value can be set from -100 to 8,000 units.The starting point and ending point of the output voltage can be any value between 0 V DC and 10 V DC.
Product parameters
P and PI response of the independent electronic universal controller
AC 24 V working voltage
· Application can be selected by application number
· Active input signal of the value of the paragraph can choose to set
· Range and direction of output value can be set arbitrarily
Two universal input points for Ni 1000, Pt 1000 resistance temperature sensor and 0 ... 10 V signal
Units can be set to ° C, ° F,% or no unit specified
· An analog output point outputs a DC 0 ... 10 V signal, either positive or negative
A two-bit output, forward or reverse
· A digital input for day / night setting switching
· No additional tools to enter or change all the data through the buttons on the controller
· Connection to PC for downloading prefabricated applications via software
