1~1000bar High Precision Vacuum Digital G1/4 Digital Pressure Gauge with 0.4% accuracy
- Category: >>>
- Supplier: Shanghai,Zhixiang,Sensor,Technology,Co.,Ltd.
Share on:
Product Overview
Description
-1~1000bar High Precision Vacuum Digital G1/4 Digital Pressure Gauge with 0.4% accuracy
-1~1000bar High Precision Vacuum Digital G1/4 Digital Pressure Gauge with 0.4% accuracy
Descriptions

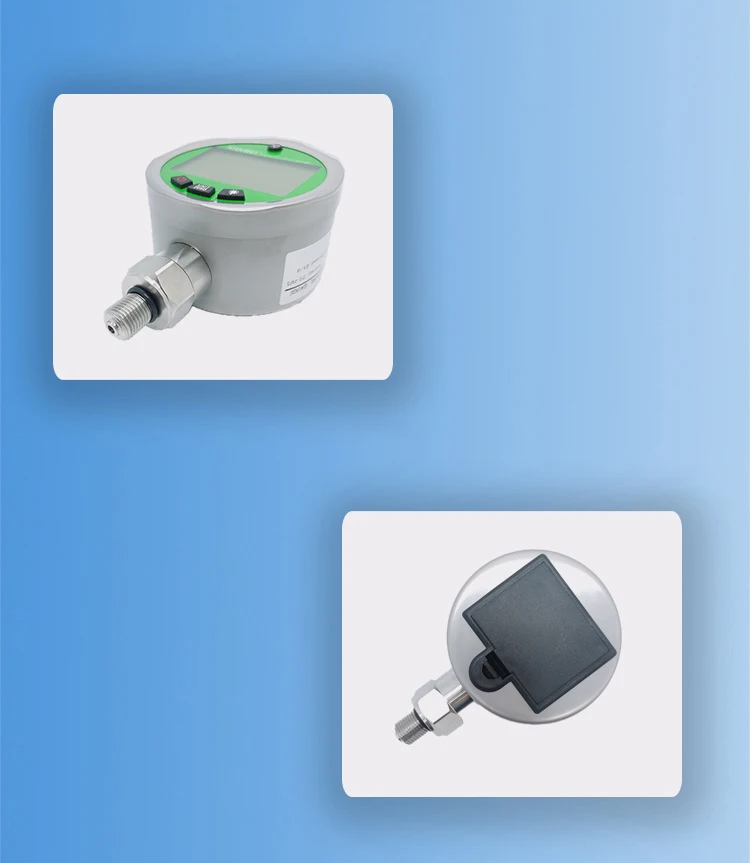

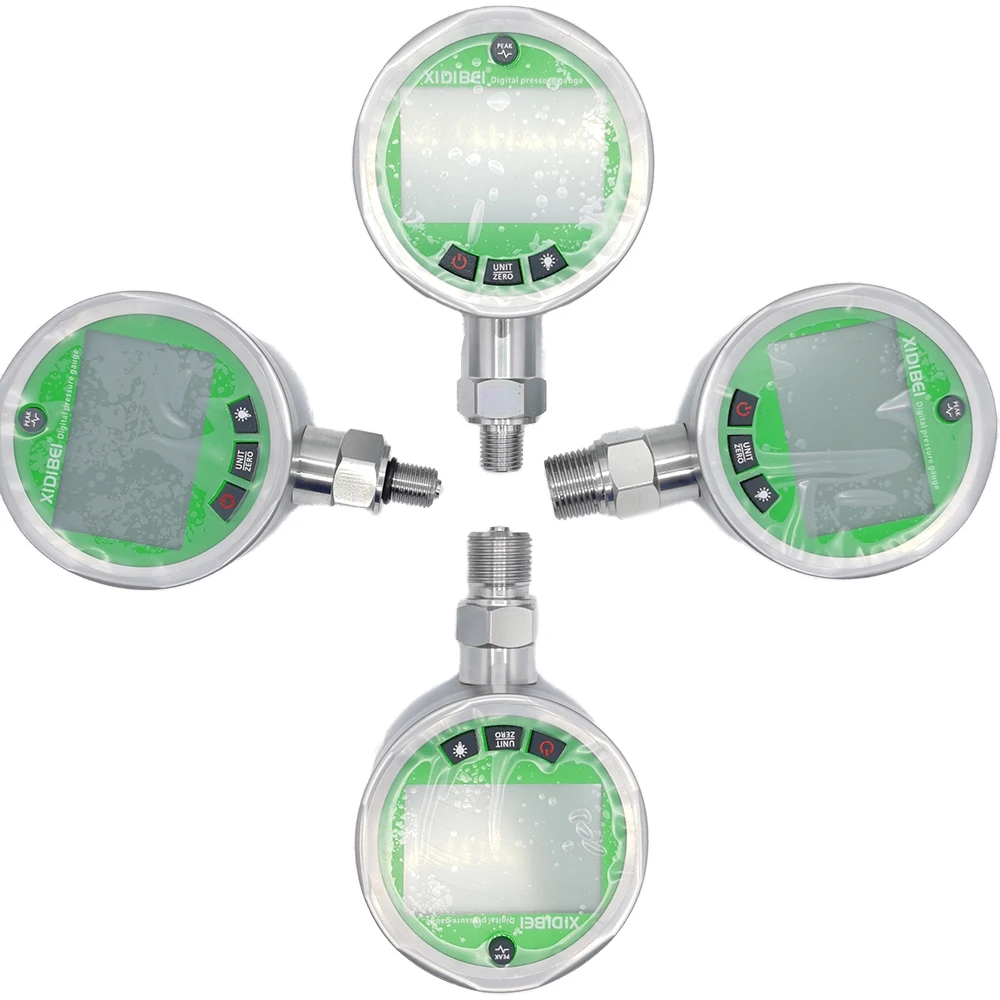

Dear users,Hello! Welcome to XDB410 digital pressure gauges.The digital pressuregauge is mainly composed of a housing,a pressure sensor and a signalprocessing circuit,and has the advantages of high precision, good corrosionresistance,impact resistance,shock resistance,small temperature drift,andgood stability; the micro power processor can be used to continuously Usetime.Pressure Sensor (G1/2 G1/4 NPT1/2 NPT1/4) Measuring Range -1~1000bar (Range Optional) Digital Pressure Gauge With High Precision
Parameters
Measuring range | -1~1000 Bar |
Pressure core | lmported diffusion silicon core |
Precision grade | 0.4% |
Overload capacity | 150% |
Display type | Five-digit to show dynamic pressure |
Battery power | 3AAA battery |
Measuring medium | Gas, Oil, Air, all liquid compatible with stainless steel |
Display range | -1999~9999 |
Working Temperature | ≤±0.2%FS/year |
Response time | ≤3ms |
Overload pressure | -10~60℃ |
Burst pressure | ≤80%RH |
Install thread | NPT, BSP, Metric Thread (Made as demand) |
Pressure Type | Positive / Negative / Absolute Pressure |
Gauge Material | Stainless steel |
Response time | ≤50ms |
Pressure Unit | 5-9 kinds pressure unite (Mpa, bar, Kpa, mH2o, kg/cm2, psi. mmH2o, in.WC, mbar etc.)≤50ms |
Weight | 0.400kg |
Warranty | 1.5 years |
Pressure Sensor (G1/2 G1/4 NPT1/2 NPT1/4) Measuring Range -1~1000bar (Range Optional) Digital Pressure Gauge With High Precision
Applications
• Mechanical engineering
• Process control and automation
• Hydraulics and pneumatics
• Pumps and compressors
• Water and gas
Features
• Wide pressure range -1bar to 1000bar
• LCD backlight display
• Four and a half digits display
• Five digits ambient temperature display

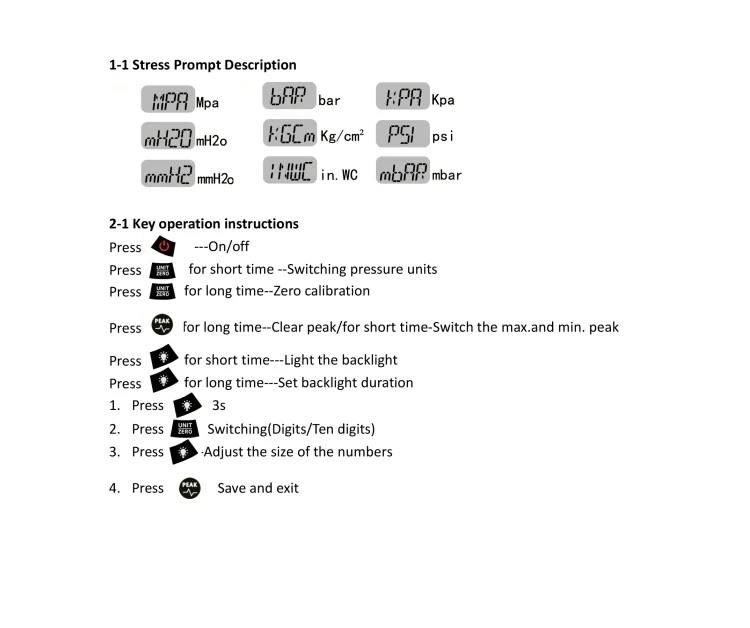

• Zero clearing
• Max/Min peak value holder
• Pressure progress bar display
• Battery indicator
• 5-9 kinds pressure unite (Mpa, bar, Kpa, mH2o, kg/cm2, psi. mmH2o, in.WC, mbar etc.)
Pressure Sensor (G1/2 G1/4 NPT1/2 NPT1/4) Measuring Range -1~1000bar (Range Optional) Digital Pressure Gauge With High Precision
Matters needing attention:
• Clear it before use. Due to the difference in atmospheric pressure andstress after installation, the product may show a little pressure.Please clear itand use it again (make sure the meter is not under pressure when it is cleared).
• Do not spy on the sensor. This product has a built-in pressure sensor, whichis a precision device.Please do not disassemble it yourself. You can't use a hardobject to probe or touch the diaphragm to avoid damaging the sensor.
• Use a wrench to install. Before installing the product, make sure that theinterface threads match the gauge theads and use a hex wrench; do not rotatethe case directly.
Q1: What's your business range?
We have piezoresistive ceramic pressure sensor production lines and MEMS technology to provide customers with high-quality, low-price pressure sensors and transmitter products.
Q2: May I visit your factory?
Of course, welcome to Shanghai, China. Our factory and sales are two separate professional companies.
Q3: Why should I use Alibaba Trade Assurance orders?
Trade Assurance order is a guarantee to buyer by Alibaba,For after-sales, returns, claims etc.
Q4: Why choose us?
1. We have been engaged in the field of pressure sensors for more than 10 years.
2. High quality products and competitive price.
3. We have professional business personnel and engineers to provide you with type selection assistance and technical support.
2. High quality products and competitive price.
3. We have professional business personnel and engineers to provide you with type selection assistance and technical support.
Q5: Can you accept ODM & OEM service ?
We professional provide OEM &ODM service for all of items.
If you have other questions, please feel free to contact us, thank you!
