Высокая точность 0-5v газовый клапан для измерения расхода двухсторонняя пьезоэлектрический датчик перепада давления для сигнализации
- Category: >>>
- Supplier: Shanghai,Pumping,Tech,International,Co.,Ltd.
Share on:
Product Overview
Description
Product Overviews
| Output signal | 0-5V,4-20mA |
| Range | 0-20kpa-3BAR |
| Electrical connection | Hersman connection |
| Material | Stainless steel |
| Working voltage | 5V/24V |
| Comprehensive accuracy | ±0.5%FS |
| Pressure overload | 300%FSO |
| Interface type | Internal thread or External thread |
| Working Temperature | -25℃~100℃ |
| Stability performance | ±0.02%FS/℃ |
| Pressure chip diaphragm | Imported Metallux |

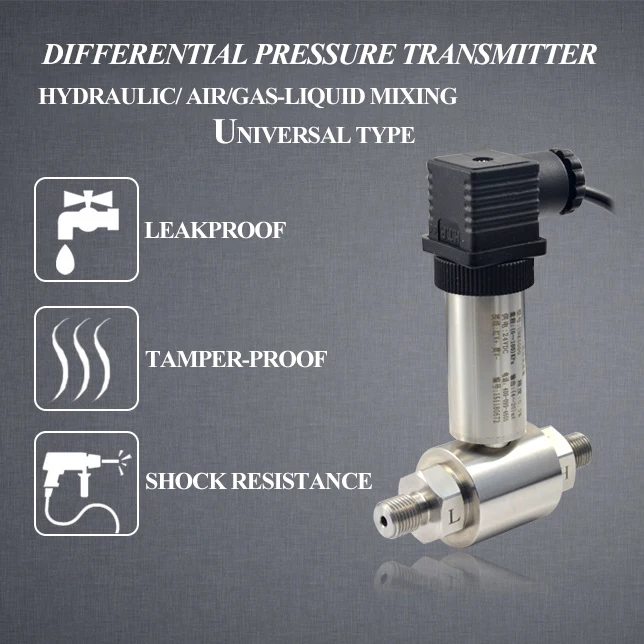

Differential pressure sensor
Model: SPD
Brand: aikon
Product introduction

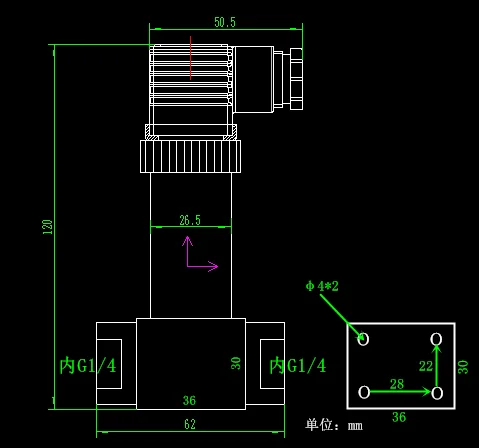

It is used to measure the pressure difference of overpressure, vacuum and near non trawl gas and liquid medium. Solid rather than sensitive pressure measurement ceramic cells are used in the pressure transducer data. The measuring force is formed on a ceramic membrane, which deforms. The resistance is proportional to the deformation. Integrated into the electronics converter housing to convert resistance changes to 0-10 or 4-20 ma. The installation is via two connections to the internal thread G1 / 4. The converter is suitable for all types of industrial or sanitary equipment, such as measuring the pressure difference between the feed line and the feedback line in the heating device or controlling the filter, fan and compressor.
