UPS rack 5U 5KWh 48V 100Ah LiFePO4 UPS battery Solar energy storage system ESS module base station for backup power supply
- Category: >>>
- Supplier: Shenzhen Yichen S-Power Tech Co. Ltd.
Share on (1600596977064):
Product Overview
Description
Product Description

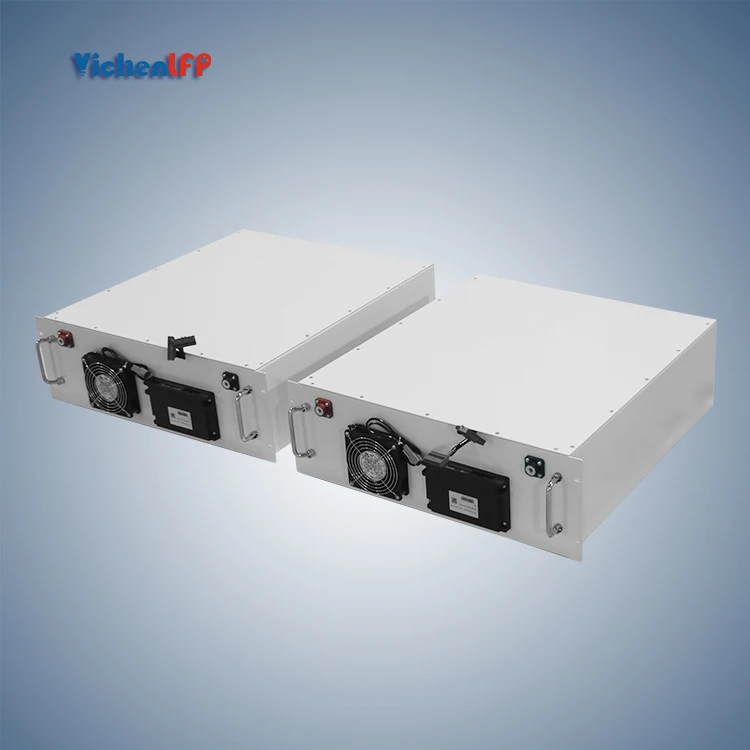

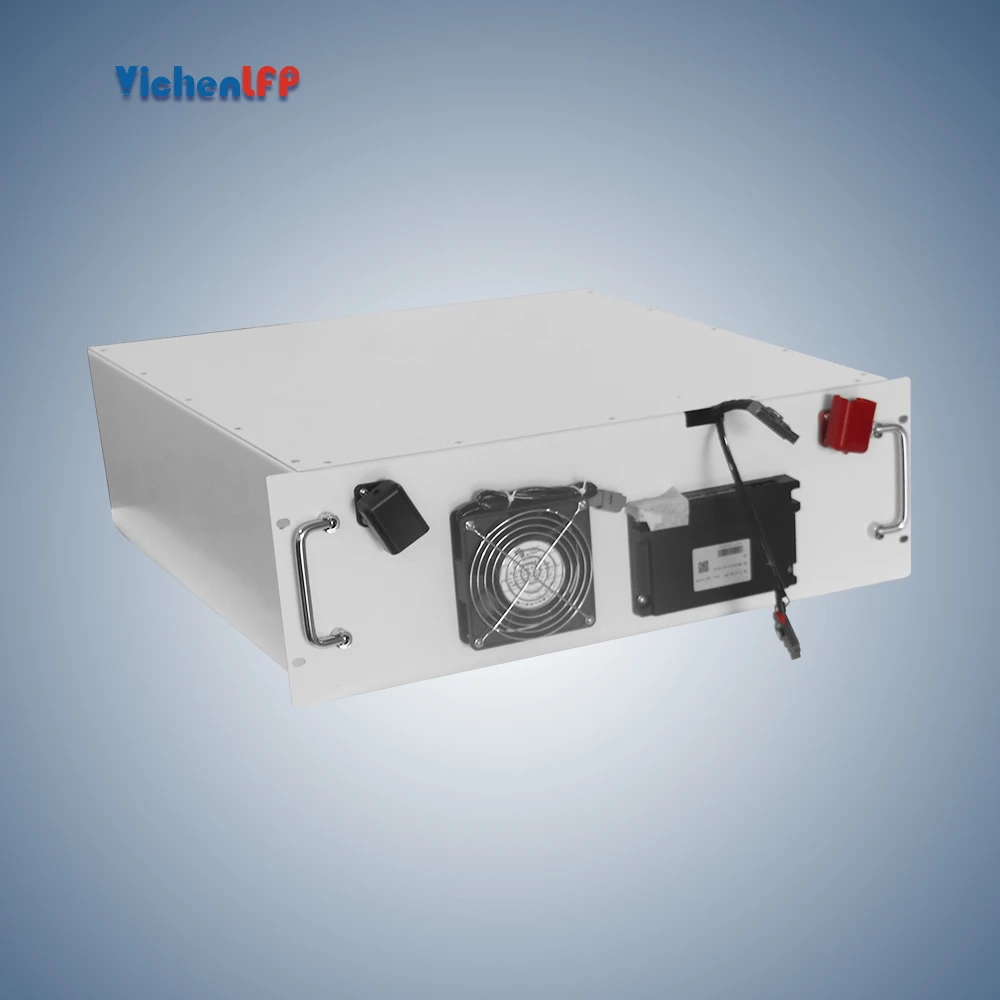

51.2V 100Ah rack mounted 5.12KWh 5U LFP Battery Module
The 5.12KWh 5U battery module uses extremely safe and long-lasting Lithiu Iron Phosphate technology and provides unparallel safety, reliability and performance.
We customize 5U LFP module for both residential and industrial energy storage system. This 5U module is specially designed for industrial ESS. It adopted Master and slave Battery Manage system(BMS).
It can be also designed for residential energy storage system to maximize solar usage, lower the electricity bill, and increase energy independence.
Benifits:
* Every battery module has a built-in smart battery management system
* Up to 98% efficiency
* Remote monitoring, update, and management
* Super long cycle life-- 6000 cycles to 80% DOD
* Compatible with most industry standard inverter/ charge controllers
* Proven safety and high performance-- deployed for national state grid
* Easy installation and scalability
* Extremely competitive price and higher return on investment
* Maintenance free modules.

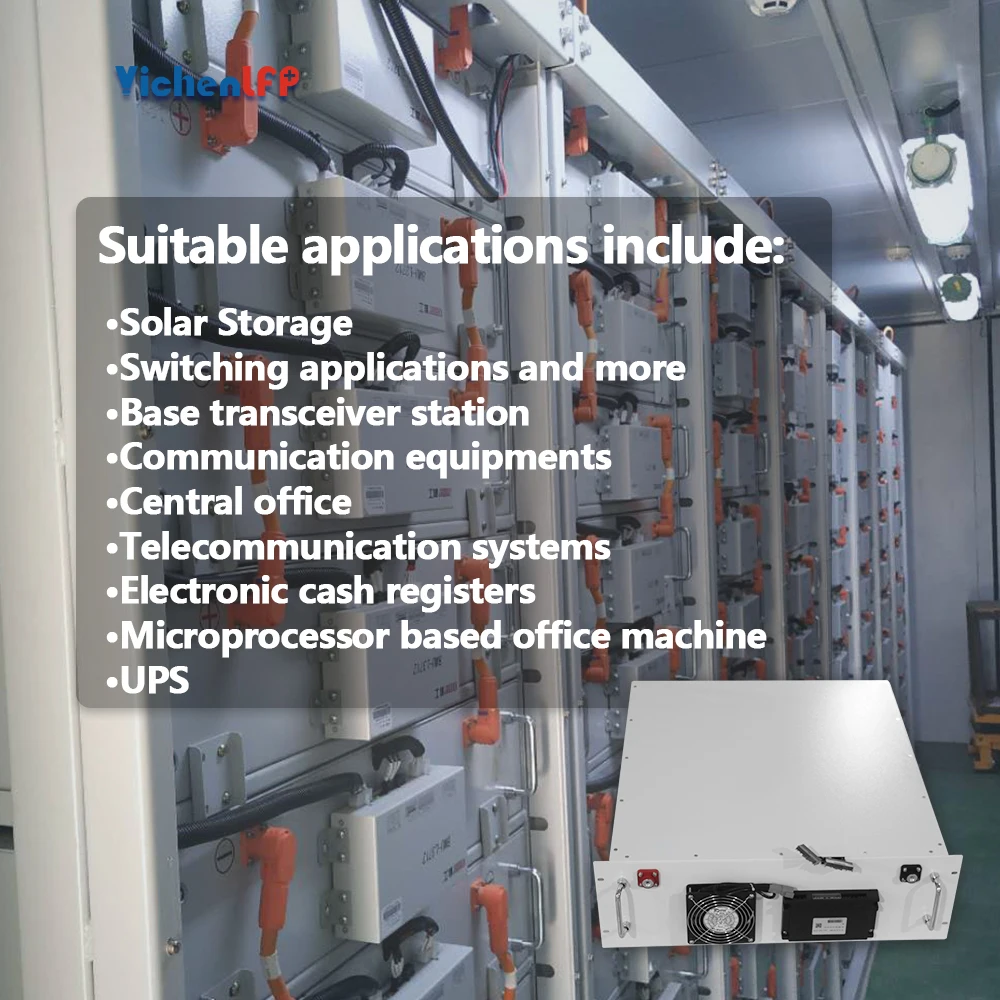

* Used for off-grid, peak load shedding, TOU, zero export, and emergency backup power applications.
Easy installation
With simply M8 waterproof "positive, negative" terminals, easy to install and rack mounted.
Welcome the world cooperation, accept OEM with whole ESS design!
Welcome the world cooperation, accept OEM with whole ESS design!

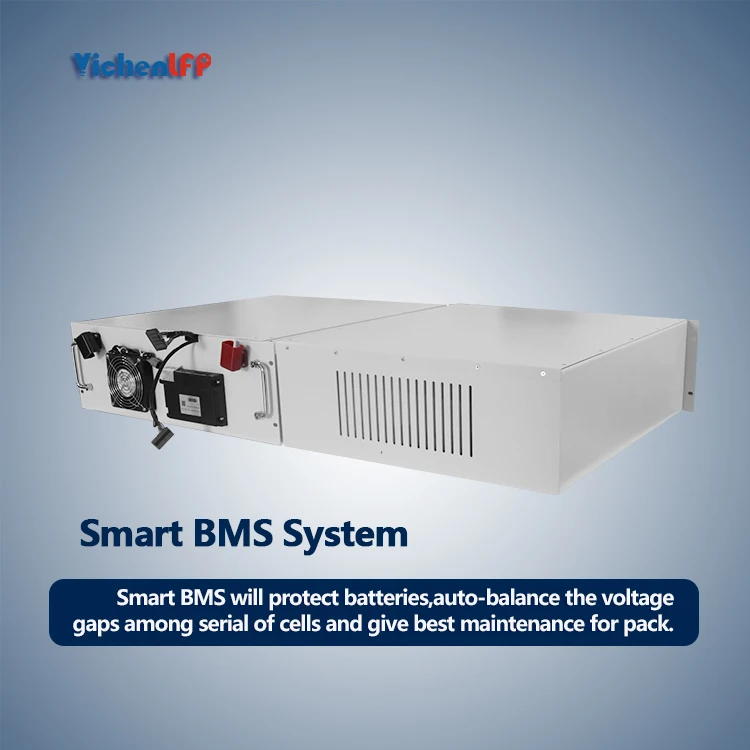

Intelligent Management
Using intelligent management technology, the master BMS like a micro grid control center to coordinate and match photovoltaic chargers, inverters and other power generation equipment according to load requirements.
And manage and monitor each battery modules separately, for more convenient module-scale.
More safe, longer cycle life.
Scalable
A single battery module is 51.2v 100ah 5.12kwh. (also support customizing to other models, like 51.2V 200Ah...)
BMS is also selectable. If without master control, Max support parallel in 15pcs; if with master control, we have experience of making in 0.38MWh,0.432Mwh and more.
Specification
Model No | YC2400 | YC5000 | YC7200 | YC9600 | YC12000 | ||||
Voltage | 51.2 V | 51.2 V | 51.2 V | 51.2 V | 51.2 V | ||||
Capacity | 50Ah | 100Ah | 150Ah | 200Ah | 250Ah | ||||
Energy | 2.4KWH | 5.12KWH | 7.68KWH | 10.24KWH | 12.80KWH | ||||
Operation voltage | 35.25-54.75 Vdc | 37.6-58.4Vdc | 37.6-58.4Vdc | 37.6-58.4Vdc | 37.6-58.4Vdc | ||||
Max.charging voltage | 54.75Vdc | 58.4 Vdc | 58.4 Vdc | 58.4 Vdc | 58.4 Vdc | ||||
Max.charging and discharging current | 50A | 100A | 100A | 100A | 100A | ||||
Max Power | 2400W | 5120W | 7680W | 10240W | 12800W | ||||
Life time(25°C) | Max 15 years | ||||||||
Life cycles(80% DOD, 25°C) | 6000 Cycles | ||||||||
Communication | RS485, CAN | ||||||||
Operation temperature | -20°C to 60°C @60+/-25% Relative Humidity | ||||||||
Storage temperature | 0°C to 45°C @60+/-25% Relative Humidity | ||||||||
Enclosure protection rating | IP20 | ||||||||
Dimensions(L×W×H)mm | 482*410*89 | 482*400*177 | 482*430*222 | 482*500*280 | 482*500*280 | ||||
Weight | 24KG | 43KG | 65KG | 82KG | 100KG | ||||
Why Choose LiFepo4 Battery?
What is a LiFePO4 Battery?
A LiFePO4 Battery is short for Lithium Iron Phosphate Battery. Simply put it uses non-toxic material that is abundant in nature to create a more efficient battery.
What are the benefits of a LiFePO4 Battery?
There're some benefits while using an LFP battery instead of other deep cycle lead-acid batteries.
A LiFePO4 Battery is short for Lithium Iron Phosphate Battery. Simply put it uses non-toxic material that is abundant in nature to create a more efficient battery.
What are the benefits of a LiFePO4 Battery?
There're some benefits while using an LFP battery instead of other deep cycle lead-acid batteries.
* Less than 1/2 weight of an equal AGM battery
* Lasts 2 times longer. The new technology makes it last more than double times that an equal value AGM would last while using it.
* 3-5 times Serve for longer. Many AGM batteries can only serve properly for 2-5 years, LFP batteries can be used up to 10 years.
* 200% Twice the power of traditional batteries.
* Charges up to 5 times faster.
* 100% safe & Reliable
* Be saving the planet because LiFePO4 batteries are much less toxic.
LiFePO4 batteries cost a lot more upfront but in the long run, they are worth it. Especially when user consider the trouble
involved in moving big AGM batteries around.
* Lasts 2 times longer. The new technology makes it last more than double times that an equal value AGM would last while using it.
* 3-5 times Serve for longer. Many AGM batteries can only serve properly for 2-5 years, LFP batteries can be used up to 10 years.
* 200% Twice the power of traditional batteries.
* Charges up to 5 times faster.
* 100% safe & Reliable
* Be saving the planet because LiFePO4 batteries are much less toxic.
LiFePO4 batteries cost a lot more upfront but in the long run, they are worth it. Especially when user consider the trouble
involved in moving big AGM batteries around.
Certificate
The company has been certified by TUV, UL, CE, CSA, CEC, JET, etc.
At present, it has customers in more than 50 countries and regions, The cumulative production capacity in the past 5 years is greater than 300MWh, <0.3% after sale problem in 5 years.
Company Profile
About US
Shenzhen Yichen S-Power Tech Co., Ltd. founded in 2015, has become a comprehensive battery manufacturer with the combination of R&D, manufacturing, marketing and service. The founder has more than 12years experience with Lithium battery. We focus on design and development of High Voltage, Large Capacity Long cyclelife LiFePO4 battery, LTO Battery and system,offer global technical support,Yichen S-Power equipped with advanced production and testing facilities, to supply valuable and high quality products.Currently, we can support CANBUS/Bluetooth App/Rs485/Rs232/ solution, and developed battery self-heating and Self-cooling(Water cooling).Solve the High Temperatrue and Low Temperatrue environment battery problem.To have Longer Cycle life and More Power.These products are used on Solar, Home storage battery,UPS,AGV, RVcar, Telecom Base Station, Golf Trolley Cart,Fishing Boat, Car Start-Stop system battery.
The products passed TUV , UL , CE ,CSA ,CEC ,JET certifications. Have been exported to more than 50 different countries. OEM/ODEM service offered.
Shenzhen Yichen S-Power Tech Co.,Ltd. with great passion and faithfulness, are willing to provide you with perfect services and striding forward with you to create a bright future.
The products passed TUV , UL , CE ,CSA ,CEC ,JET certifications. Have been exported to more than 50 different countries. OEM/ODEM service offered.
Shenzhen Yichen S-Power Tech Co.,Ltd. with great passion and faithfulness, are willing to provide you with perfect services and striding forward with you to create a bright future.
Our Workshop & equipment
Our Technology R&D
Our Batteries' waterproof test
Special batteries' reserved polarity protection test
Special batteries' short circuit protection test
High temperature protection test
WHAT WE CAN DO?
Yichen S-Power equipped with advanced production and testing facilities, to supply valuable and high quality products. Currently, we can support CANBUS/Bluetooth App/Rs485/Rs232/ solution, and developed battery self-heating and Self-cooling(Water cooling).Solve the High Temperatrue and Low Temperatrue environment battery problem.To have Longer Cycle life and More Power.These products are used on Solar, Home storage battery,UPS,AGV, RVcar, Telecom Base Station, Golf Trolley Cart,Fishing Boat, Car Start-Stop system battery.
LiFePO4 Car Start Batteries
We have 12V /24V 20Ah/40Ah/50Ah/ 60Ah/70Ah/80Ah/90Ah/100Ah/120Ah types in existence.
Also support customization.
LiFePO4 replacement of SLA
Normal 12V/24V 100Ah/120Ah/250Ah in existence.
Support customization to replace traditional SLA/Gel/AGM batteries in Solar ESS, RV, Marine and other ESS applications.
RV Caravan Batteries
Metal Steel housing/ABS case optional.
Normal 12V~48V 100Ah~400Ah.
Offer OEM/ODEM service.
Golf cart Batteries
Adopting EV class LiFePO4 cell.
12V/36V/48V
Support OEM/ODEM.
Forklift Battery Packs
Normal 48V/80V 100Ah~400Ah in existence.
Support Design & Customization according to requirement.
DC Emergency Battery
220V/110V DC Mobile Emergency Battery for Electric Power overhaul.
20Ah/30Ah/40Ah
Powerwall Solar Home ESS Battery
Normal 5KWh, 7.5KWh,10KWh exsiting.
Support Battery OEM/ODEM.
Support solution design including Inverter.
High Voltage Batteries
Can Design and produce 115V/268V/ 384V/460V/537V/576V/614V/740V for you to the special use.

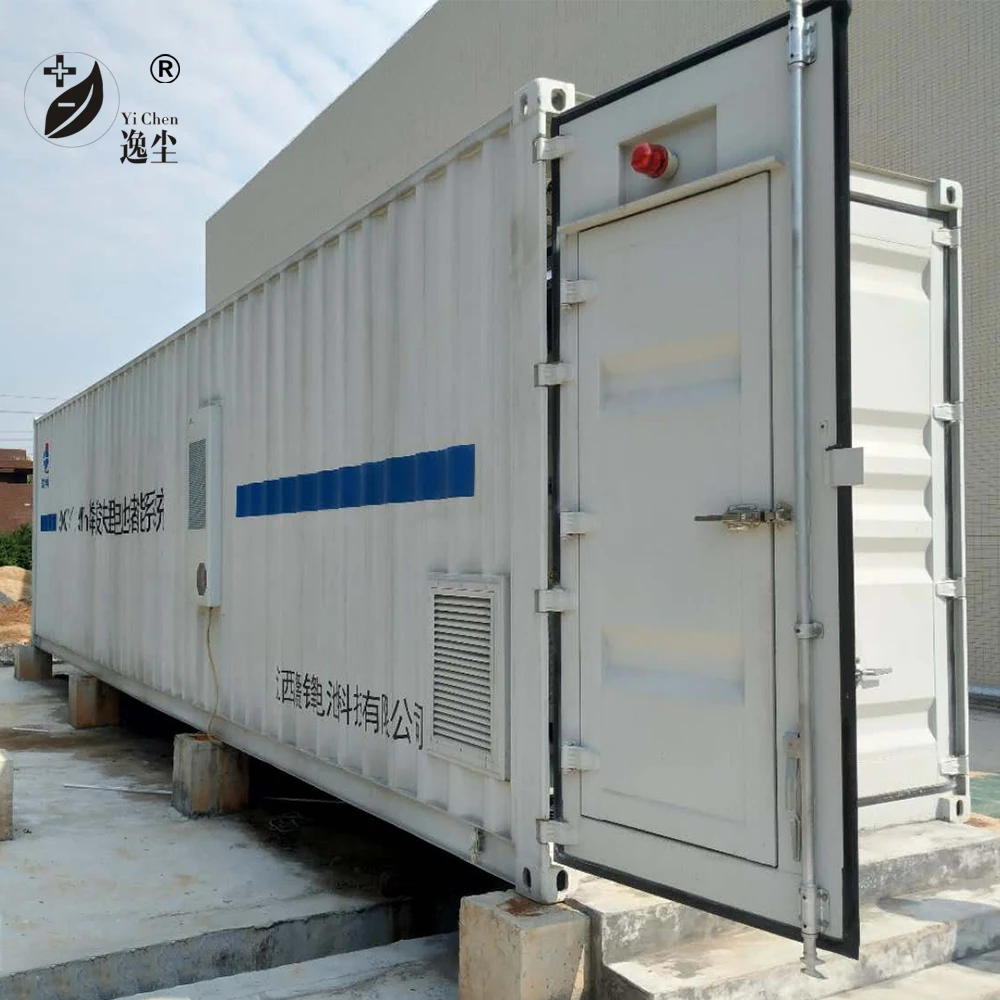

Containerized ESS
Have exprience of developping 1MW/1.5MW/2MW.
Welcome to inquiry!
FAQ
Q1: Can I have samples to test? And what is lead time for sample order?
Yes,we can supply samples in 5-7 days depending on different product items and clients' requirement.
For normal in stock product,2~5 days; For customized product,3~7days depends on requirements.
Q2: What is the warranty for the products?
1~10 years,Since our product range is wide,Minimum12v 40Ah, Max 2MW container energy storage system,Different products has different warranty,welcome to check before placing order.
Q3: What is your company's advantage?
We're direct factory,have very rich exprience in customizing kinds of high voltage,high capacity,high performance battery packs for 12v/24v/48v/80v RV caravans, Electric forklift, Golf cart, Marine, AGV, Lead acid batteries replacement, Solar home energry storage,384V/460V/614V Aircraft tractors,heavy truck, Mine train,110v/220v DC power supply, ESS cabinet,ESS container and so on, can offer you the best & professional technology support.
Q4: Do you accept OEM/ODM?
Yes,welcome!
Q5: What is the lead time for the mass order?
Generally speaking,about 7~20 days depending on different items after getting down payment and confirmation about the samples.
Q6: What is the payment terms?
Sample payment accept Paypal,Western union, Escrow;and Mass order by T/T.
Q7: What kind of certificate can offer?
CE,RoHS,UN38.3,MSDS,etc,If need IEC-62133,PSE and others, please consult with us.
