Product Description

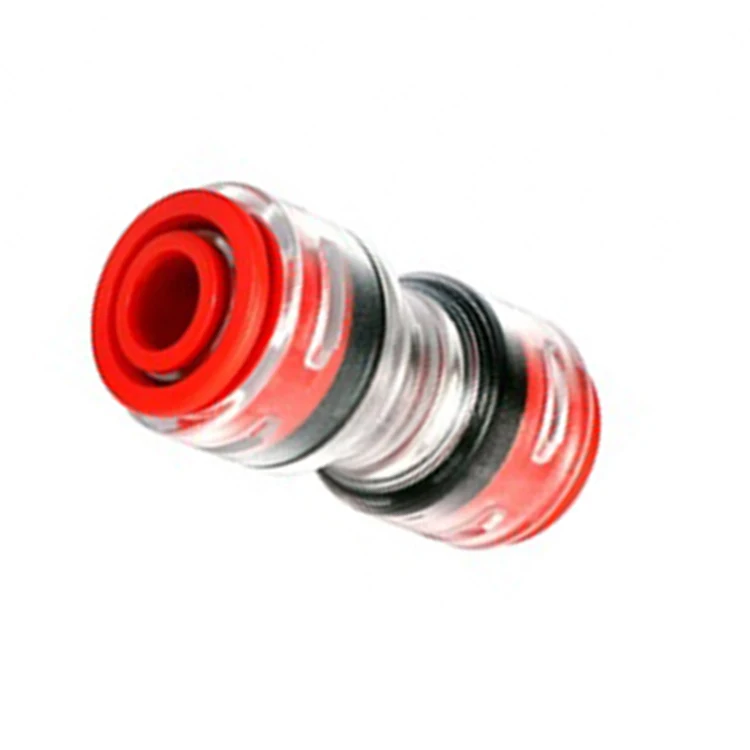

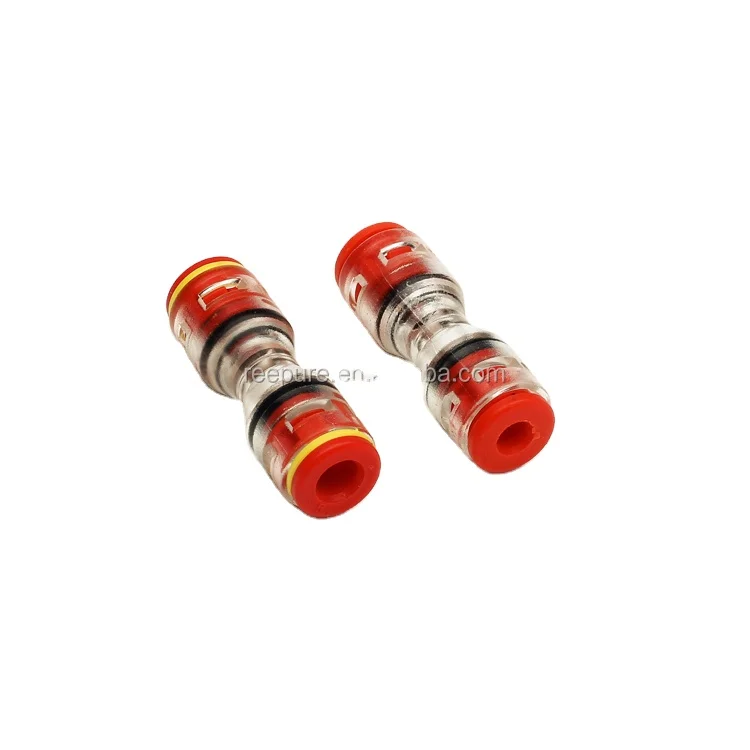

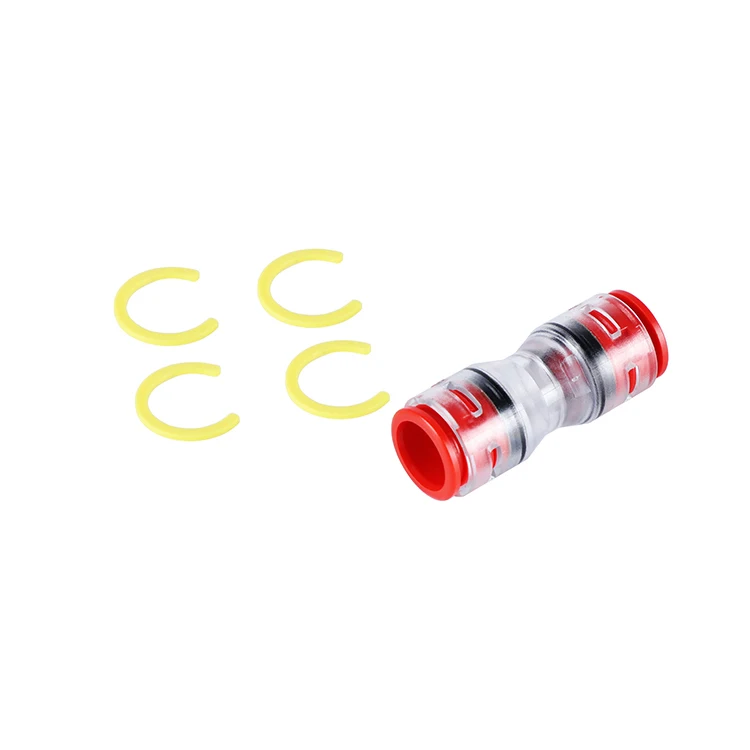

The micro duct straight connectors make splicing MicroDuct fast and easy. Simply push the Micro Ducts into the center of the micro duct straight connector. No tools are required. The micro duct straight connector can be connected and disconnected 10 times and still maintain the high performance requirements for air blown installation systems.
Micro duct straight connector operate at 16 BAR (218 psi) with a maximum permissible leakage rate of 1cc/min. This is equivalent to 1 bubble every 3 seconds. Higher pressures have been used in the field with no increase in leakage rate. Quick Burst rating is 26 BARS (363 psi).
Micro duct straight connector's Feature:
Body Material: | PC, impact resistant |
Collect Material: | POM, stainless steel teeth |
O-rings Material: | Nitrile rubber |
Blowing Pressure: | 16 bar |
Burst Pressure: | 25 bar |
Temperature Range: | -10 ~ 60°C |
Insertion force: | 50N max (5kg) |

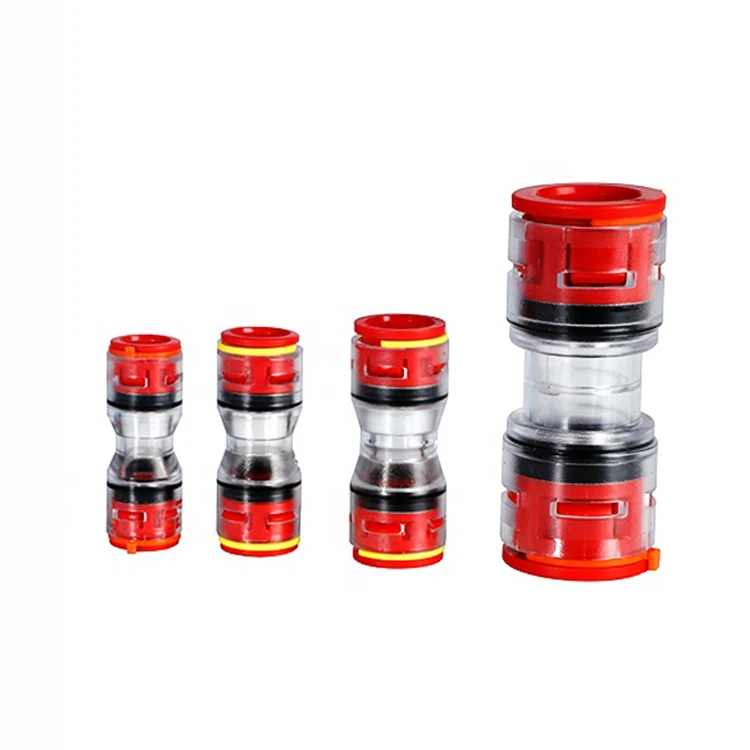

Micro duct straight connector's Specification:
Reepure code | Description |
MSC-3/2.1 | 3mm straight connector, bore 2.1mm |
MSC-4/2.5 | 4mm straight connector, bore 2.5mm |
MSC-5/3.5 | 5mm straight connector, bore 3.5mm |
MSC-6/4 | 6mm straight connector, bore 4mm |
MSC-7/3.5 | 7mm straight connector, bore 3.5mm |
MSC-7/4 | 7mm straight connector, bore 4mm |
MSC-7/5.5 | 7mm straight connector, bore 5.5mm |
MSC-8/3.5 | 8mm straight connector, bore 3.5mm |
MSC-8/6 | 8mm straight connector, bore 6mm |
MSC-10/6 | 10mm straight connector, bore 6mm |
MSC-10/8 | 10mm straight connector, bore 8mm |
MSC-12/8 | 12mm straight connector, bore 8mm |
MSC-12/10 | 12mm straight connector, bore 10mm |
MSC-12.7/10 | 12.7mm straight connector, bore 10mm |
MSC-14/10 | 14mm straight connector, bore 10mm |
MSC-14/12 | 14mm straight connector, bore 12mm |
MSC-16/12 | 16mm straight connector, bore 12mm |
MSC-16/13 | 16mm straight connector, bore 13mm |
MSC-16/14 | 16mm straight connector, bore 14mm |
MSC-18/12 | 18mm straight connector, bore 12mm |
MSC-18/14 | 18mm straight connector, bore 14mm |
MSC-18/16 | 18mm straight connector, bore 16mm |
