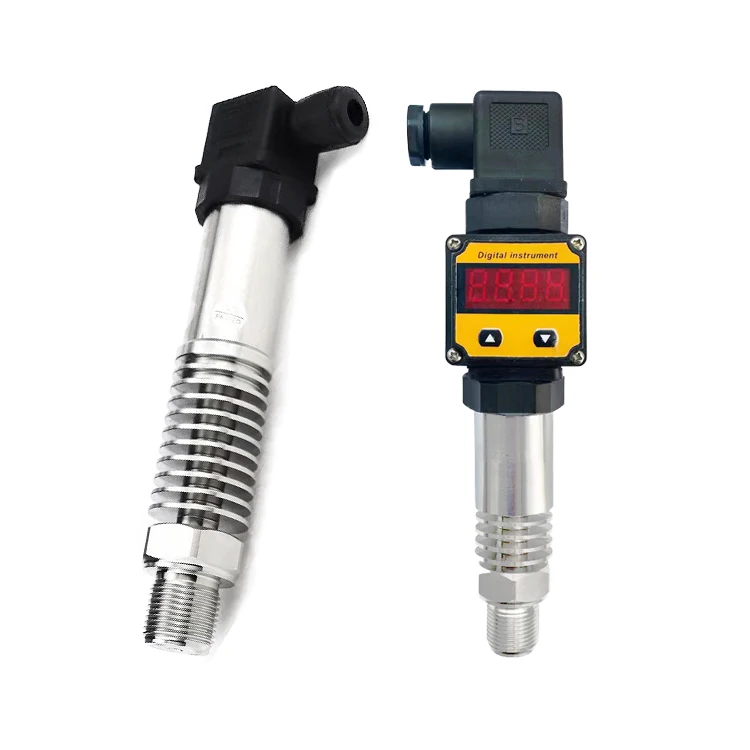

Factory Various Water Gas Oil Pressure Sensor Transducer Pressure Transmitter for Harsh Environments
- Category: Pressure Transmitters >>>
- Supplier: Chengdu,Sentec,Technology,Co.,Ltd.
Share on:
Product Overview
Description

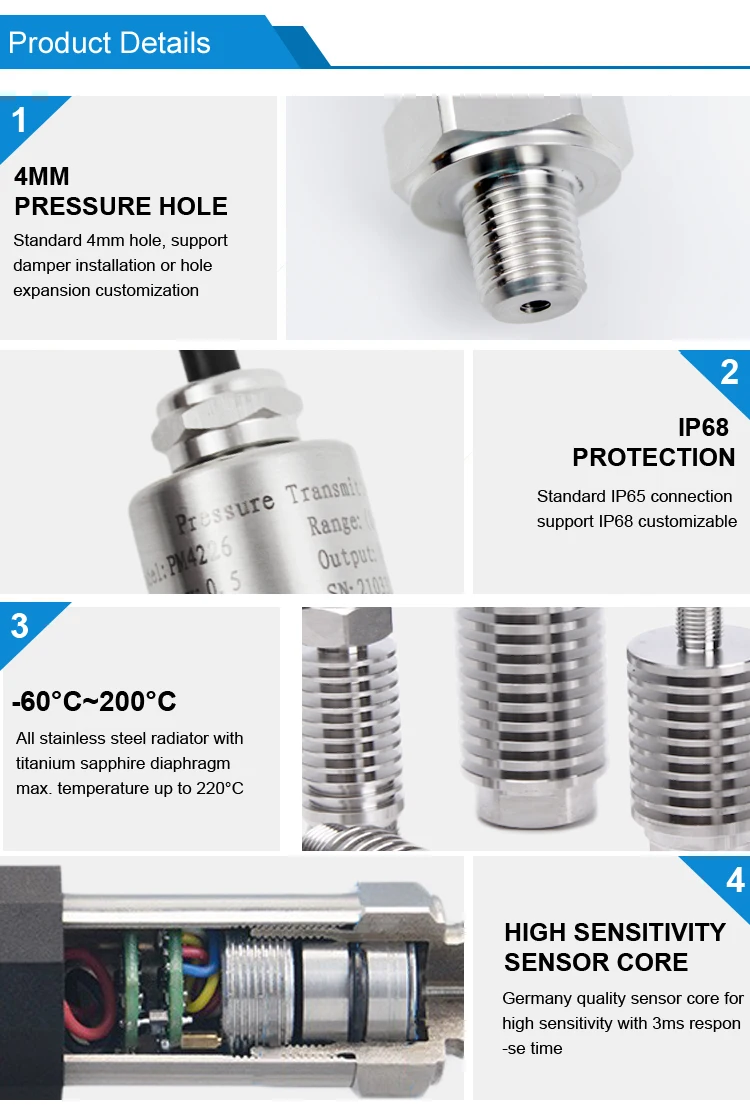

Titanium alloy diaphragm, strong corrosion resistance
Wide temperature zone, high precision
Flameproof, IP68 protection

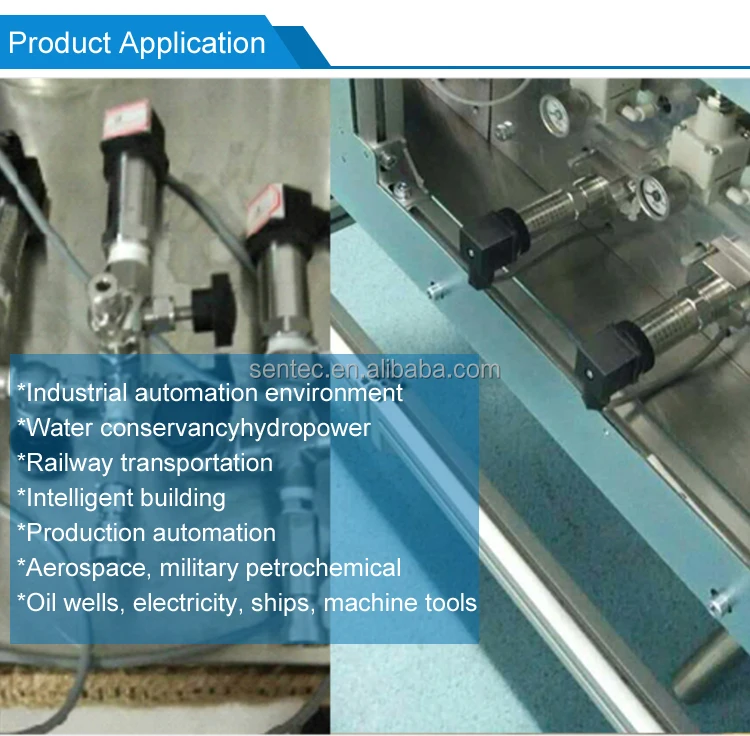

Can be applied to harsh environments such as pollution, humidity, flflammable and explosive
Wide temperature zone, high precision
Flameproof, IP68 protection
Can be applied to harsh environments such as pollution, humidity, flflammable and explosive
Range | -0.1MPa...0kPa~10kPa...100MPa | ||||
Overload capability | Below 10MPa ≤ 2 times full scale 10MPa and above ≤1.5 times full scale | ||||
Pressure Type | G (gauge pressure), A (absolute pressure), S (sealed gauge pressure) | ||||

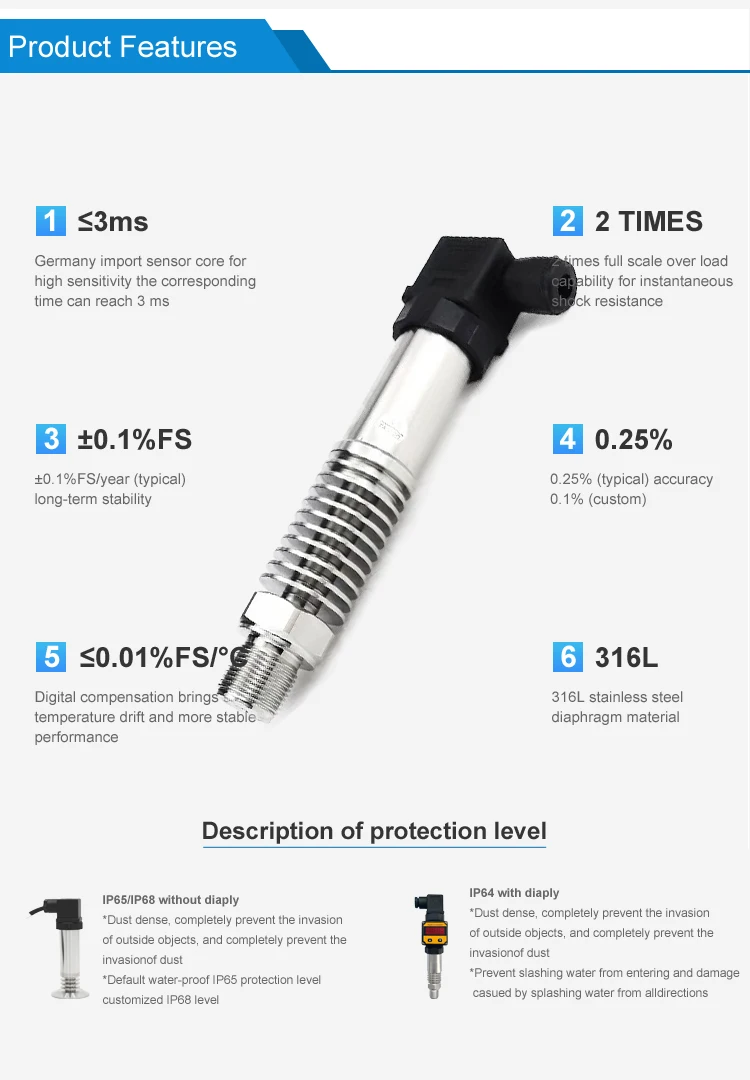

Accuracy | 0.1% (custom), 0.25% (typical), 0.5% (maximum) | ||||
Long-term stability | ±0.1%FS/year (typical), ±0.2%FS/year (maximum) | ||||
Zero temperature drift | ±0.015%FS/°C, ±0.02%FS/°C | ||||
Sensitivity temperature drift | ±0.015%FS/°C, ±0.02%FS/°C | ||||
Compensation temperature | -10°C~70°C, -20°C~80°C | ||||
Medium temperature | -60°C~200°C, -30°C~65°C (Input type) | ||||
Power supply | 12 ~ 30V (Default 24V) | ||||
Output signal | 4mA~20mA (superimposable HART protocol) 0V~10V (output range can be customized) RS485 | ||||
Load Resistance | Current type: ≤ (U-12) / 0.02 (Ω) | ||||
Protection level | IP65 (customizable IP67/IP68) | ||||
Certifications
Packing&Shipping
Q:What kind of products do you offer ?
A:SenTec supply pressure sensors, level sensors, temperature sensors , fiow sensors and environment sensors. Export more than 70+countries.

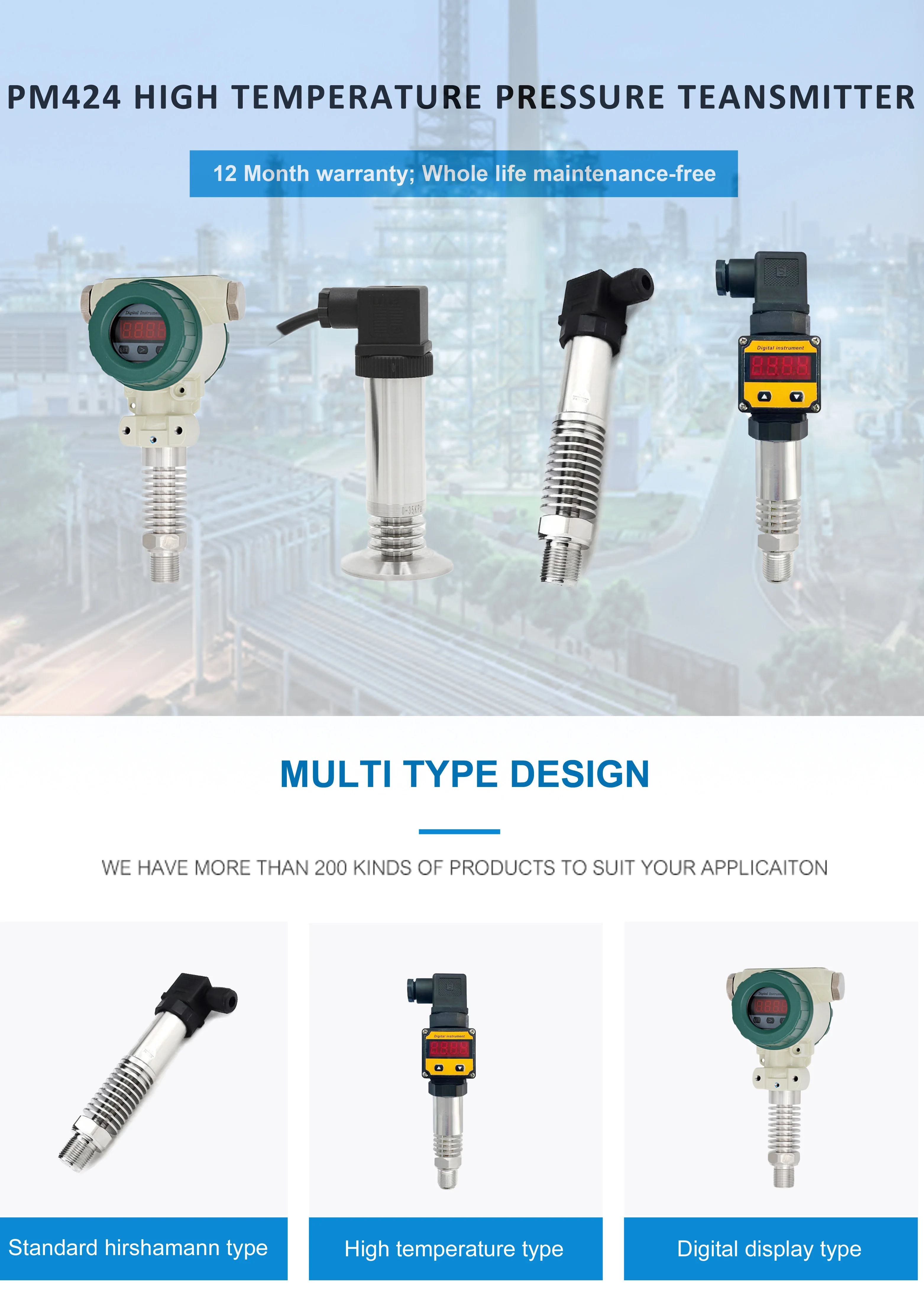

PM424 4-20mA Output Measure Liquid Steam High Temperature Pressure Transmitter
Q:Could I get samples?
A:Yes,we have half-stock ready products for customized sample.
PM424 4-20mA Output Measure Liquid Steam High Temperature Pressure Transmitter
Q:How about the quality of the magnets?
A:We have the certification of ISO, Europe standard ATEX, CE and ROSH ect.
PM424 4-20mA Output Measure Liquid Steam High Temperature Pressure Transmitter
Q:What is the delivery time?
A:For standard specification,delivery time 5-7days; For customized specification 10-20days.
PM424 4-20mA Output Measure Liquid Steam High Temperature Pressure Transmitter
Q: What is your terms of payment ?
A: We could accept T/T, Paypal, WU ,Trade Assurance.
PM424 4-20mA Output Measure Liquid Steam High Temperature Pressure Transmitter
Q: What is the warranty for your product ?
A: Warranty: 12-24Month, Lifetime maintenance
PM424 4-20mA Output Measure Liquid Steam High Temperature Pressure Transmitter
Q. How can l get the quotation or send my inquiry to?
A. Send your inquiry to us by the inquiry from on the right-side or the bottom of this page.
1. What is the Measuring medium? Water, oil or others.
2. How about Measuring range: 0-5m or..?
3.What would be the processing pressure and temperature？
4. Which signal output:4-20mA, RS485 or..?
5. Require quantity?
A:SenTec supply pressure sensors, level sensors, temperature sensors , fiow sensors and environment sensors. Export more than 70+countries.
PM424 4-20mA Output Measure Liquid Steam High Temperature Pressure Transmitter
Q:Could I get samples?
A:Yes,we have half-stock ready products for customized sample.
PM424 4-20mA Output Measure Liquid Steam High Temperature Pressure Transmitter
Q:How about the quality of the magnets?
A:We have the certification of ISO, Europe standard ATEX, CE and ROSH ect.
PM424 4-20mA Output Measure Liquid Steam High Temperature Pressure Transmitter
Q:What is the delivery time?
A:For standard specification,delivery time 5-7days; For customized specification 10-20days.
PM424 4-20mA Output Measure Liquid Steam High Temperature Pressure Transmitter
Q: What is your terms of payment ?
A: We could accept T/T, Paypal, WU ,Trade Assurance.
PM424 4-20mA Output Measure Liquid Steam High Temperature Pressure Transmitter
Q: What is the warranty for your product ?
A: Warranty: 12-24Month, Lifetime maintenance
PM424 4-20mA Output Measure Liquid Steam High Temperature Pressure Transmitter
Q. How can l get the quotation or send my inquiry to?
A. Send your inquiry to us by the inquiry from on the right-side or the bottom of this page.
1. What is the Measuring medium? Water, oil or others.
2. How about Measuring range: 0-5m or..?
3.What would be the processing pressure and temperature？
4. Which signal output:4-20mA, RS485 or..?
5. Require quantity?
As the specifications affect the price difference, page price for reference only. The final price is subject to our final confirmation.
