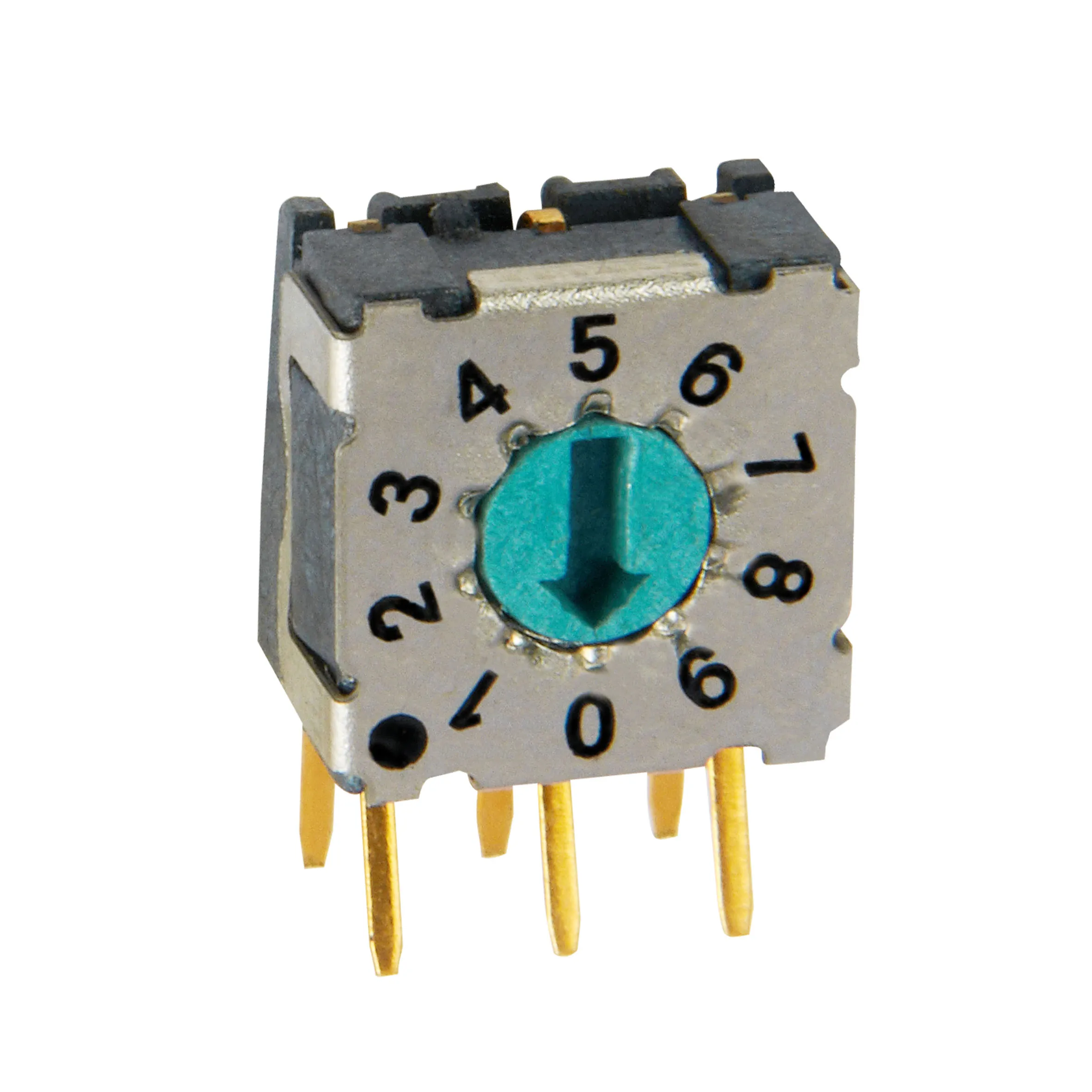

ROTARY SWITCH MSSR-10H1 7.4*7.4 DIP SIWITCH

Share on:


Price:$0.01 - $0.10
Price in USD:Details

Quantity:


Product Overview

Description



Products Description


RATING
Voltage42V 100mA(Switching) 400mA(None-Switchingating)
Contact Resistance
 80mΩ Max
Insulation Resistance
100mΩMin
FORCE
120gf±30gf
E lectronic life
2000 operations per switch -24vdc 25ma
Life cycle
25,000 steps
Solder Condition
 ReflowSoldering:10s/260℃ Iron Soldering:4s/350℃ Wave Soldering:5s/280℃
Sealing
  IP67(Dust&Water Proof)
