Parcel Dimensioning Weighing Scanning Sorting Reading And Sorting Conveyor System
- Category: Cargo & Storage Equipment >>>
- Supplier: Senad Robot(Shanghai)Co. Ltd.
Share on (1600597255644):
Product Overview
Description
Product Description

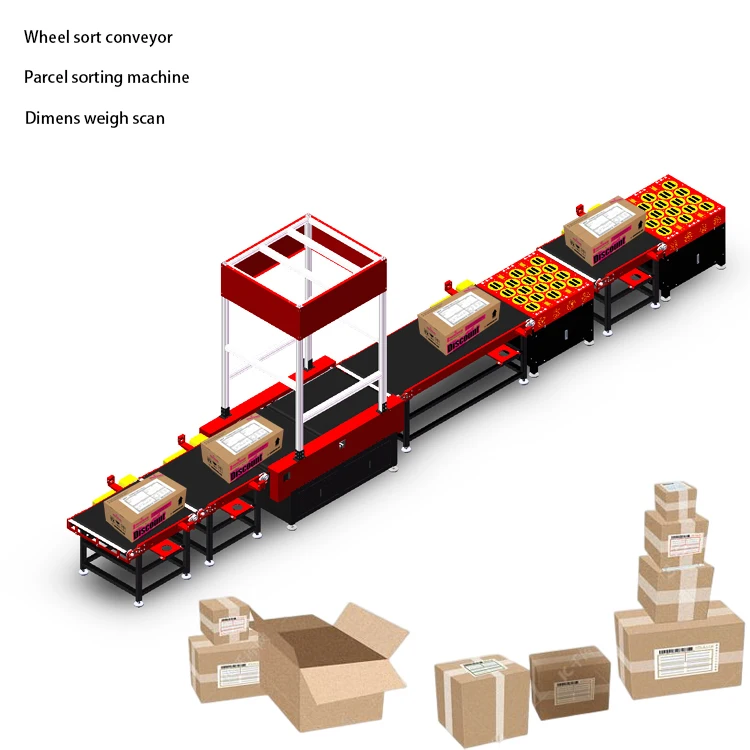

DWS system ecommerce courier express logistics warehouse handling belt conveyor
Dimensioning, Weighing and Scanning (DWS) systems are used by parcel express companies to identify, weigh and measure the goods they transport. Parcel express companies have different volumes of parcels and different levels of automation.
Some measure parcels on high-speed conveyors; others process small items that move in totes or on tilt-tray sorters. Some handle palletized freight; others do a bit of everything. Each terminal has different requirements for barcode reading,conveyor control, integration and weight and volume measurement.
Whatever the application, an express company’s DWS system is important to the daily operation of the facilities that use them.
Some measure parcels on high-speed conveyors; others process small items that move in totes or on tilt-tray sorters. Some handle palletized freight; others do a bit of everything. Each terminal has different requirements for barcode reading,conveyor control, integration and weight and volume measurement.
Whatever the application, an express company’s DWS system is important to the daily operation of the facilities that use them.
Main features:
* Collect data automatically with accuracy -Data are collected in one pass without operator's intervention,ensuring its accuracy
* Exception alarm - The equipment will alarm when Packages' weight and dimention are beyond limit or thecode can not be read
*Highly flexible with expandability
- The equipment can be equipped with cameras with different resolution
-It can be connected to telescopic conveyor and conveyor belt
Product Paramenters
Description | Specification | Remarks | ||
Industrial computer | Intel I5 | SENAD customized | ||
Display | 19.5inches | LCD | ||
Camera | 20 million pixels smart camera | / | ||
Dedicated light source | For smart camera | / | ||
Keyboard mouse | Wireless mouse and keyboard set | Logitech | ||
Load cell sensor | 100kg | Express delivery | ||
Lens | 20mm Lens | / | ||
Volume Line Structure Light | 3D Camera | / | ||
DWS conveyor | Collect barcodes,weights,cubic dimensions,photos,system connection with host system | SENAD customized | ||

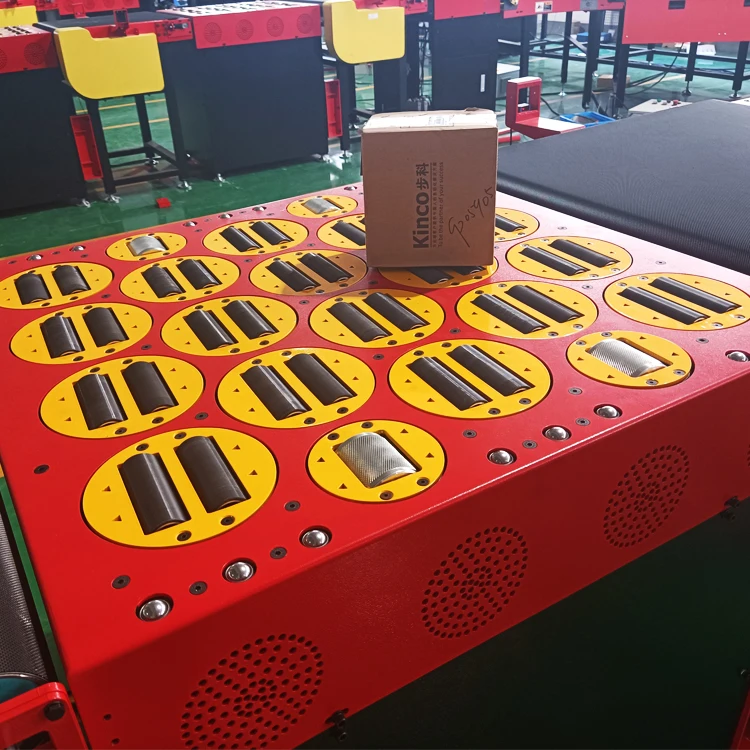

Wheet sorter conveyor | Convey to three or five exits | Left (*2),right (*2) and straight | ||
Connection conveyors | Different speed conveying | |||
Servo motor | 750W | / | ||
Parameters | ||||
Weighing error range | ±20~40g | |||
Weighing range | 0.03-60kg | |||
Efficiency | Average 3500pieces / hour | |||
Recognition rate | 99.9% (Normal packages) | |||
Error range | Normal: average ±10mm | |||
Abnormal: average ±15mm | ||||
Measuring range | 10*100*50~1200*1000*800（mm） | |||
Software interface | http、TCP、485 | |||
Application Software | SENAD DWS System | |||
Weighing mode | Dynamic weighing | |||
Temperature | -20℃-40℃ | |||
Power supply | 220V/50Hz | |||
Diagnostic method | Remote inspection / on-site inspection | |||
Speed of conveying belt | 90m/min（adjustable） | |||
Gathering images | yes | |||
Product Details
__________
__________
__________
__________
Application
Recommend Products
OUR Service
Our services
__________
1. Assemble and debug before delivery
2. Respond within 24 hours and proceed to deal with the problem.
3. 1 year free repair service (no-human damage only).
4. Overall warehousing solution provided
2. Respond within 24 hours and proceed to deal with the problem.
3. 1 year free repair service (no-human damage only).
4. Overall warehousing solution provided
Why Choose Senad
◆ High-tech manufacturer with research anddesign capacity
◆ Concentrated on DWS equipment and sorting warehousing system overall solution
◆ Related software and system are with patents
◆ Stable and mature supplying system
◆ Young active sales and engineers for instant services(16-20 hours online)
◆ Upgrading on mechanism according to ergonomics and easy maintenance
◆ Top quality sense, customers' requests come first
◆ Our structure design principle: easy maintenance & installation, low cost maintenance, maintenance not affect production
◆ Concentrated on DWS equipment and sorting warehousing system overall solution
◆ Related software and system are with patents
◆ Stable and mature supplying system
◆ Young active sales and engineers for instant services(16-20 hours online)
◆ Upgrading on mechanism according to ergonomics and easy maintenance
◆ Top quality sense, customers' requests come first
◆ Our structure design principle: easy maintenance & installation, low cost maintenance, maintenance not affect production
About Us
welcome to visit us
Senad Robot(Shanghai)Co.,LTD.
Founded in 2012,sanad is a national high-tech enterprise,with machine vision technology as the core,through deep learning algorithm,image processing algorithm,pattern recognition algorithm,video analysis algorithm,arm/FPGA/DSP embedded software and hardware development .industrial visual positioning .visual tracking,visual detection,multi-sensor information fusion and other technical means,in the field of smart logistics,we have found a suitable application scenario of machine vision to realize “machine generation”reduce costs and increase efficiency for enterprises ,and empower the smart logistics industry.Continue R&D and innovation in the fields of smart factory and smart storage,so that the logistics industry and manufacturing industry all over the world can enjoy the achievements of Chinese science and technology!

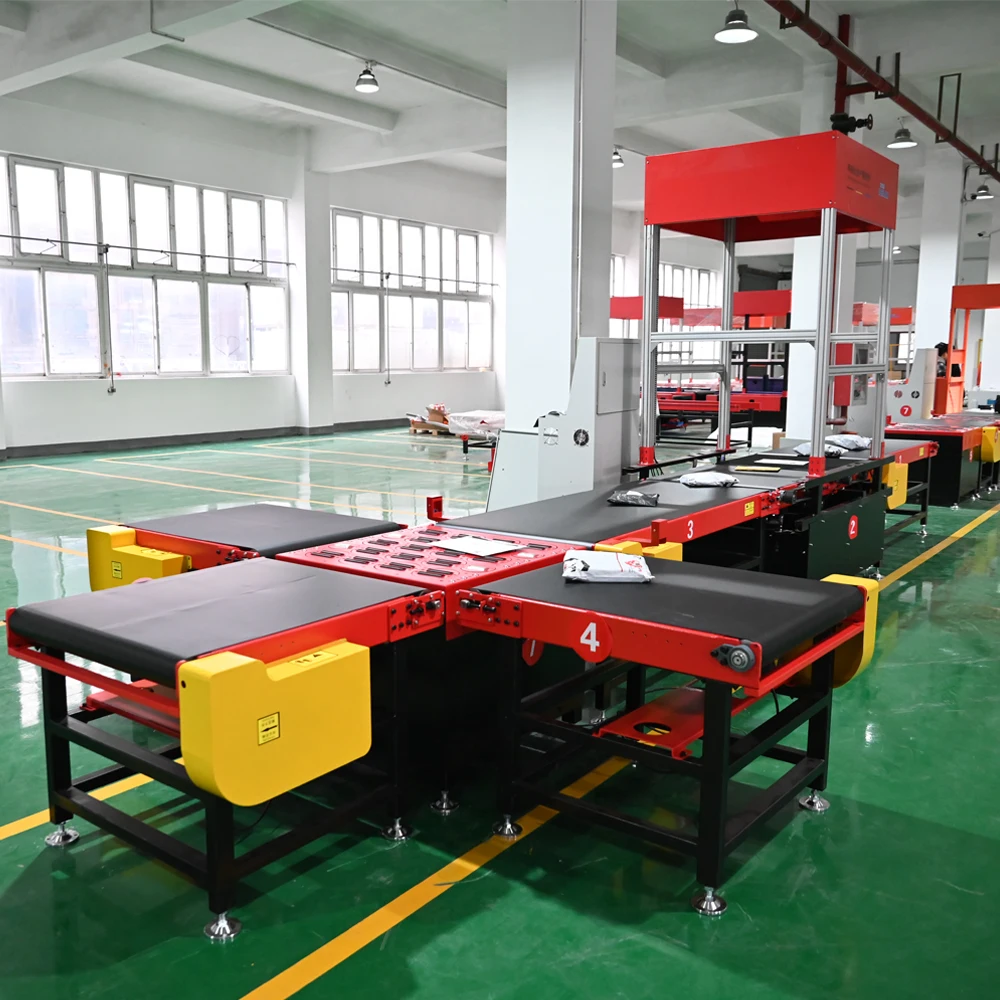

Our Factory
Development history
Our Certifications
Partners
Exhibition
Packaging & Delivery
FAQ
Q1. Are you a trade company or manufacturing company?
We are a manufacturing company.
Q2. What's your advantage?
Senad is a national high-tech enterprise,has its own software development team with complete,fast and efficient R&D capabilities .
Q3. What is the services?
Q4. How long is the product warranty period?
One year warranty except the consuming spare parts.
Q5. What is your payment terms?
Normally T/T, L/C, D/P, D/A， Western Union, Money Gram and Alibaba.If you have other payment,please contact me.
Q6. Where does your company located?
Both our company and factory are located in Shanghai.
We are a manufacturing company.
Q2. What's your advantage?
Senad is a national high-tech enterprise,has its own software development team with complete,fast and efficient R&D capabilities .
We support OEM and ODM services.
Device color support customization.
Q3. What is the services?
Pr-sales:Customized solutions, planning and design;One-to-one service
After sales:7 days 24 hours on line service, Remote guidance of installation, docking with customer software system
Q4. How long is the product warranty period?
One year warranty except the consuming spare parts.
Q5. What is your payment terms?
Normally T/T, L/C, D/P, D/A， Western Union, Money Gram and Alibaba.If you have other payment,please contact me.
Q6. Where does your company located?
Both our company and factory are located in Shanghai.
