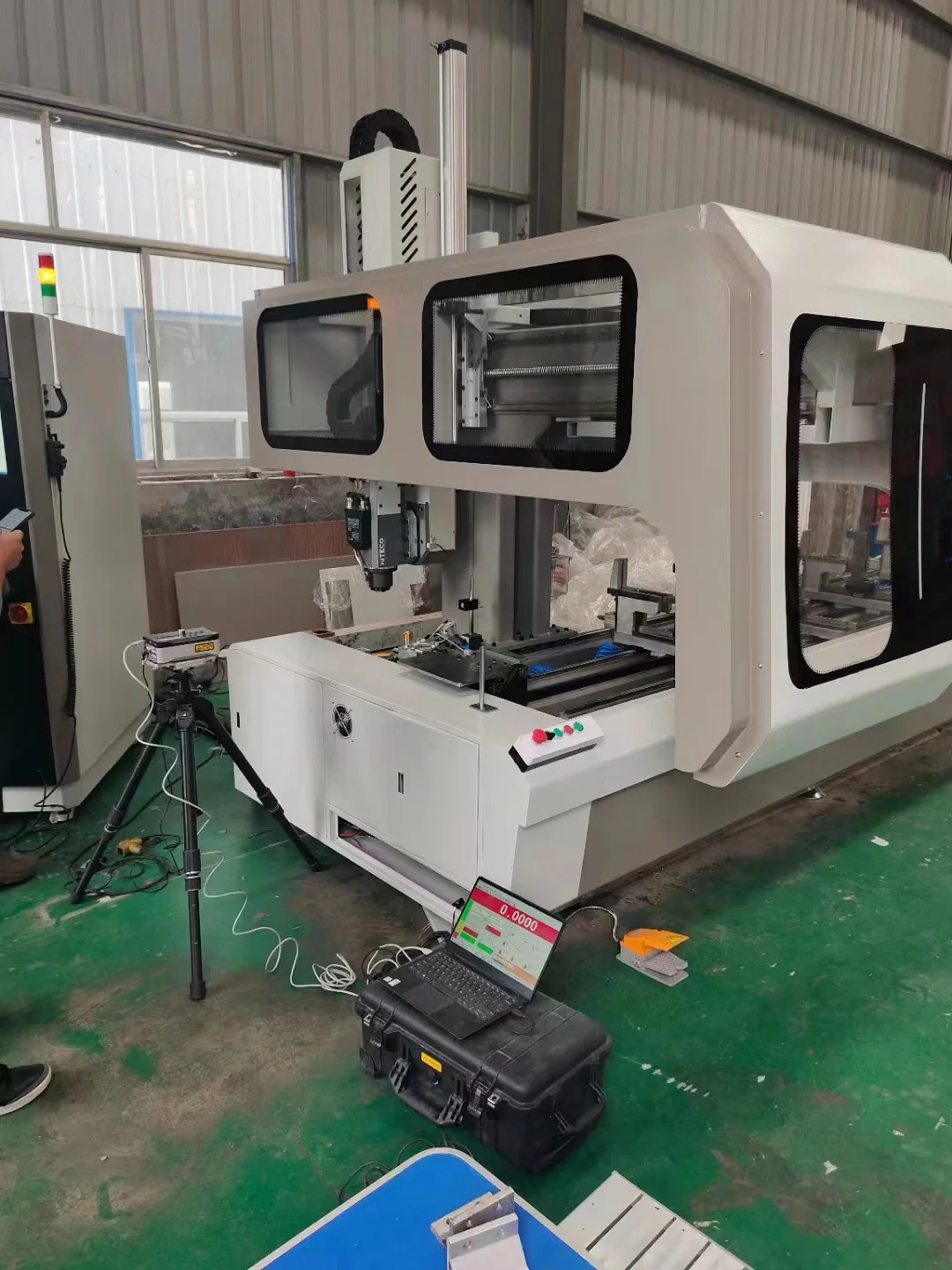

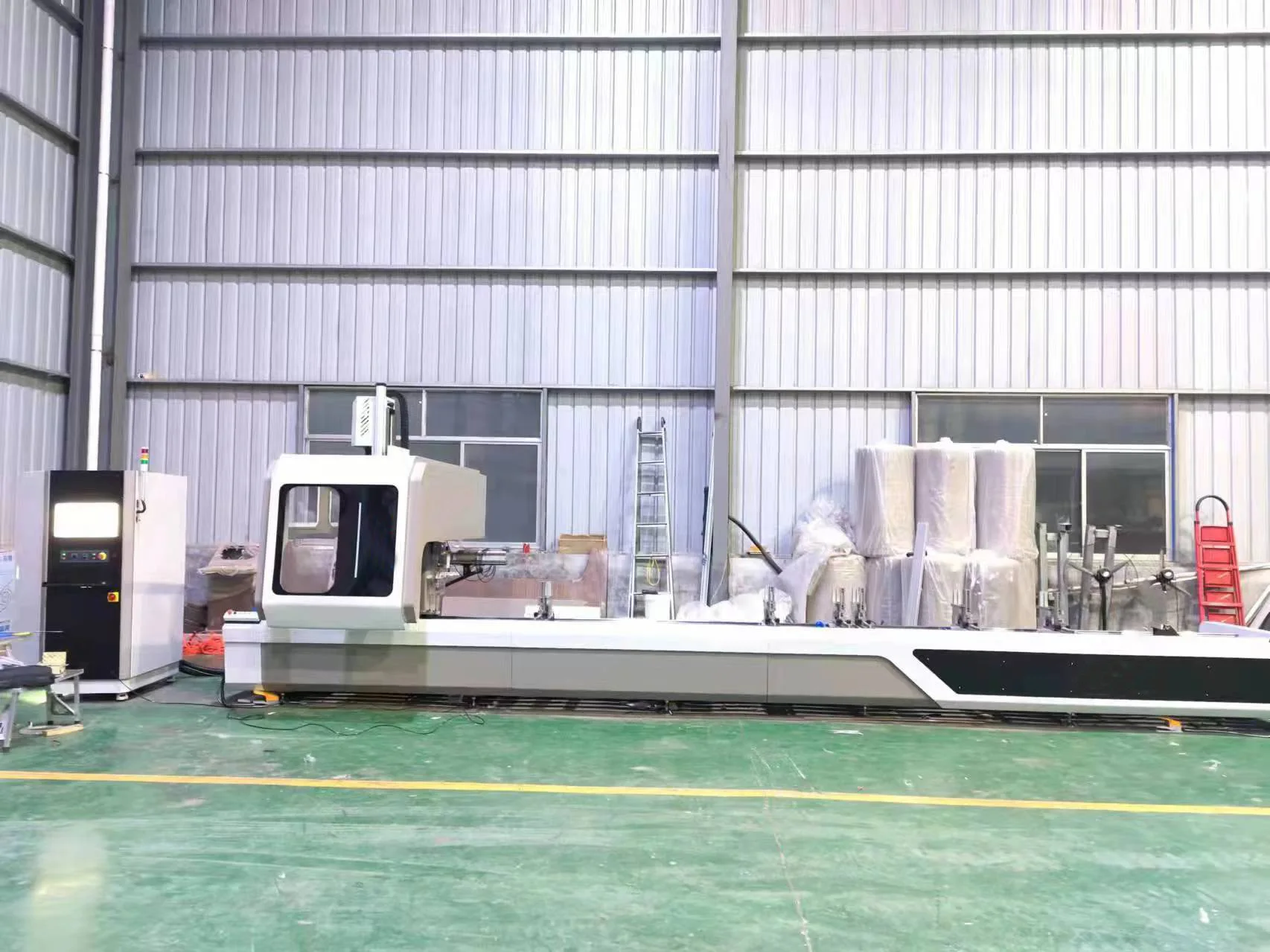

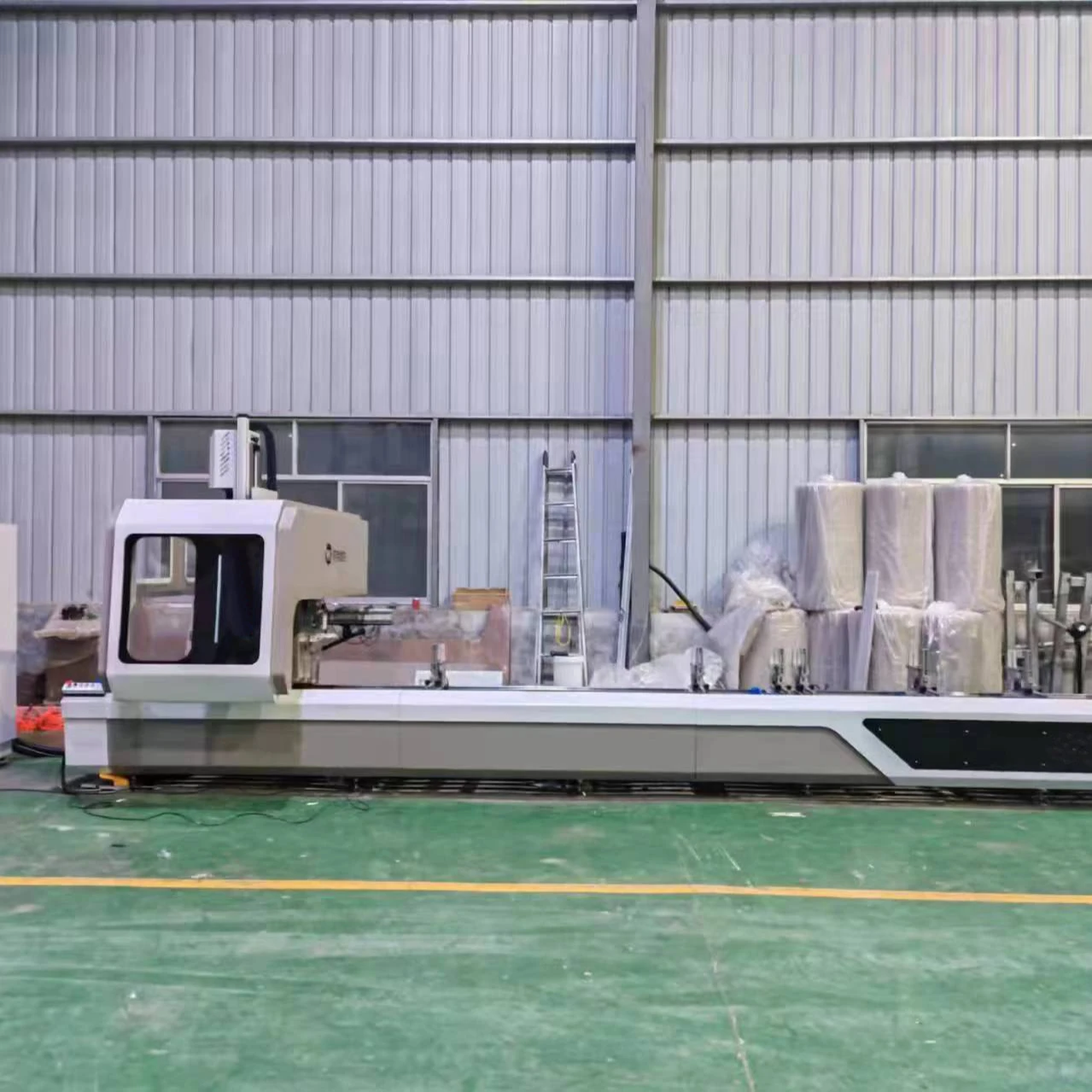

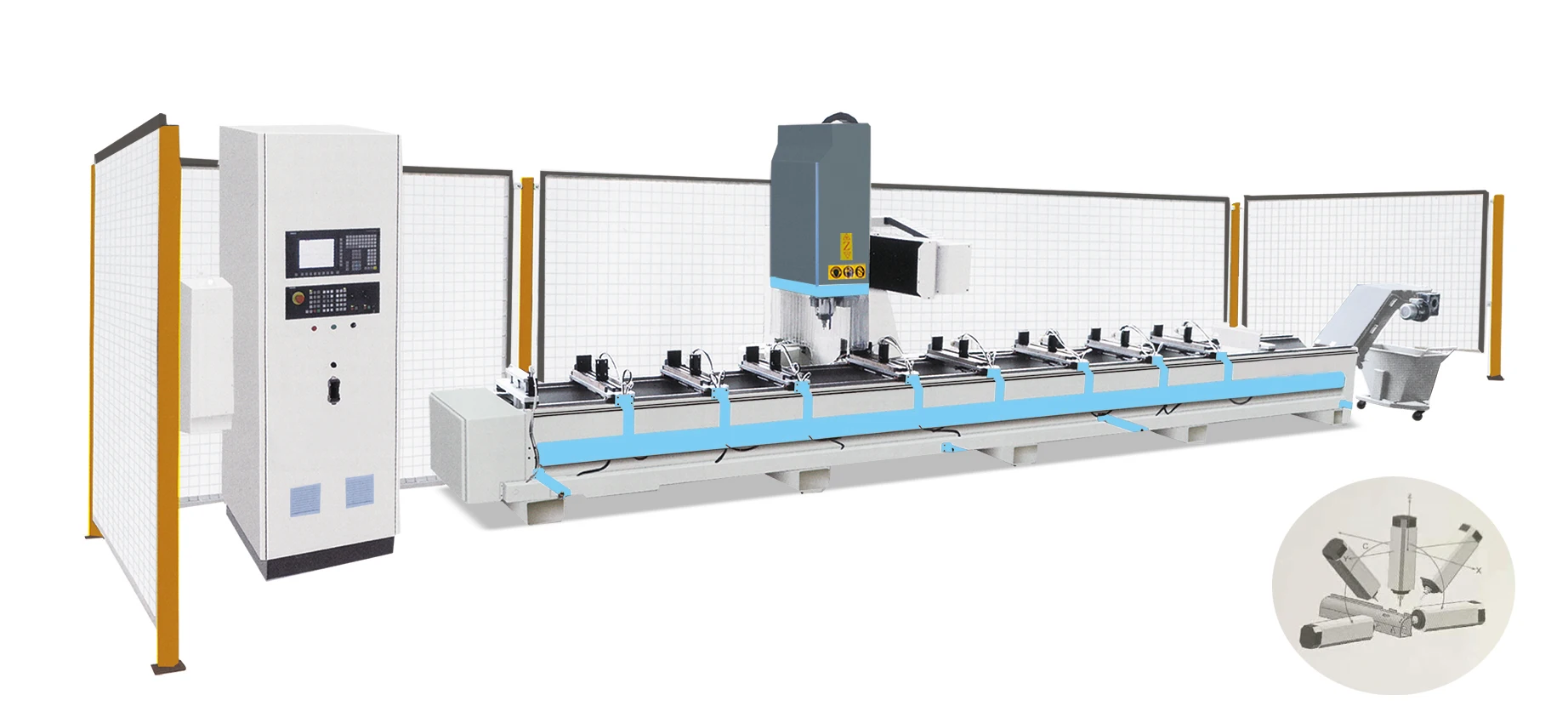

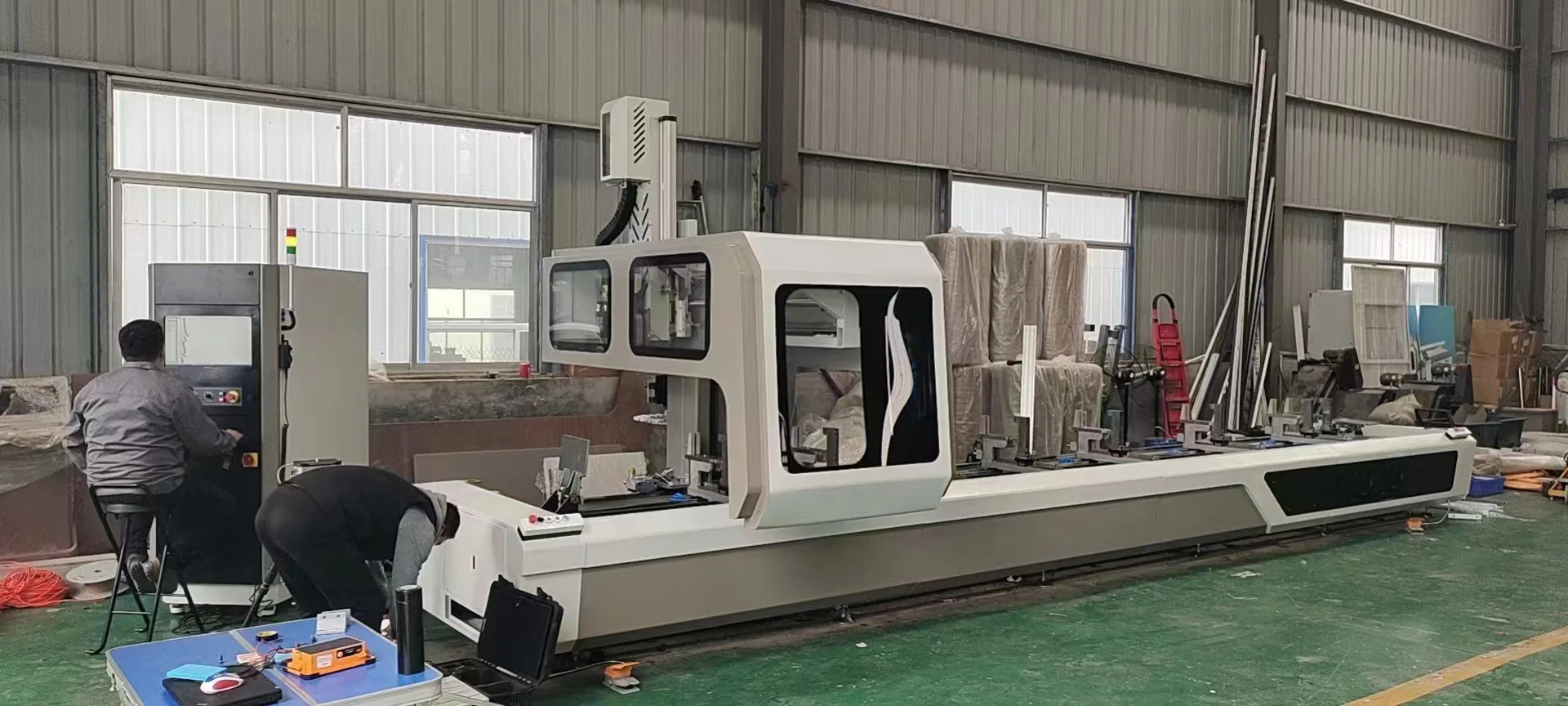

High-speed four-axis CNC machining center
4 Axis Aluminum Profile Machining Center CNC
High-speed Drilling-milling CNC Processing Center Machine for Aluminum Curtain Wall and Window Door
Parameter:
Ø Name
4 axis CNC machining center
Ø Model DMCC82
Ø Power 380V/50Hz/11kw
Ø Air pressure 0.5-0.8Mpa
Ø X axis stroke 3600mm
Ø X axis speed 120m/min
Ø Y axis stroke 380mm
Ø Y axis speed 80m/min
Ø Z axis stroke 400mm
Ø Z axis speed 60m/min
Ø Max. processing speed 3m/min
Ø Location error ±0.05mm
Ø Resetting error ±0.02mm
Ø Processing error ±0.1mm
Ø Surface roughness Ra12.5μm
Ø Overall dimension 5380x1890x2240mm
Ø Weight 3000kg
Feature:
Ø For curtain walls, aluminium profiles and so on.
Ø Drilling and milling functions.
Ø Spindle: Italy HSD, 18000 rpm/min.
Ø Industrial personal computer: Taiwan ADVANTECH.
Ø Servo motor and driver: Japan OMRON.
Ø Ball screw and square guide rail: Japan ABBA.
Ø A axis rotate the work piece between -90°and +90°according to request, so it is available to columnar work piece.
Ø Half dry cooling system, with plant oil, no damage to workers and environment.
Ø Continue to work from the breakpoint.
Ø Equipped with professional software CAD-CAM.
Ø Light curtain to protect workers effectively.
Ø Lock Knife block is convenient to change cutters.
Ø Add a door to the tool magazine, with 8 pcs of cutters.
High-speed Drilling-milling CNC Processing Center Machine for Aluminum Curtain Wall and Window Door
Parameter:
Ø Name
4 axis CNC machining center
Ø Model DMCC82
Ø Power 380V/50Hz/11kw
Ø Air pressure 0.5-0.8Mpa
Ø X axis stroke 3600mm
Ø X axis speed 120m/min
Ø Y axis stroke 380mm
Ø Y axis speed 80m/min
Ø Z axis stroke 400mm
Ø Z axis speed 60m/min
Ø Max. processing speed 3m/min
Ø Location error ±0.05mm
Ø Resetting error ±0.02mm
Ø Processing error ±0.1mm
Ø Surface roughness Ra12.5μm
Ø Overall dimension 5380x1890x2240mm
Ø Weight 3000kg
Feature:
Ø For curtain walls, aluminium profiles and so on.
Ø Drilling and milling functions.
Ø Spindle: Italy HSD, 18000 rpm/min.
Ø Industrial personal computer: Taiwan ADVANTECH.
Ø Servo motor and driver: Japan OMRON.
Ø Ball screw and square guide rail: Japan ABBA.
Ø A axis rotate the work piece between -90°and +90°according to request, so it is available to columnar work piece.
Ø Half dry cooling system, with plant oil, no damage to workers and environment.
Ø Continue to work from the breakpoint.
Ø Equipped with professional software CAD-CAM.
Ø Light curtain to protect workers effectively.
Ø Lock Knife block is convenient to change cutters.
Ø Add a door to the tool magazine, with 8 pcs of cutters.
