carton box stapler stitching machine
- Category: >>>
- Supplier: Hebei Lincheng Packaging Machinery Manufacturing Co. Ltd.
Share on (1600597849865):
Product Overview
Description
Product Overviews -4
LUM-A/B Semi automatic stitching stitcher machine
Specification and Model:
| Max.size(A+B)X2 | 3800mm | Min.length A | 250 mm |
| Min.size(A+B)X2 | 800mm | Max.height D | 2000 mm |
| Max.size(C+D+C) | 3000mm | Min.height D | 150 mm |
| Min.size (C+D+C) | 250mm | Maximum width of tongue E | 40 mm |
| Min.cover C | 70mm | Max. Feeding height | 900 mm |
| Max.cover C | 330 mm | Mechanical width | 2800 mm |
| Max.width B | 760 mm | Mechanical weight (kg) | 2000 |
| Min.width B | 150 mm | Mechanical speed (nail/min) | 600 |
| Max.length A | 1140 mm | Nail number | 1-99 |
Main function and structure:
1.Can nail box with a cover & without cover carton box (with and without cover to nail in order under the condition of machinery must explain).
2.The front paper automatic counting, equipped with photoelectric sensors, on the feeding table feed automatically rise.
3.After a period of automatic counting function, make the finished product number according to quantity (1-99) set fold, to the end of the conveying machinery, convenient packing banding.
4. Mechanical speed: 600 nail/min.
5. Nail: from 30-120 - mm arbitrary adjustable.
6. Electric adjustment for pressure of paper roller clearance adjustment.
7. Lifting table effective height: 900 mm.
8. Machine covers an area of size: host 2.8 x1.7 x1.8 meters.
9. The machine weight: 2000kg.

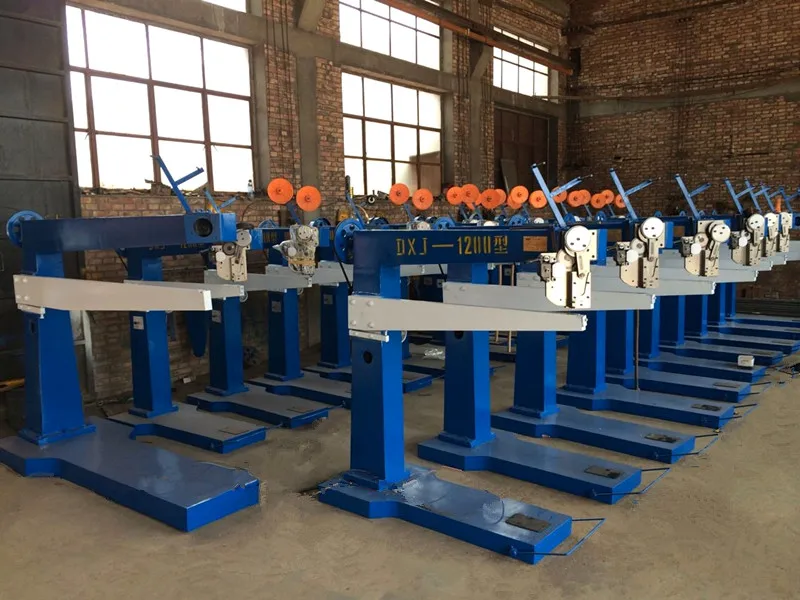

>>> Finishing Product Show from our wrokshop

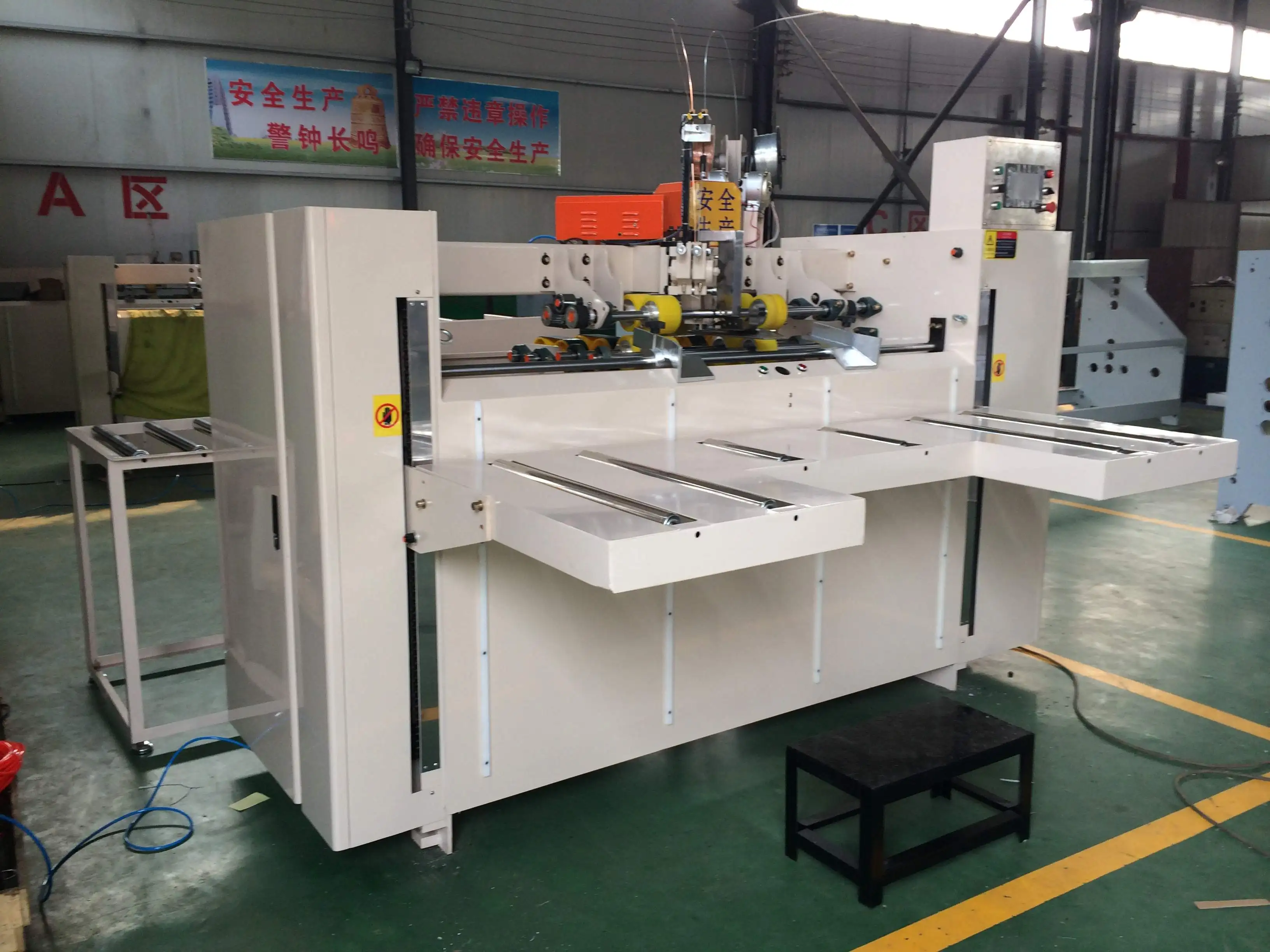

LUM-B Semi/ Automatic stitching mahcine:

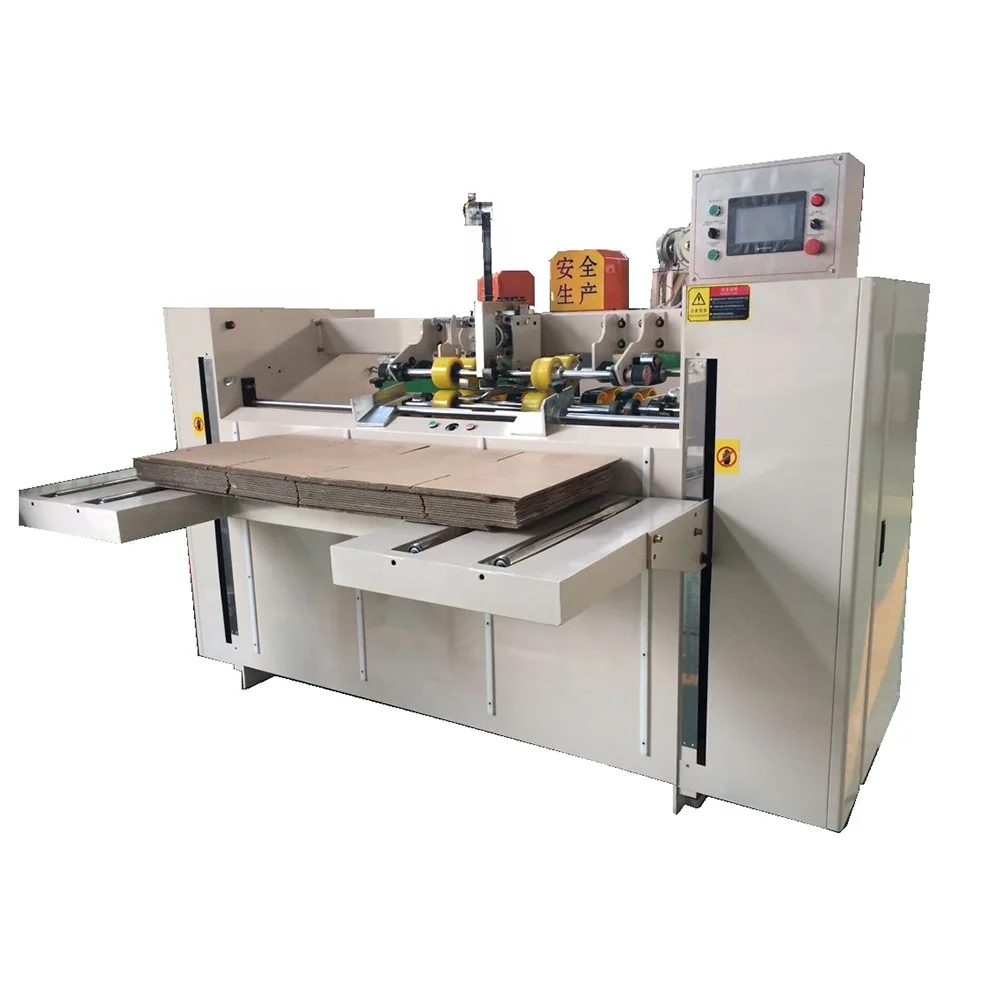

| Front View of Finishing Machine | |
 | |

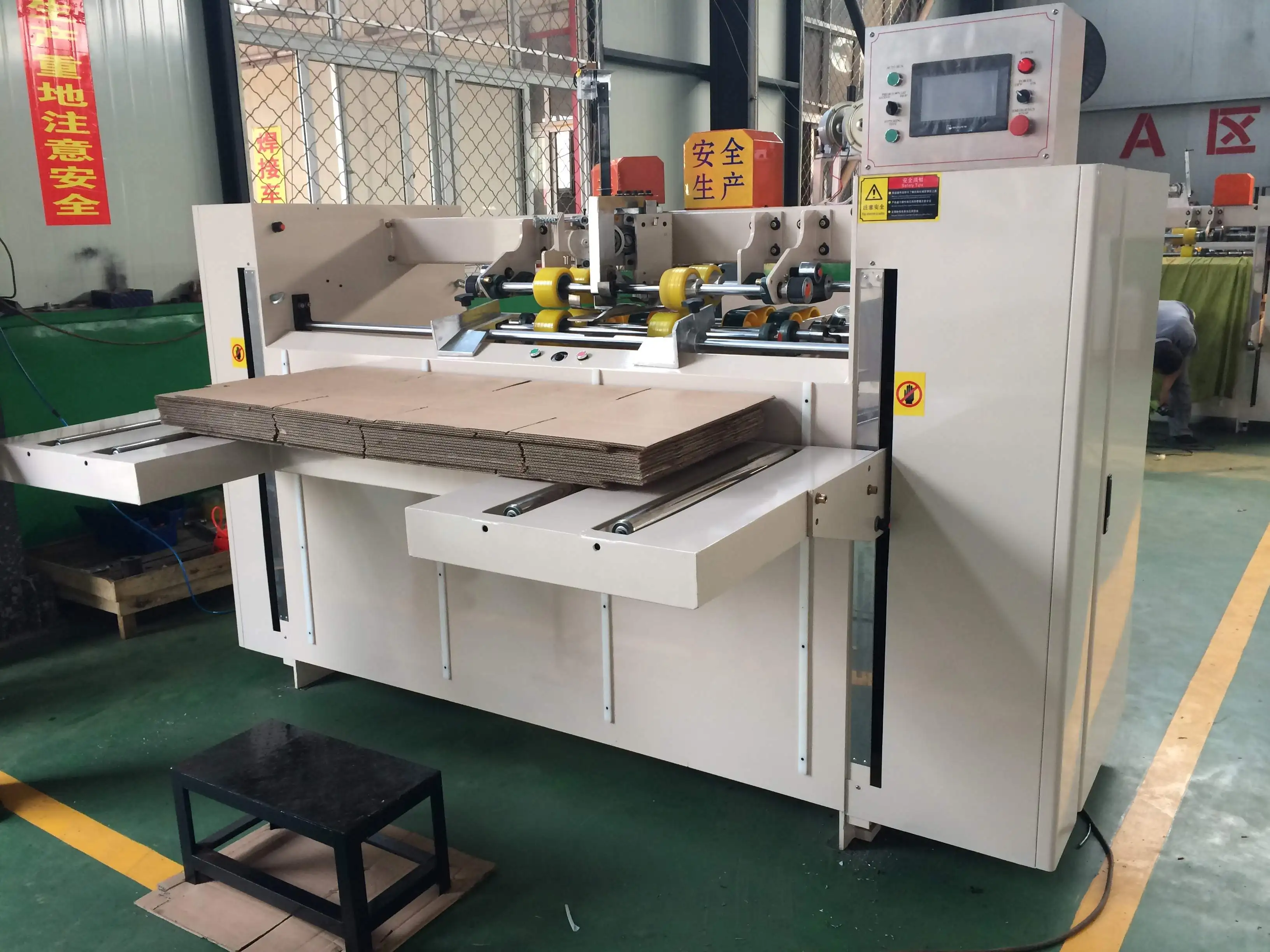

| Side View | Back View |
 |  |

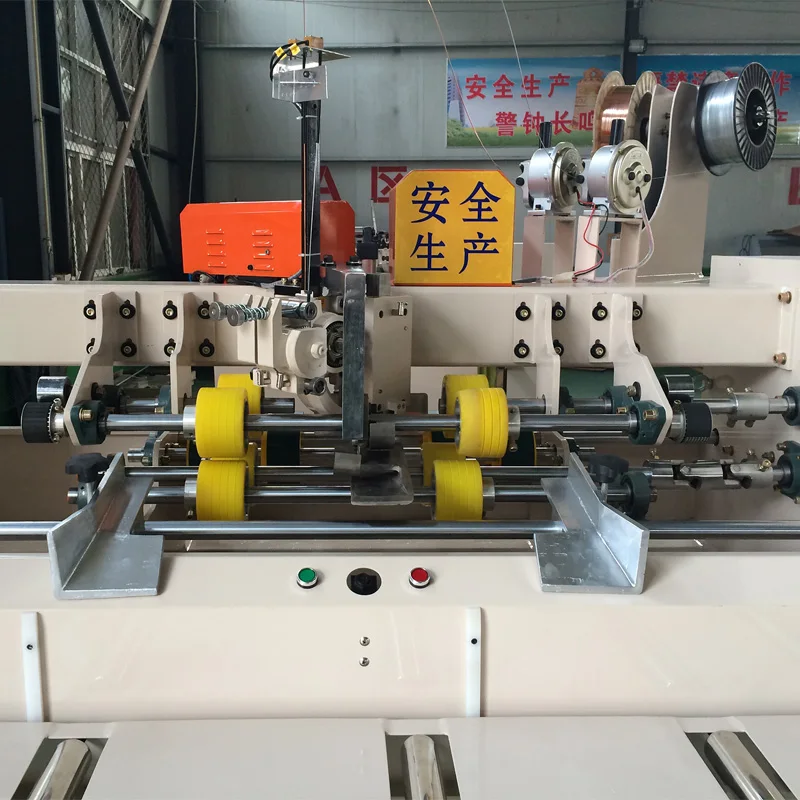

| Stiching Head View | Stiching Head View |
 |  |

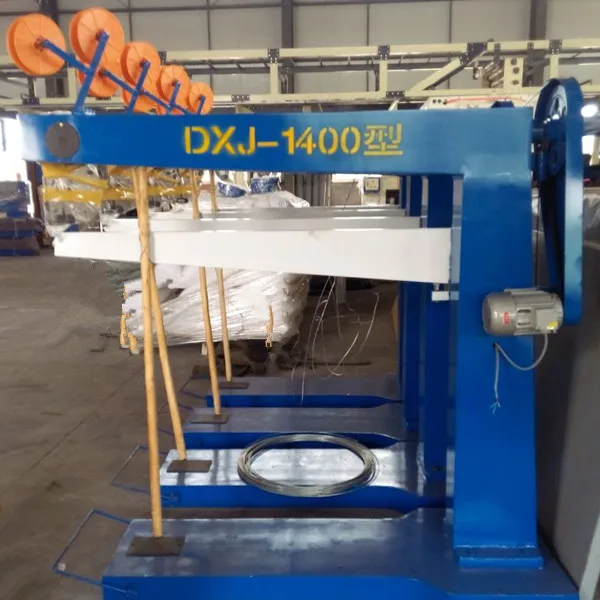

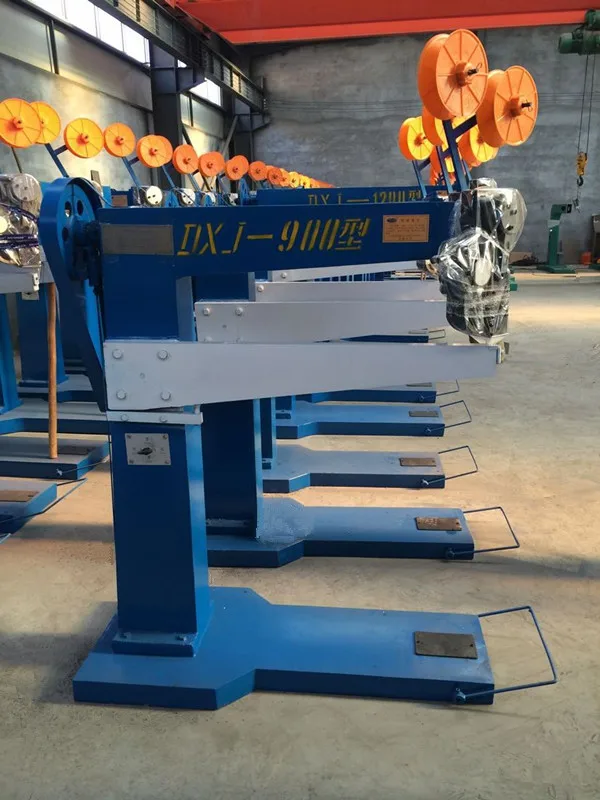

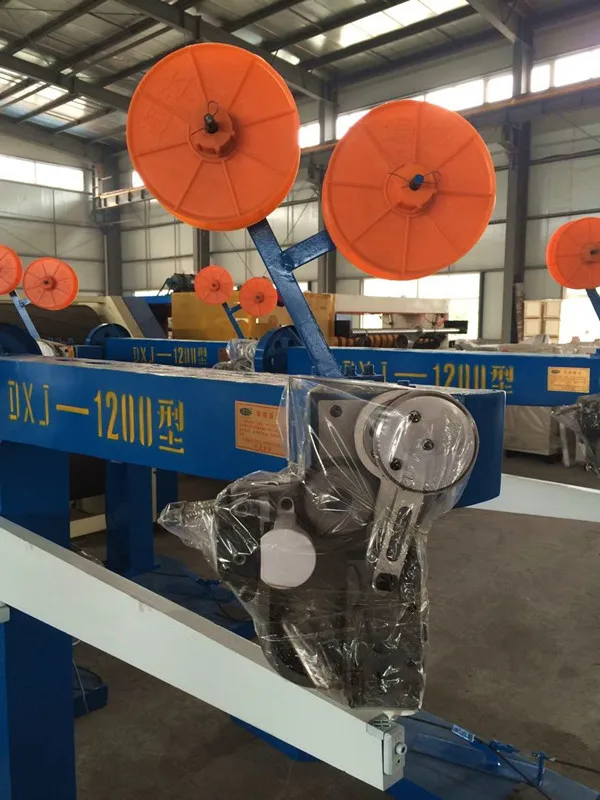

LUM-A Cardboard Stitching/ Stitcher Machine:

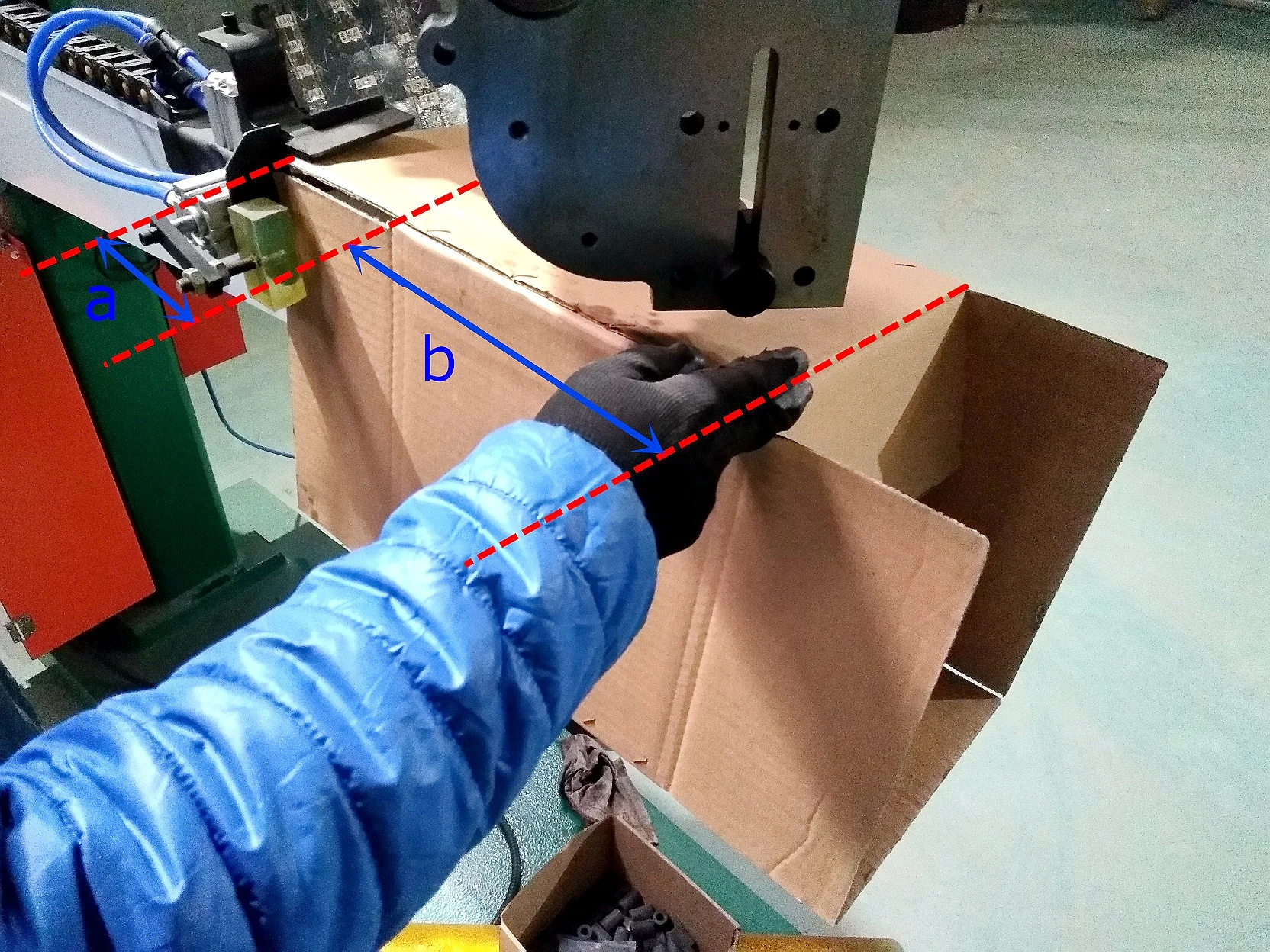

| Manual stitching | Prodcution Show |
 |  |
Our Services
> Guarantee & After-sale Service
a. Get one year/12 month guarantee for whole machine,except of easy broken parts.
b. Within 24 hours on-line service or feedback by e-mail.
c. Calling, E-mail,on-line factory visit or door-to-door service.
d. 5-10 engineers can go abroad for over-seas' training and installation.
e. Top quality, Competitive price, Timely delivery and Heart-to-heart service.
Contact us
As 20-year Manufacturer / 5-10 Engineer for Commision / 10-15 Sale for Service
If you are interested in our products,and want to know more details,
you can click the link below and send us your inquiry.
we will reply you immediately.
