Electric Car Conversion Kit QS Motor 8000W 273 Dual 2wd 96V 115kph BLDC Hub Motor Wheel Conversion Kits for Electric Car

Product Overview

Description

Electric Car Conversion Kit QS Motor 8000W 273 Dual 2wd 96V 115kph BLDC Hub Motor Wheel Conversion Kits for Electric Car

For 273 8000W V3 electric car hub Motor kit assembly, it could be used for high power electric car, which could be 96V 115KPH by 2wd, 120KPH by 4wd.

e.g. Light Retro Electric Car,

E-car weight, approx 815kg+285kg

Tire: 185/65 R14

Speed: continuous 115km/h @96V by 2wd,

Climbing slope: 14.5°@900kg by 2wd

Battery: 96V200Ah or 110V200Ah lithium(with more speed)

Normal Car

EV weight, approx 1200kg+400kg

Tire: 195/55R15

Speed: continuous 95km/h @72V by 2wd, peak 100km/h when fully charged

Climbing slope: 10.5°@1280kg by 2wd

Battery: 72V200Ah

Range: 200km

Normal Car

EV weight, approx 1200kg+400kg

Tire: 195/55R15

Speed: continuous 67km/h @48V by 2wd, peak 72km/h when fully charged

Climbing slope: 10.5°@1280kg by 2wd

Battery: 48V300Ah

Range: 200km

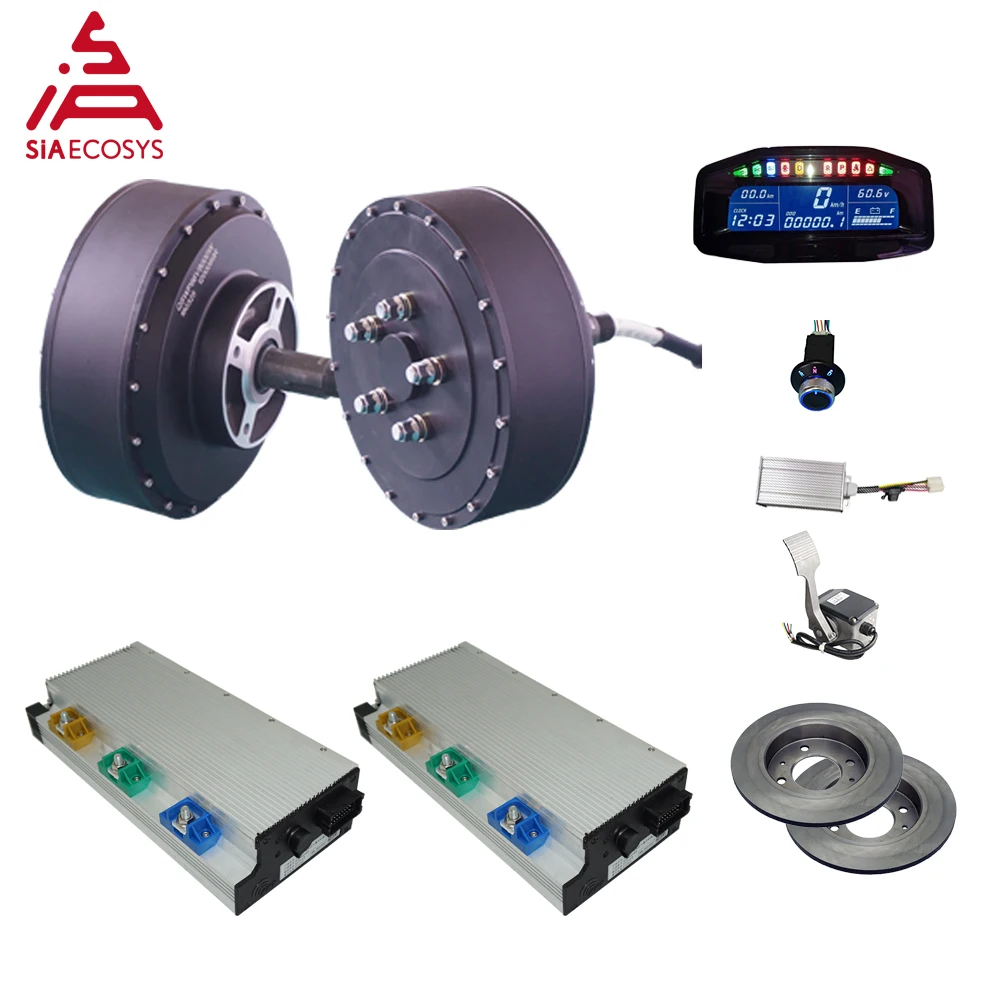

One set including below kits

1.2pc X QSMOTOR 273 8000W 273 50H V3 E-Car Hub Motor

2.2pc X APT96600 controller

3. 1pc X X8-E Speedometer

4. 1pc X 0-5V Electric Car Throttle Pedal

5.2pc X Disc

6.1pc X DNR gear switch

7.1pc X DC DC converter 96V

Product description

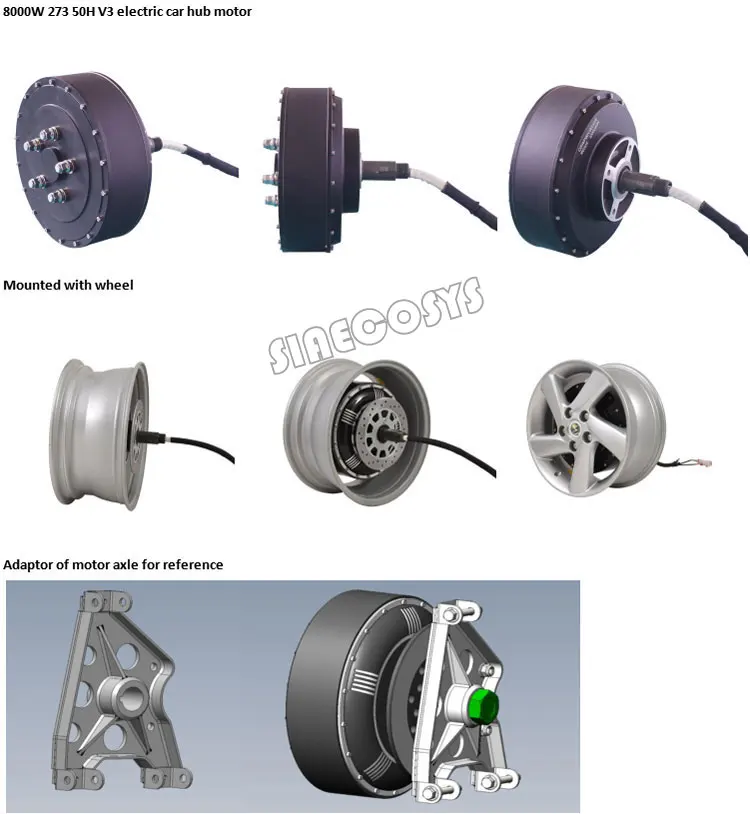

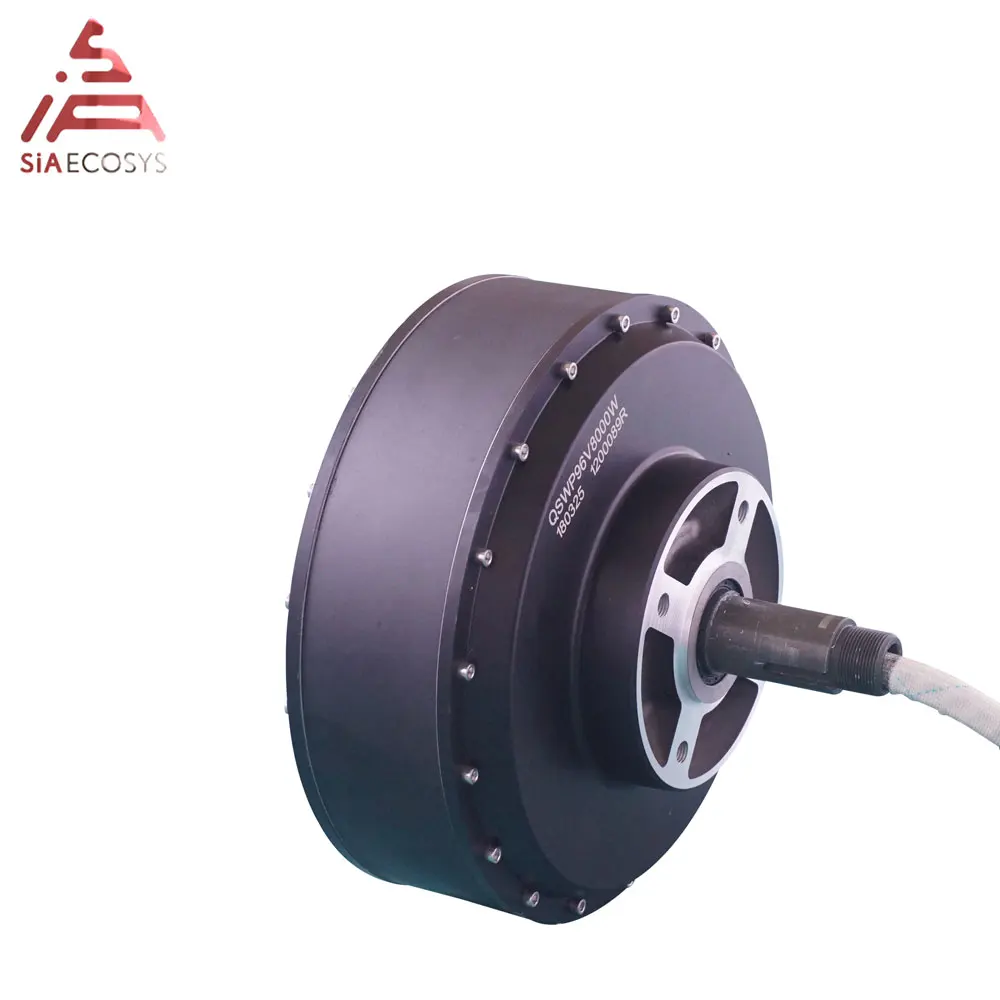

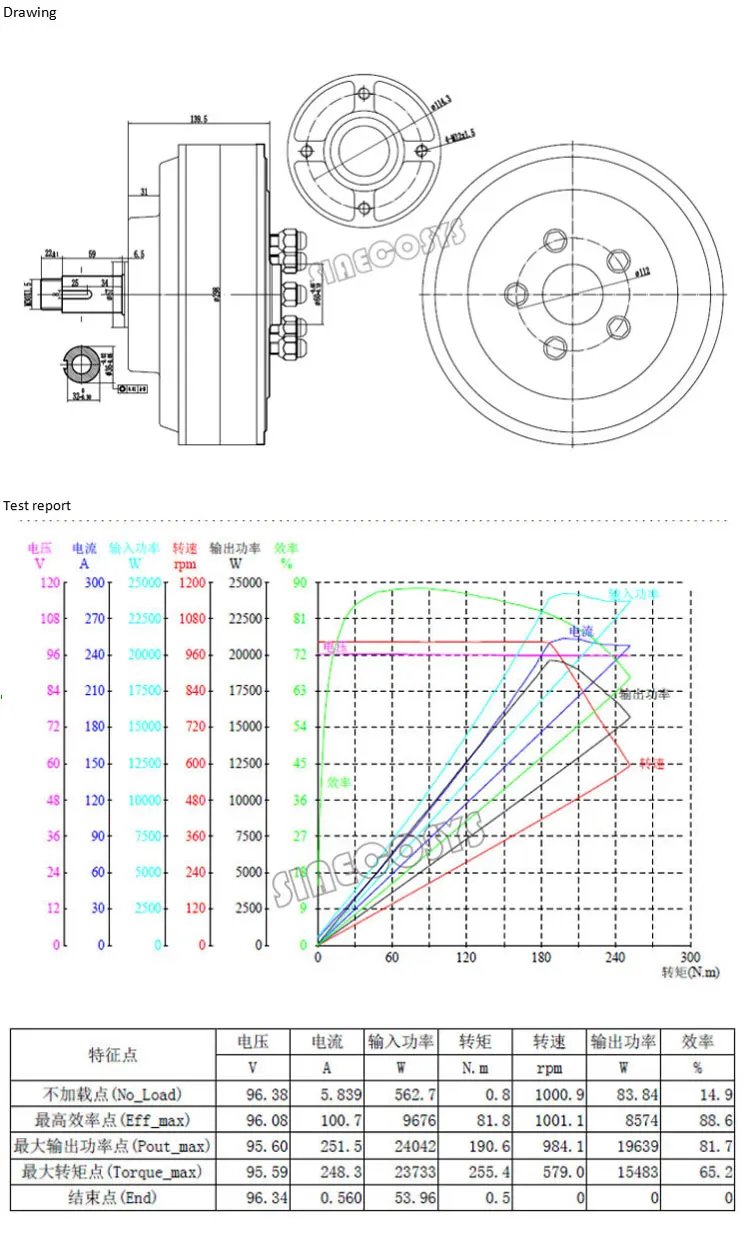

Item: QSMOTOR 8000W 273 V3 Electric Car Single Shaft In Wheel Hub Motor

·Motor Type: BLDC Permanent Magnet Outer Rotor In-Wheel Hub Motor With Hall Sensor

·Brand: QS Motor,QSMOTOR

·Motor Design: Single axle without rim

·Matched Wheel: ≥14inch Car Wheel, PCD customizable, CB ≥60mm (PCD 5*112mm, CB60mm as default)

·Stator: Aluminum Core

·Rated Power: 8000W (19000kW peak in few seconds)

·Rated Voltage: 96V

·Speed: 1200RPM/930RPM/627RPM no load, approx 120km/h@96V  95km/h@72V 67km/h@48V

·kV: 12.5kV

·Max Torque: approx 350N.m

·Max Efficiency: approx 88%

·Continuous Battery Current: 132 A (96V)

·Peak Battery Current: 180A (96V)

·Suggest Peak Phase Current: 591A

·Thermic Probe: KTY83/122 (as default, optional)

·Working Temperature: 70-120℃ , peak 150 ℃

·Brake type: Car Disc brake,  PCD 4*114.3mm, M12(as default)

·Dual Hall Set with waterproof connectors

·Hall Sensor Phasing angle: 120 degree

·Waterproof Grade: IP65

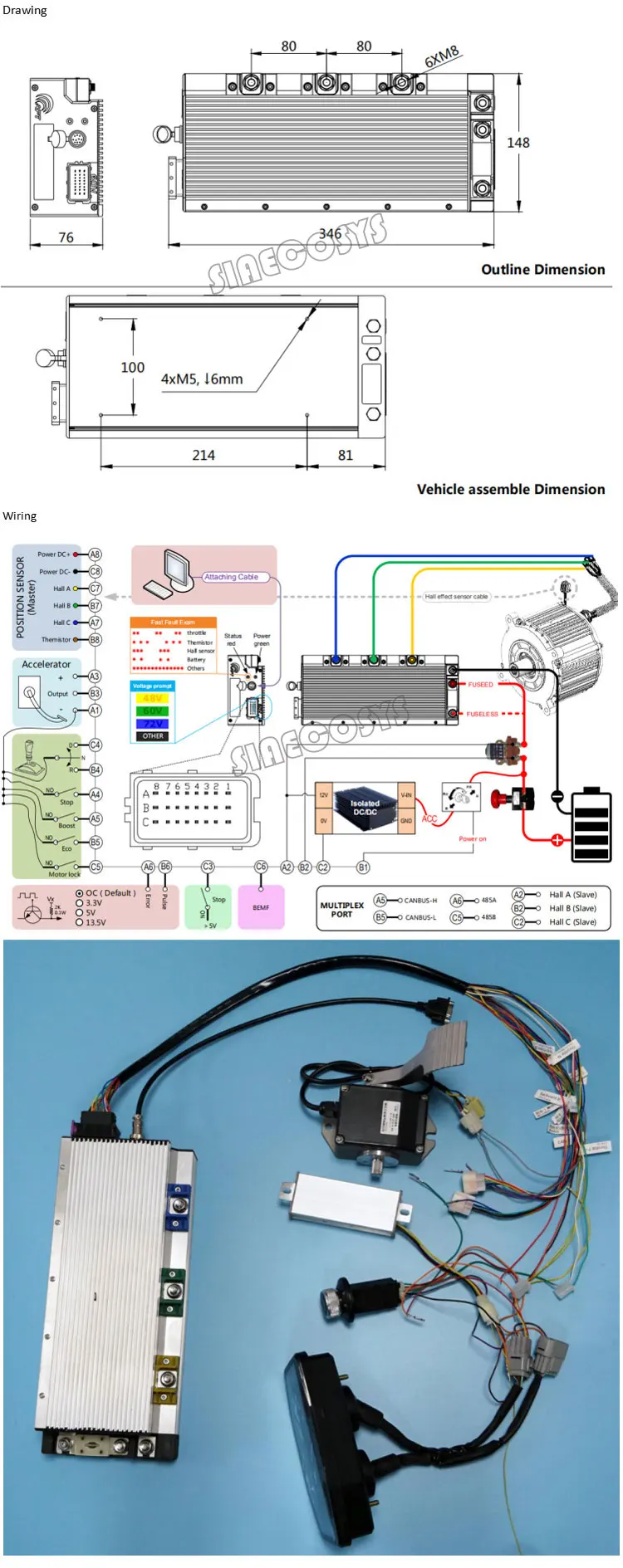

2. APT96600 600A Sine Wave Controller

It's special design for QS brushless motor controller for electric car hub mtor Conversion Kits, which can match with QS HUB MOTOR Rated Power 8000W.

Generally SPEC

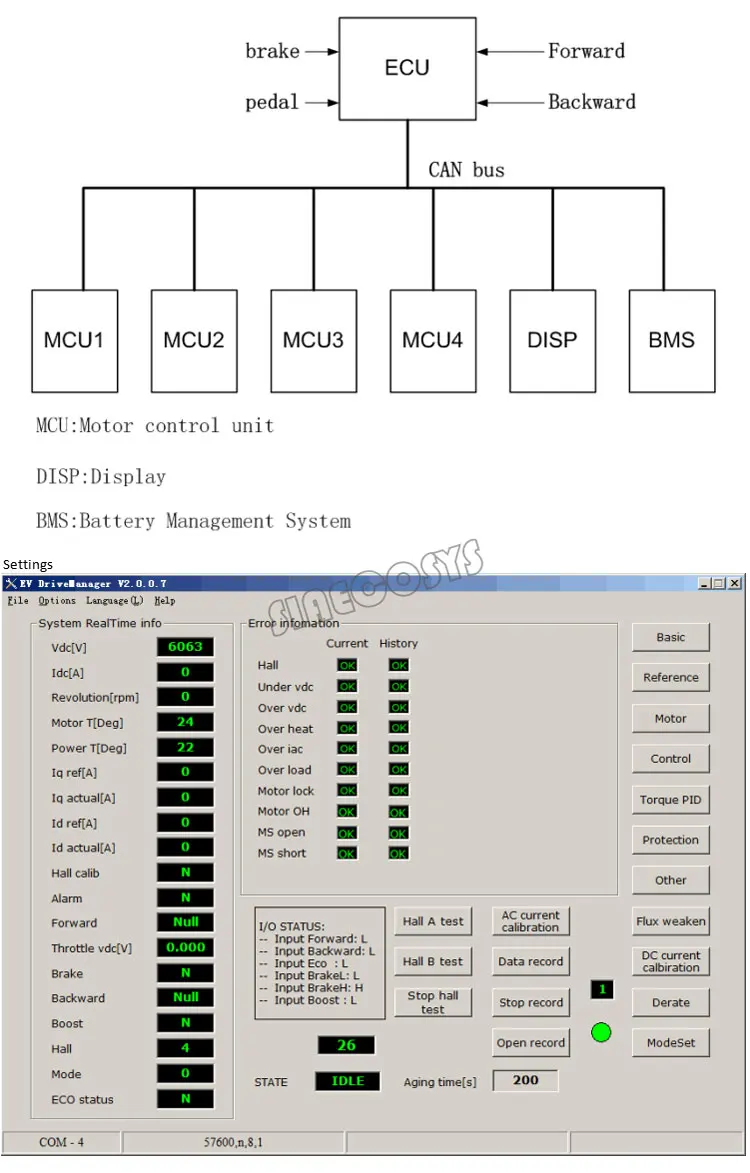

CAN protocol ( Optional, with can bus as default)

CAN Bandrate 500kbps, CAN version 2.0B (standard protocol as default)

Different CAN ID for each controller(2wd or 4wd)

3. X8-E 48-96V Programmable Electric Car Speedometer

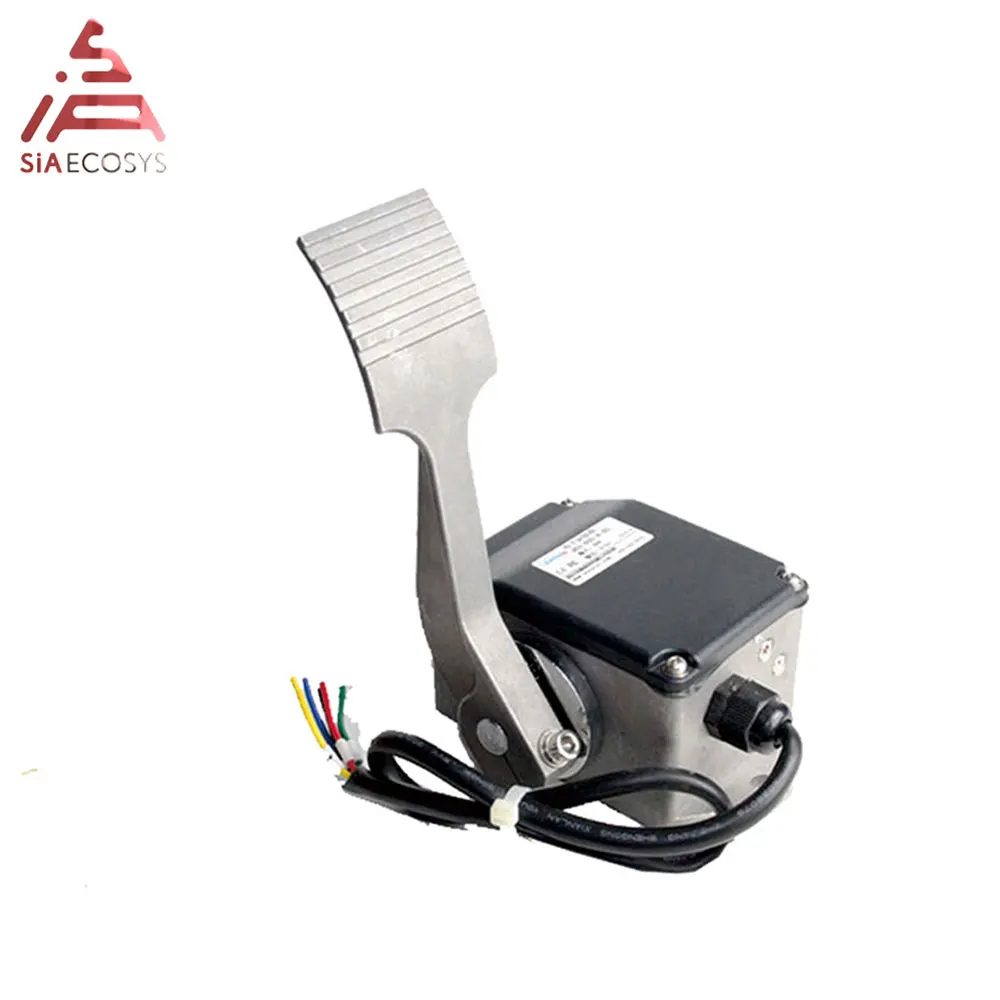

4. 0-5V Electric Car Throttle Pedal

5. Brake Disc

We offer brake disc to fit with motor, u could use original brake calipers.

PCD: 4*114.3mm

CB: 76mm

10mm thickness

Diameter: 258mm

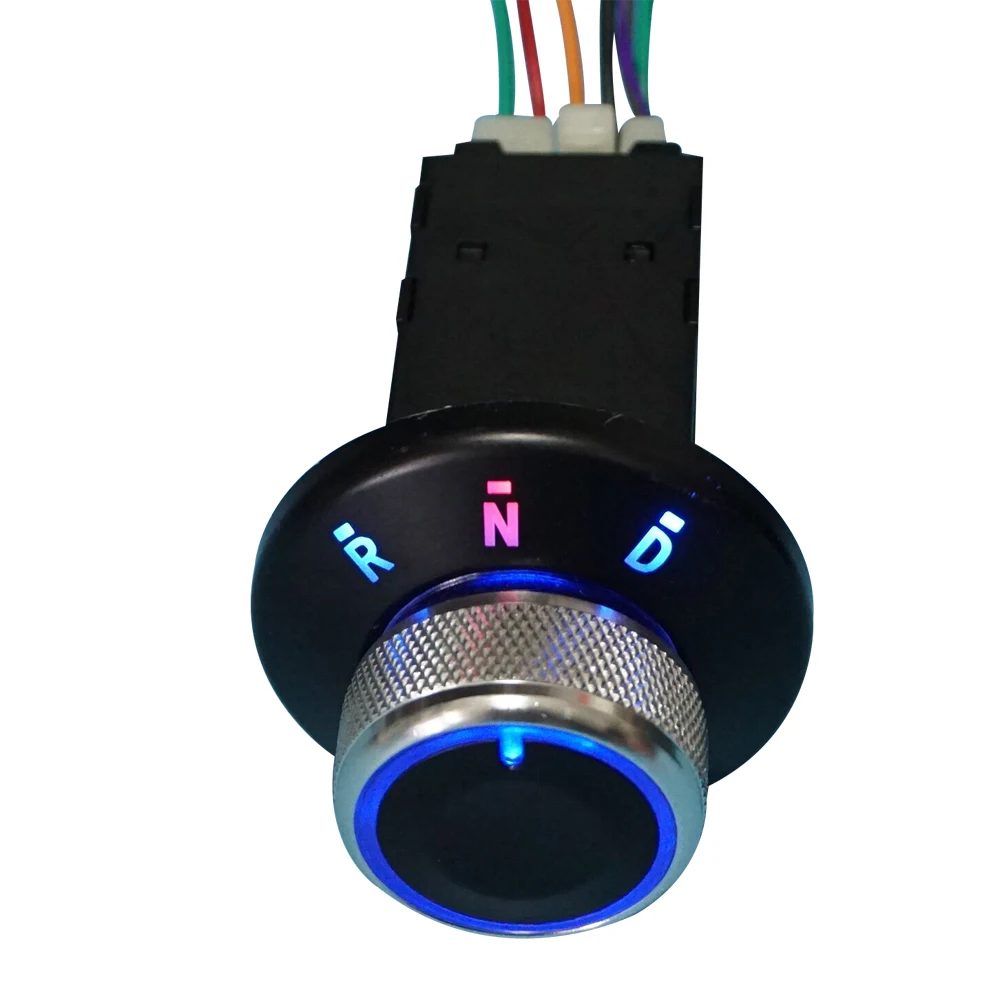

6. DNR gear switch

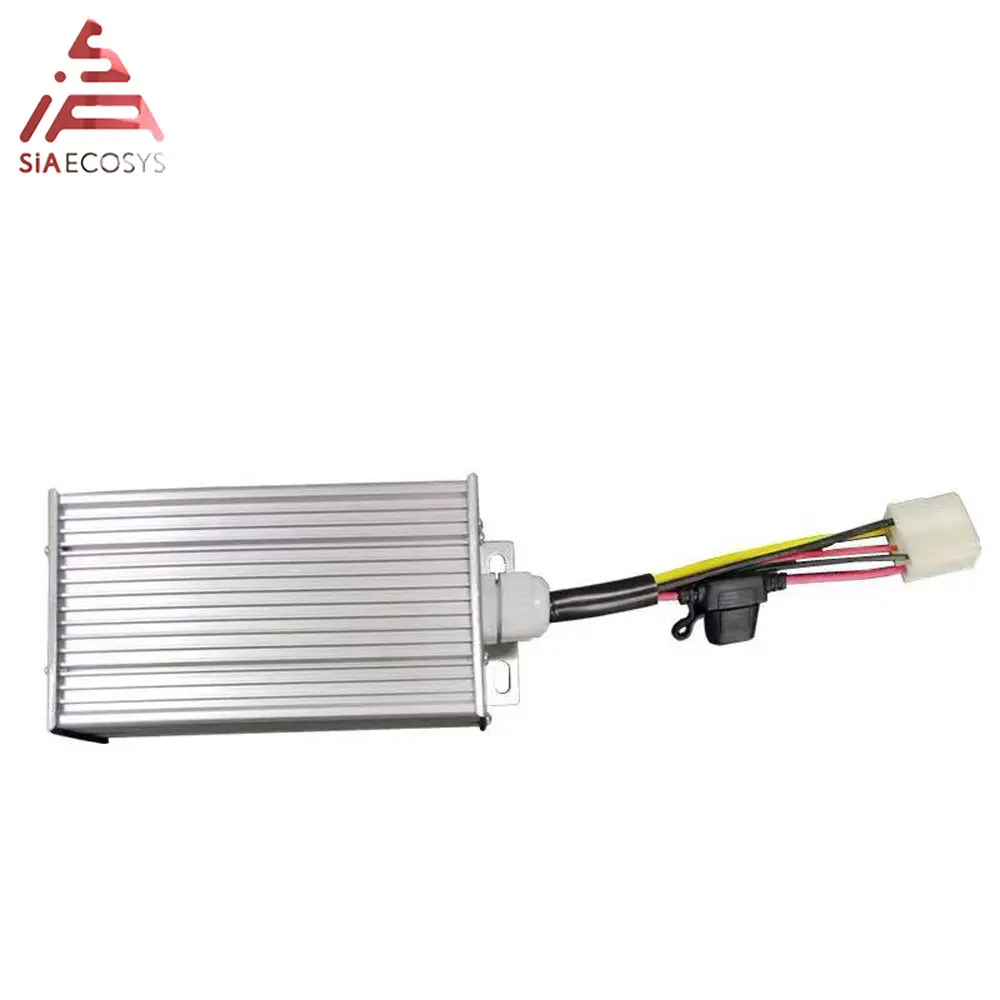

7.DC DC converter

96V to 12V, 25A

Products application
