Full Automatic Jar Filling Machine Iran Tomato Paste Filling Machine Packing Machine
*The Piston filling machine is a high-tech product designed and developed by our company. It suits for different viscosity of water agent, semi-fluid and paste, it is widely used in the product filling of foodstuff, cosmetics, medicine, grease, daily chemical industry, detergent, pesticide and chemical industry .
Technical parameter :oil bottle filling machine | ||||||||||||
Model | LPH06 | LPH08 | LPH10 | LPH12 | LPH16 | RPH24 | ||||||
Capacity (for 1000ml) | 1200bph | 1800bph | 2500bph | 2800bph | 4000bph | 8000bph | ||||||
Suitable bottle | Glass Bottle / PET Bottle | |||||||||||
Bottle volume | 0.1L~1L , 1L~2L,1L~3L ,1L~5L | |||||||||||
Compressor air | 0.3-0.7Mpa | |||||||||||
Air consumption | 0.37 m3/min | |||||||||||
Application | oil bottle filling machine | |||||||||||
Total power (KW) | 1.2kw | 1.6kw | 1.8kw | 2.2kw | 2.5kw | 3.2kw | ||||||
Overall dimensions | 3.2*1.2m | 3.2*1.2m | 3.2*1.2m | 3.6*1.2m | 3.6*1.2m | 3.6*1.2m | ||||||
Height | 1.8m | 2m | 2.2m | 2.3m | 2.5m | 2.6m | ||||||
Weight(kg) | 1200kg | 1500kg | 2000kg | 2500kg | 2800kg | 3000kg | ||||||
Features:
<1> Suitable material: Oil, jams, daily chemicals, and something that very viscous.
<2> PLC control :This filling machine is a high-tech filling equipment controlled by microcomputer PLC programmable, equip with photo electricity transduction and pneumatic action.
<3> Accurate measurement: adopt servo control sys
tem, ensure the piston can always reaches constant position.
<4> Anti drop function :When close to target filling capacity can be applied to realize speed slow filling, prevent the liquid spill bottle mouth cause pollution.
<5> Convenient adjustment: replacement filling specifications only in touch screen can be changed in parameters, and all filling first change in position, fine-tuning dose it in touch screen adjustment.
Detailed Images

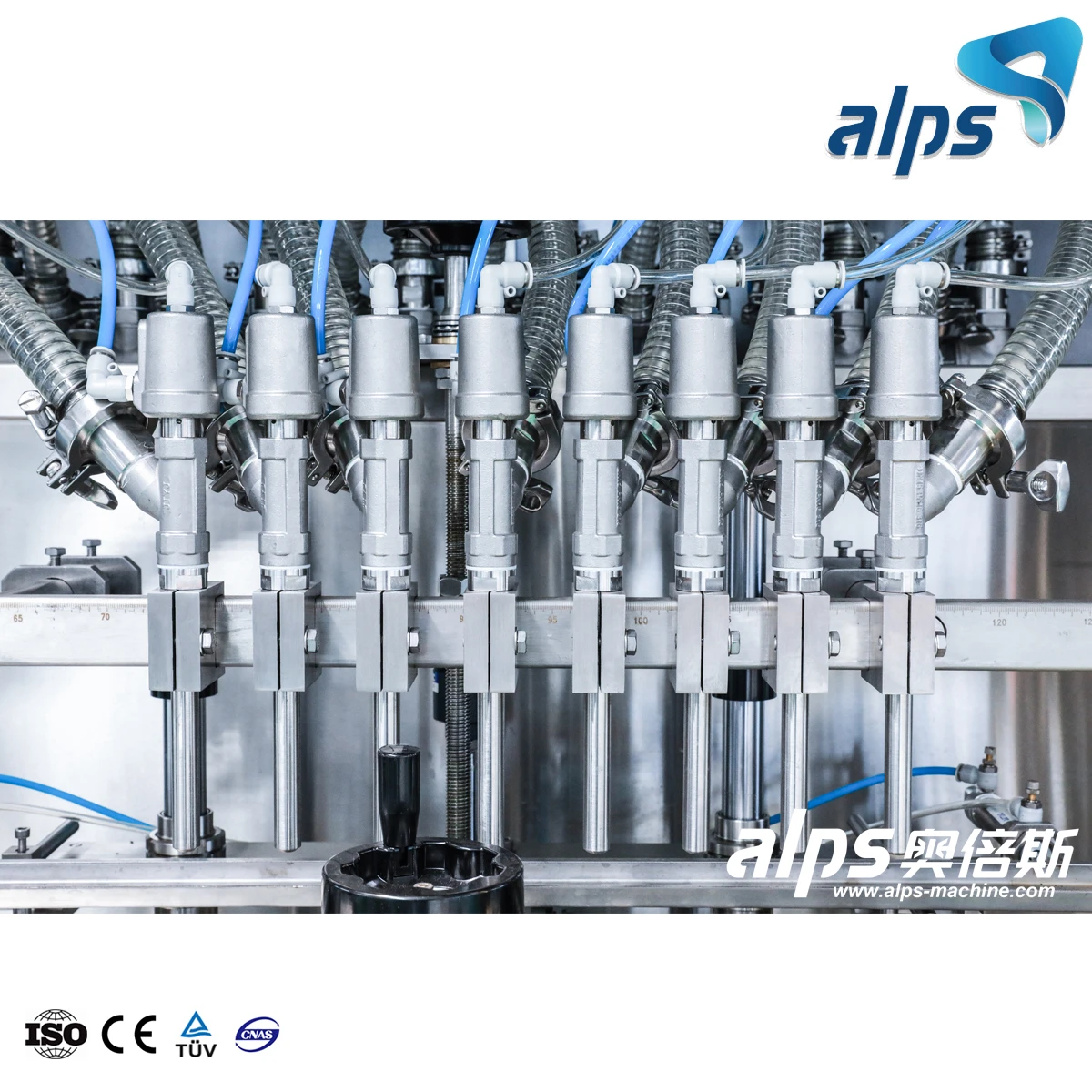

Anti Leakage filling valve
1)Used for viscous material
2)Fast speed filling ,precision and stability
3)With anti foam function by diving system
4)Filling valve with airtac cylinder to prove anti leakage fucntion

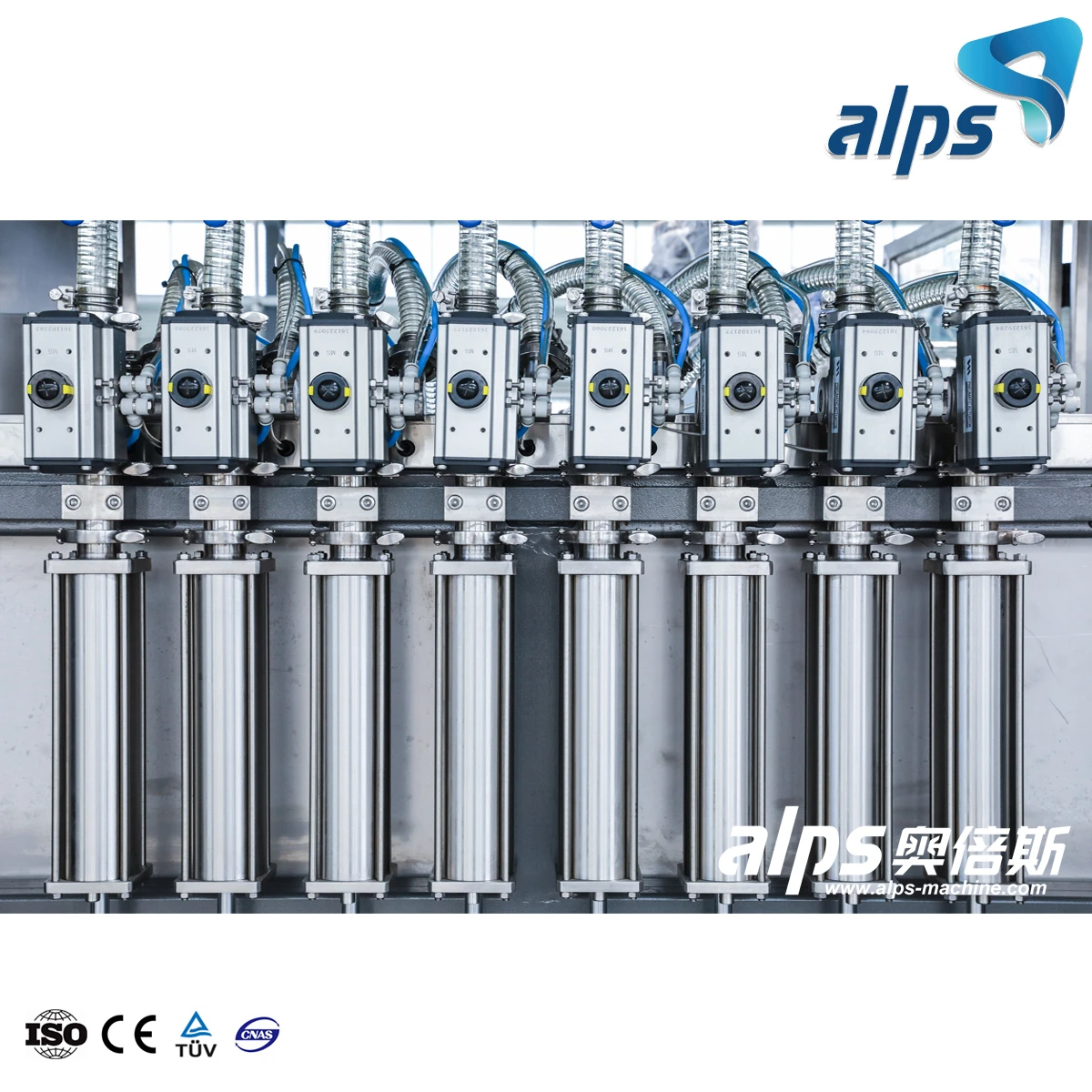

Volumetric filling piston
1)Fast speed filling ,precision and stability
2)By servo motor drive
3)Material :SUS316L
4)Different filling volume 1L / 2L / 3L / 5L
5)Easy different volume setting
Name | Brand | Area |
PLC | Siemens | Germany |
Inverter | Siemens | Germany |
Contactor | Siemens | Germany |
Touch screen | Siemens | Germany |
Inverter | Siemens | Germany |
Motor | ABB | Swiss |
Pneumatic parts | FESTO | Germany |
Electrical parts | Schneider | France |
More Products
Soft drinks line
Like Carbonated beverage , soda water ,energy drinks ...
Capacity :1000bph~20000bph
Fruit Juice Line
Like Fruit juice ,NFC juice , juice with pulp ...
Capacity:500bph~30000bph
Small bottle water line
Like still water / pure water / mineral water
Capacity:1000bph~30000bph
Company Introduction
Alps Machine Co.,Ltd is ...
*Standardized workshop of total 12,000 square meters.
Different types of processing units, such as water jet cutter, plasma cutter, laser cutter, CNC machine from Taiwan chevalier & korea daewoo, ensure the precision of parts.
*International certification, National Certificate of equipment verification, and more than 30 invention patents
Verification Certificates of equipments: ISO9001:2001; CE Certificate , SGS , COC , TUV
National Certificate of equipment verification:standard organisation of Nigeria , CNCA certificate, Logo trademark registration, etc.
*The equipment will be tested and run for 24 hours before leaving the factory, to ensure the smooth working of water pipeline, and pneumatic, electrical and mechanical stability.
*Sufficient stock of spare parts ensures the timely delivery and supply of spare parts.
*The engineers are experienced. We can produce different products with different capacity and work out reasonable flow chart as per customers' requirements to save space.
*Professional installation team who can speak fluent English can help customers make benefits in a shortest time.
Q and A
1.Q:Are you a factory or trading company?
A:We are a factory, professional water treatment system manufacturer and small bottle water filling & packing machinery with about 10 years experience. Factory covers an area of 12000 square. There have been more than 50 countries use our products.
2.Q:Where is your factory located? How can I visit there?
A:Our factory is located in Donglai town,Zhangjiagang city,Jiangsu province,China. about 2 hours away from PVG Airport . All clients are warmly welcome to visit us !
3.How about installation ?
We will send our engineers to your factory to install the machines and train your staff how to operate the machines. Customer pay air tickets go and back,accommodation and USD100 / day/person.
4.Q:How long is the warranty of your equipment?
A:2 years warranty after receipt check upon delivery.And we will comprehensively provide you all kinds of technical support services in after-sale service
5.Q:What is the features of our company?
A: We provide turnkey project for customers, including sale and after-sale service; complete production line equipment supply; bottle design; layout programs provide; or provide auxiliary materials purchasing agent supplier information; equipment overseas installation and commissioning; operator training; etc
