Высокое качество 11 м 3/мин R22 R407 220 В 50 Гц охлаждаемая сушилка для воздушного компрессора
- Category: Industrial Compressor Parts >>>
- Supplier: Henan,Chaodun,Industry,Co.,Ltd.
Share on:
Product Overview
Description
Product Description
Product Name | Refrigerated Air Dryer |
Intake Air Temperature | ≤60℃ |
Cooling type | air cooled |
Ambient Temperature | 2-45℃ |
Pressure Dew Point | 2-7℃ |
Working Pressure | 0.6-1.0Mpa |

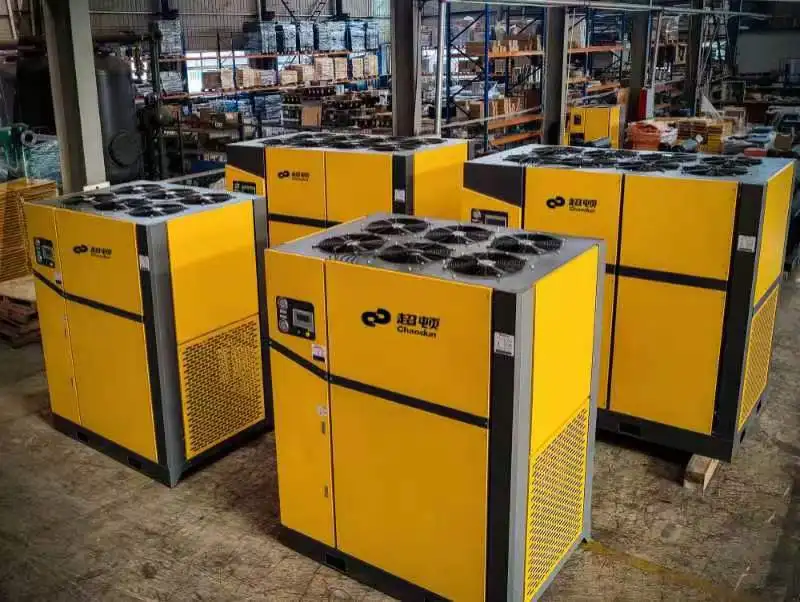

- Chaodun Top Suction Refrigerated Air Dryer
The appearance of our top suction refrigerated air dryer is very special. The fan is on the top of the machine. The hot air is upward,
and the whole machine is radiating.
Working Principle
The content of water vapor in compressed air is determined by the water content of compressed air. On the premise of keeping the pressure of compressed air basically unchanged, reducing the temperature of compressed air can reduce the content of water vapor in compressed air, and the excess water vapor will precipitate into droplets. According to the relationship between water saturation, steam pressure and temperature, the refrigeration device is used to cool the compressed air to a certain temperature and precipitate the water contained into droplets The water is separated and collected by the air-water separator, and the water is discharged by the drainer to dry the compressed air.
Product Appearance Features
Evaporator
The evaporator adopts high-quality copper tube and hydrophilic aluminum foil fins, and auxiliary special process design to reduce the cooling power consumption of condensate water.
Brand Thermal Expansion Valve
Pressure sensing, automatic adjustment of evaporation pressure (temperature)
Imported Oil Immersed Pressure Gauge
Good sealing, high pressure resistance and corrosion resistance
Controller
The whole series of models use intelligent computer controller with 485 communication interface, which can display and monitor the use status in real time.
The evaporator adopts high-quality copper tube and hydrophilic aluminum foil fins, and auxiliary special process design to reduce the cooling power consumption of condensate water.
Brand Thermal Expansion Valve
Pressure sensing, automatic adjustment of evaporation pressure (temperature)
Imported Oil Immersed Pressure Gauge
Good sealing, high pressure resistance and corrosion resistance
Controller
The whole series of models use intelligent computer controller with 485 communication interface, which can display and monitor the use status in real time.
Hot Gas Bypass Valve
Automatic adjustment of refrigerant pressure, shunt adjustment of pressure, anti ice blocking.
Gas Liquid Separator
Prevent liquid hammer and protect refrigeration system.
High and Low Pressure Controller
High precision low-voltage protection switch, high precision, accurate protection of the machine, easy to set high and low
voltage.
Thermostat
Precise control of the condensation temperature ensures the efficient operation of the refrigeration system.
Drainer
Double drainage design, using brand drainer.
Compressor
Sanyo, Panasonic and Copland are adopted.
Automatic adjustment of refrigerant pressure, shunt adjustment of pressure, anti ice blocking.
Gas Liquid Separator
Prevent liquid hammer and protect refrigeration system.
High and Low Pressure Controller
High precision low-voltage protection switch, high precision, accurate protection of the machine, easy to set high and low
voltage.
Thermostat
Precise control of the condensation temperature ensures the efficient operation of the refrigeration system.
Drainer
Double drainage design, using brand drainer.
Compressor
Sanyo, Panasonic and Copland are adopted.
Product Paramenters
Model | Capacity | Voltage | Power | Outlet Pipe Diameter | Dimension (L*W*H) | Weight | ||||||
CD-026XF | 2.6m3/min | 220V/50HZ | 0.68kw | Rc1 | 520mm*375mm*770mm | 49kg | ||||||
CD-038XF | 3.8m3/min | 220V/50HZ | 1.05kw | Rc1-1/2 | 650mm*445mm*960mm | 90kg | ||||||
CD-069XF | 6.9m3/min | 220V/50HZ | 1.4kw | 650mm*455mm*960mm | 100kg | |||||||
CD-110XF | 11m3/min | 220V/50HZ | 2.4kw | Rc2 | 870mm*600mm*1180mm | 170kg | ||||||
CD-140XF | 14m3/min | 220V/50HZ | 2.77kw | 190kg | ||||||||
CD-180XF | 18m3/min | 380V/50HZ | 2.77kw | Rc2-1/2 | ||||||||
CD-220XF | 22m3/min | 380V/50HZ | 5.1kw | DN65 | 1080mm*740mm*1460mm | 350kg | ||||||
CD-280XF | 28m3/min | 380V/50HZ | 6.0kw | DN80 | 395kg | |||||||
CD-320XF | 32m3/min | 380V/50HZ | 6.74kw | 420kg | ||||||||
CD-380XF | 38m3/min | 380V/50HZ | 8.55kw | DN100 | 1400mm*900mm*1700mm | 540kg | ||||||
...... | ||||||||||||
We are manufacturer, we support OEM & ODM, WELCOME to consult and visit! | ||||||||||||

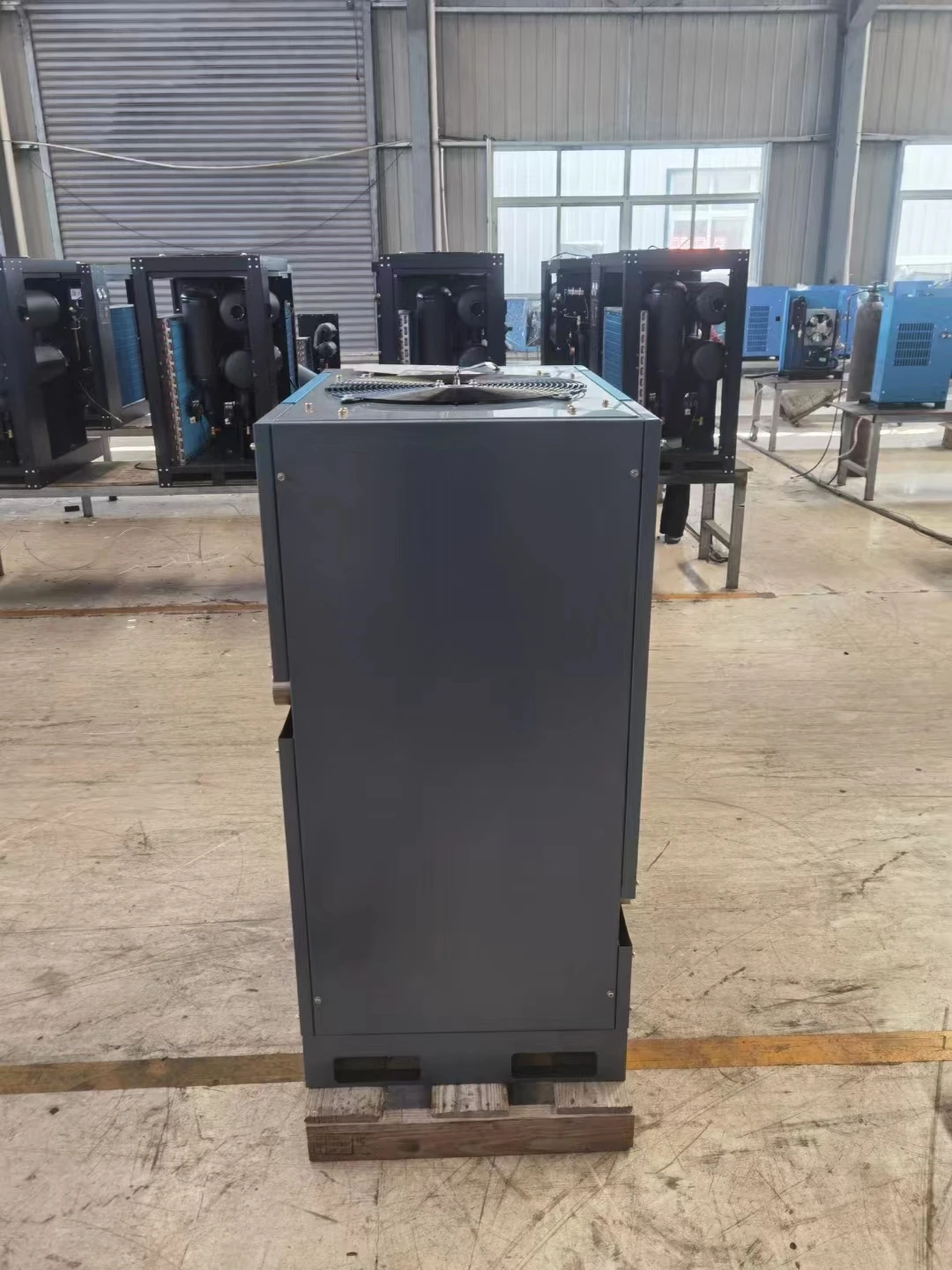

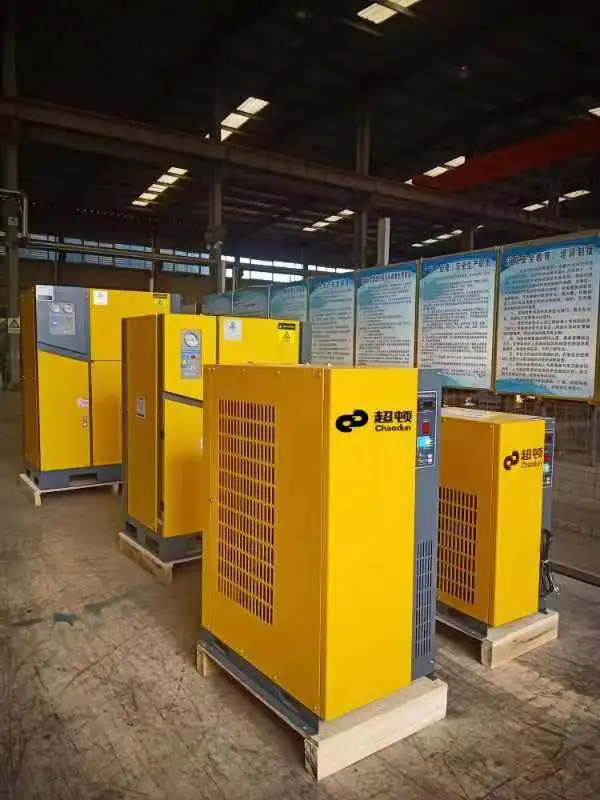

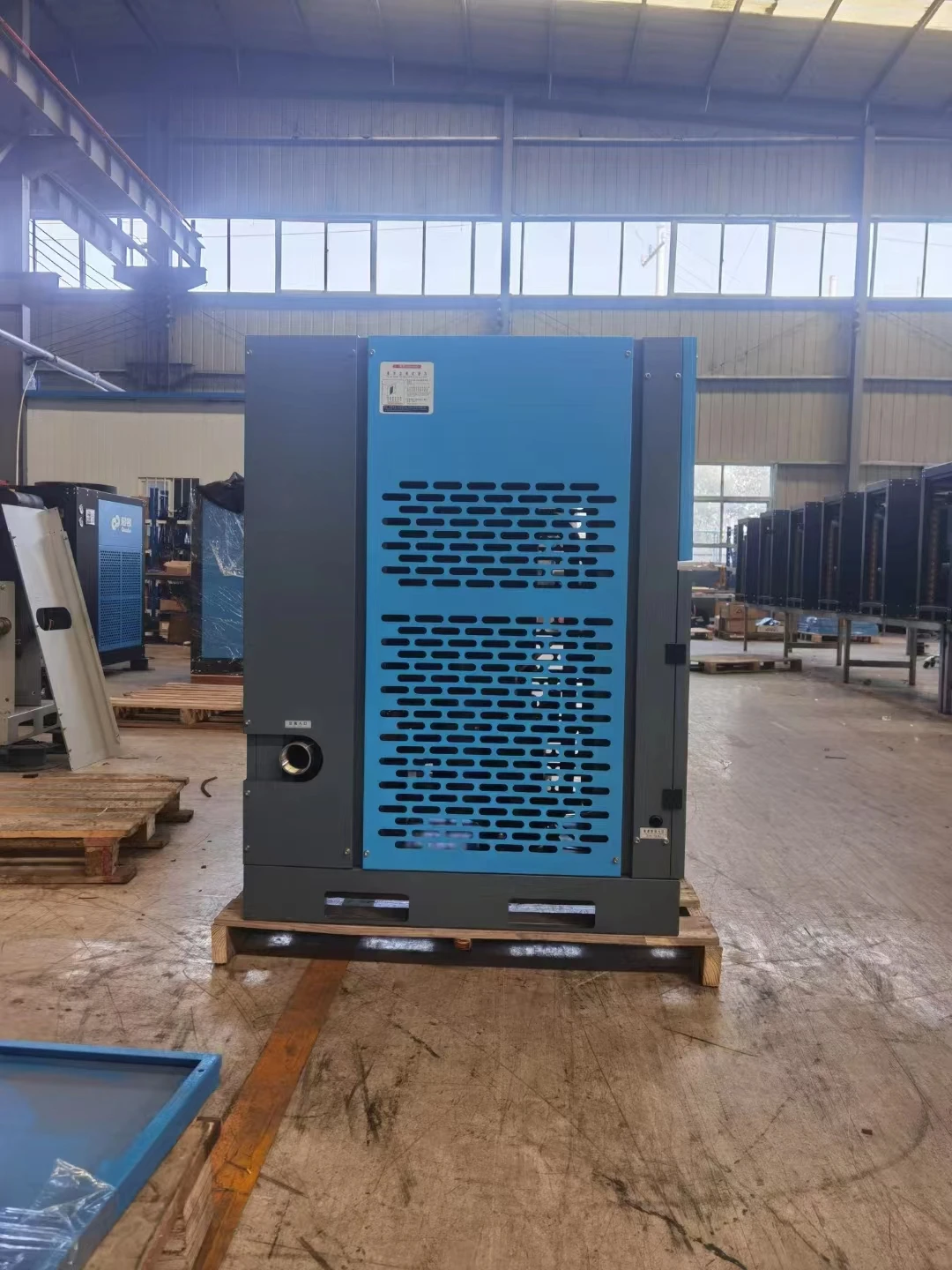

Packing&Shipping

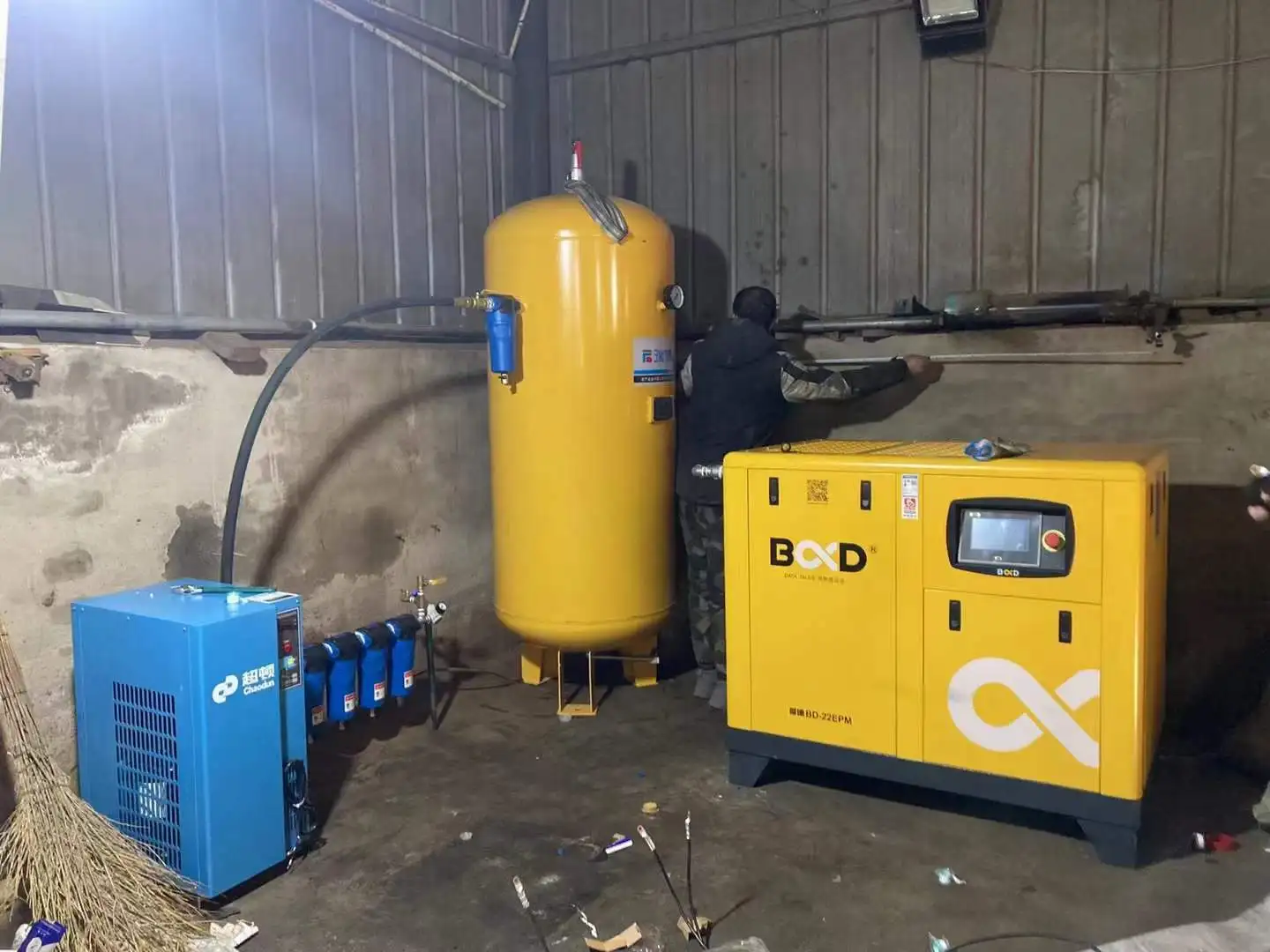

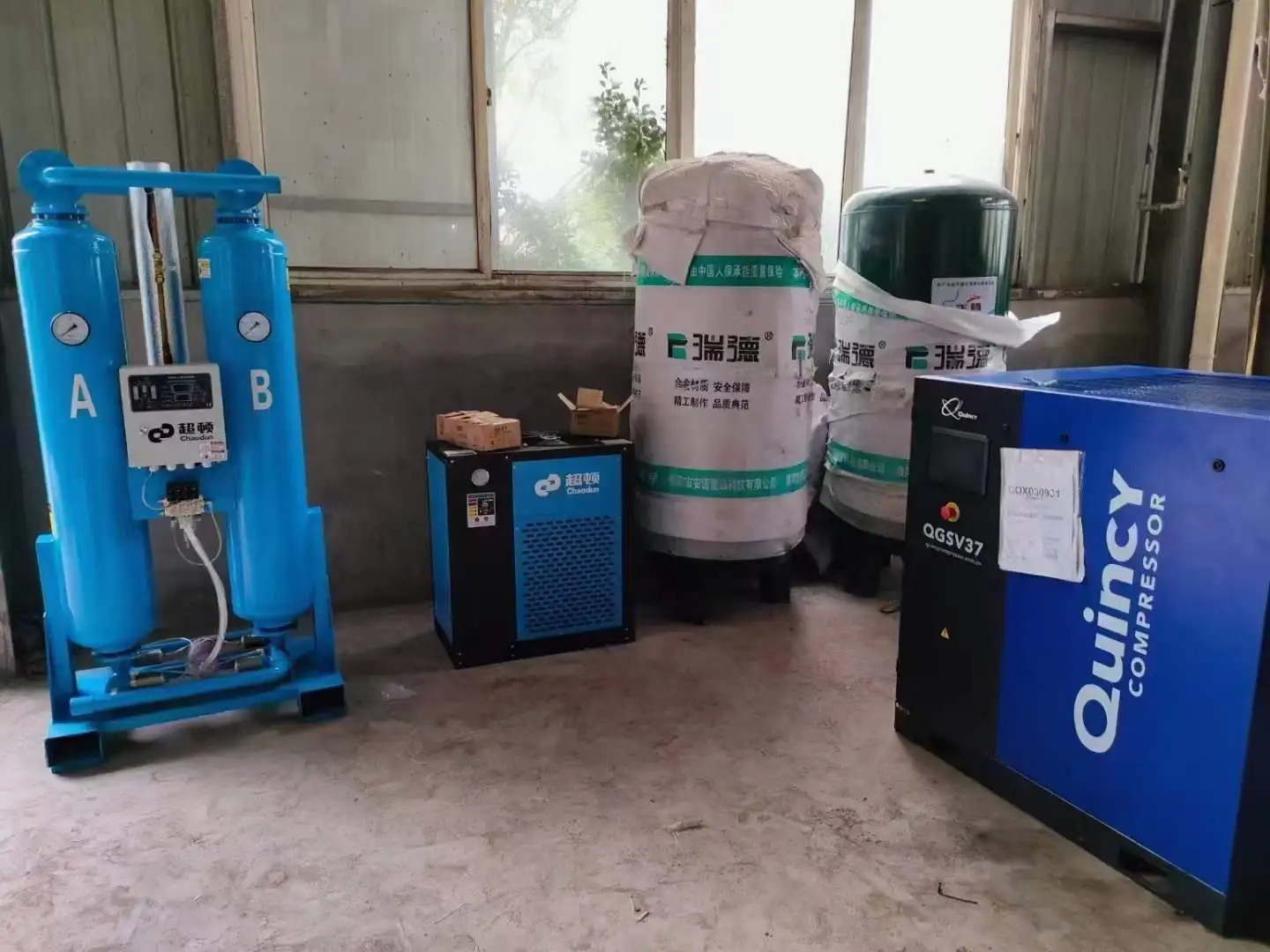

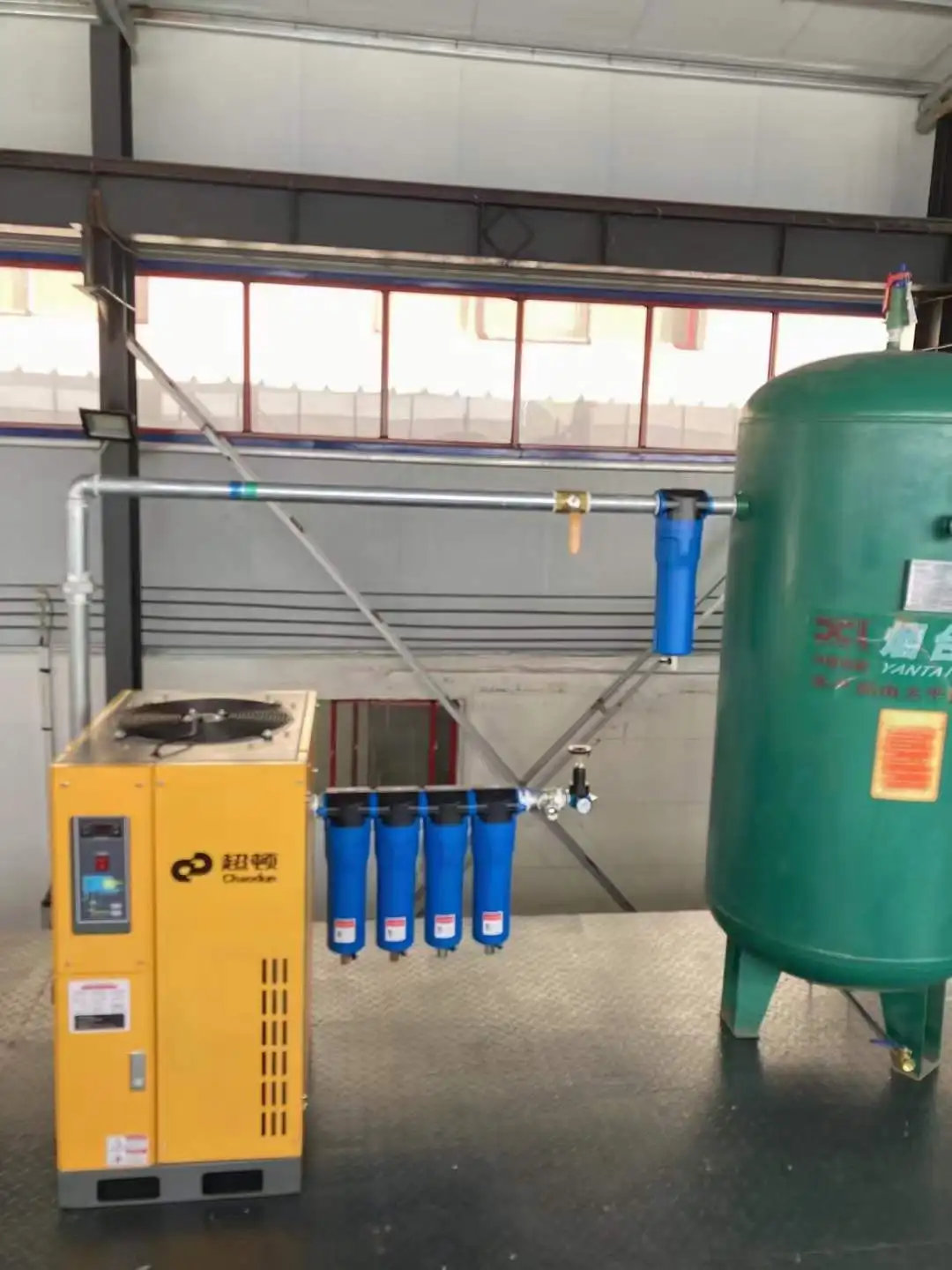

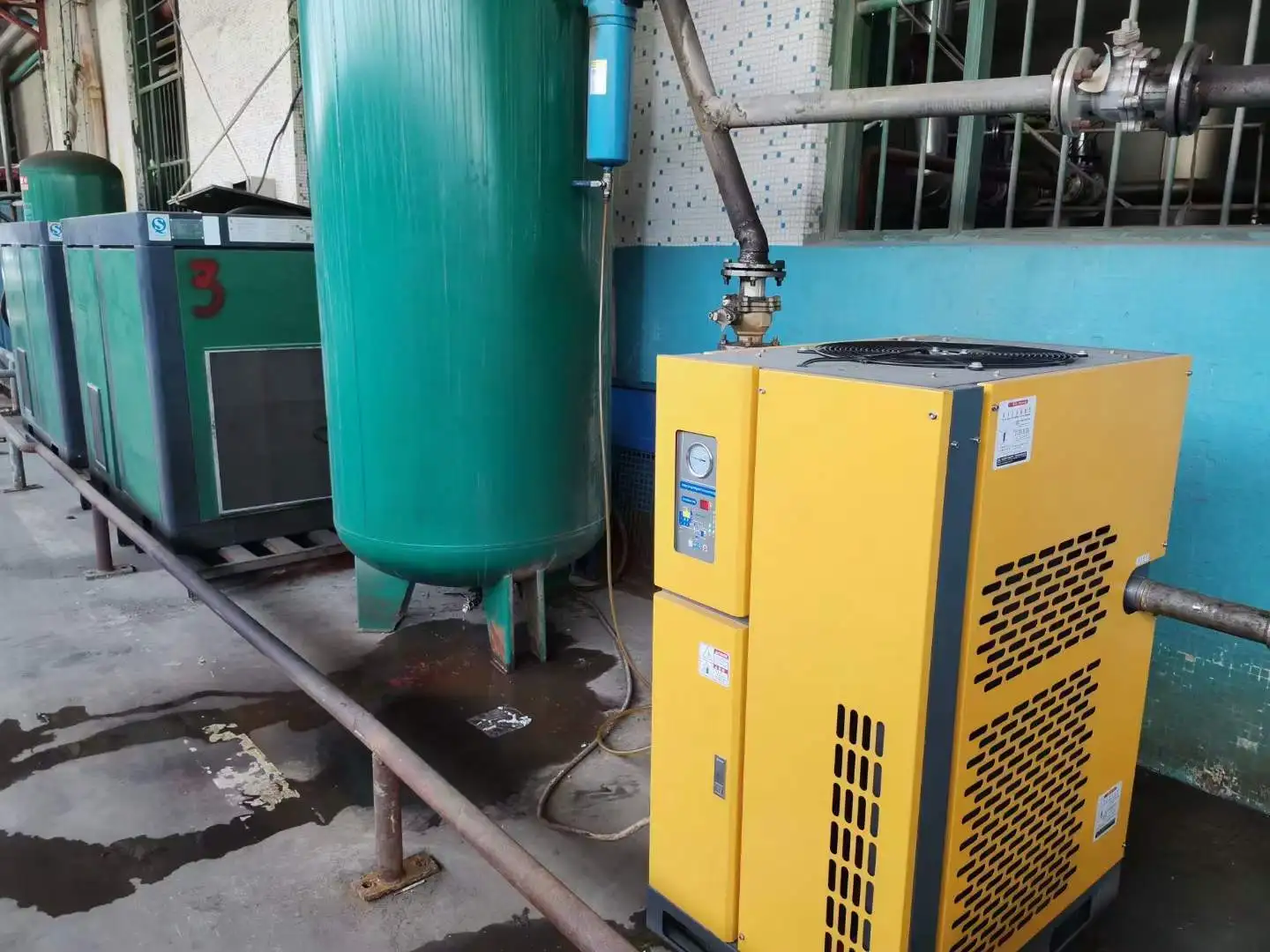

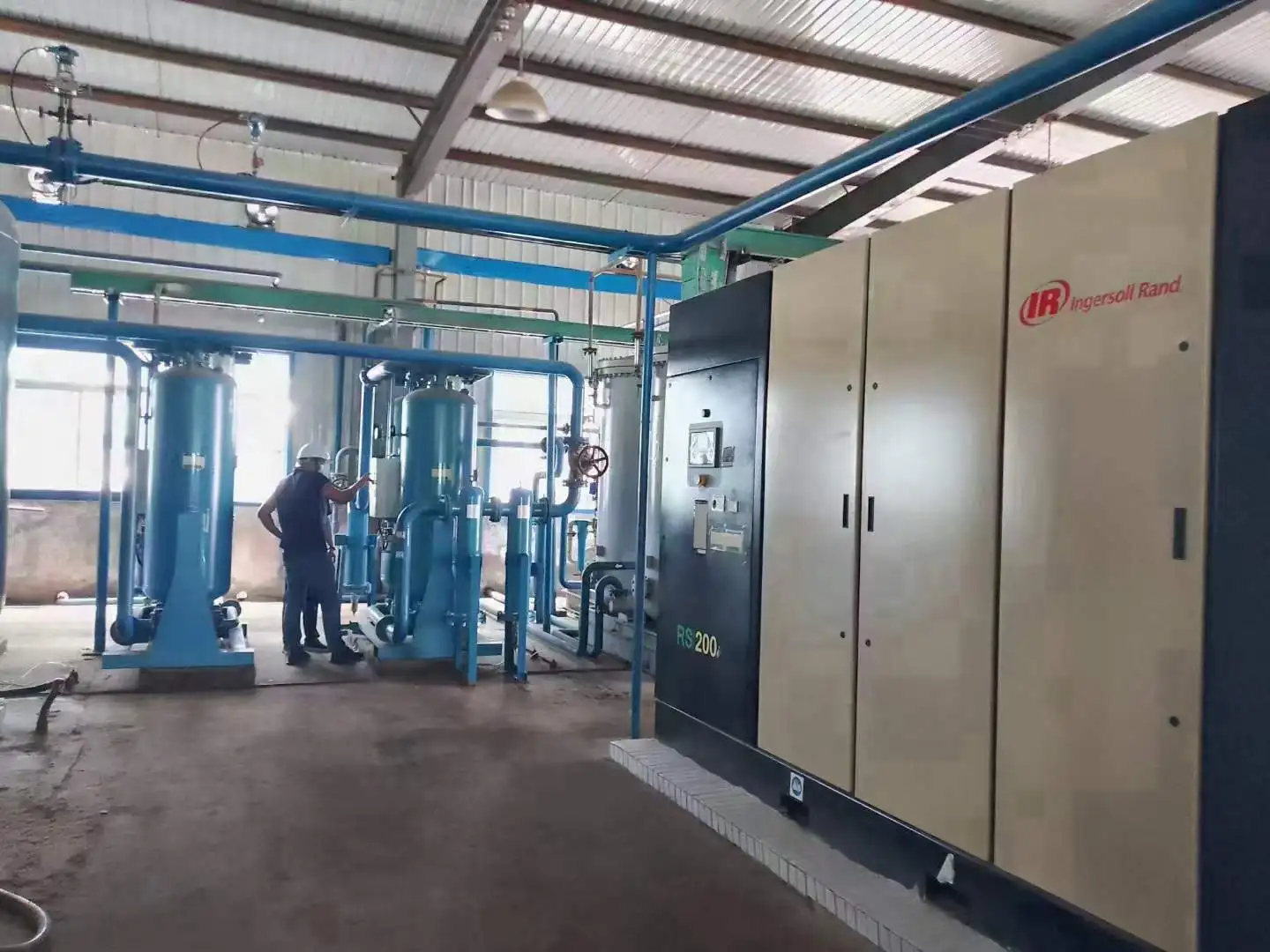

Customers' Site

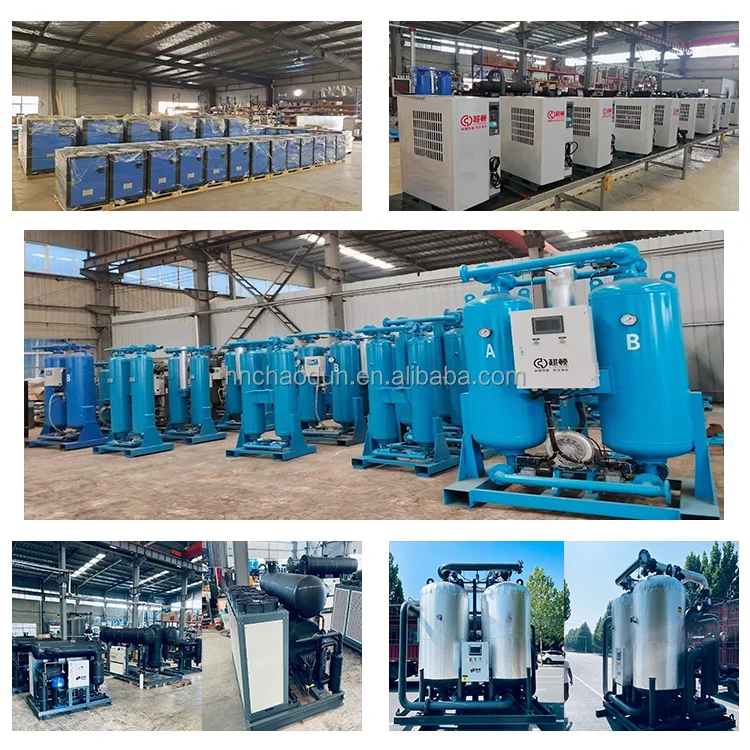

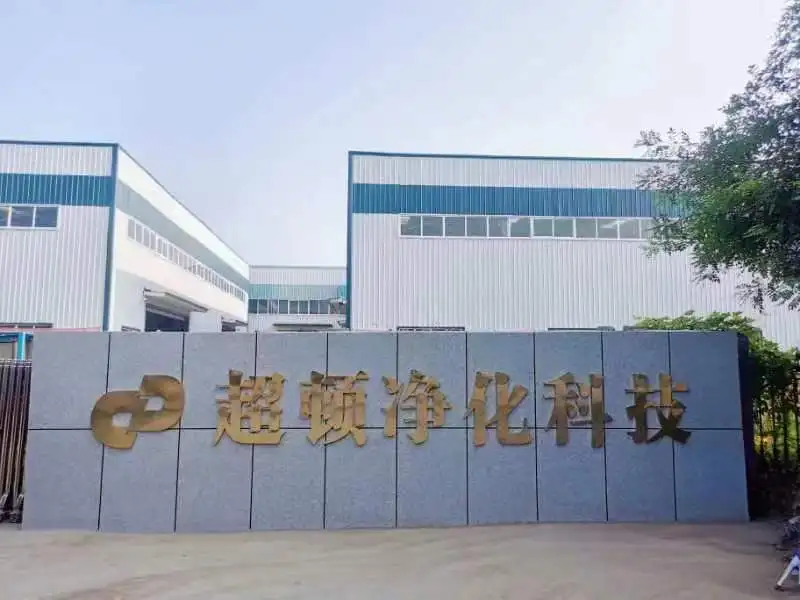

Company Introduction
"Quality decides everything, service creates value". Since its establishment, Henan Chaodun Industry Co., Ltd. has been committed to the R & D and manufacturing of compressed air after-treatment purification equipment, and gradually upgraded to a high-tech enterprise integrating R & D, creation, marketing and after-sales service. The company continues to strengthen the investment in scientific research, strive to improve the manufacturing capacity, and strive to promote the continuous innovation and upgrading of compressed air after-treatment purification equipment. The company has a professional research team, advanced manufacturing equipment and perfect detection means. It can be customized for customers with air cooling, water cooling, high temperature, explosion-proof, high pressure, stainless steel and other multi-function, wide range, adapt to a variety of complex working conditions of compressed air dryer. Our products are suitable for electronic, chemical fiber, petroleum, chemical, paper, petrochemical, automobile, electric power, food, environmental protection, pharmaceutical and other industries. Through the joint efforts of all colleagues, our products have been recognized and praised by customers.
Company culture
Certifications
FAQ
Q1. Are you factory or trade company?
A1. We are factory. And we have our own international trade department.
A1. We are factory. And we have our own international trade department.
Q2. What is the MOQ?
A2. The MOQ is 1set.
A2. The MOQ is 1set.
Q3. What is the scope of supply in your factory?
A3. Purification treatment equipment after air compression: refrigerated air dryer, adsorption air dryer, combined air dryer, air filter, etc.
A3. Purification treatment equipment after air compression: refrigerated air dryer, adsorption air dryer, combined air dryer, air filter, etc.
Q4. How long is your delivery lead time?
A4. If there is stock, the goods will be arranged at once when we receive the payment.
If there is no stock, the delivery lead time should be negotiated.
A4. If there is stock, the goods will be arranged at once when we receive the payment.
If there is no stock, the delivery lead time should be negotiated.
Q5. Can you accept customized orders?
A5. Yes, of course. OEM and ODM are acceptable.
A5. Yes, of course. OEM and ODM are acceptable.
Q6. How long is the warranty service for your products?
A6. 1 year warranty service and lifelong technical support will be provided.
A6. 1 year warranty service and lifelong technical support will be provided.
Q7. Will you provide after-sales services?
A7. Yes, of course. During the one-year warranty period, if the equipment fails, we are responsible for free maintenance. After the warranty period, lifelong paid service is supported, and long-term supply of spare parts will be supplied at preferential prices.
A7. Yes, of course. During the one-year warranty period, if the equipment fails, we are responsible for free maintenance. After the warranty period, lifelong paid service is supported, and long-term supply of spare parts will be supplied at preferential prices.
