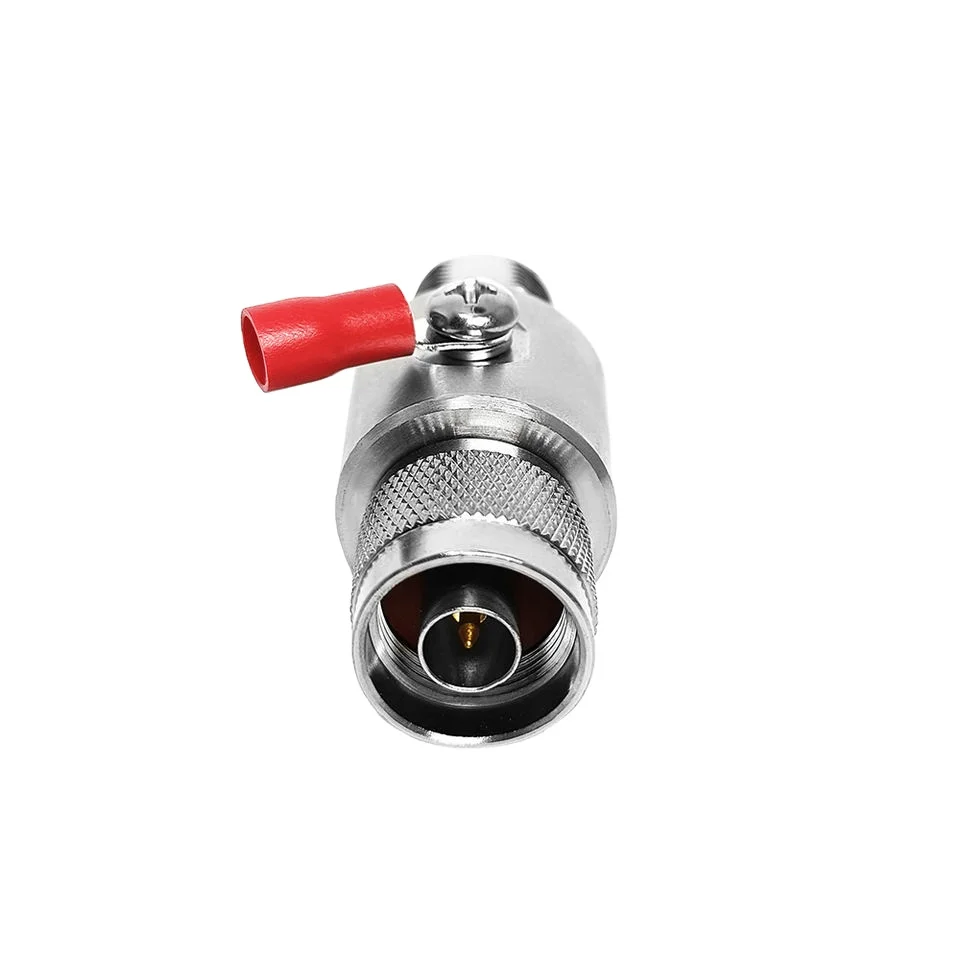

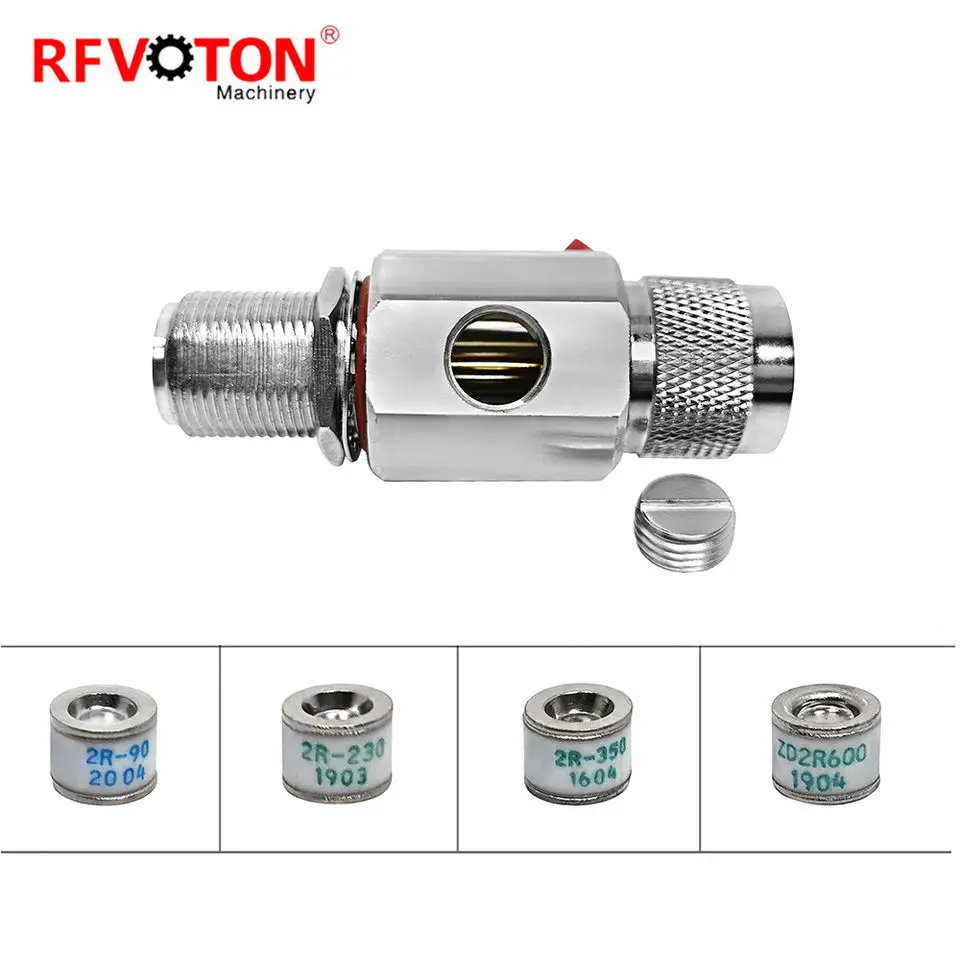

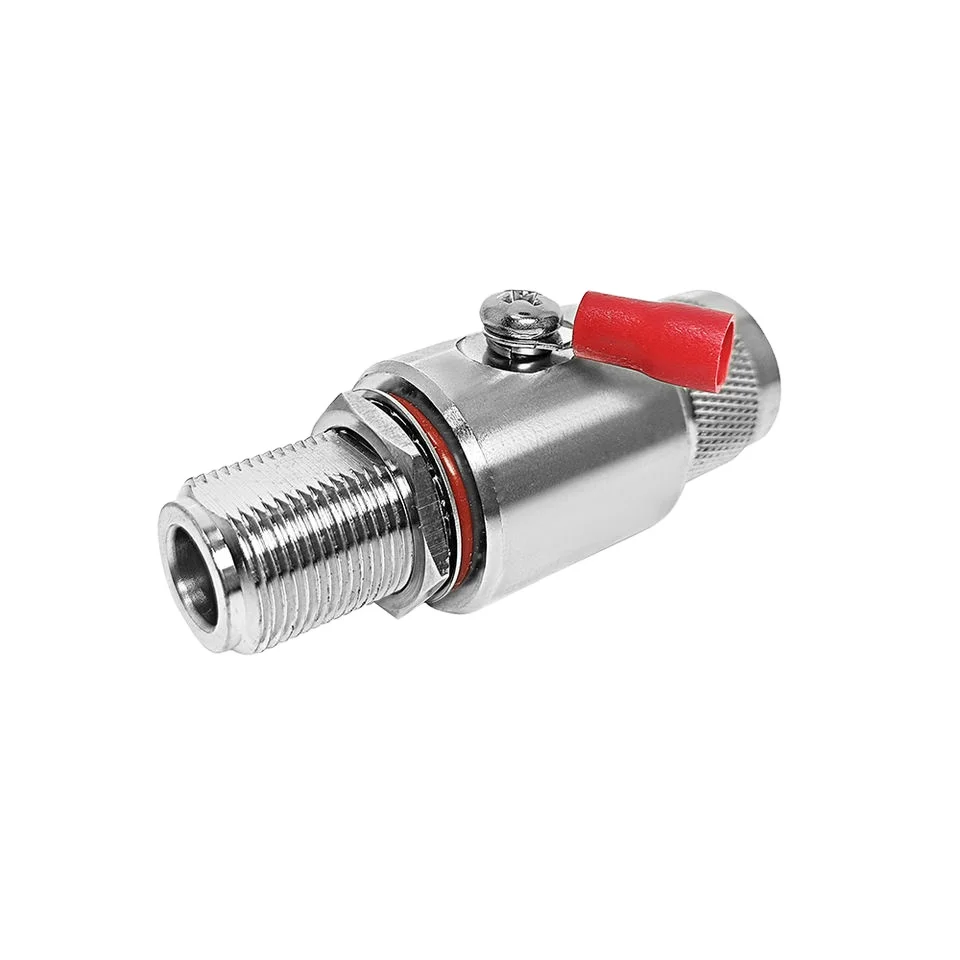

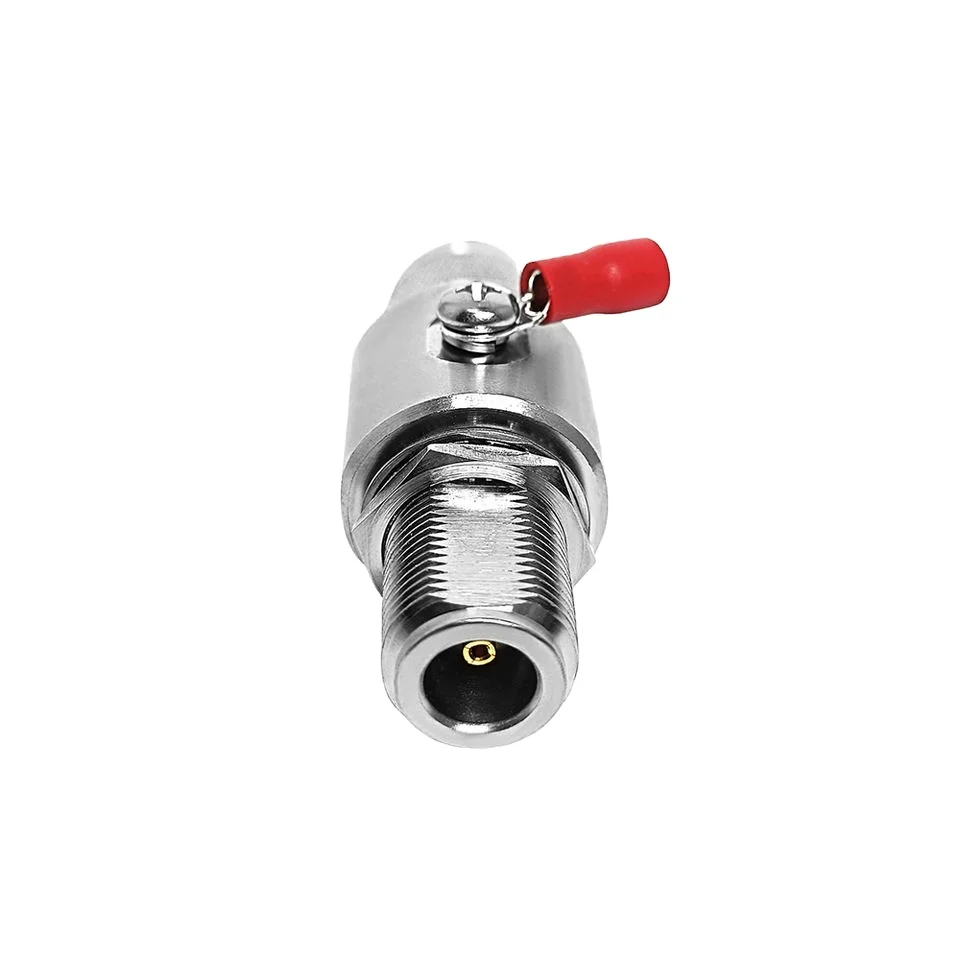

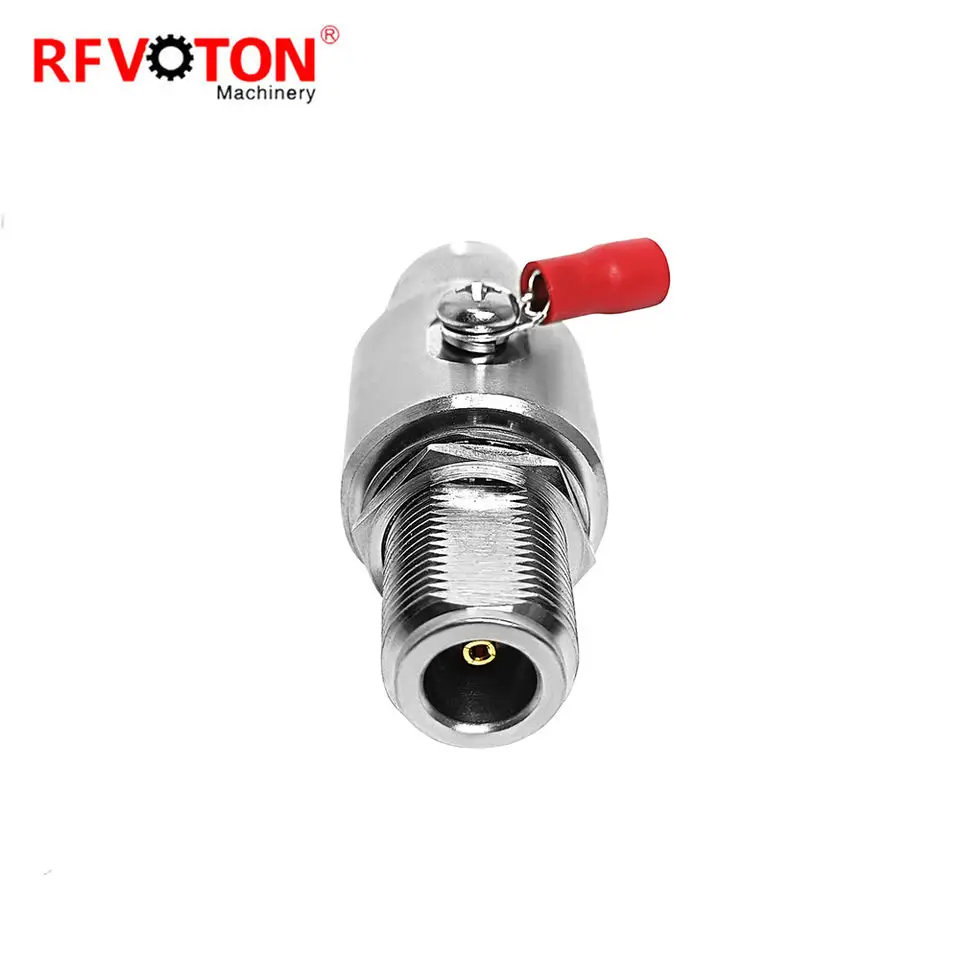

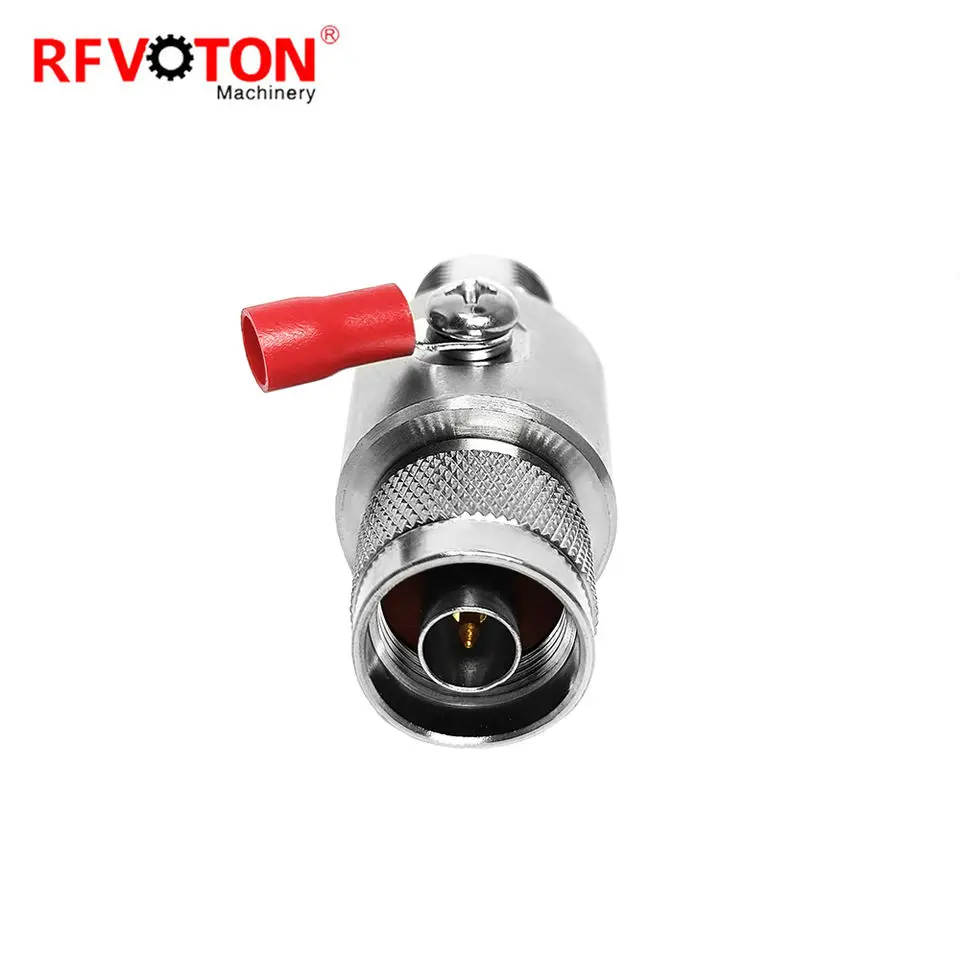

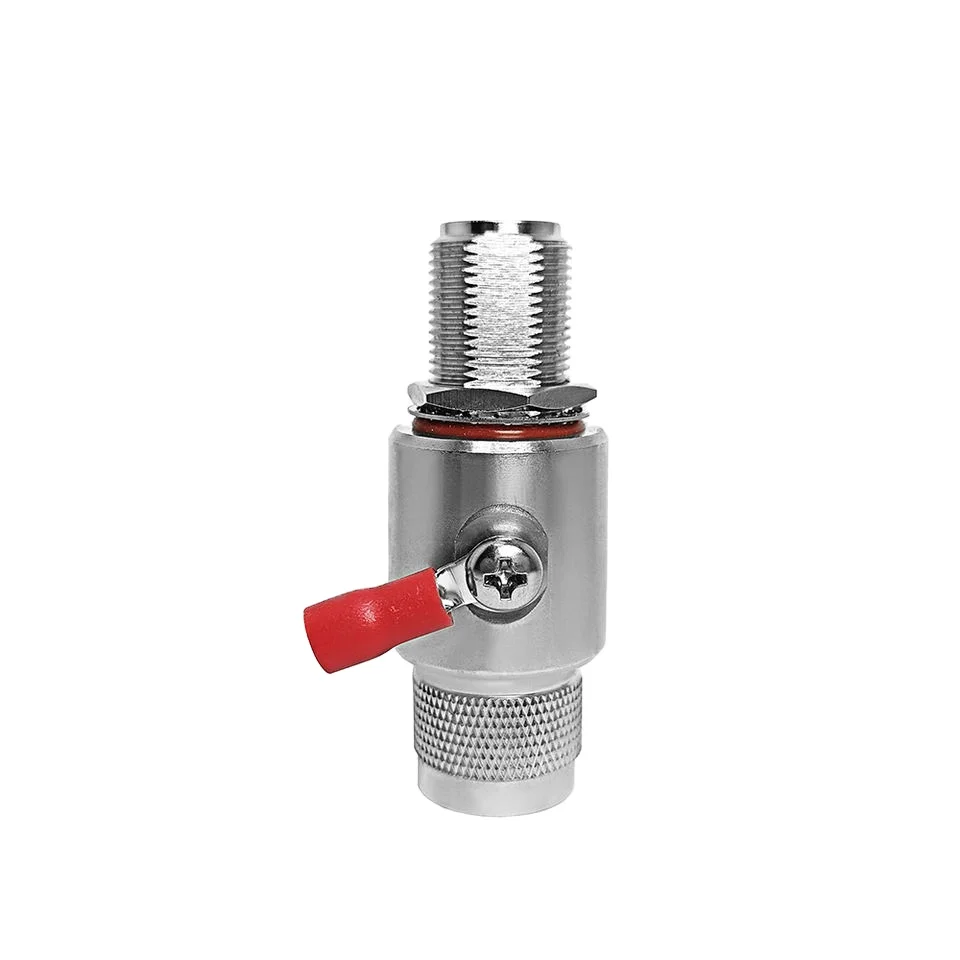

Manufacturer supply N DC 3Ghz surge/lightning protector N type male to N female bulkhead arrester/gas tube discharge protection
- Category: >>>
- Supplier: Zhenjiang Binjiang Electronic Co. Ltd.
Share on (1600598019202):
Product Overview
Description
Product Description

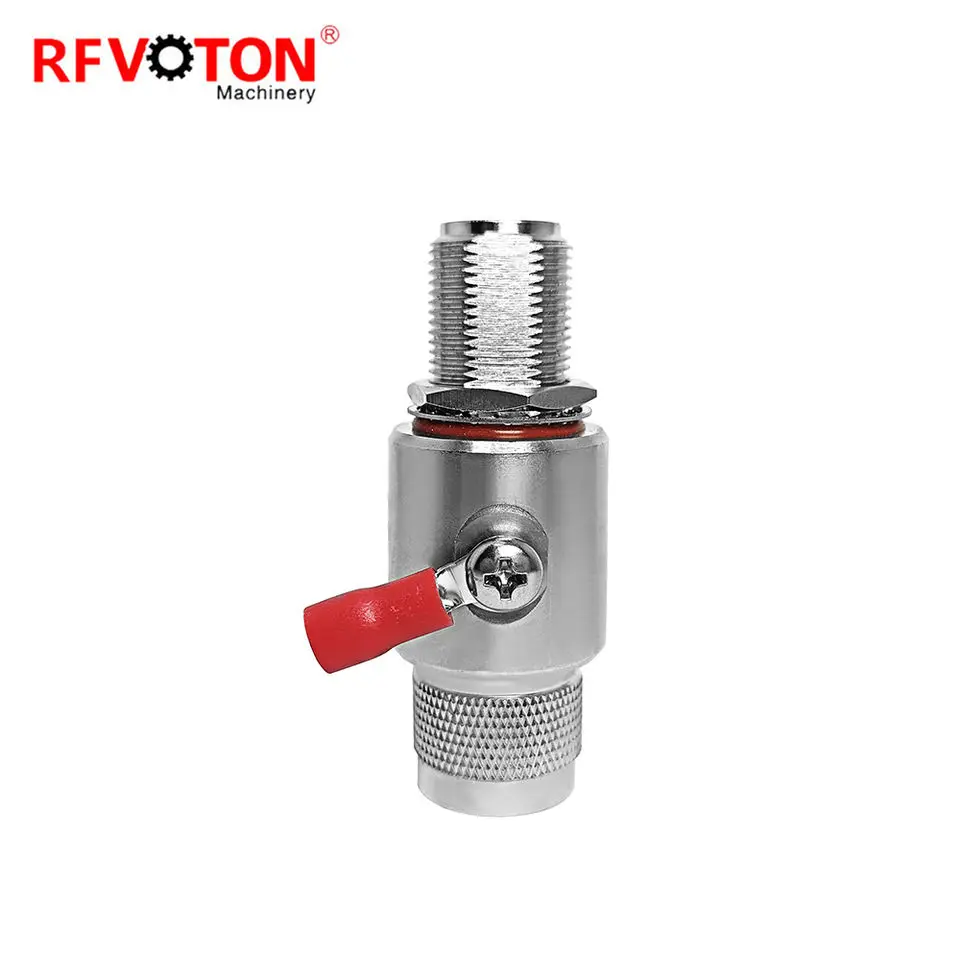

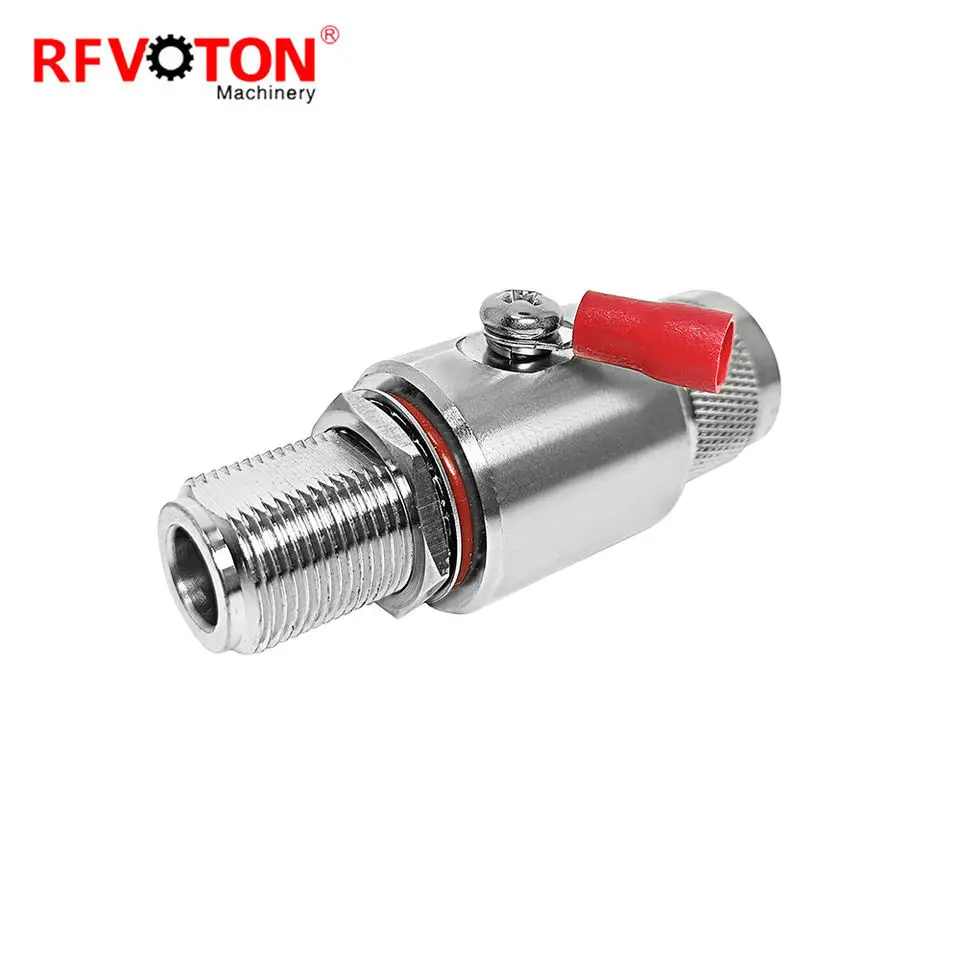

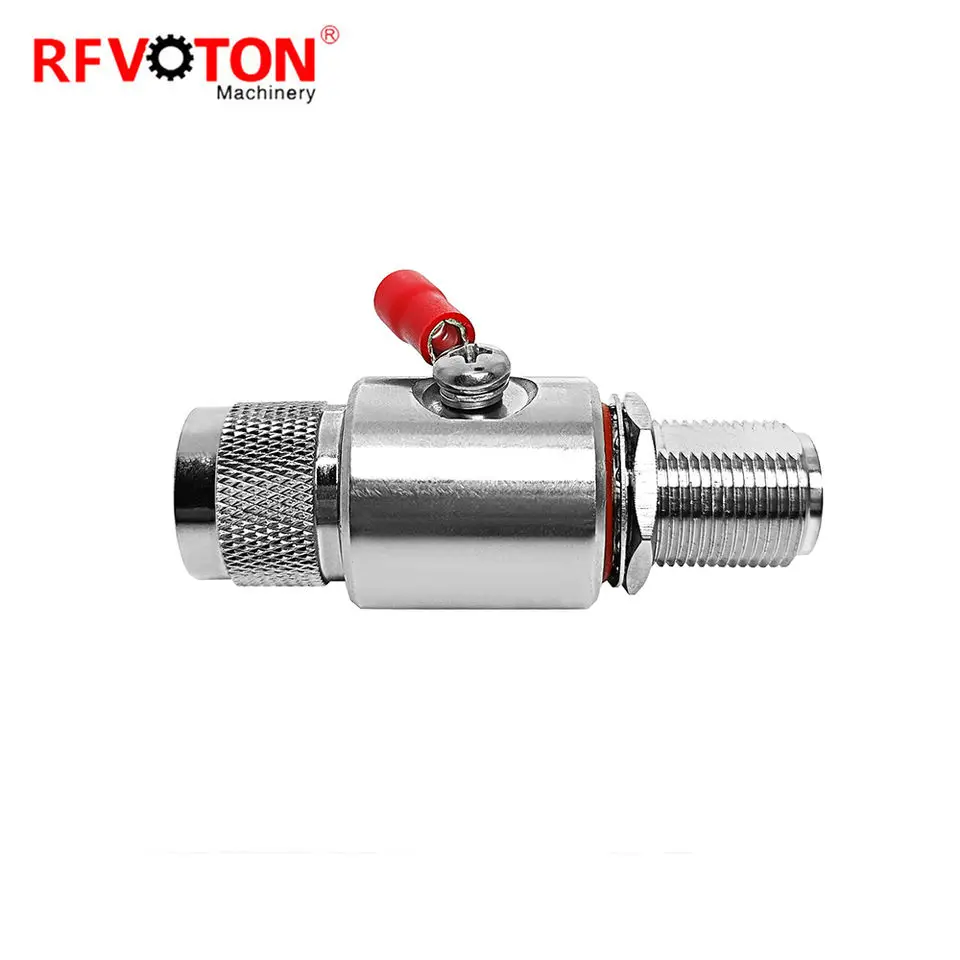

Detailed Images
N DC-3Ghz surge/lightning protector N male to N female bulkhead arrester/gas tube discharge protection | ||
Freq Range | DC-3GHz / DC-6GHz | |
Voltage | 90V / 220V / 250V / 350V | |
Protection | Gas Discharge Tube / 1/4 wavelength | |
Insertion Loss | <0.4Db | |
Return Loss | <-26dB | |
Max Surge Voltage Let Through | <200 mV | |
Through Put Energy | <5 nJ | |
Impedance | 50 OHMS / 75 OHMS | |
Max Power | 50W | |
Ingress Protection | IP65 | |
Ingress Protection | IP65 | |
Grounding Screw/LUG | Y | |
VSWR | <1.1(DC-3G) | |
Max Current Load | 10A | |
Nominal Discharge Current (kAMP) | 5 kAMP | |
Max Discharge Current (kAMP) | 20 kAMP | |
Impulse Current (kAMP) | 2.5 kAMP | |
Operating Temp(degrees C) | (-40 to +85) C | |
ROHS | Yes | |
ISO-9000 Certified | Yes | |
Related Products
Dear Mr/Ms
These are our main lightning arresters products,if you have any need please leave me a message or send me an enquiry to tell me what kind of lightning arresters you need or you are interested in.I will send the details to you as soon as I can.
Amber Wu
Company Informantiom
Our Service
Packing & Delivery
1. Are you the manufacture or the trading company?
Amber: We are the manufacture focused on manufacturing rf connector,coaxial cables,antenna,lightning arrester since 1991!
2. How long will the delivery take?
Amber: If we have the inventory, we can ship them out immediately.If we don't, we need 5-30days to produce the products depends on the quantity.
3. What's your MOQ?
Amber: Our products in stock doesn't need MOQ, if we have to produce the products, our MOQ is 100PCS.
4. Can you send sample for us to test?
Amber: Of Course
5. What kind of payment term you accept?
Amber: Paypal, western union, alipay, T/T, etc.
6. Is customized service availble?
Amber: Yes, we can do ODM / OEM. If you need customized service please contact me.
