Daiertek KN3C 223AAP 4 Pin (ON) OFF (ON) Momentary DC Automatic Motor Control Polarity Reverse Toggle Switch
- Category: Toggle Switches >>>
- Supplier: Wenzhou,Daiertek,Electric,Co.,Ltd.
Share on:
Product Overview
Description
PRODUCT DESCRIPTION
Item | Daiertek KN3C-223AAP 4 Pin (ON)-OFF-(ON) Momentary DC Automatic Motor Control Polarity Reverse Toggle Switch | ||||
Function | DPDT (ON)-Off-(ON) | ||||
Rating | 15A 250VAC | ||||
Contact Resistance | 35mΩmax | ||||
Material | Brass Metal & Bakelite | ||||
Operating Temperature | -25°C~+85°C | ||||
Ambient temperature | -10°C~+85°C | ||||
PRODUCT DETAILS
DPDT Toggle Switch Waterproof Spec
* Product Feature: Toggle Switch .This switch is momentary meaning it springs back to the center off position when the toggle is
released. The switch will reset automatic back to off if released.The product is 100% brand-new in quality and has a two-year
warranty.
* Product specification:Heavy Duty Toggle Switch with 30A 12VDC; 20A 125VAC; 15A 250VAC Rating.Both can be used under DC and AC
Circuit. * Type: (ON)/OFF/(ON) Momentary,

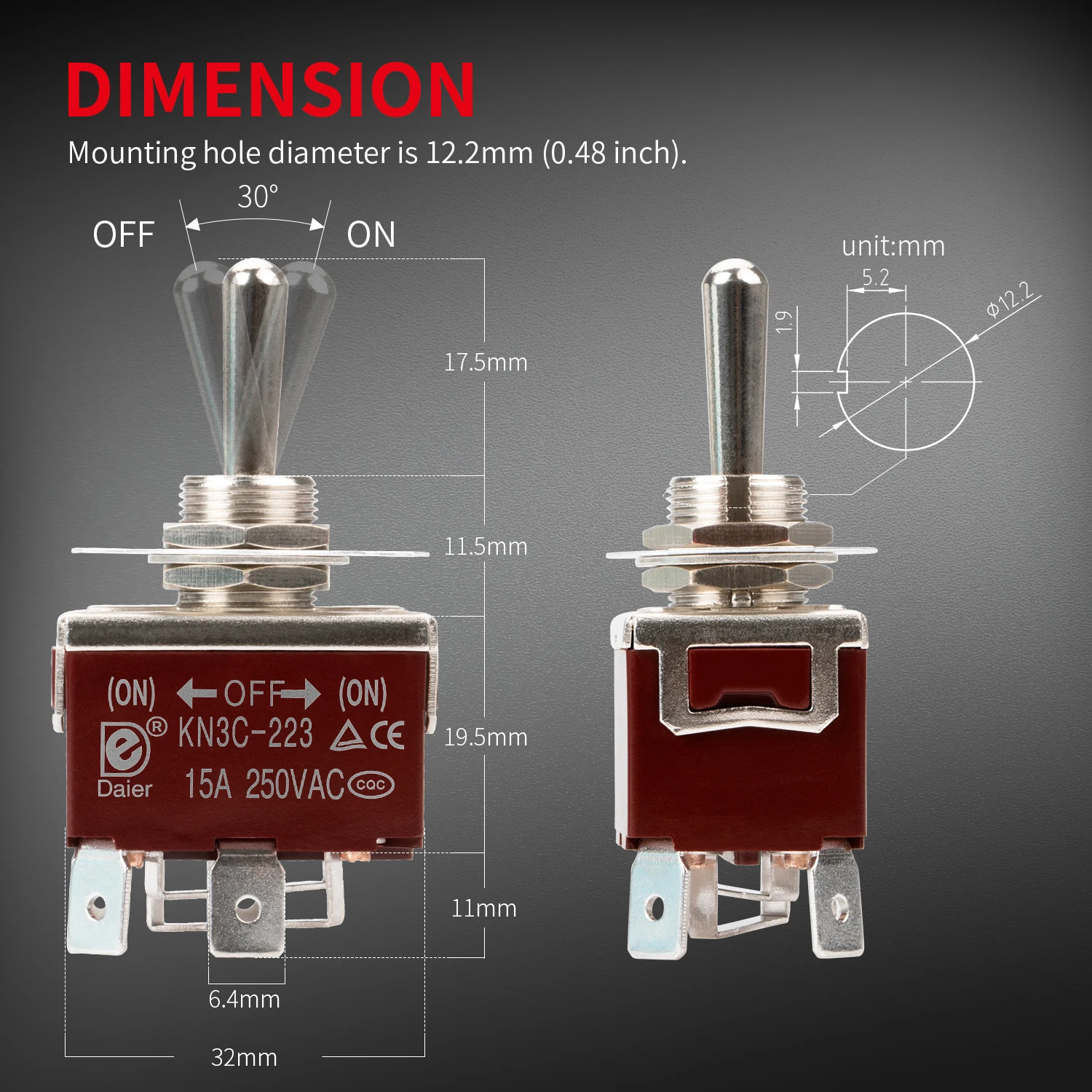

* Panel Mounting: Toggle Switch with 12mm Cut-out Size
* Product package:10pcs/set
released. The switch will reset automatic back to off if released.The product is 100% brand-new in quality and has a two-year
warranty.
* Product specification:Heavy Duty Toggle Switch with 30A 12VDC; 20A 125VAC; 15A 250VAC Rating.Both can be used under DC and AC
Circuit. * Type: (ON)/OFF/(ON) Momentary,
* Panel Mounting: Toggle Switch with 12mm Cut-out Size
* Product package:10pcs/set
DPDT Toggle Switch
4 Pin DPDT Mom-On/Off/Mom-On operations.
15A 250VAC Toggle Switch.
KN3C-223.
15A 250VAC Toggle Switch.
KN3C-223.
Features
Power jack switch comes with built-In jumper bars for polarity reversing. Simply connect power and ground and two DC motor leads
and the switch will reverse the motor direction.
and the switch will reverse the motor direction.
Application
This polarity reversing switch easy replacement for most RV/trailer power tongue Jacks, Fits many fifth wheel jacks, and replaces
some power awning switches. This is also a common switch on most remote control handles.
some power awning switches. This is also a common switch on most remote control handles.
