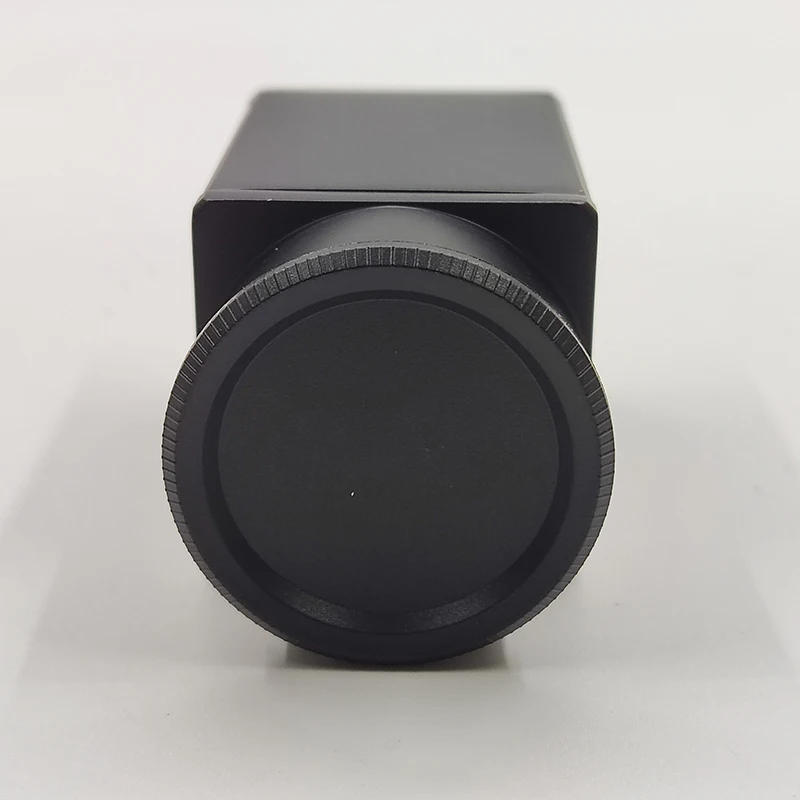

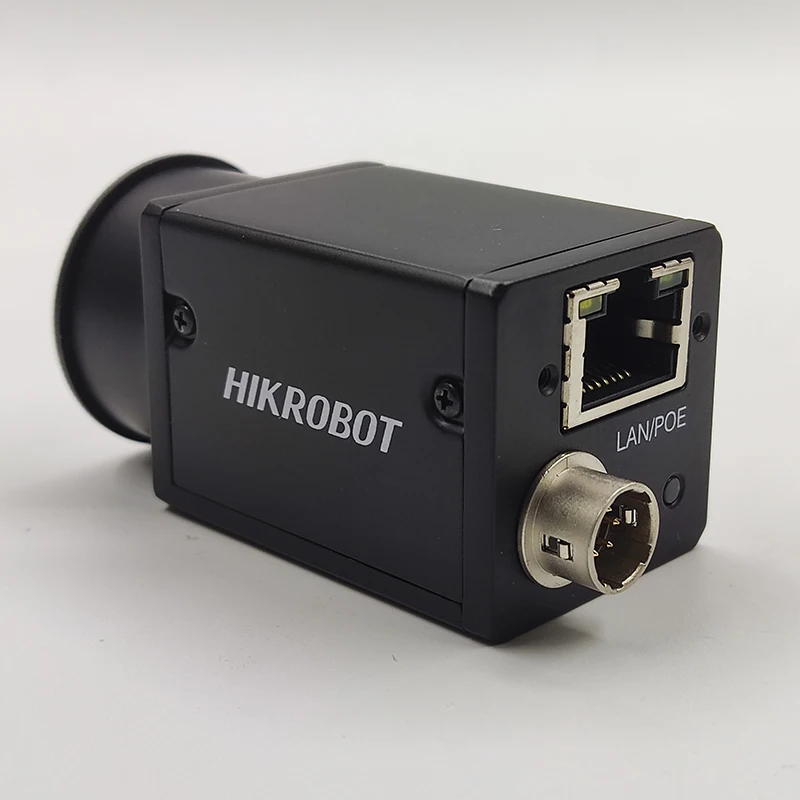

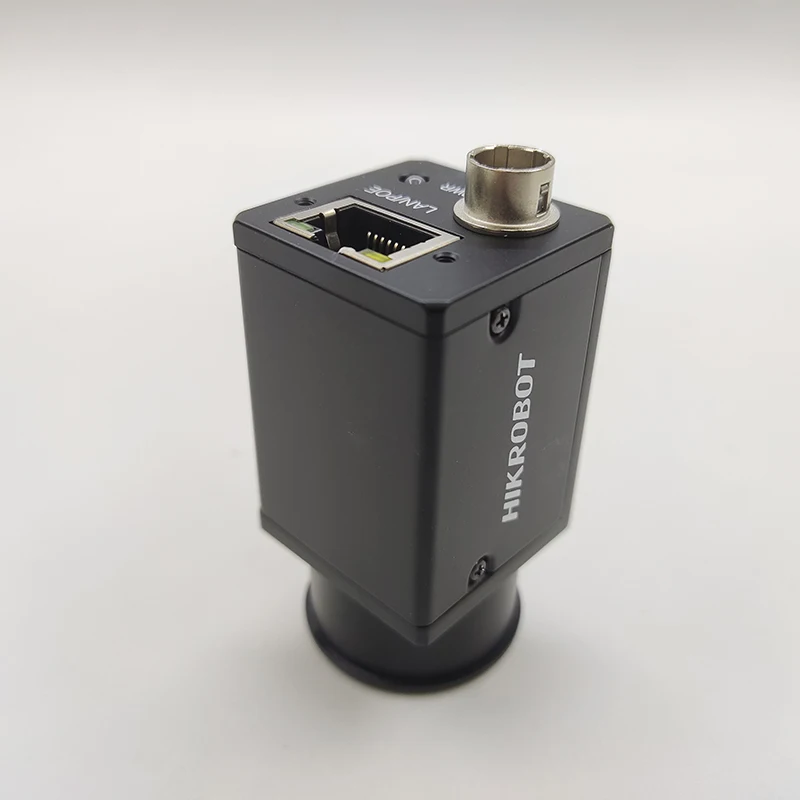

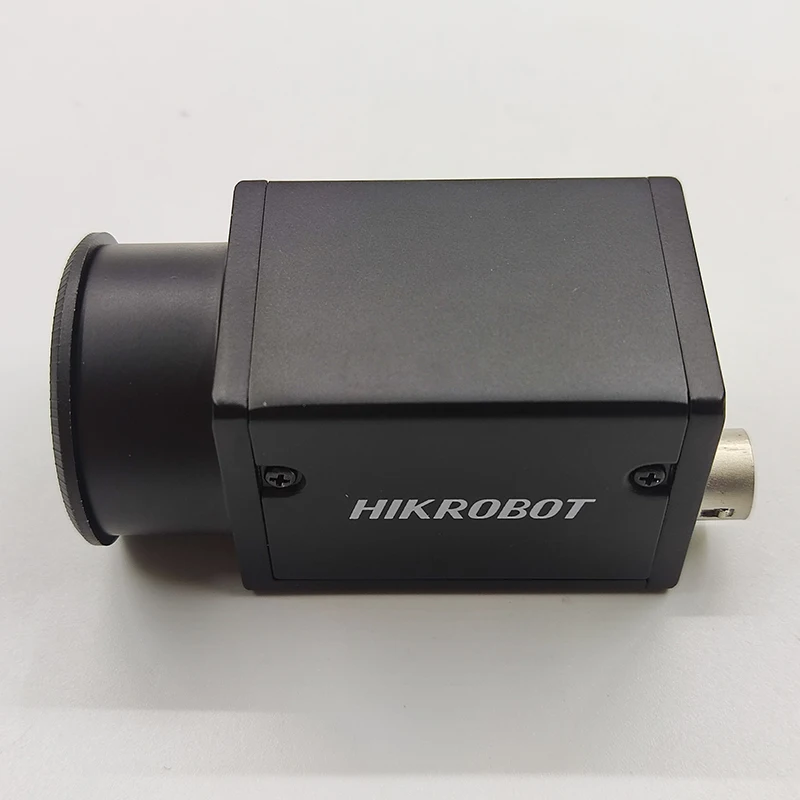

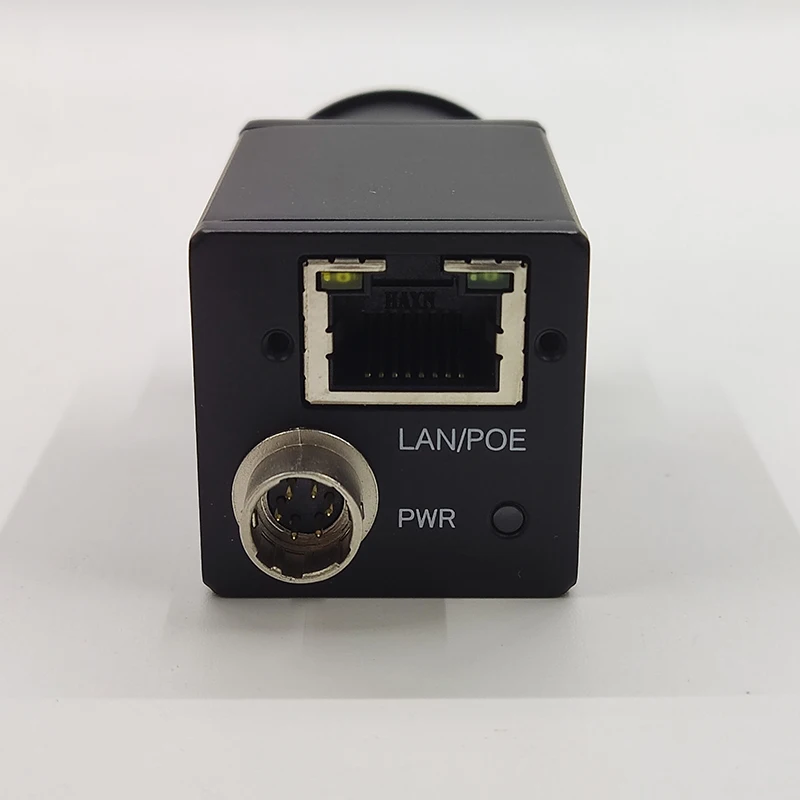

HIKROBOT MV CA005 20GM PYTHON480 CMOS Global Shutter C Mount Black & White Gige Industrial Camera
- Category: >>>
- Supplier: Shenzhen Zhixiang Shijue Technology Co. Ltd.
Share on (1600598169986):
Product Overview
Description
Product Features
1. Support automatic or manual adjustment of gain, exposure time, LUT, Gamma correction, etc.
2. Using Gigabit Ethernet interface, the maximum transmission distance can reach 100m without relay
3. 128MB on-board cache, which can cache multiple pictures for burst transfer or image retransmission
4. Compatible with GigE Vision V1.2 protocol and GenlCam standard, seamless access to third-party software platforms
2. Using Gigabit Ethernet interface, the maximum transmission distance can reach 100m without relay
3. 128MB on-board cache, which can cache multiple pictures for burst transfer or image retransmission
4. Compatible with GigE Vision V1.2 protocol and GenlCam standard, seamless access to third-party software platforms
Products Description
Specifications
Model Number | Model | MV-CA005-20GM |
Name | 500,000-pixel network port area scan camera, PYTHON480, black & white | |
Performance | Sensor Type | CMOS, Global Shutter |
Sensor model | PYTHON480 | |
Pixel size | 4.8 µm × 4.8 µm | |
Target surface size | 1/3.6" | |
Resolution | 808 × 608 | |
Maximum frame rate | 116 fps @808 × 608 | |
Dynamic range | 59 dB | |
Signal-to-noise ratio | 57 dB | |
Gain | 0 dB ~ 15 dB | |
Exposure time | 42 μs ~ 10 sec | |
Shutter mode | support automatic exposure, manual exposure, one-key exposure mode | |
Black & White/Color | Black & White | |
Pixel Format | Mono 8/10/10Packed/12/12Packed | |
Binning | Supports 1 × 1, 1 × 2, 2 × 1, 1 × 4, 4 × 1, 2 × 2, 2 × 4, 4 × 2, 4 × 4 | |
Downsampling | 1 × 1, 2 × 2 supported | |
Mirroring | support horizontal mirroring, vertical mirroring | |
Electrical Characteristics | Data Interface | GigE |
Digital I/O | 6-pin P7 connector provides power supply and I/O: 1 optocoupler isolated input (Line0), 1 optocoupler isolated output (Line1), 1 bidirectional configurable non-isolated I/O (Line2) | |
Power supply | 12 VDC, support PoE power supply | |
Typical power consumption | 3.0 W@12 VDC | |
Structure | Lens mount | C-Mount |

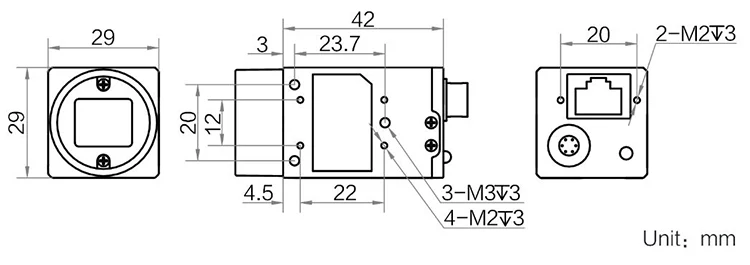

Dimensions | 29mm×29mm×42mm | |
Weight | About 68g | |
IP protection grade | IP30 (when the lens and cable are installed correctly) | |
Temperature | working temperature 0℃~ 50℃, storage temperature -30℃~ 70℃ | |
Humidity | 20% ~ 80%RH without condensation | |
General Specifications | Software | MVS or 3rd party software supporting GigE Vision protocol |
Operating System | Windows XP/7/10 32/64bits, Linux 32/64bits and MacOS 64bits | |
Protocol/Standard | GigE Vision V1.2, GenICam | |
Certification | CE, FCC, RoHS, KC |
Product packaging
