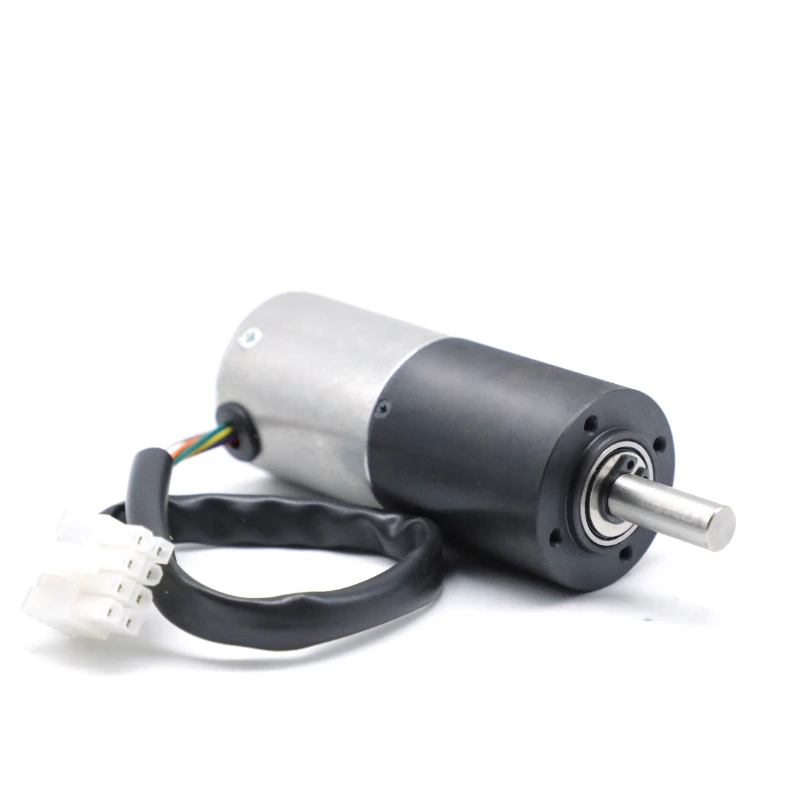

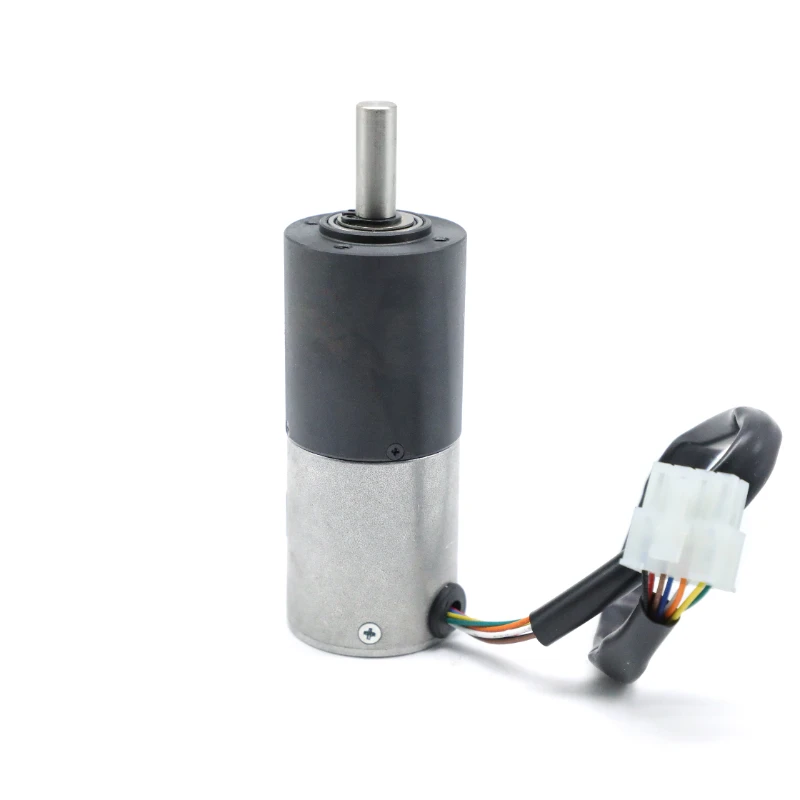

Manufacturer 36mm gearbox 24v 48v 1.5nm 94rpm brushless dc planetary gear motor with driver
- Category: >>>
- Supplier: Changzhou Hetai Motor And Electrical Appliance Co. Ltd.
Share on (1600598238143):
Product Overview
Description
Product Description
36BLY01A-001AG76
Low Noise, High Quality
APPLIED in LAWN MOWER WHEEL
Planetary gearbox Brushless DC motor
Specification
Product Name | Brushless Gearbox Motor |
Model | 36BLY01A-001AG76 |
Reduction Ratio | 1：76 |
Voltage （V） | 24 |
Rated Speed with gearbox （RPM） | 94 |
Rated Torque with gearbox （N.M） | 1.5 |
Power （W） | 14.8 |
Insulation class | B |
Other Gearbox Ratio
Reduction Ratio | 15:1 | 4:1 | 6:1 | 18:1 | 26:1 | 48:1 | 66:1 | ||||||
Number of Poles | 4 | ||||||||||||
Number of Phase | 3 | ||||||||||||
Nominal Voltage | 24V | ||||||||||||
Insulation Class | B | ||||||||||||
Rated torque after speed | 200rpm | 750rpm | 500rpm | 167rpm | 115rpm | 63rpm | 45rpm | ||||||
Rated torque with gearbox | 1.9n.m | 0.6n.m | 0.9n.m | 2.3n.m | 3.4n.m | 6.2n.m | 8.6n.m | ||||||
No-load Speed | 4000rpm | ||||||||||||
No-load Current | 0.6A | ||||||||||||
Product Application

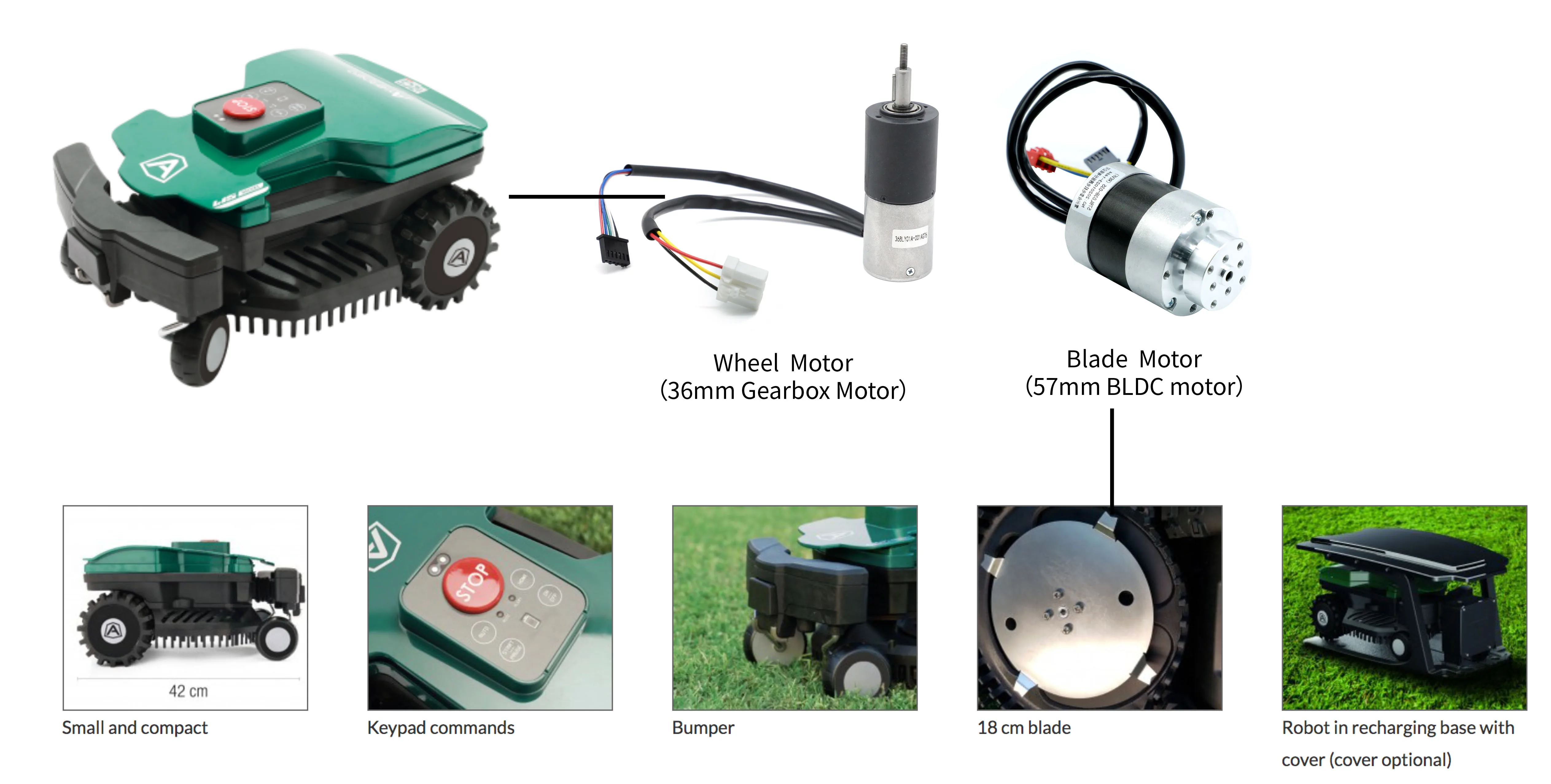

APPLIED IN LAWN MOWER ROBOTS
94 RPM
1.5 N.M
Advantage of BLDC gearbox motor :
-High torque output
-Reduced speed
-Low noise
-Compact in size
Advantage of BLDC motor :
-High efficiency
-Running smoothly
-Precise positioning
Recommend Products
Company Profile
Changzhou Hetai Motors
Hetai is located in ChangZhou, JiangSu province. Our workshop area is over 15,000㎡. Since Hetai founded in 1999, the specialization, scale of production has ensured to manufacture five million motors every year.
Experienced Manufacturer
ChangZhou Hetai Motors is an experienced motor manufacturer. For more than 20 years, Hetai dedicates to provide professional electrical integration design and automation strategies for customers. We have variable manufacturing equipment, such as assembly line, Automatic cylindrical grinder and CNC machining centers as well.
Product Range
Certificate
Hetai can offer：
Specialised/customised design and product
Good quality products
7/24 Service
When it comes to quality aspect, Hetai was qualified by ISO Certificate, CE and Rohs. The product quality has also been recognized by many customers. Hetai is also proud of its research and develop strength. With the support of professional laboratory and experienced technicians, Hetai gained 13 Utility Patents and high-tech enterprise Award as well as other awards during the years.
CE Of DC Brushless Motor
Date of expire:09 April 2023
CE Of Hybrid Stepping Motor
Date of expire:09 April 2023

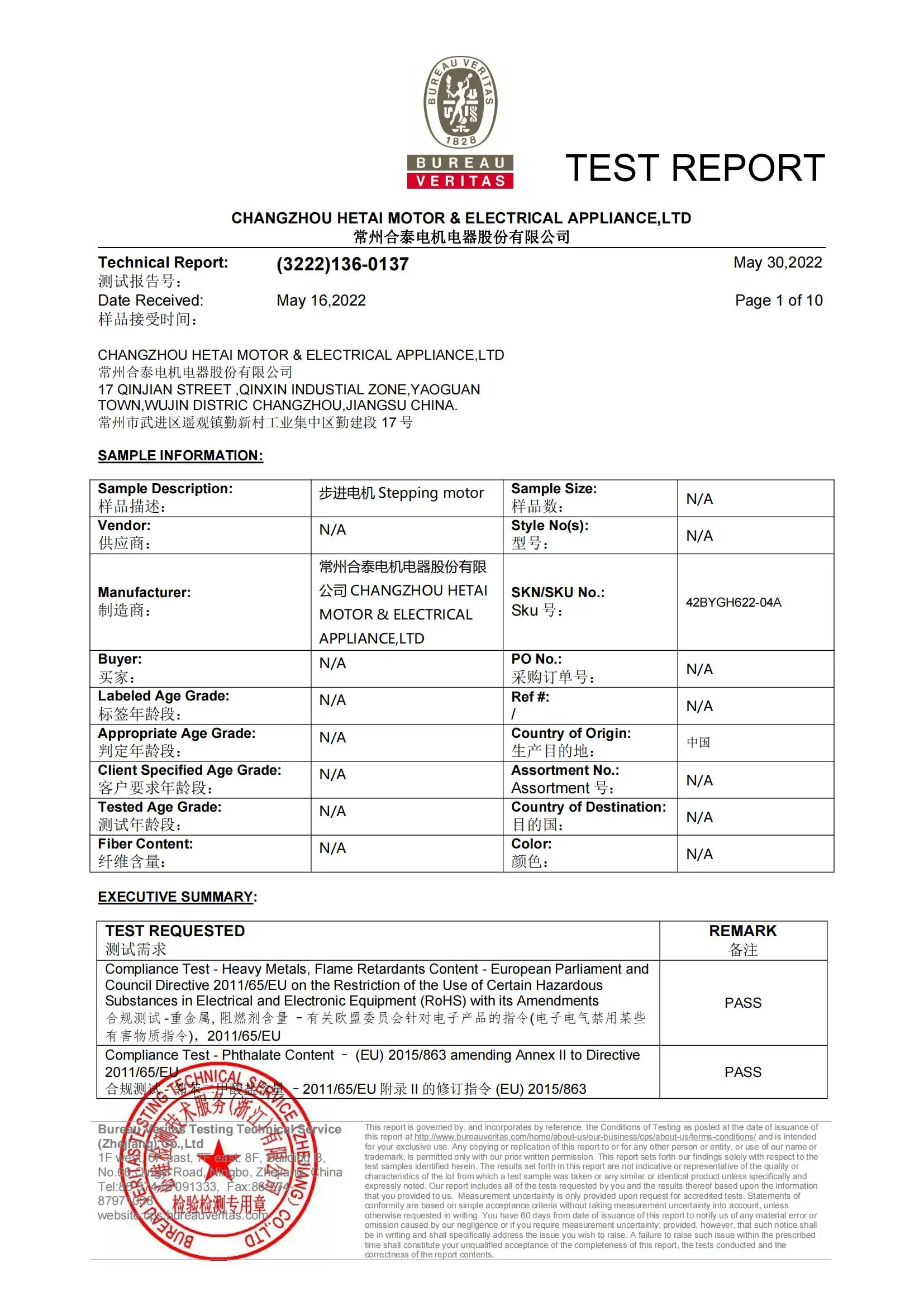

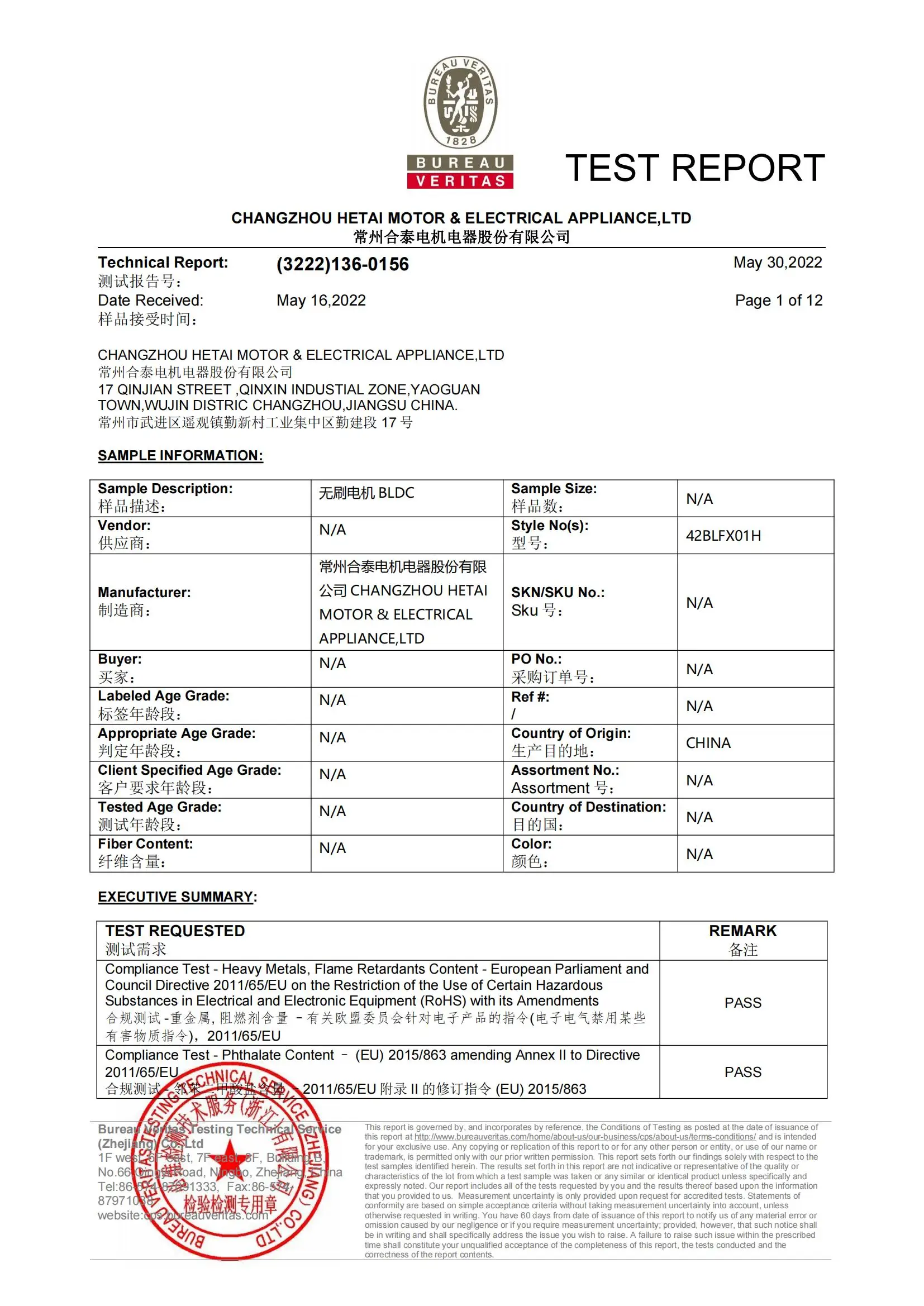

BLDC Motor ROHS report
Date: May 16, 2022
Stepper motor ROHS report
Date: May 16, 2022
Alibaba Gold Plus Supplier
SGS Verified
Alibaba Gold Plus Supplier
SGS Verified
ISO 9001:2015
Valid until: 02 June 2024
IATF 16949:2016
Valid until: 02 June 2024
Why Choose Us
We offer you：
Engineering Support
Our professional team can help you to find right and suitable motor for you. Our engineers have rich experience of motion control products in various industries, such as: robots, packing machinery, textile machinery, medical instruments, printing machinery, intelligent logistics equipment and so on.
Find
Our team can help you find most suitable motor for the application from our vast selection of motors.
Customise
We can design and customise the performance and exterior for your specific use or assembly.
Optimise
For OEM projects, we have over 15 years' experience of solving different problems in various application. We improve our product together with our customer.
Manufacturing Support
Regardless of the volume of the order, we will provide the same service. Our engineering team is able to provide you with quick and accurate prototypes based on your custom requirements.
Prototypes
1-10 pcs
Standard Batch
500-5000pcs
High Volume Batch
over 5000pcs
Large-scale production

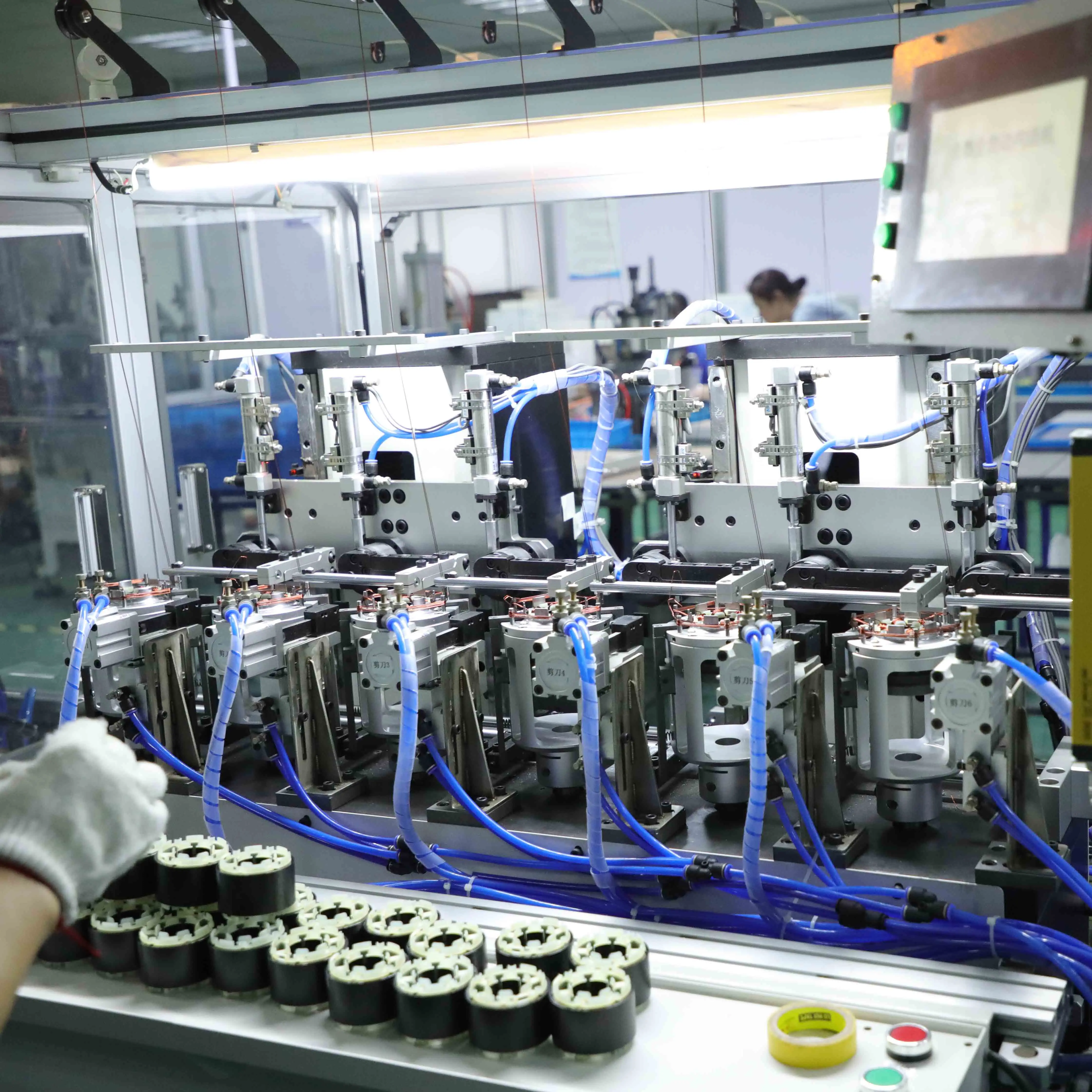

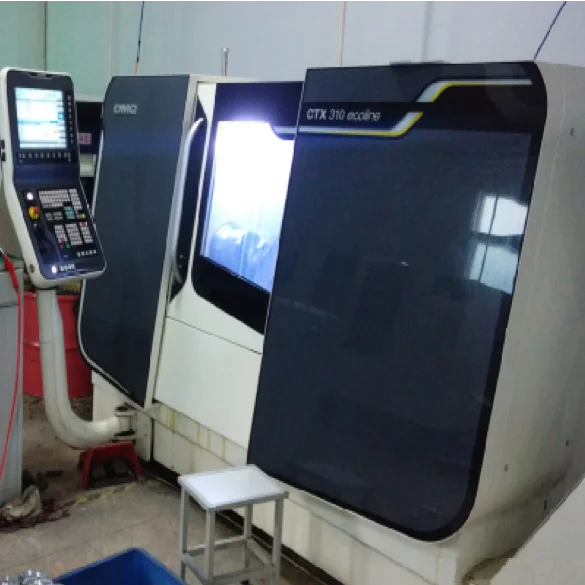

Our Factory was founded in 1999 and the workshop area is over 15,000㎡. We have own manufacturing line and CNC machining center, including precision CNC universal grinder brand name (Sweden) , CNC brand name (Germany), DMG lathe and milling, DMG lathe, Mahr measuring instrument, Chinese precision cylindrical grinding machine, CNC lathe machine, automatic multi-head winding machine, automatic assembling line and so on.
