  • EWIND AC Port PoE Injector Module 2x1000M RJ45 Ports PoE Power Adapter 48v

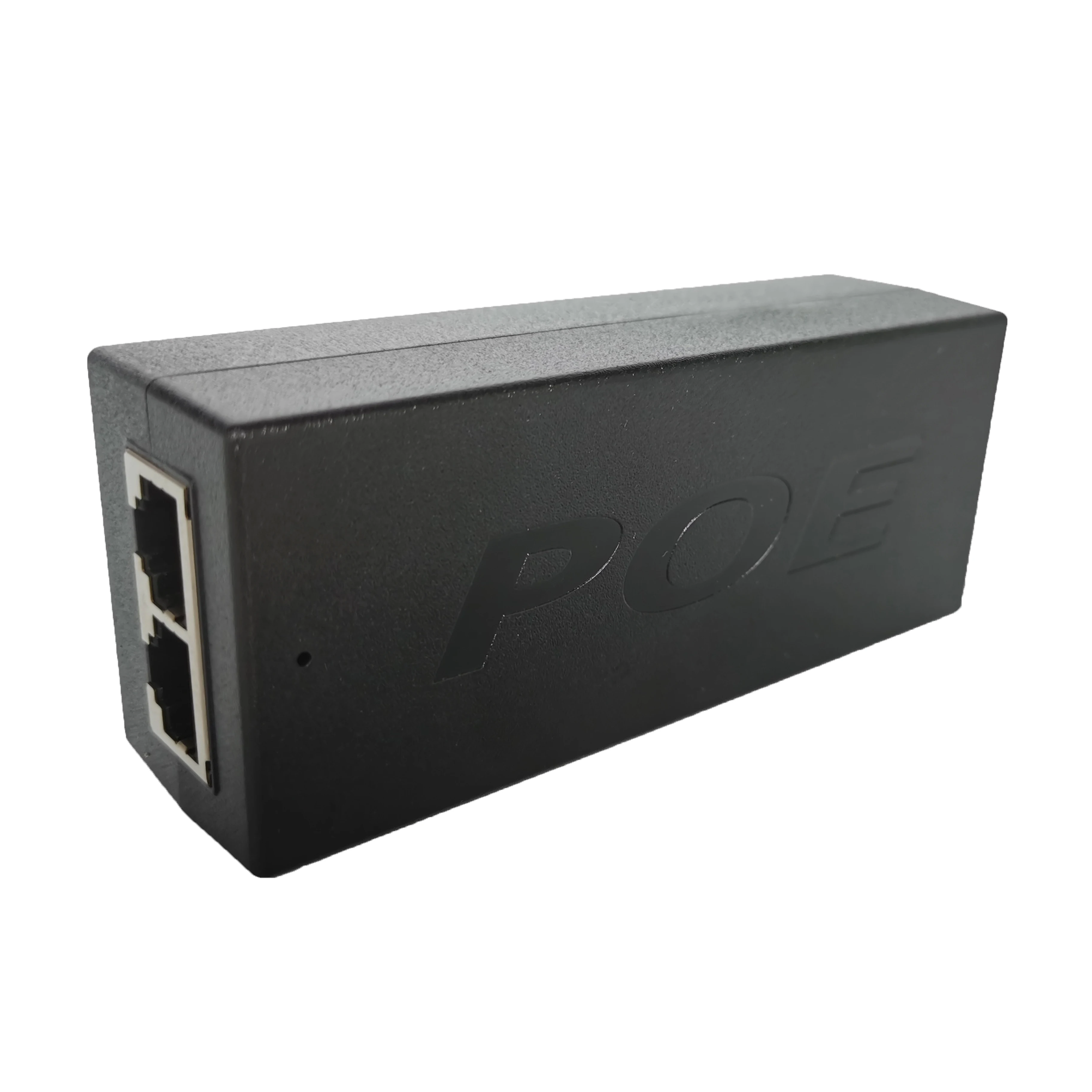

EWIND AC Port PoE Injector Module 2x1000M RJ45 Ports PoE Power Adapter 48v
EWIND AC Port PoE Injector Module 2x1000M RJ45 Ports PoE Power Adapter 48v
EWIND AC Port PoE Injector Module 2x1000M RJ45 Ports PoE Power Adapter 48v
EWIND AC Port PoE Injector Module 2x1000M RJ45 Ports PoE Power Adapter 48v
EWIND AC Port PoE Injector Module 2x1000M RJ45 Ports PoE Power Adapter 48v

EWIND AC Port PoE Injector Module 2x1000M RJ45 Ports PoE Power Adapter 48v

Share on (1600599010807):


Price:$9.29 - $10.29

Quantity:


Product Overview

Description





EWIND AC Port PoE Injector Module 2x1000M RJ45 Ports PoE Power Adapter 48v


Products Description




Technology Specification


Model
EW-PSE101G-AC-AF
Product Name
1000M Single Port PoE Injector
Port Description
2x copper cable RJ45 ports, 1x AC input port.
PoE Power Supply
End-span: 1/2, 3/6 data line pair(default);
Network Medium
1000BASE-TX: 5Cat and more UTP (≤100 meters)
Thermal Protection
>100°C
Performance
Working rate:1000Mbps working rate
Network port protection: meet with IEC61000-4-2(ESD)
MTBF: 100,000 hours
LEDs Indicator
PoE working status
Power
Total power: 20W
PoE port power: 15.4W
AC input voltage: 100~240V
Output Voltage: 48V
Dimensions/Weight
LxWxH: 108*44*33(mm), 0.14kg
Working Environment
Operating Temperature: -20°～ 55°C , Storage Temperature: -20°～ 75°C
Working Humidity: 10%～90%, non-condensing
Storage Humidity: 10%～95%, non-condensing
Warranty
CE mark,commercial,FCC Part 15 Class B，RoHS
120W/48VDC (IEEE802.3at)
1-year warranty
Standby:<2W; Full load:<120W
1-year warranty
LED Indicator
Power indicator: PWR (Green); Network indicator: 1-8(Link/Act)/ (Green),9(Link/Act)/ (Green), Speed/ (Orange); POE indicator: PoE
(Orange)
Power Supply
No, optional 48V/120W or 48V/240W industrial power supply
Operation TEMP / Humidity
-40~+75°C;5%~90% RH Non condensing
Storage TEMP / Humidity
-40~+85°C;5%~95% RH Non condensing
Dimension
165*145*54mm
Net /Gross Weight
<1.3kg / <1.8 kg
Lightning protection / protection level
Lightning protection: 6KV 8/20us; Protection level: IP40
IEC61000-4-2(ESD): ±8kV contact discharge, ±15kV air discharge
IEC61000-4-3(RS):10V/m(80~1000MHz)
IEC61000-4-4(EFT): power cable: ±4kV; data cable: ±2kV
IEC61000-4-5(Surge): power cable:CM±4kV/DM±2kV; data cable: ±4kV
IEC61000-4-6(radio frequency transmission):10V(150kHz~80MHz)
IEC61000-4-8(power frequency magnetic field):100A/m;1000A/m ,1s to 3s
IEC61000-4-9(pulsed magnet field):1000A/m
IEC61000-4-10(damped oscillation):30A/m 1MHz
IEC61000-4-12/18(shockwave):CM 2.5kV, DM 1kV
IEC61000-4-16(common-mode transmission):30V; 300V,1s
FCC Part 15/CISPR22(EN55022): Class A
IEC61000-6-2(Common Industrial Standard)
Certification
CCC; CE mark, commercial; CE/LVD EN60950; FCC Part 15 Class B; RoHS;
Warranty
5 years, lifelong maintenance.




CONTENT
QTY
UNIT
1000M Single Port PoE Injector AC Input
(EW-PSE101G-AC-AF)
1
SET
User Guide
1
PC
Warranty Card
1
PC




Company Profile








Why Choose Us






Package & Shipment




FAQ




1.Whats Your Main Products?
POE Switch,industrial POE Switch,Ethernet Switch,POE Injector,Media Converter,etc.

2.lt Is Safe To PayWith Alibaba ?
Yes,we Can Do The Trade Assurance On Alibaba ,Which Will Guarantee Your Products Receiving.

3.Which Payment Terms Do You Accepte?
We Can Accept The Tt，alibaba Escrow,western Union

4.How Long Can I Expect To Get The Sample ?
Usually Within 3 Days But Depends On Your Requirements .

5.How About The Shipping ?
We Will Deliver The Goods With Internation Express Like FEDEX,DHL,UPS,TNT And So On

6.How About The After-sales Services?
Professional Services Team,24 Hours On Line.

7.How Many Years Of The Warranty?
The Warranty Of The Commercial Switch Is 3 Years And The Industrial Switch Is 5 Years.
