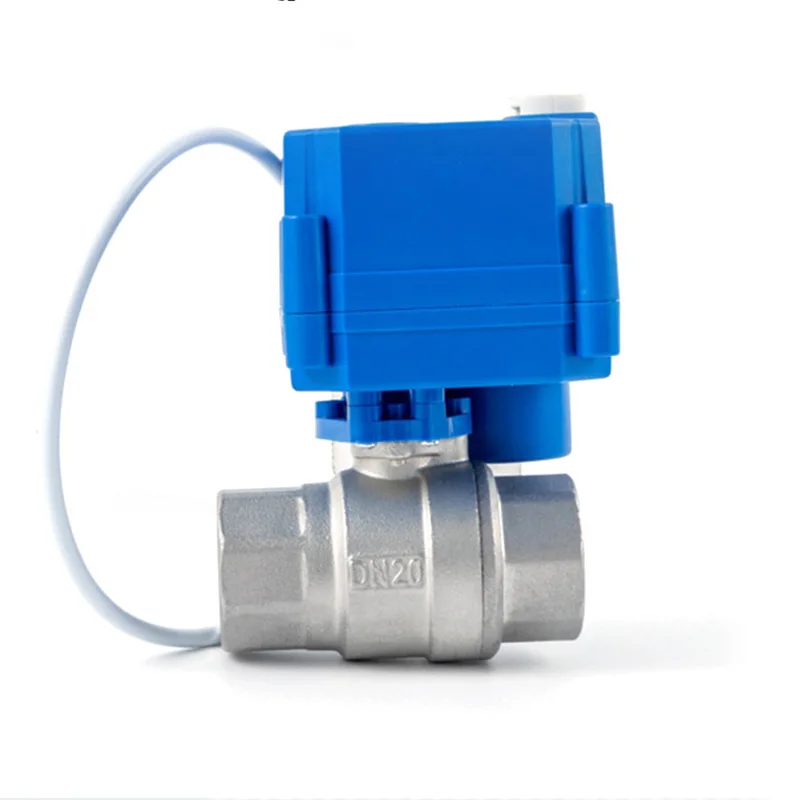

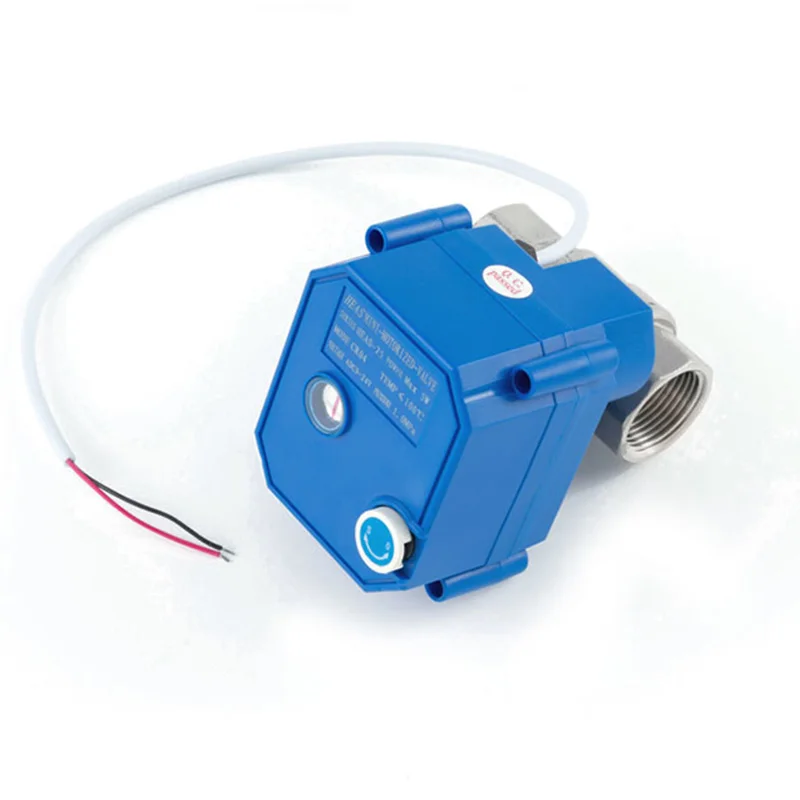

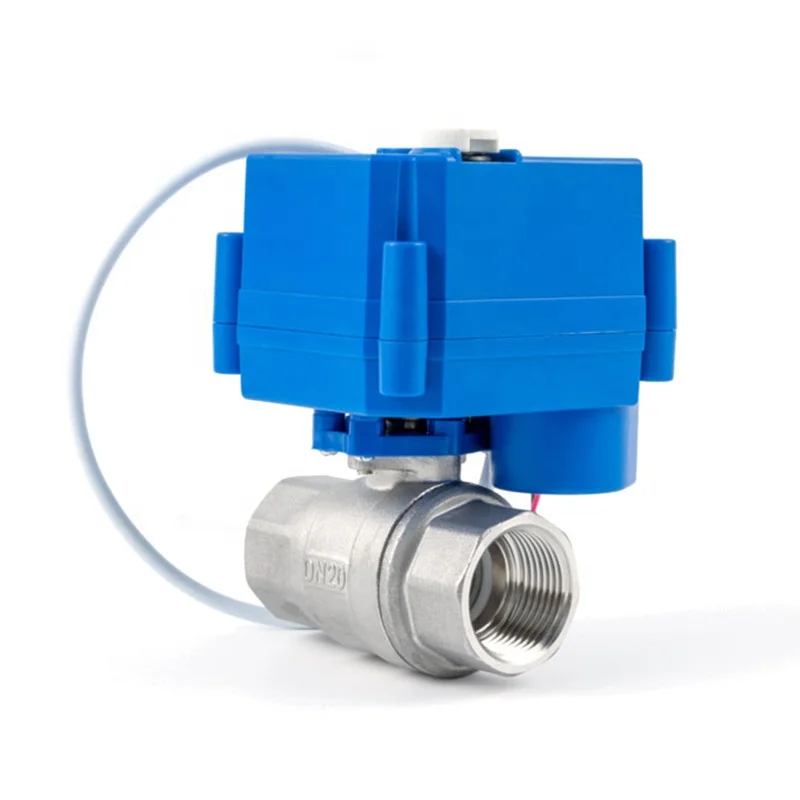

DN15 DN20 DN25 Water Control Valve DC12V DC24V 2 Way Mini Motorized Ball Valve with Manual Switch
- Category: >>>
- Supplier: Zhejiang Hearken Flow Equipment Co. Ltd.
Share on (1600599015680):
Product Overview
Description
Description
HEAS motorized ball valve with manual switch is electrically operated valve used in various automatic water treatment system,water leak alarm & shut off system,it is made of two parts,Electric actuator+Ball valve,the valve will open&close when voltage applies&remove to the motor.
WIRING | ||||||||
CR01 (2 WIRES) | CR02 (3 WIRES) | CR03 (3 WIRES) | CR04 (2 WIRES) | CR05 (5 WIRES) | ||||
Standard control | Two point control | One point control | Auto-return | Signal feedback | ||||
INSTRUCTION FOR MANUAL OVERRIDE | ||||||||
It is only permitted to use when power-off. | ||||||||
Lift the hand-wheel, and turn it left or right until the valve is in place. | ||||||||
When the black line on the indicator is horizontal, the valve is on; when vertical, the valve is off. | ||||||||
Parts | Material |
Actuator housing | ABS |
Valve body | Brass / SS304/316 |
Valve ball | Brass / SS304 |
Stem | Brass / SS304/316 |
Ball seat | PTFE |
Seal | EPDM |
Brass Ball Valve | ||||||||||

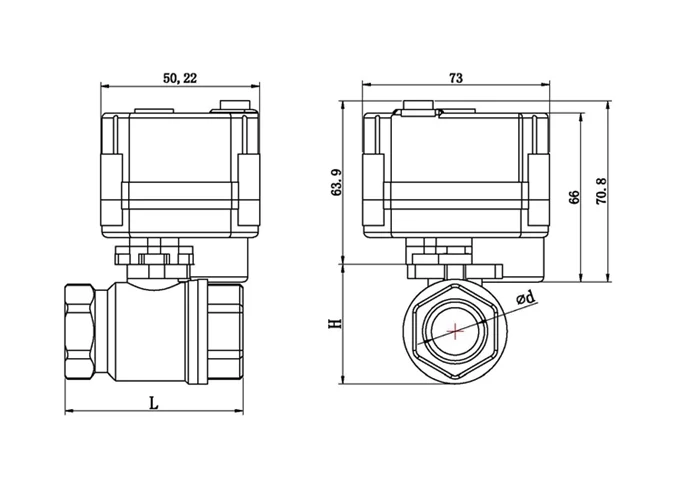

Port Type | Size | d | L | H | W | |||||
Both Female Screw(Full Port) | DN8 | 8 | 46 | 31 | 0.357 | |||||
DN15 | 15 | 57 | 38 | 0.433 | ||||||
DN20 | 20 | 71 | 45 | 0.513 | ||||||
DN25 | 23.5 | 72 | 49 | 0.603 | ||||||
Both Female Screw(Reduce Port) | DN8 | 8 | 46 | 31 | 0.356 | |||||
DN15 | 15 | 66 | 38 | 0.448 | ||||||
DN20 | 20 | 72 | 47 | 0.608 | ||||||
DN25 | 25 | 76 | 60 | 0.82 | ||||||
Vertical Tee | DN15 | 12 | 63 | 49 | 0.434 | |||||
DN20 | 15 | 66 | 53 | 0.492 | ||||||
Male and Femail Screw | DN15 | 18 | 63 | 38 | 0.432 | |||||
DN20Reducing | 15 | 66 | 38 | 0.462 | ||||||
Both Male Screw | DN15 | 15 | 68 | 38 | 0.424 | |||||
Stainless Stell Ball Valve | ||||||||||
Both Female Screw | DN8 | 8 | 46 | 31 | 0.364 | |||||
DN10Reducing | 8 | 46 | 30.1 | 0.368 | ||||||
DN15 | 15 | 55 | 38 | 0.44 | ||||||
DN20Reducing | 15 | 66 | 39 | 0.513 | ||||||
DN20 | 20 | 71 | 45 | 0.508 | ||||||
DN25Reducing | 20 | 75 | 47 | 0.608 | ||||||
DN25 | 25 | 72 | 49 | 0.617 | ||||||
