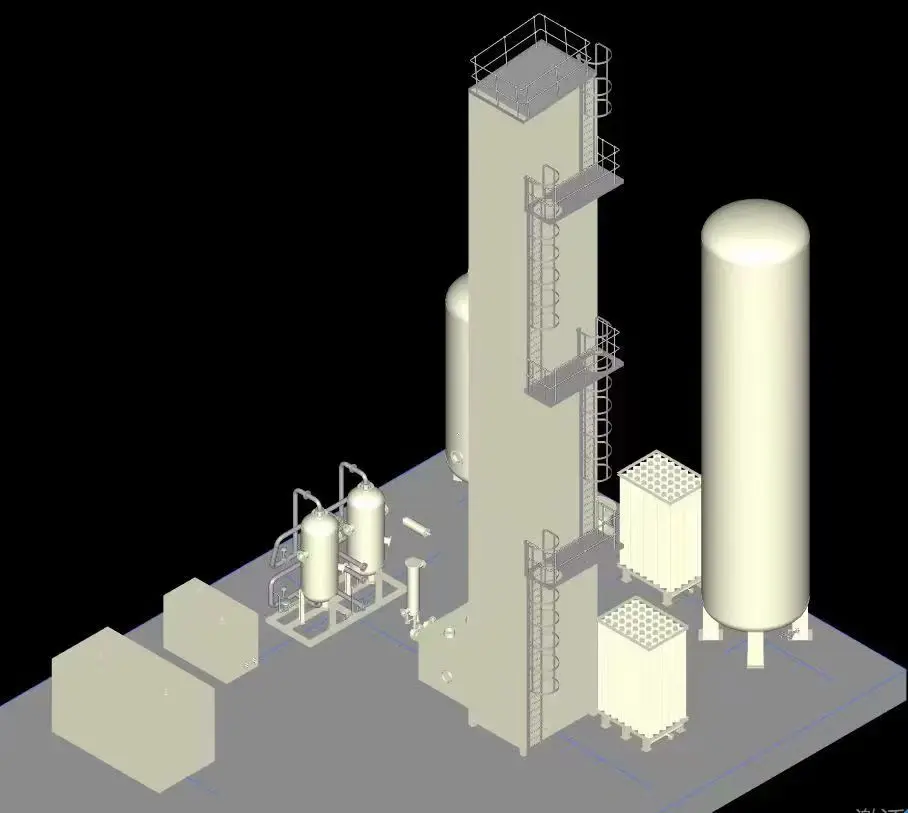

China high purity 600ncbm/h & 900ncbm/h cryogenic nitrogen plant machinery
China high purity 600ncbm/h & 900ncbm/h cryogenic nitrogen plant machinery
China high purity 600ncbm/h & 900ncbm/h cryogenic nitrogen plant machinery
China high purity 600ncbm/h & 900ncbm/h cryogenic nitrogen plant machinery
China high purity 600ncbm/h & 900ncbm/h cryogenic nitrogen plant machinery
China high purity 600ncbm/h & 900ncbm/h cryogenic nitrogen plant machinery
China high purity 600ncbm/h & 900ncbm/h cryogenic nitrogen plant machinery

China high purity 600ncbm/h & 900ncbm/h cryogenic nitrogen plant machinery

Share on (1600599016107):


Price:$175,600.00-298,000.00

Quantity:


Product Overview

Description







Technical parameters of high-purity nitrogen equipment for positive flow expansion process
model
SDN-600/30Y
SDN-800/40Y
SDN-1000/50Y
SDN-1200/60Y
SDN-1600/70Y
SDN-2400/100Y
SDN-3500/200Y
parameter
Nitrogen Outputting(Nm³/h)
600
800
1000
1200
1600
2400
3500
Nitrogen pressure (MPa)
0.24
0.24
0.24
0.24
0.24
0.24
0.24
Nitrogen purity (%O₂)
≤3PPm
≤3PPm
≤3PPm
≤3PPm
≤3PPm
≤3PPm
≤3PPm
Liquid nitrogen outputting (L/h)
30
40
50
60
70
100
200
Liquid nitrogen pressure (MPa)
0.24
0. 24
0.24
0.24
0.24
0.24
0.24
Liquid nitrogen purity (%O₂)
≤3PPm
≤3PPm
≤3PPm
≤3PPm
≤3PPm
≤3PPm
≤3PPm
Air consumption (Nm³/h)
1700
2400
2800
3400
4800
6800
10000
Air compressor outlet pressure (MPa)
0.7
0.7
0.7
0.7
0.7
0.7
0.7
Compressor power (KW)
160
250
315
375
500
750
1000
Operation period (year)
1
1
1
1
1
1
1


Technical Parameters of High Purity Nitrogen Equipment for Backflow Expansion Process
model
SDN-600/30Y
SDN-800/40Y
SDN-1000/50Y
SDN-1200/60Y
SDN-1600/70Y
SDN-2400/100Y
SDN-3500/200Y
parameter
Nitrogen Outputting(Nm³/h)
600
800
1000
1200
1600
2400
3500
Nitrogen pressure (MPa)
0.5~0.7
0.5~0.7
0.5~0.7
0.5~0.7
0.5~0.7
0.5~0.7
0.5~0.7
Nitrogen purity (%O₂)
≤3PPm
≤3PPm
≤3PPm
≤3PPm
≤3PPm
≤3PPm
≤3PPm
Liquid nitrogen outputting (L/h)
30
40
50
60
70
100
200
Liquid nitrogen pressure (MPa)
0.5~0.7
0.5~0.7
0.5~0.7
0.5~0.7
0.5~0.7
0.5~0.7
0.5~0.7
Liquid nitrogen purity (%O₂)
≤3PPm
≤3PPm
≤3PPm
≤3PPm
≤3PPm
≤3PPm
≤3PPm
Air consumption (Nm³/h)
1700
2400
2800
3400
4800
6800
10000
Air compressor outlet pressure (MPa)
0.7
0.7
0.7
0.7
0.7
0.7
0.7
Compressor power (KW)
160
250
315
375
500
750
1000
Operation period (year)
1
1
1
1
1
1
1






















1.How can I get the quotation fast?
Tell us your required flow of nitrogen/oxygen ;
The required purity of nitrogen/oxygen ;
The input pressure of your compressed air supply
The pressure of the nitrogen/oxygen used in your application
Tell us your application is helpful to do the recomendation

2.What is the use/application of oxygen and nitrogen?
Ⅰ.Use of oxygen: (application of oxygen plant)
Iron and steel industry: blowing high-purity oxygen into the converter to oxidize carbon, sulfur, phosphorus, silicon and other impurities in iron can greatly shorten the smelting time and improve the quality of steel;
Chemical industry: the use of oxygen in the production of chemical fertilizers from ammonia can strengthen the process and increase the production of chemical fertilizers;
Machinery industry: metal cutting and welding;
National defense industry; liquid oxygen can be used as accelerant for rockets and supersonic aircraft, and combustibles soaked in liquid oxygen can be used as explosives; medical sector: first aid and auxiliary treatment of patients.
Ⅱ.Use of nitrogen (application of nitrogen plant)
Metallurgy, electronics and petroleum industries: as a protective gas;
Chemical industry: synthetic ammonia to produce fertilizer, nitric acid, etc.;
High-tech industry: The low temperature of liquid nitrogen can make some materials obtain superconducting properties.
Food industry: quick-freezing, preservation and preservation of food; medical sector: refrigerant;

3. What is cold box in air separation unit?
An important component in gas separation plants are the so-called “cold boxes”. Cold boxes are (pressure) vessels that hold a gas or liquid at a very low temperature.

4. What is ASU in oxygen plant?
A cryogenic air separation unit (ASU) is a plant that utilizes the distinct properties between the primary components of air to produce highly purified oxygen, nitrogen, and sometimes other gases, such as argon.

5. What is the difference of PSA and Cryogenic plant to produce Oxygen/Nitrogen?
Ⅰ. Adsorption method
Let the air pass through the molecular sieve adsorption tower, and use the molecular sieve to selectively adsorb the oxygen and nitrogen components in the air to separate the air to obtain oxygen.
Ⅱ. Cryogenic rectification (cryogenic air separation plant)
The air is compressed and cooled to make the air saturated and liquefied, and the oxygen and nitrogen are separated by means of rectification by utilizing the difference in the boiling points of the oxygen and nitrogen components, so as to obtain oxygen and nitrogen with high purity.
Cryogenic method is a combination of cryogenic and rectification. It is the most widely used air separation method at present and occupies a dominant position in the oxygen production industry at home and abroad.
