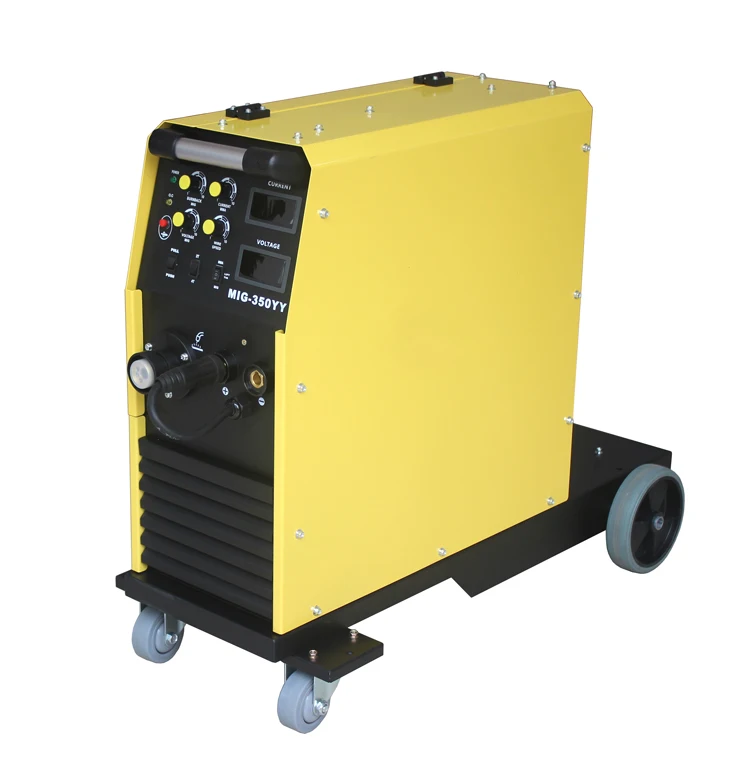

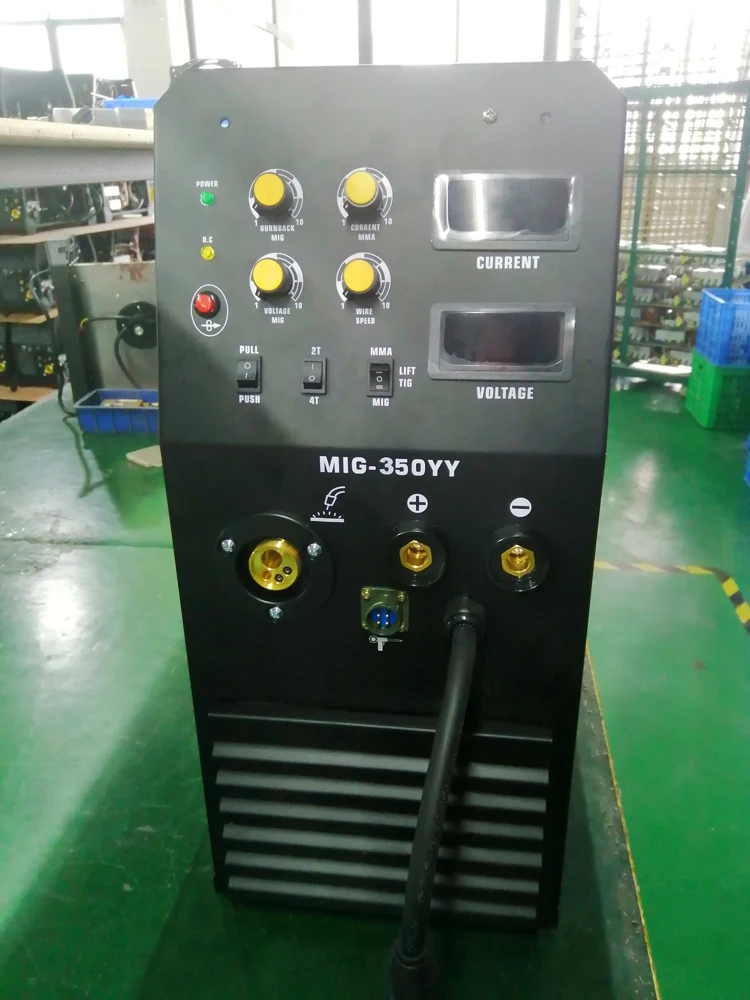

300 Amp Mig Welding Machine Igbt Inverter Mig Double Pulse Heavy Duty Arc Welding Machine
- Category: >>>
- Supplier: Foshan Hanzu Technologies Co. Ltd.
Share on (1600599028428):
Product Overview
Description
Product Paramenters
Model | MIG-350YY | ||||||
Inverter Technology | IGBT | ||||||
Input Voltage(V) | 380-410V | ||||||
Frequency(HZ) | 50/60 | ||||||
Rated Input Capacity(KVA) | 13 | ||||||
Welding Wire | 0.6/0.8/0.9/1.0/1.2mm | ||||||
Output Current Range(A) | 20-350 | ||||||
Rated Output Voltage(V) | 16.5-24 | ||||||
Rated Duty Cycle(%) | 60 | ||||||
Usable Electrode(MM) | 1.6-4.0 | ||||||
Power Factor | 0.93 | ||||||
Insulation Grade | F | ||||||
Net Weight(kg) | 47 | ||||||
Housing Protection Grade | IP21 | ||||||
Packing Dimension(mm) | 900*400*730 | ||||||
Performance Characteristics
Adopt advanced IGBT &advanced PWM inverter technology.
DC MIG, MMA, LIFT-TIG, 2T/4T, Spool gun and multi-functions. Built-in arc force and hot start.
High duty cycle with high efficiency for professional welding.

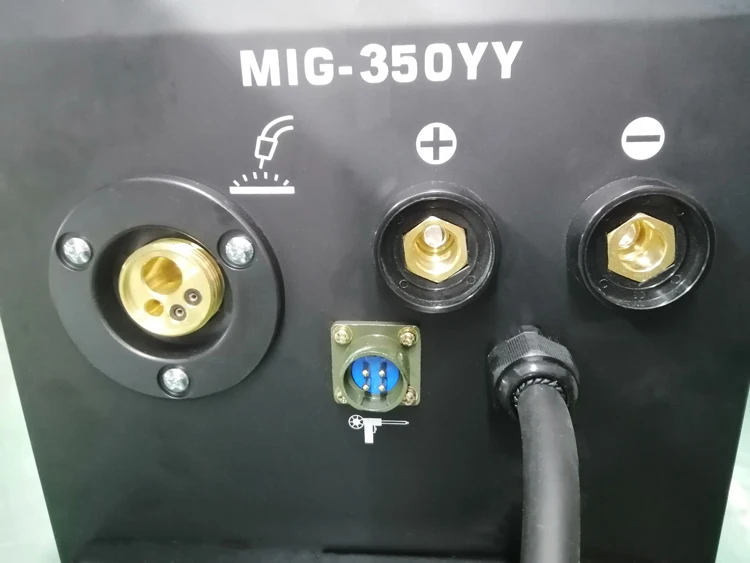

Easy to operate front cable connector to change polarity conversion, can suit solid wire (Gas welding) or Flux wire (Gasless welding).
Welding voltage setting, exactly match with welding current; wire feeder speed can be controlled.

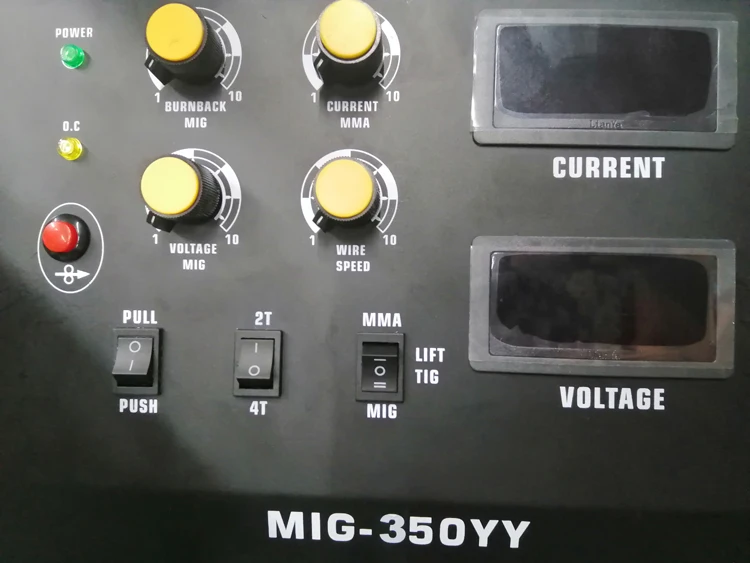

Digital display, effective spatter control, improved penetration and better welding performance.
Extra burnback function can remove tip ball.
15kgs & 20kgs spool holder for long welding. Inching wire function, easy to install wire.
Comprehensive protecting function: over-voltage, under voltage, default phase, against lighting stroke, over current, over heat etc.
The unique air duct design: failure rate greatly reduced, extending the service life of the machine.
Built-in top brand 2-rollers (Standard) or 4-rollers dual drive wire feeder can be optional.
With four wheels and trolley, easy to move and load gas cylinder together.
Adopt advanced IGBT &advanced PWM inverter technology.
DC MIG, MMA, LIFT-TIG, 2T/4T, Spool gun and multi-functions. Built-in arc force and hot start.
High duty cycle with high efficiency for professional welding.
Easy to operate front cable connector to change polarity conversion, can suit solid wire (Gas welding) or Flux wire (Gasless welding).
Welding voltage setting, exactly match with welding current; wire feeder speed can be controlled.
Digital display, effective spatter control, improved penetration and better welding performance.
Extra burnback function can remove tip ball.
15kgs & 20kgs spool holder for long welding. Inching wire function, easy to install wire.
Comprehensive protecting function: over-voltage, under voltage, default phase, against lighting stroke, over current, over heat etc.
The unique air duct design: failure rate greatly reduced, extending the service life of the machine.
Built-in top brand 2-rollers (Standard) or 4-rollers dual drive wire feeder can be optional.
With four wheels and trolley, easy to move and load gas cylinder together.

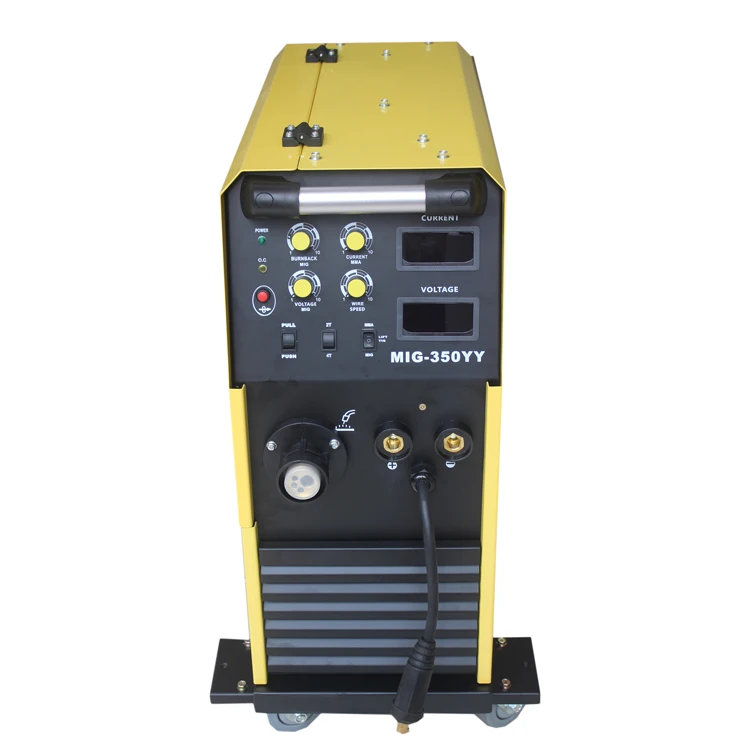

Details Images
Recommend Products

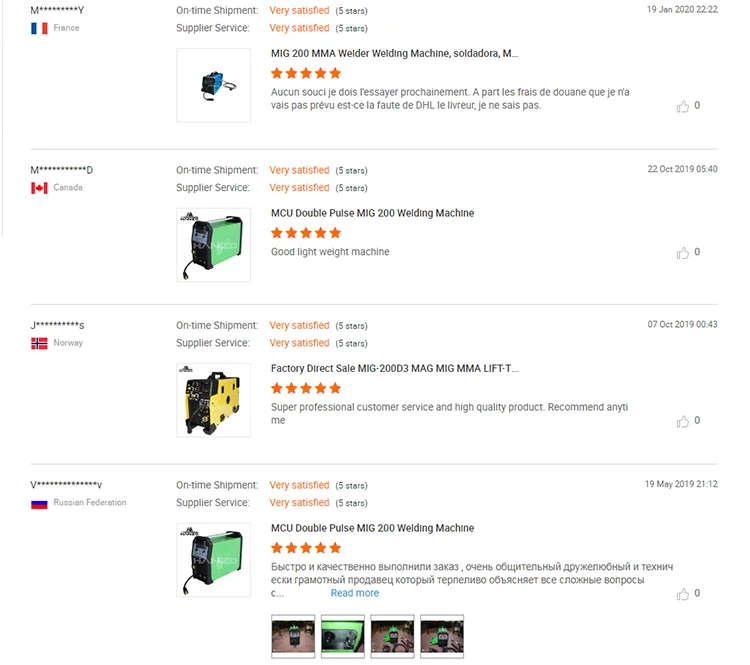

Customer Photos
Always commited to providing customers with high quality, efficient, competitive prices and good service. to achieve win-win cooperation

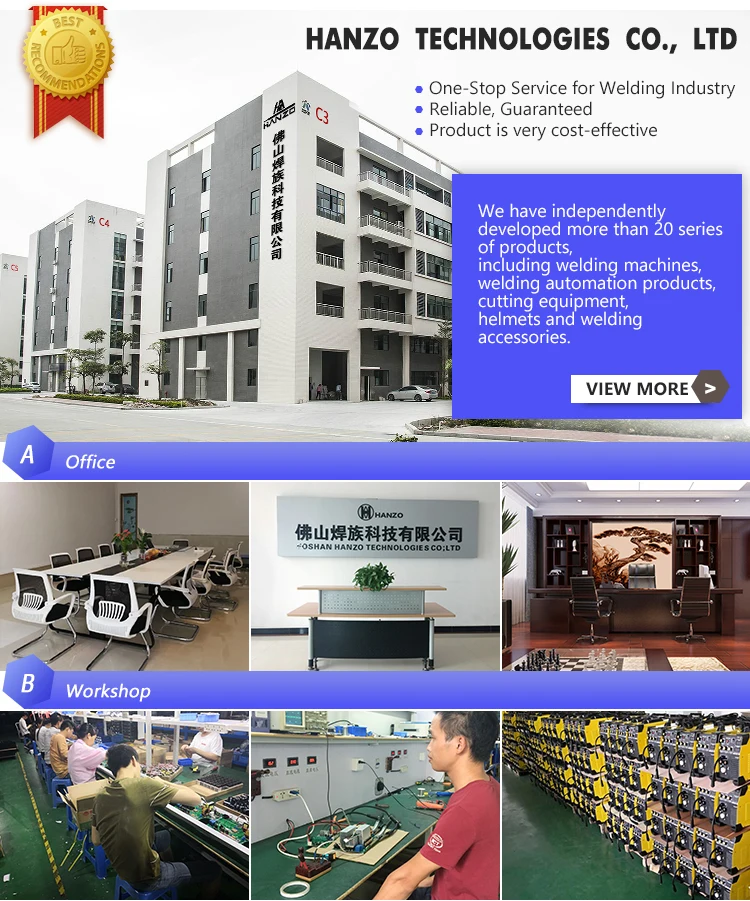

Company Profile
Certifications
Product packaging

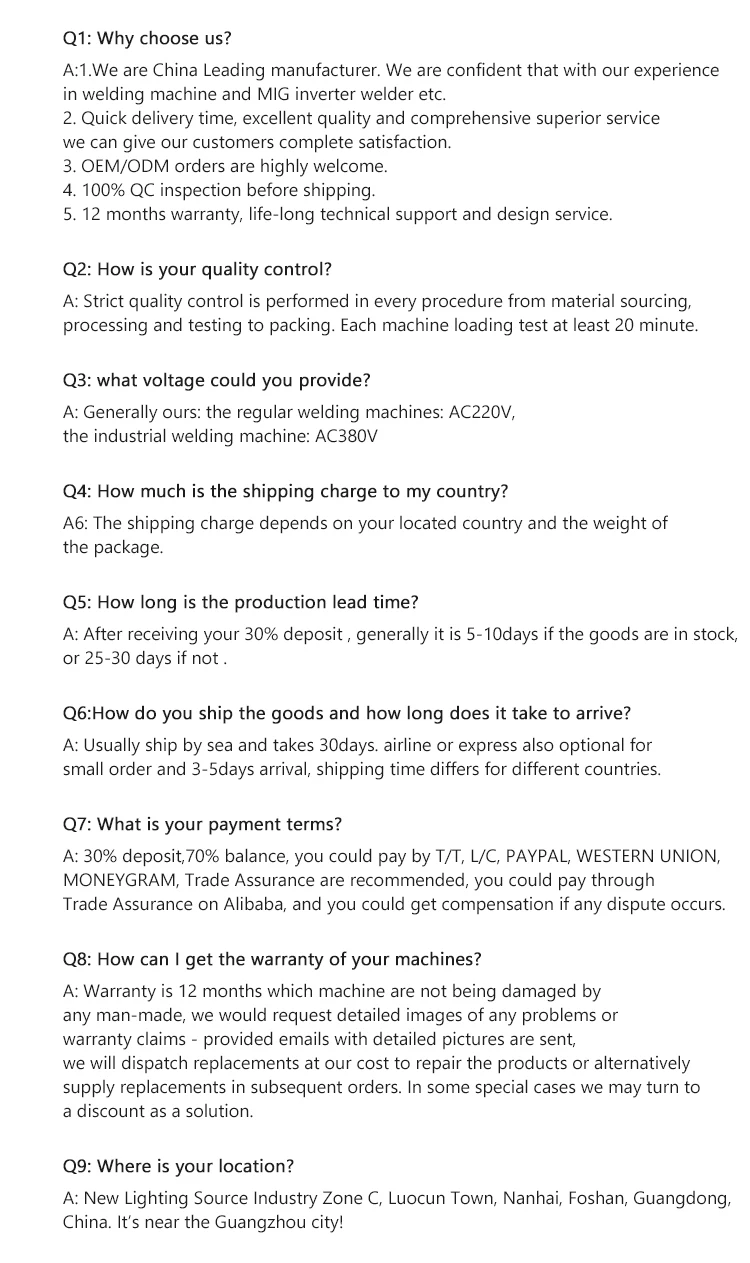

FAQ
