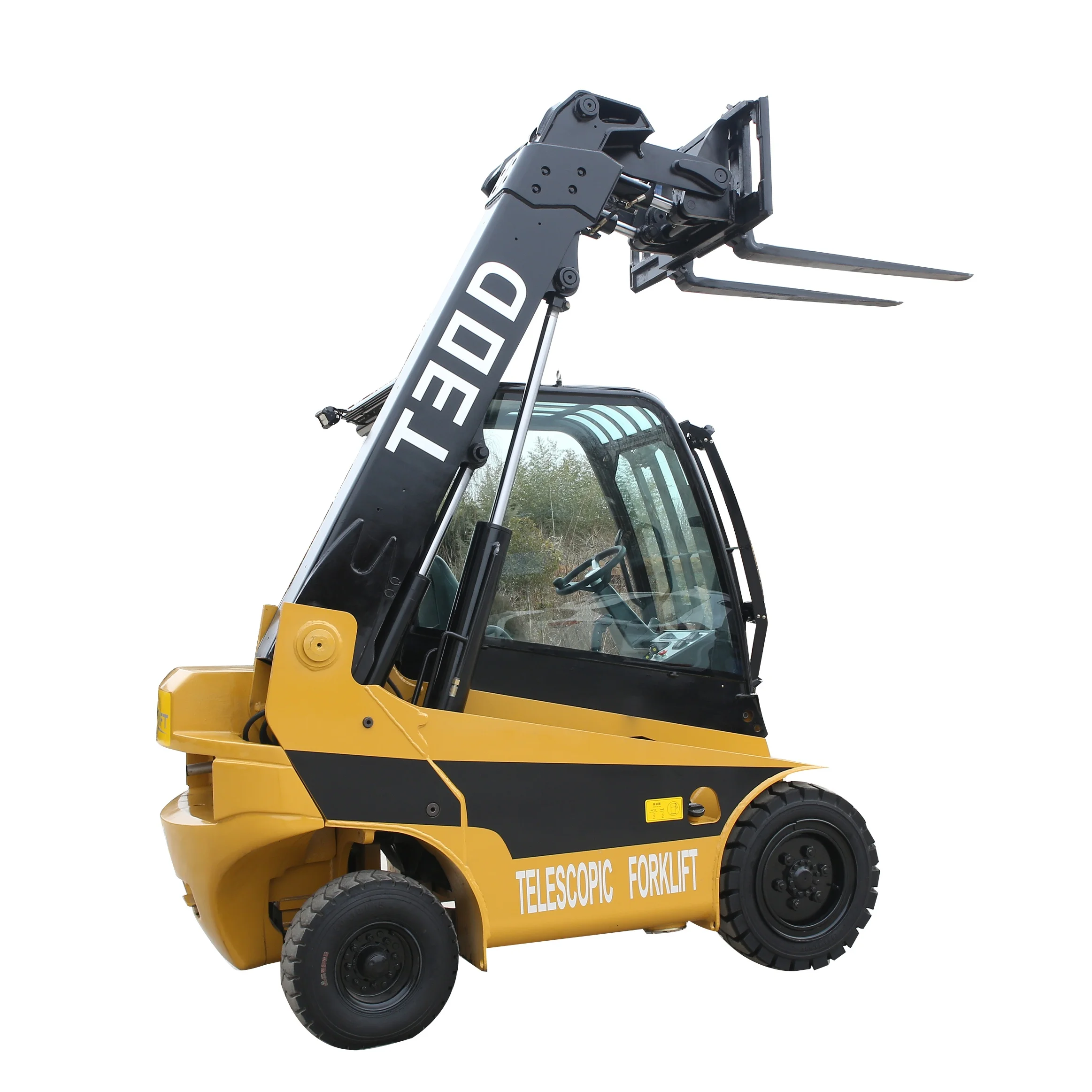

Telescopic Forklift Truck Handler 3ton Load Capacity 2380mm Reach Boom 4m Lifting High
- Category: >>>
- Supplier: Anhui Vmax Heavy Industry Co. Ltd.
Share on (1600599036587):
Product Overview
Description
Product Description
Product Application

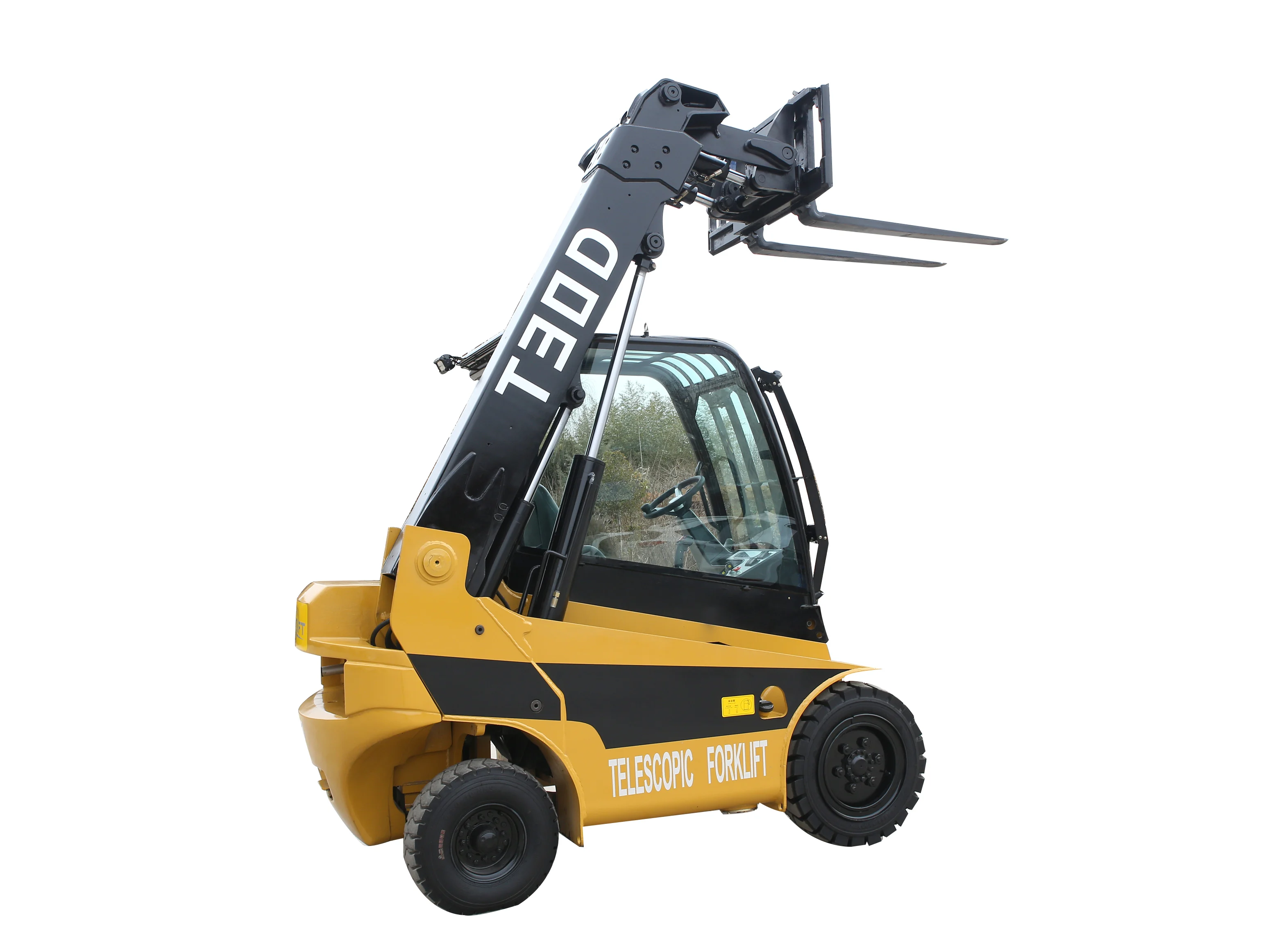

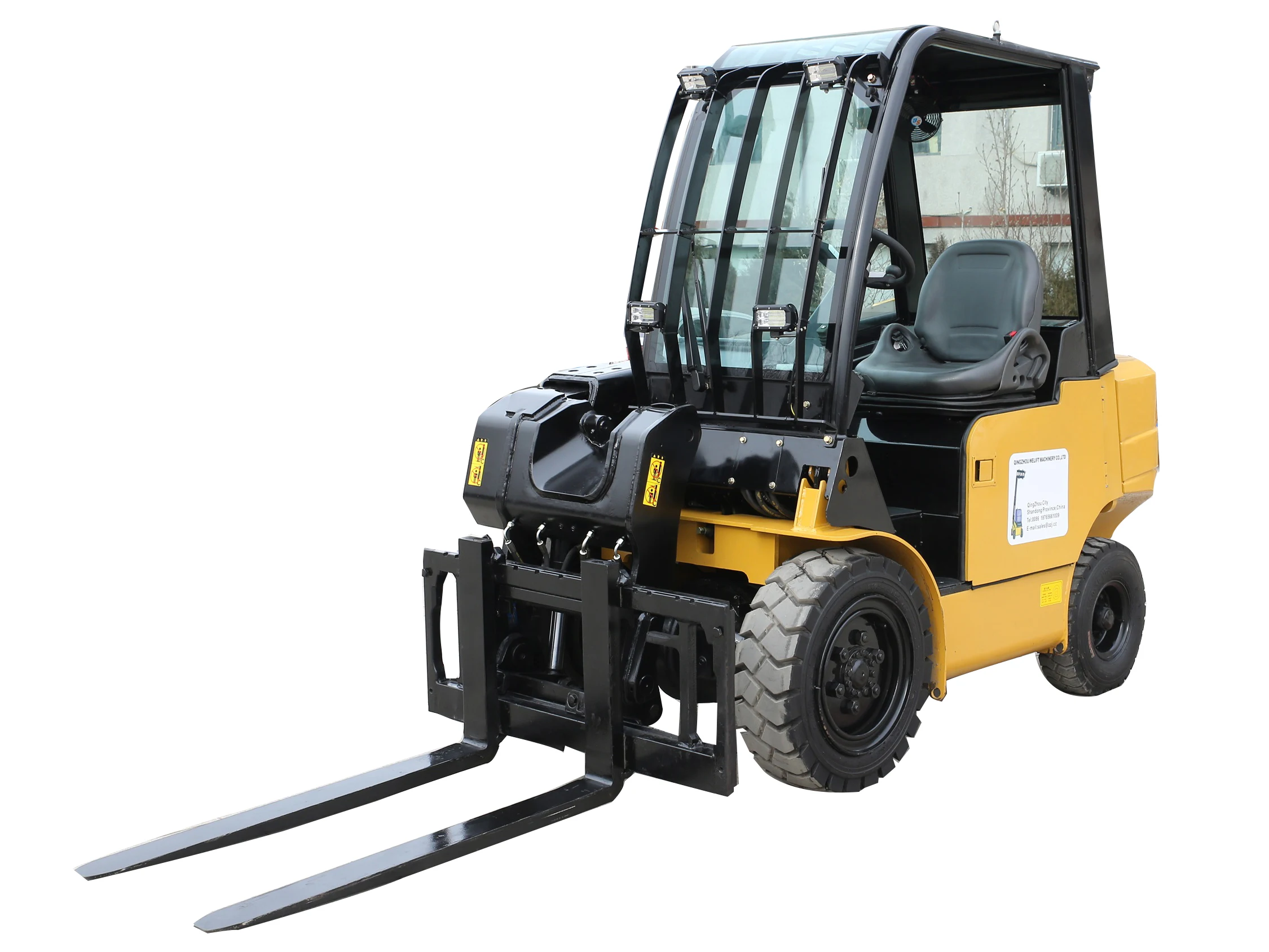

Telescopic boom handler forklift truck
It can load and unload a lorry trailer from only one side. This results in up to 50% yard loading space saving.

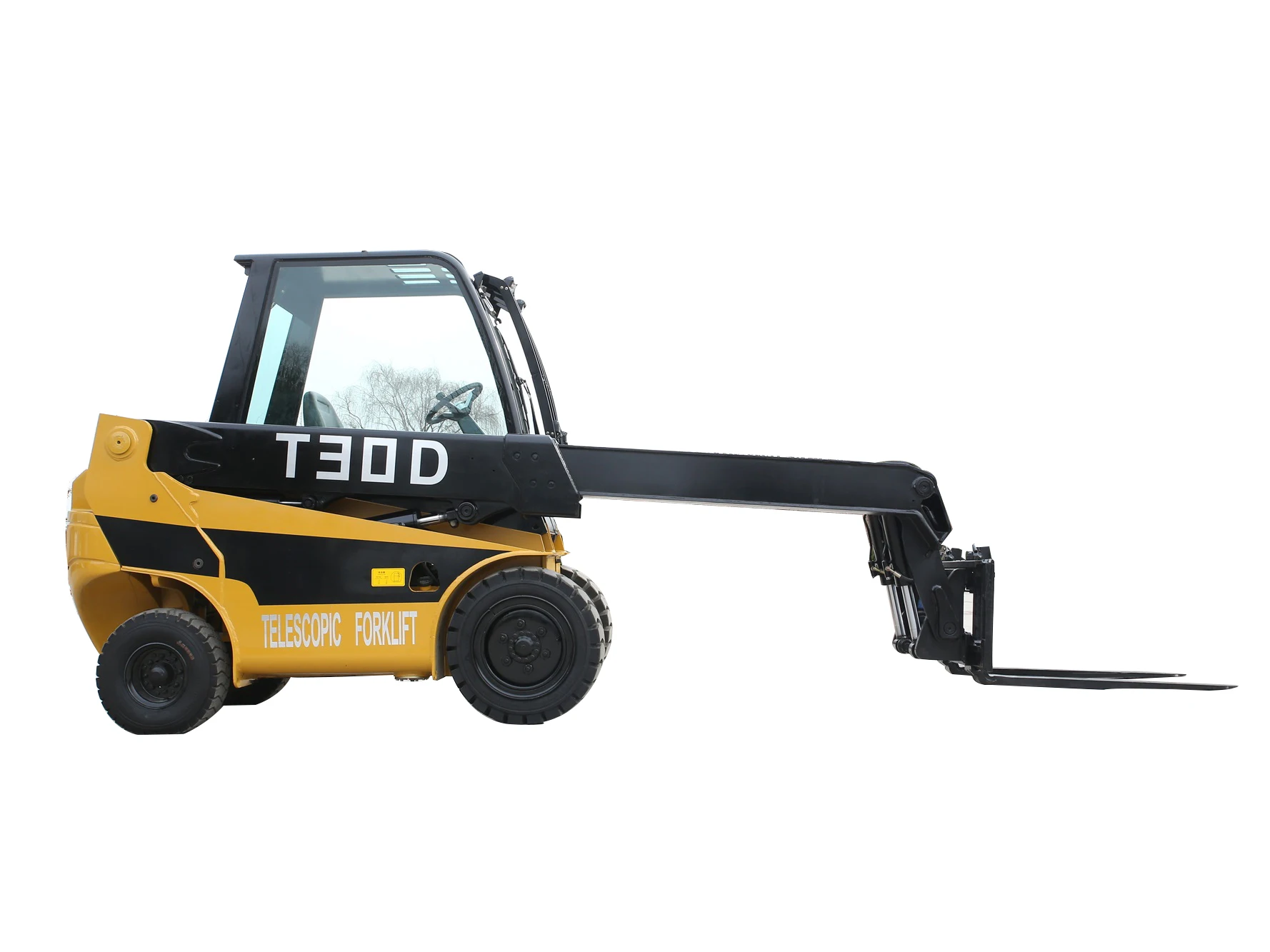

Forward reach
* Telescopic forklift T30D attachments, plus compatibility with the full range of industry specific attachments, gives you huge
flexibility and the ability to work in a wide range of applications.
* 111 degree of carriage rotating makes handing of unpalletized goods much easier and safer Access all areas.
* The telescopic boom allows single-side loading, loading to the far side if rail wagons by reaching across the platform gap, reaching inside sprinter vans and loading of ships by reaching across from the quayside.
1 | Model | T30D | ||
2 | Engine manufacturer | Xinchai/Yanmar | ||
3 | Tyre compliant | Tier 2/3 | ||
4 | Engine model | C490/A498/4TNE98 | ||
5 | Engine output(gross power) | kw | 40/45 | |
6 | Cubic capacity | 2670/3168 | ||
7 | Rated rotated | rpm | 2600 | |
8 | No of cylinders | 4 | ||
9 | Working pressure | bar | 190 | |
10 | Maximum reach boom horizontal (500mm load center) | mm | 2380 | |
11 | Turning radius | mm | 2500 | |
12 | Weight unloaden | kg | 4750 | |
13 | Travel speed | km/h | 20 | |
14 | Gradeability(laden/unladed) | % | 25/21 | |
15 | Transmission | Electro-hydraulic automatic | ||
16 | Park brake type | Hand | ||
17 | Tyres front | 28x9-15 | ||
18 | Tyres rear | 6.50-10 | ||
19 | Diesel tank capacity | L | 56 | |
20 | Lifting height | mm | 4060 | |
21 | Free lift | mm | 1400 | |
22 | Height(Boom extended) | mm | 4680 | |
23 | Height of overhead guard | mm | 2300 | |
24 | Height of operators seat(high/low) | mm | 1200/1150 | |
25 | Length of fork | mm | 2850 | |
26 | Wheelbase | mm | 1680 | |
27 | Distance from c/l of front axle to fork face | mm | 600 | |
28 | Distance from c/l of front axle to fork face(full height) | mm | 850 | |
29 | Load center | mm | 500 | |
30 | Lift capacity(with side shifter) | kg | 3000 | |
31 | Ground clearance(lowest point) | mm | 200 | |
32 | Ground clearance(wheelbase center) | mm | 190 | |
33 | Fork carriage width | mm | 1280 | |
34 | Maximum width of machine | mm | 1400 | |
35 | Carriage tilt total F/B variable through lift arc | degree | 111 |
Detailed Images
Machine Parts

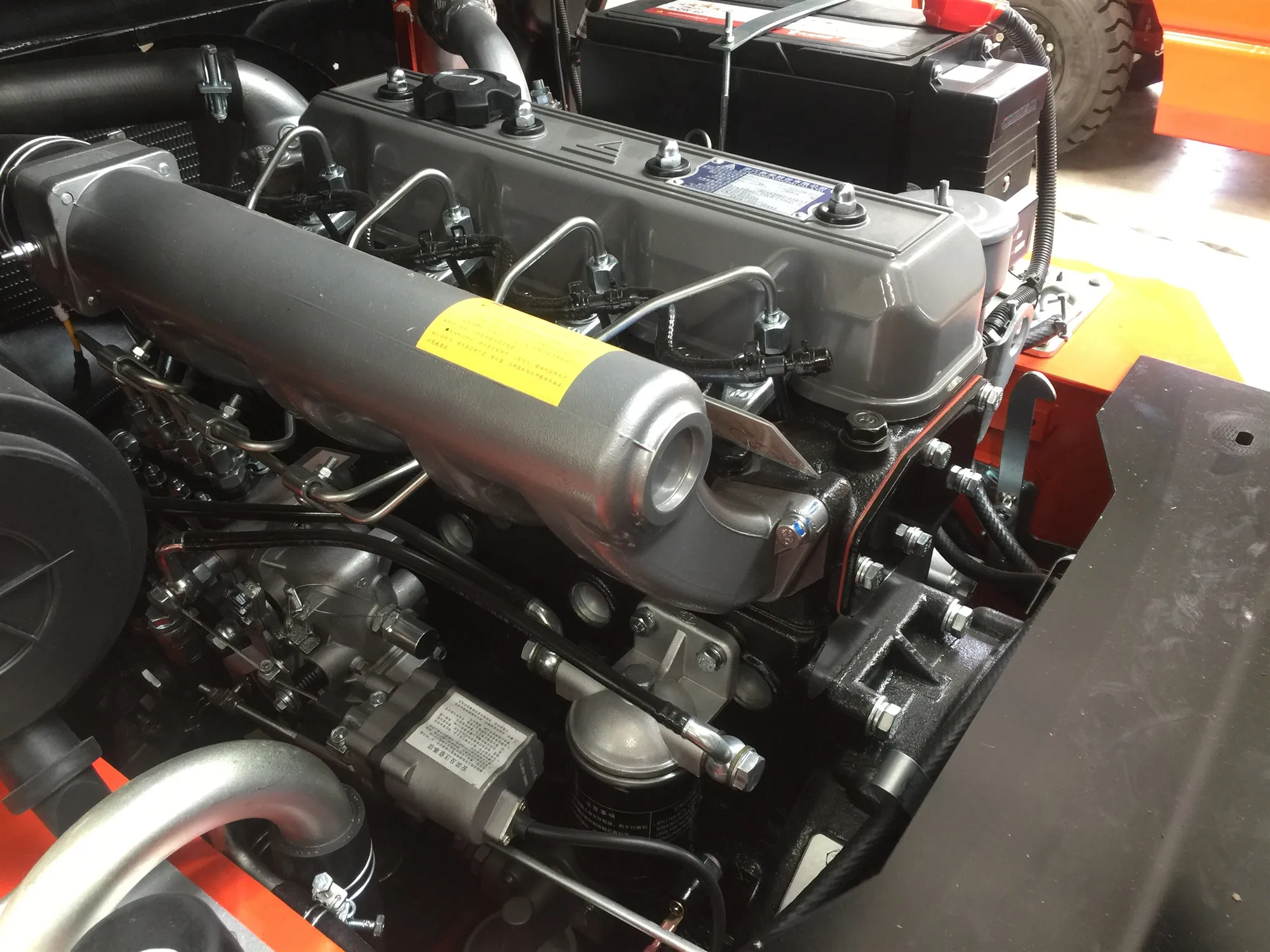

Name: Engine
Brand: Yunei/Xinchai/Yanmar 4 cylinder engine
Original: China
International beand engines, strong driving force, low fuel consumption, high economic benefits
Main Parts

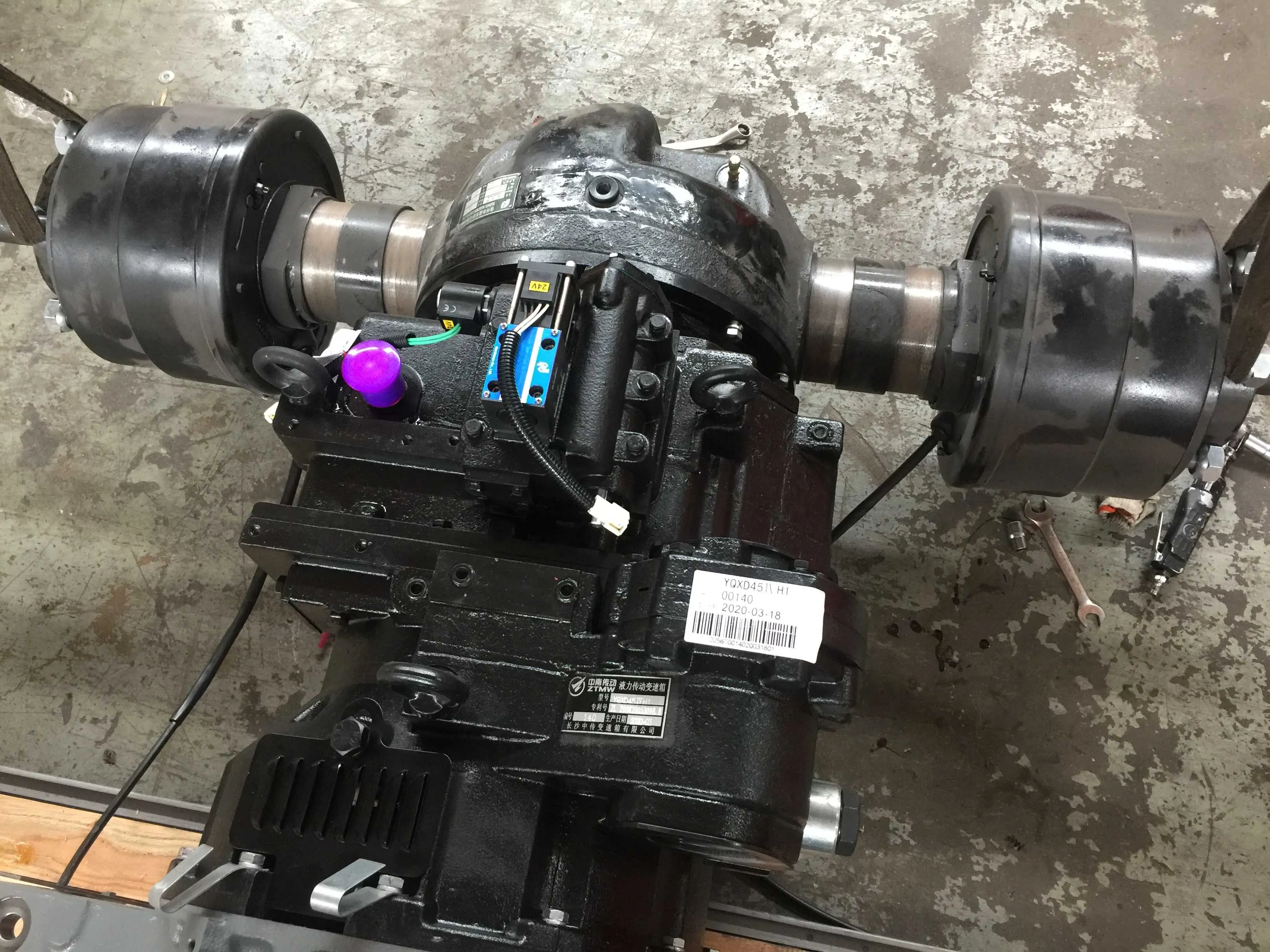

Name: Transmission
Original: China
China top prefessional transmission, precise gear and long life usage.
Machine Parts

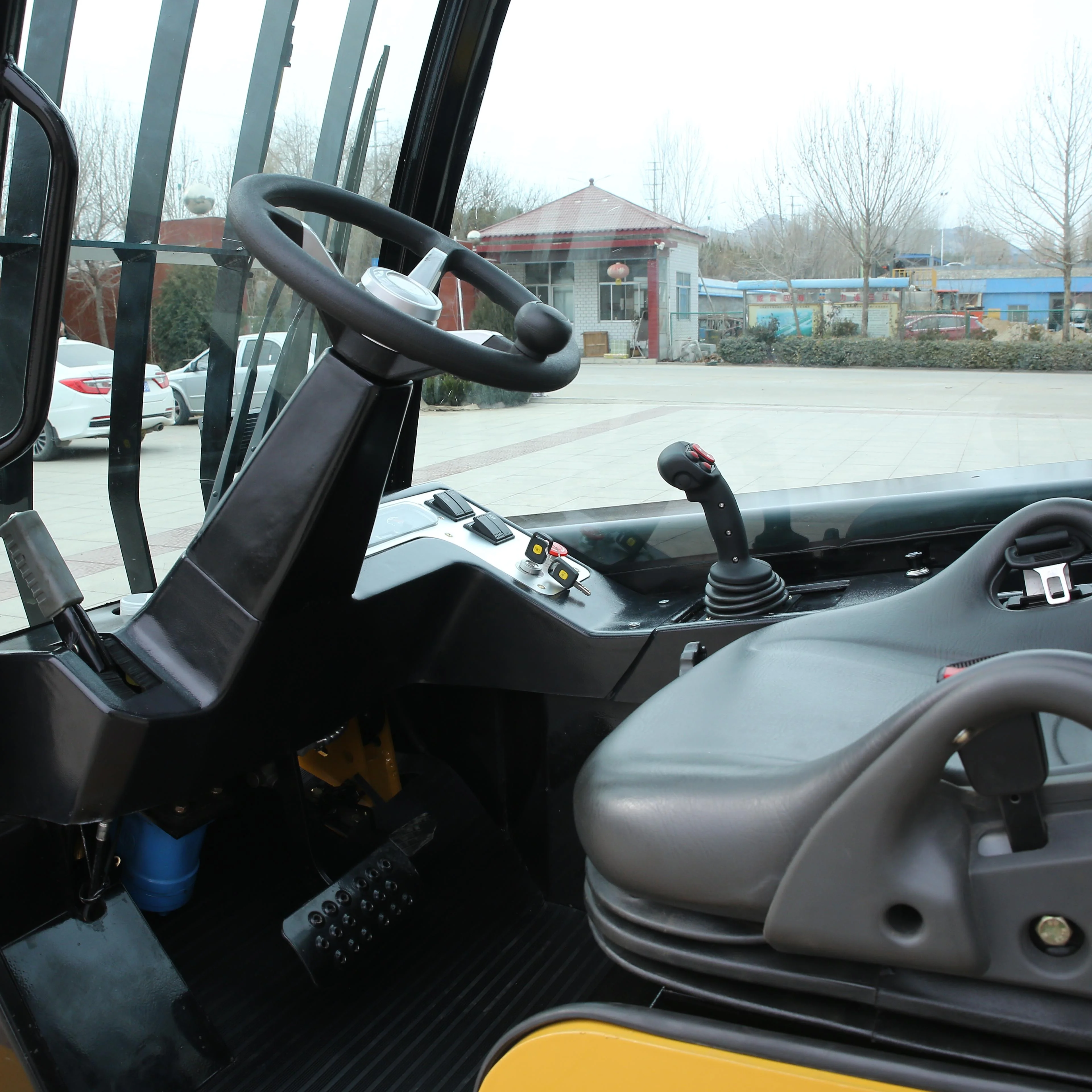

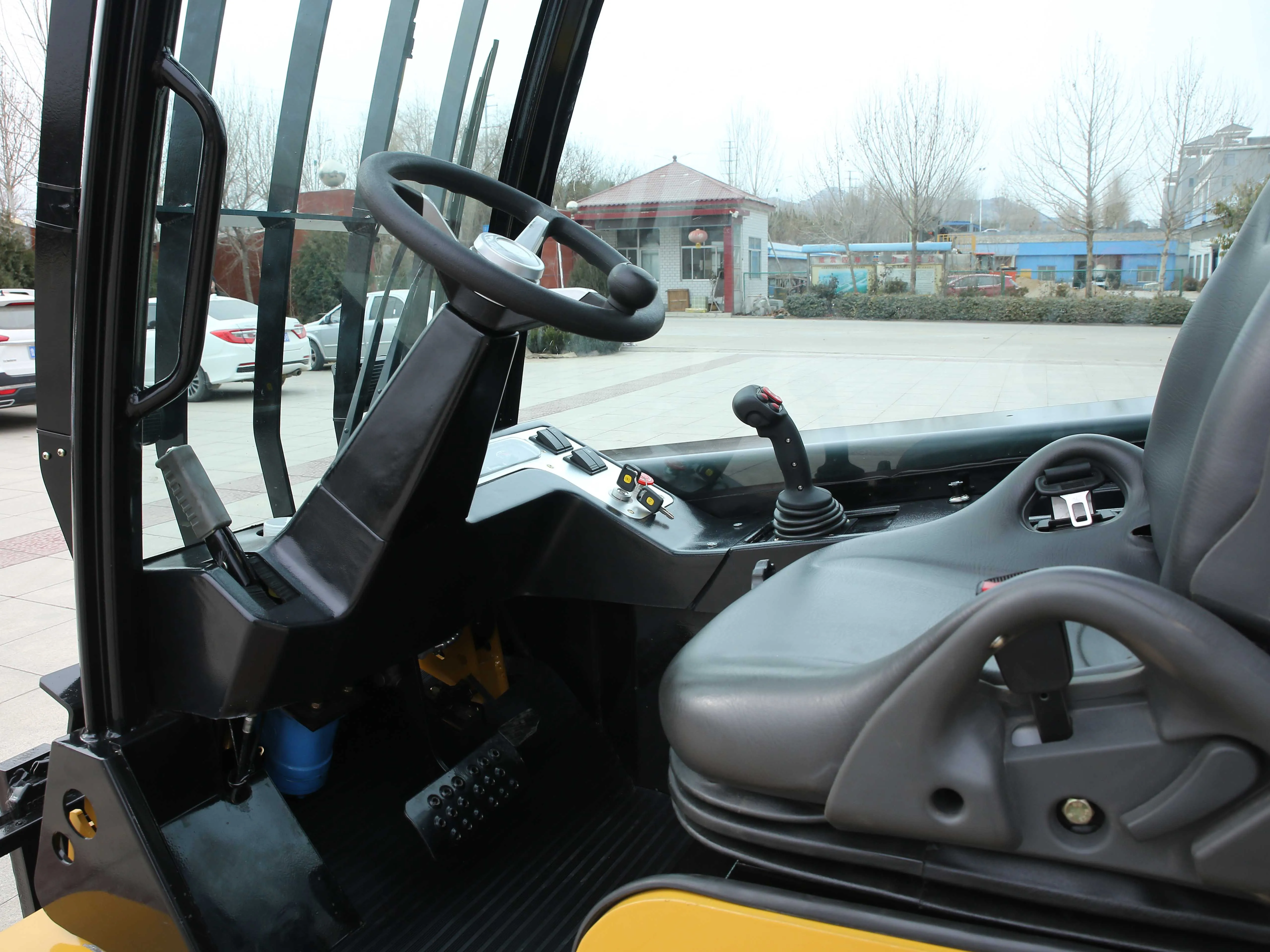

Name: operation with cabin
easy operating steering wheel, fast electronic shift, convenient handle, micro brake & foot brake with hydraulic pedal, etc..
Main Features
Name: Fork carriage/attachment
Original: China

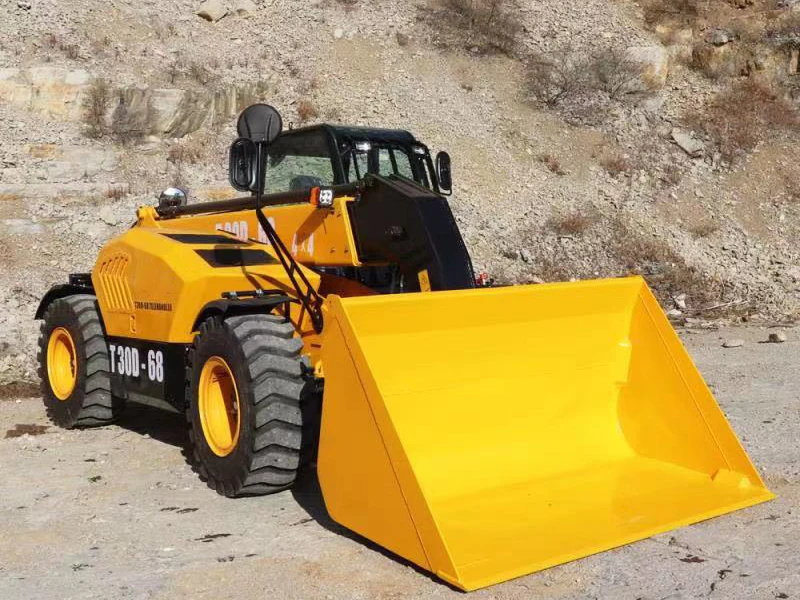

Side shifter, Loader, Bucket, Rotator, Bale Clamp

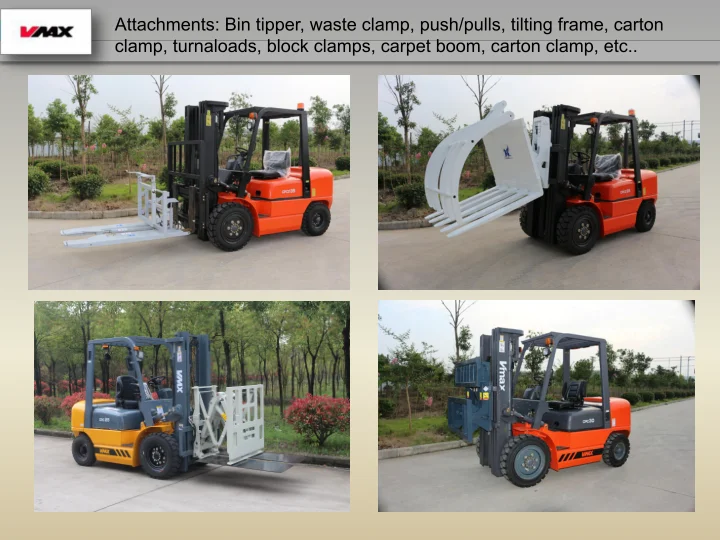

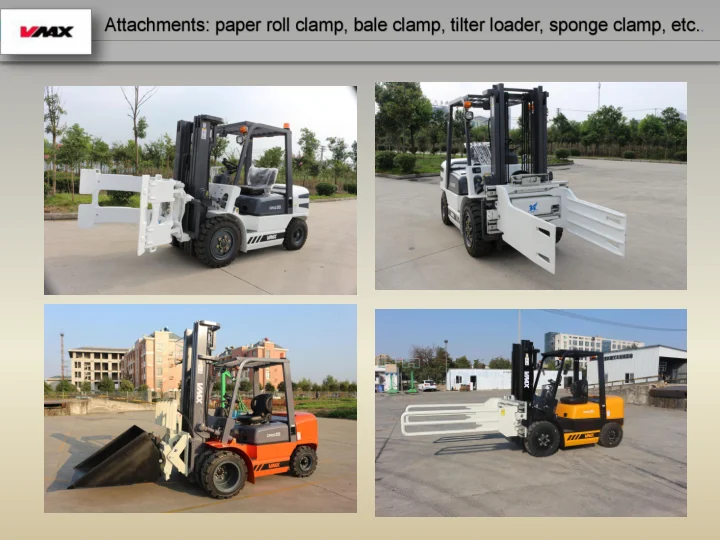

Forklift Attachments
Side shifter, fork positoner, fork sleeve, paper roller clamp, bale clamp, drum clamp, load extender, rotator, fork clamps,
push/pull, etc..
push/pull, etc..
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Professional spare parts in stock
* Top brand spare parts supplied.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Packing & Delivery
Packaging | ||
Size | L:2700mm,W:1300mm, H: 2090mm | |
Weight | 4.3ton | |
Packaging Details | Packed the forklift with plastic foam, all wheels fixed with wooden corner block, tightened with frap rope,etc.. | |
Loading | ||
Container | 20GP | |
Pcs | 3pcs | |
Container | 40HQ | |
Pcs | 5pcs | |
Packaging Details | Professional delivering member, factory loading platform, packing stable, etc.. | |
Our factory
VMAX forklift introduction
ANHUI VMAX HEAVY INDUSTRY CO.,LTD is located in Centralized Demonstration Area, Lu’an city of Anhui Province, China. Established in 2010 and total investment more than two hundred million.
Our products are various from diesel forklift 1-35ton, LPG forklift 1-5ton, electric forklift 1-5ton, wheel loader, reach truck, pallet truck, stacker, car tailbord, etc..
We have about 30000 square meters area, include forklift testing ground, research and development center, marketing center, etc.. we passed CE, EPA, ISO, BV,SGS certificates etc..
We actively explore the international market and participate in the related industries of various exhibitions. we have set up sales network in India, Turkey, Poland, Hungary, Spain, UK, Saudi Arabia, Oman, South Africa, Nigeria, Algeria, America, Mexico, Colombia, Chile, Bangladesh, Thailand, Australia, New Zealand and other countries and regions. And our products praised highly by our customers.
Our products are various from diesel forklift 1-35ton, LPG forklift 1-5ton, electric forklift 1-5ton, wheel loader, reach truck, pallet truck, stacker, car tailbord, etc..
We have about 30000 square meters area, include forklift testing ground, research and development center, marketing center, etc.. we passed CE, EPA, ISO, BV,SGS certificates etc..
We actively explore the international market and participate in the related industries of various exhibitions. we have set up sales network in India, Turkey, Poland, Hungary, Spain, UK, Saudi Arabia, Oman, South Africa, Nigeria, Algeria, America, Mexico, Colombia, Chile, Bangladesh, Thailand, Australia, New Zealand and other countries and regions. And our products praised highly by our customers.
VMAX is on listed market successfully on April, 2017. More than 400 hundreds works, provide you superior quality and best service.
Certifications
Customer Photos
FAQ
FAQ
1, Q: Why do you choose VMAX?
A: We are professional forklift manufacture and a stock listed company which can provide you good quality and service.
2, Q: What about your quality?
A: Our parts is the top brand in China. And technology is from TCM.
3, Q: What is about your warranty?
A: One year or 2000 working hours which comes first. If during the warranty, we will send to you for free by courier.
4, Which is the port of yours?
A: Full container is to NANJING port. If LCL is to Shanghai port.
5, What about your delivery time?
A: Normally 25-30 days after receving the deposit.
6, What about your payment items?
A: 30% deposit by TT, 70% balance before shipment. We accept LC, OA.
2, Q: What about your quality?
A: Our parts is the top brand in China. And technology is from TCM.
3, Q: What is about your warranty?
A: One year or 2000 working hours which comes first. If during the warranty, we will send to you for free by courier.
4, Which is the port of yours?
A: Full container is to NANJING port. If LCL is to Shanghai port.
5, What about your delivery time?
A: Normally 25-30 days after receving the deposit.
6, What about your payment items?
A: 30% deposit by TT, 70% balance before shipment. We accept LC, OA.
