JiNan cheap cnc leather clothes fabric carpetsticker servo motor plotter flatbed cutter
- Category: >>>
- Supplier: Jinan Yizhou Laser Technology Co. Ltd.
Share on (1600599036791):
Product Overview
Description
Product Overview

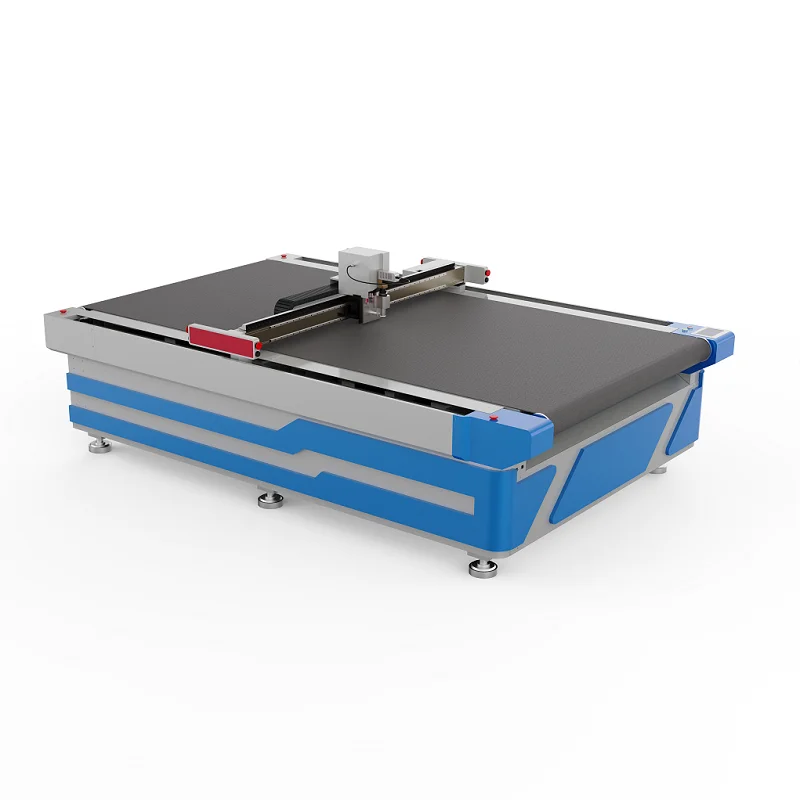

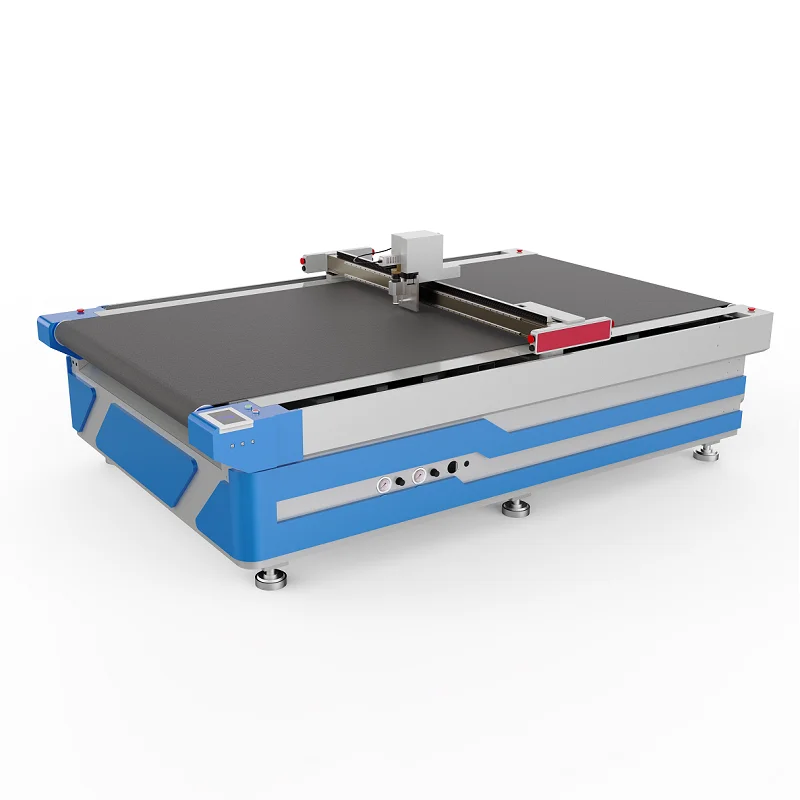

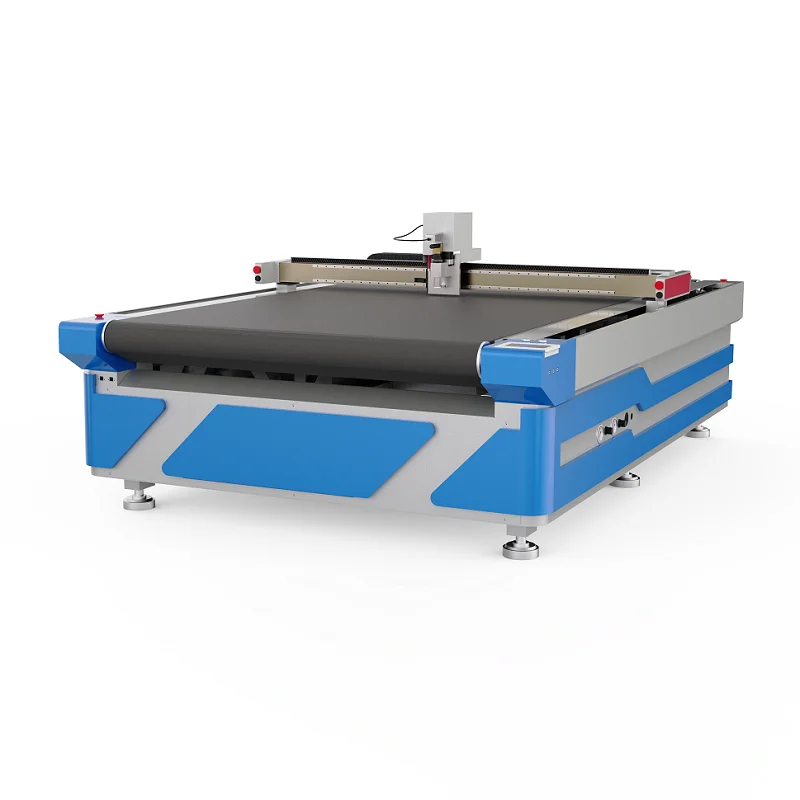

YZ1625 cnc oscillating knife cutting machine
This performance cutting machine is automatic cutting machine, controlled by computer by WLAN or USB cable signal transfer. It makes cutting easier and faster. Operation is so easy and no need to install too much. It is universal cutting machine for various soft materials, such as yoga mat, pvc, leather, fabric,textile.
FEATURES AT A GLANCE
AUTOMATIC CONTROLLED BY COMPUTER
TOUCH SCREEN CONTROLLER
SERVO MOTOR AND DRIVER
SECTION VACUUM TABLE
LINEAR &RACK GEARS TRANSMISSION
FAST CUTTING SPEED
EASY OPERATION
VIDEO AND MANUAL BOOK

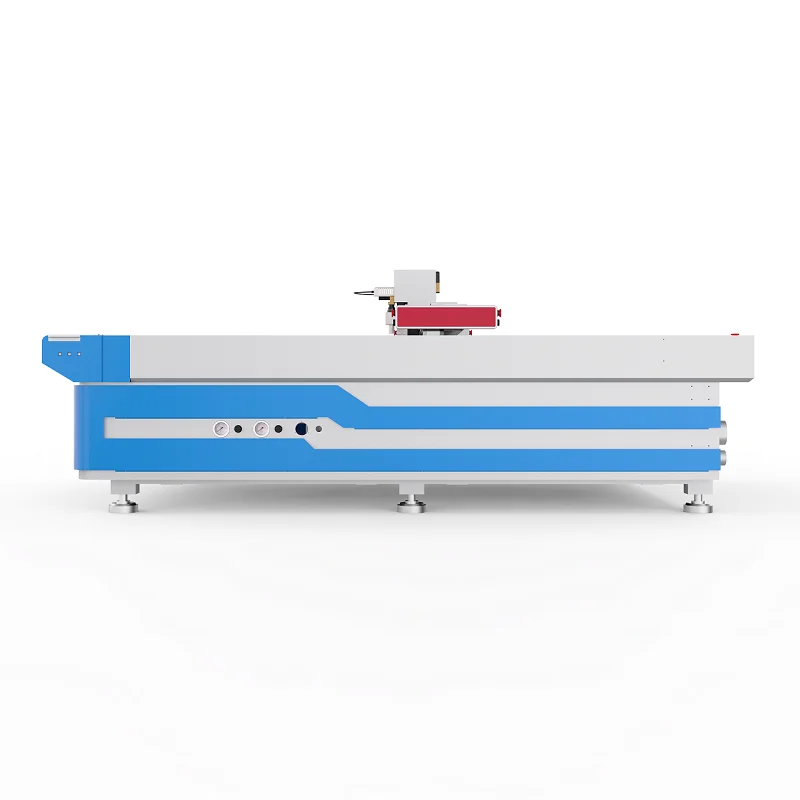

Right elevation

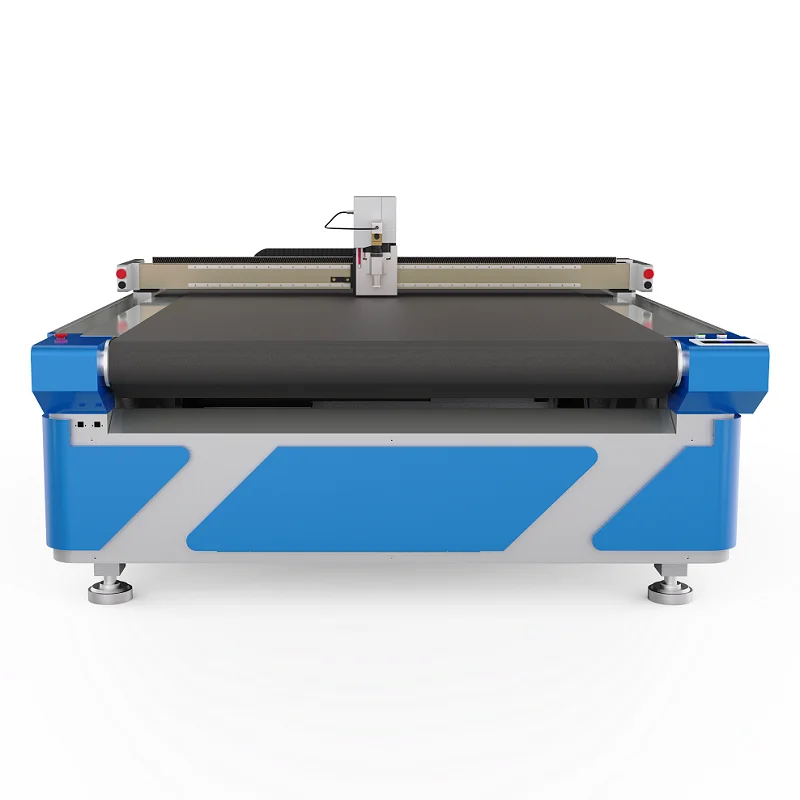

Front elevation
Backside elevation
PRODUCT SPECIFICATIONS
1 | Model name | YZ1625 |
2 | Working size | 1600*2500mm X Y |
3 | Max.cutting speed | 0-1500mm/s |
4 | Cutting Depth | 0-50mm single layer |
5 | Repeatability positioning accuracy | 0.02mm |
6 | Working voltage | 220V/380V 50HZ/60HZ |
7 | Vaccum power | 9KW |
8 | Total power | 11KW |
9 | Operating temperature | 0°C-40°C |
10 | Control software | YIZHOU CAD support dxf,plt format file |
11 | Computer environment | windows XP/7/8/10 |
PRODUCT CONFIGURATION
SWISS TECH CUTTING TOOL
9KW non-oil vacuum ppump
JAPAN MITSUBISHI servo motor&driver
How to Choose Machine
YZ1625A-Economic
This Model is standard model, it can be choosed with EOT electrical oscillating cutting tool Or DRT driven rotate cutting tool-round knife cutting tool. Price is same. EOT tool normally used for thick and unbreathy materials. DRT tool normally used for thin and breathy materials.
YZ1625A With EOT electrical oscillating cutting tool
YZ1625A with DRT round knife Cutting tool
YZ1625A1-High performance
YZ1625A1 model is with two cutting head structure, with two head, not only can cut the materials of YZ1625A, but also can professionally cut cardboard,greyboard,honeycomb board. The function adds creasing, vcut.
Normally the second head installed with creasing tool or vcut tool-angle cutting.
Two head--EOT+CTT creasing tool
Two head--EOT+Vcut angle cutting tool
YZ1625A2-full funtions
YZ1625A2 model is with extra milling cutter head. with 1.5KW spindle,it can cut hard materials, such as acrylic, wood,MDF,PVC etc materials. total it have three head in YZ1625A2
