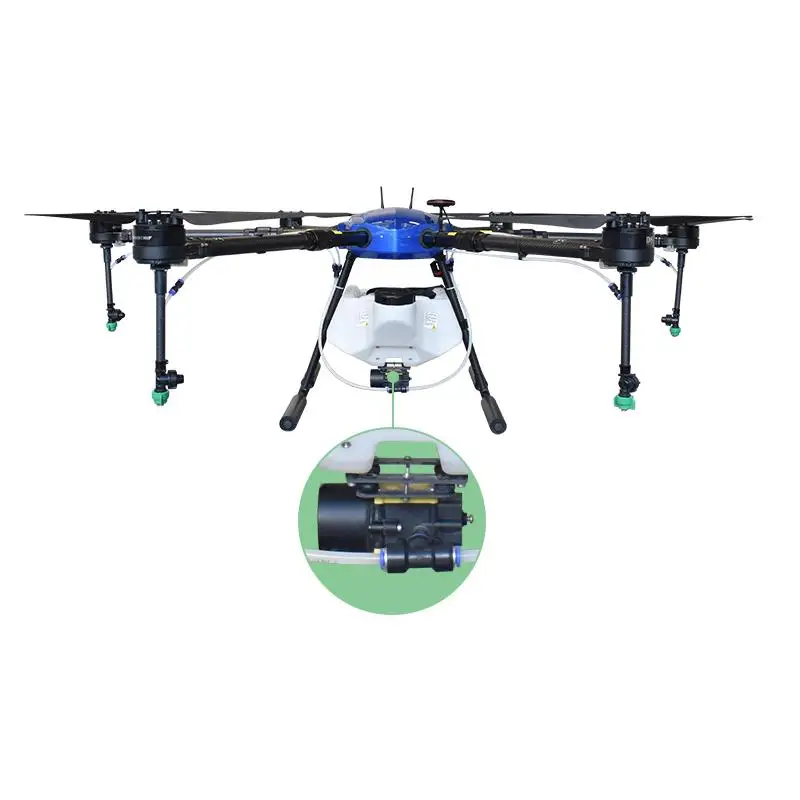

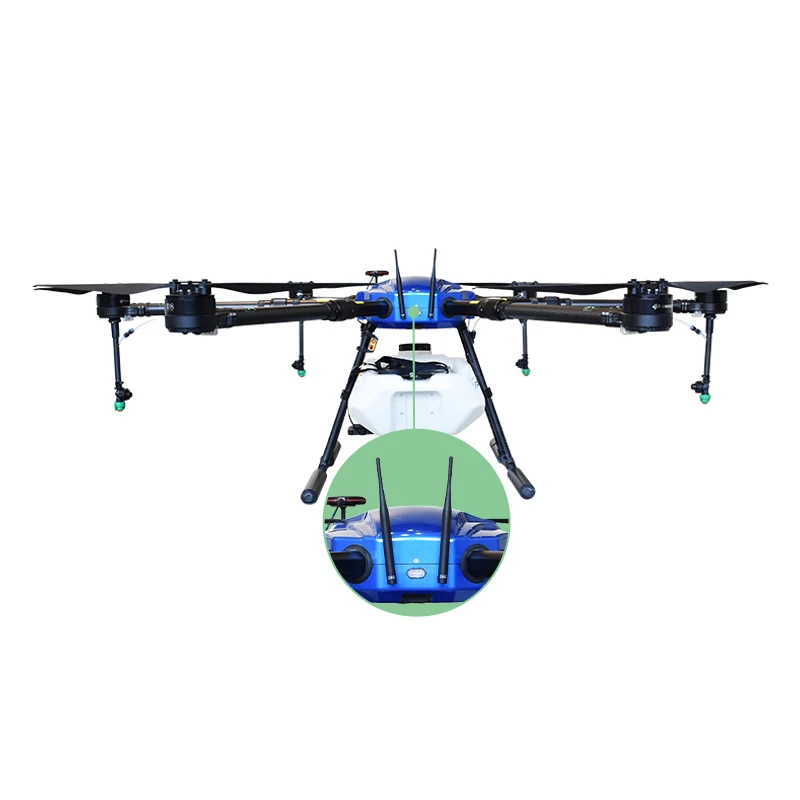

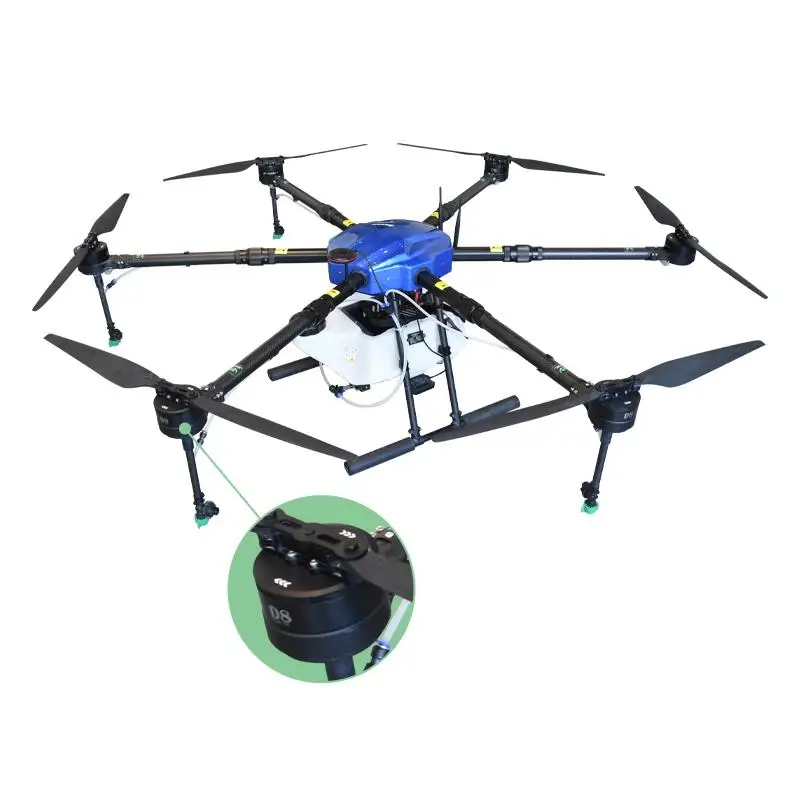

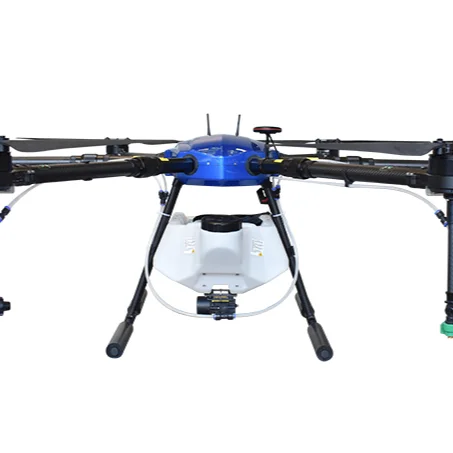

Sinochip 16L agriculture sprayer drone with RTK and RTK base optional obstacle avoidance radar for agriculture use
Sinochip 16L agriculture sprayer drone with RTK and RTK base optional obstacle avoidance radar for agriculture use
Sinochip 16L agriculture sprayer drone with RTK and RTK base optional obstacle avoidance radar for agriculture use
Sinochip 16L agriculture sprayer drone with RTK and RTK base optional obstacle avoidance radar for agriculture use
Sinochip 16L agriculture sprayer drone with RTK and RTK base optional obstacle avoidance radar for agriculture use
Sinochip 16L agriculture sprayer drone with RTK and RTK base optional obstacle avoidance radar for agriculture use
Sinochip 16L agriculture sprayer drone with RTK and RTK base optional obstacle avoidance radar for agriculture use

Sinochip 16L agriculture sprayer drone with RTK and RTK base optional obstacle avoidance radar for agriculture use

Share on (1600599043000):


Price:

Quantity:


Product Overview

Description



Products Description


Model number : DF-D16
DF-T10
Aircraft Frame
Material :  Carbon fiber + Aluminum alloy + Plastic(tank)
Motor quantity : 6PCS
Spreaded size (without propeller) : 1710 x 17100 x 570 mm
Folded size (without propeller) : 1000 x 1000 x 570 mm
Spray system

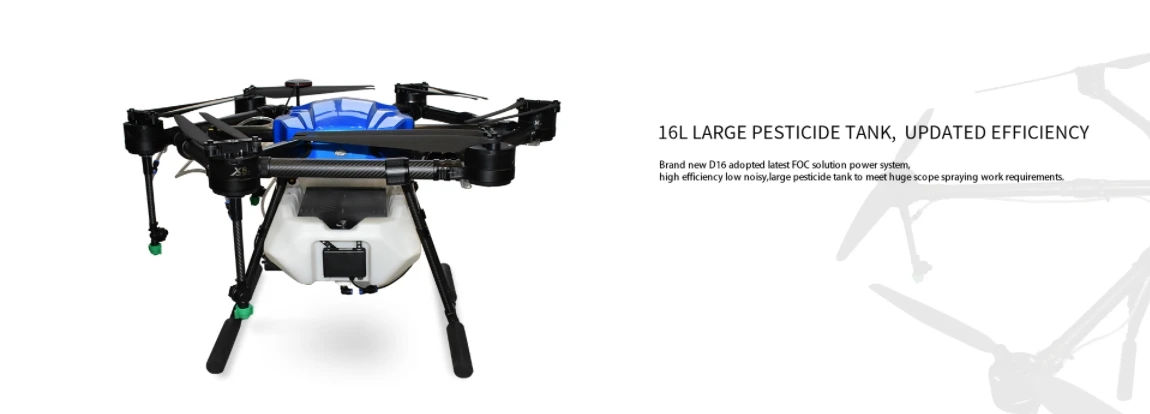

Tank volume : 16L
10L
Nozzle model : XR110015VS
Spray flow rate(Max) : 4L/min
4L/min
Spray width : 4-6m, affected by the height
3-5m, affected by the height
Flight Parameters
Whole UAV weight(no battery) : 15.5kg
Max take off weight : 48kg
Hovering accuracy :  Horizontal:±0.8m, Verical:0.5m
Full-load hovering time : 10min
No-load hovering time : 25min
Max flight speed : 10m/s
Terrain following radar :  Yes
Front-side obstacle avoidance radar : Yes

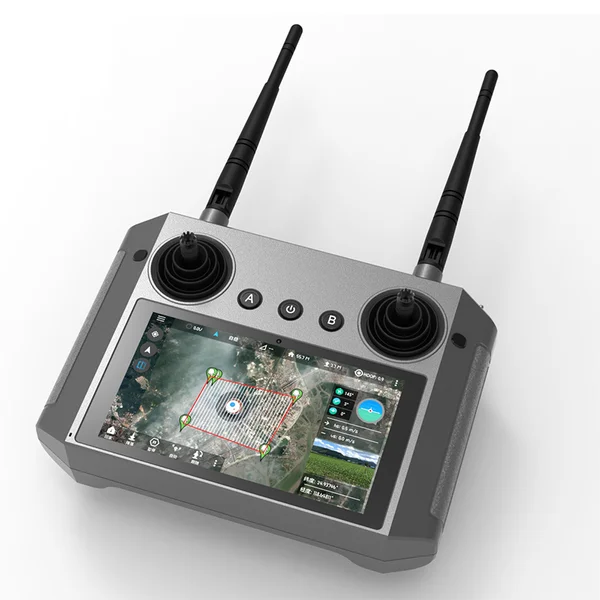

Romote Controller
Work Frequency : 2.400-2.483 GHz
Effective Distance : 3KM, max to 5KM without electromagnetic interference
Battery Capacity : 10000mAh
Weight : 530g
Support language : Multi-language

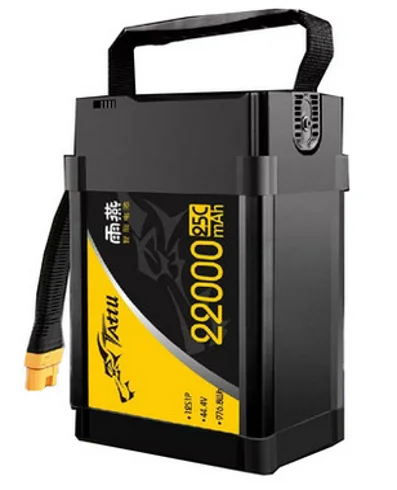

Battery
Capacity : 22000mAh 12S
Output voltage: 44.4V

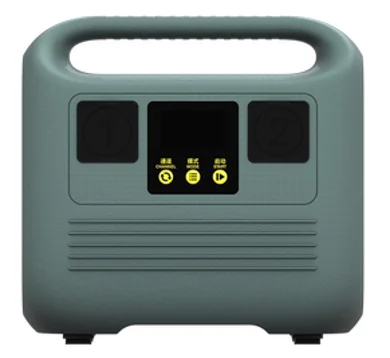

Charger
Input voltage : 100-240V
Output power : 2500W
Charge current : 45A
Charge mode : Charge/quick charge/storage charge

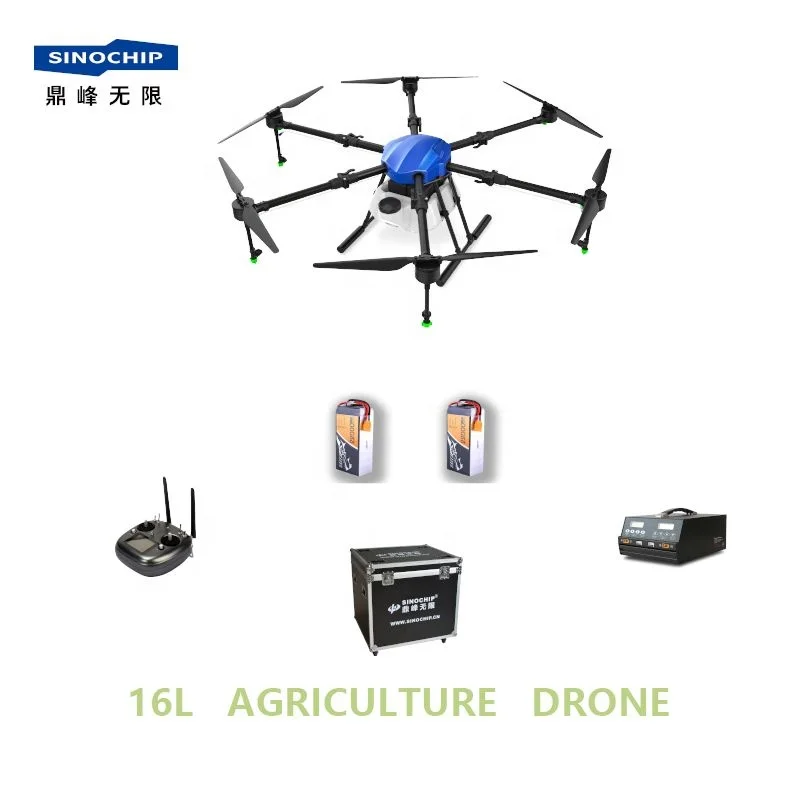

Package

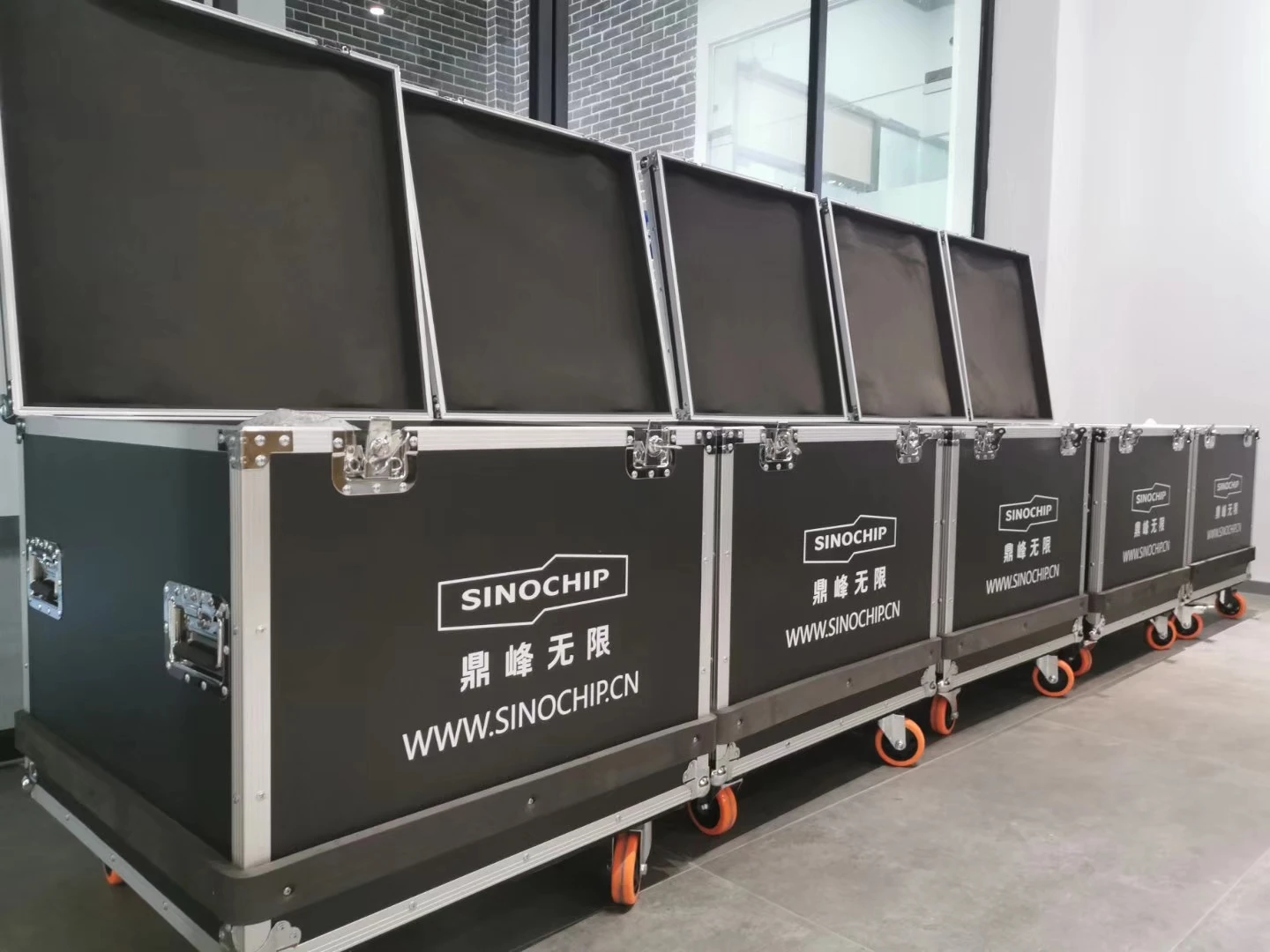

Air shipping box; Size: 90cm x 114cm x 109cm
A full set of the DF-D16 drone including: DF-D16 drone *1, Remote controller * 1, 22000mAh 12S battery * 1, 2500W charger * 1, Air shipping box * 1, Tool kit * 1;


FAQ


Q1. Are you a sprayer drone factory?
A1: Yes, we are a professional manufacturer of agricultural spraying drones: sprayer drone, spreader drone, fogger drone, and biological control drone.

Q2. Is the UAV sprayer drone ready to fly?
A2: Yes. Before dispatch, SINOCHIP will assemble the agriculture drone, set parameters and test flight in the field, ensure that all the drones are 100% qualified and ready to fly.

Q3. What's your MOQ of agricultural drone?
A3: MOQ ≥1. More than 100 units order is available.

Q4. What's the delivery time of sprayer drone?
A4: 3working days for one, please contact us for mass order.

Q5. What's your payment term?
A5: 50% deposit, balance before delivery. We accept T/T, credit card, paypal and western union, etc. payment methods.

Q6. What should I do if I want to be your distributor/agent?
A6. Contact us!

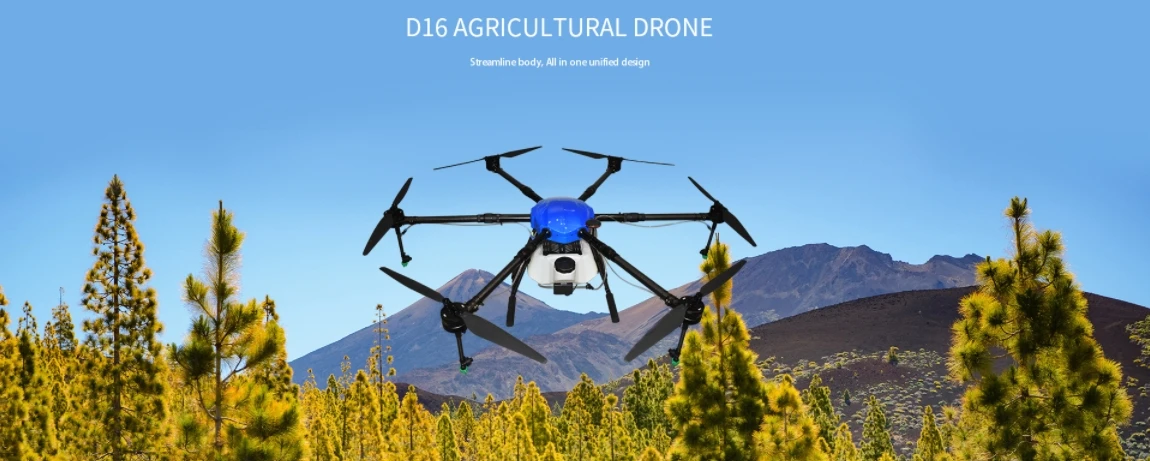

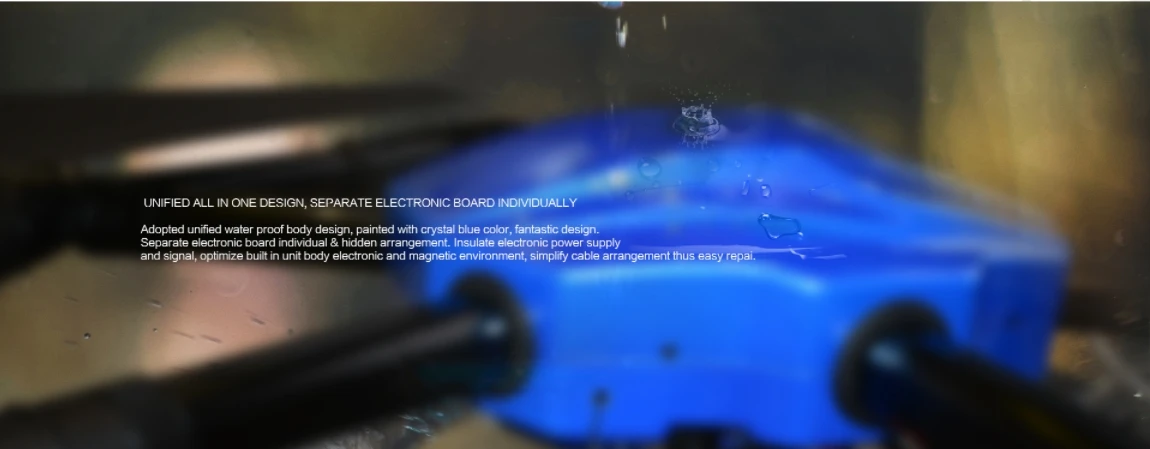

Details Images
