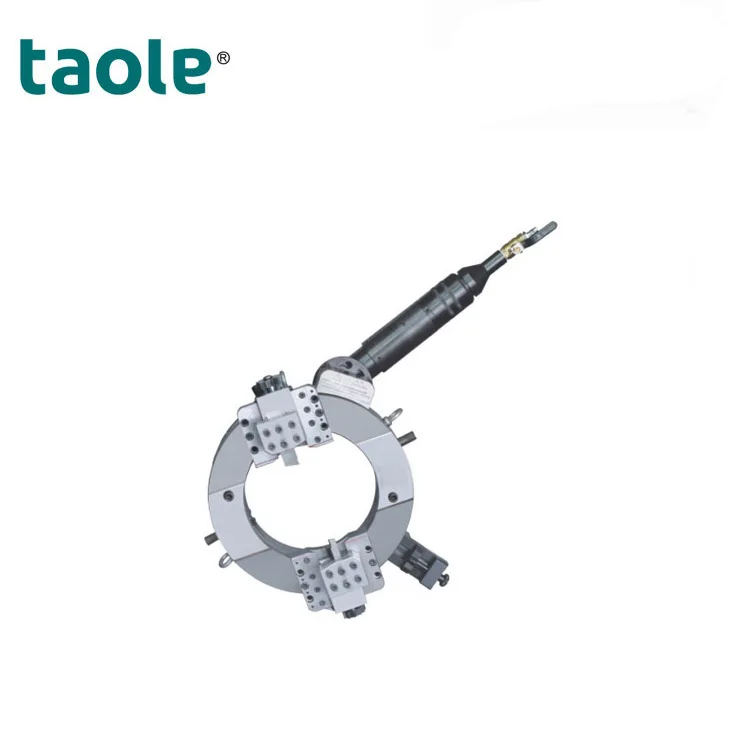

outside pipe cold beveling machine and with angle cutter OCP 275
- Category: >>>
- Supplier: Shanghai Taole Machine Co. Ltd.
Share on (1600599054291):
Product Overview
Description
FEATURES AT A GLANCE

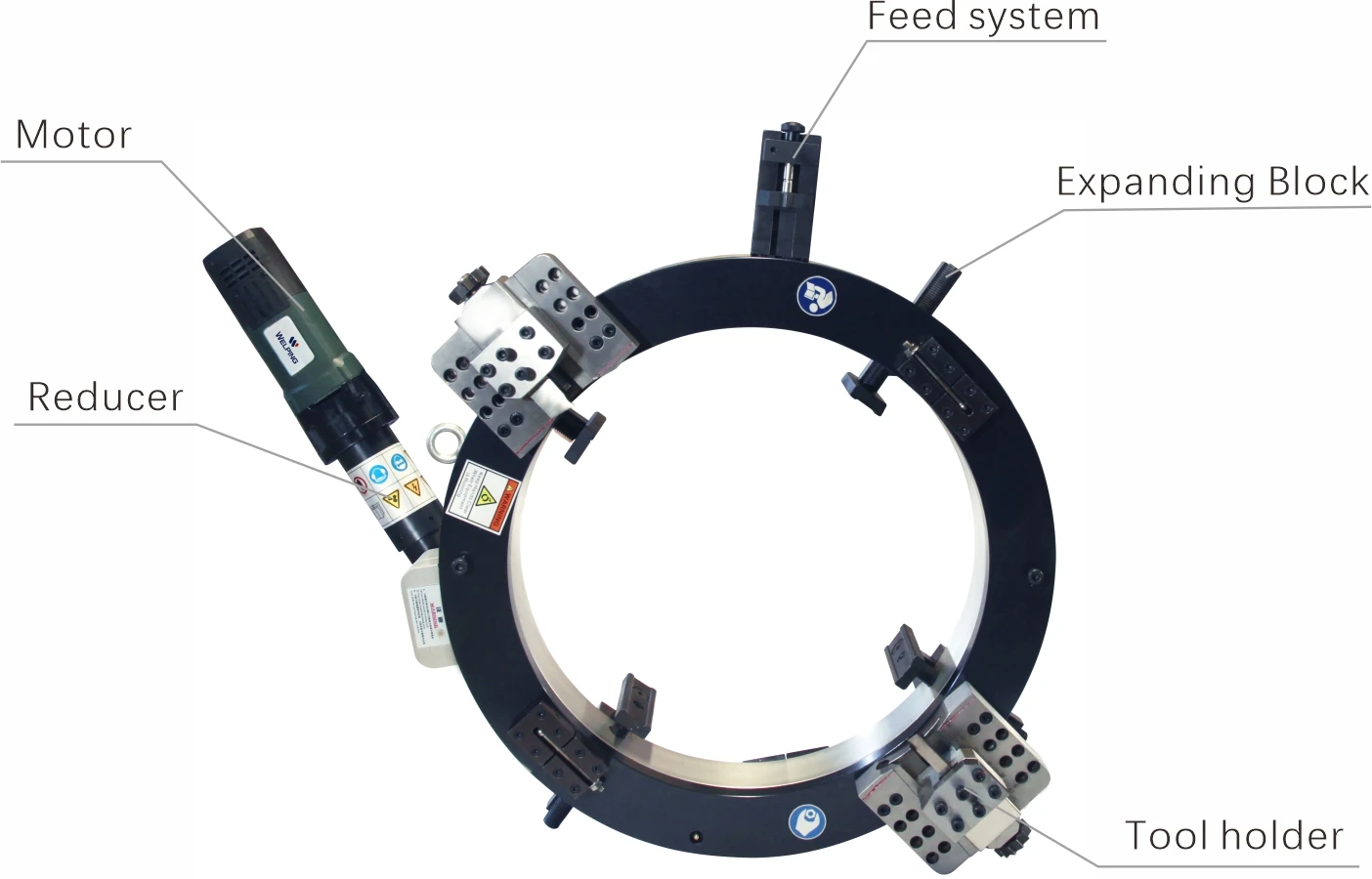

OCE/OCP/OCH models of pipe cutting and beveling machine is ideal options for all types of pipe cold cutting, beveling and end preparation. The split frame design allows the machine to split in half at the frame and mount around the OD (Outer Diamter) of the in-line pipe or fittings for strong, stable clamping. The equipment performs precision in-line cut or simultaneous process on cold cutting and bevelling, single point, counterbore and flange facing operations, as well as weld end preparation on open ended pipes /tubes.
*Cold Cutting and Beveling improves safety
*Cutting and Beveling simultaneously
*Split Frame design for easy mounted on pipeline
*Tools feed automatically optional
*Fast, Precision, On-site Cold Cutting & Beveling
*Minimal Axial and Radial clearance
*Light weight and compact design
*Easy set-up & Operation
*Power optional by Electric,Pneumatic,,Hydraulic or CNC (Customized Motor)
*Machining heavy-wall pipe from 1'' up to 72''
*Cutting and Beveling simultaneously
*Split Frame design for easy mounted on pipeline
*Tools feed automatically optional
*Fast, Precision, On-site Cold Cutting & Beveling
*Minimal Axial and Radial clearance
*Light weight and compact design
*Easy set-up & Operation
*Power optional by Electric,Pneumatic,,Hydraulic or CNC (Customized Motor)
*Machining heavy-wall pipe from 1'' up to 72''
PRODUCT SPECIFICATIONS
Model Type | Spec | Capacity Outer Diameter | Wall thickness/MM | Rotation Speed | ||||
OD MM | OD Inch | Standard | Heavy Duty | |||||
By Electric 2) OCP Driven By Pneumatic 3) OCH Driven By Hydraulic | 89 | 25-89 | 1-3 | ≦30 | - | 42r/min | ||
168 | 50-168 | 2-6 | ≦30 | - | 18r/min | |||
230 | 80-230 | 3-8 | ≦30 | - | 15r/min | |||
275 | 125-275 | 5-10 | ≦30 | - | 14r/min | |||
305 | 150-305 | 6-10 | ≦30 | ≦110 | 13r/min | |||
325 | 168-325 | 6-12 | ≦30 | ≦110 | 13r/min | |||
377 | 219-377 | 8-14 | ≦30 | ≦110 | 12r/min | |||
426 | 273-426 | 10-16 | ≦30 | ≦110 | 12r/min | |||
457 | 300-457 | 12-18 | ≦30 | ≦110 | 12r/min | |||
508 | 355-508 | 14-20 | ≦30 | ≦110 | 12r/min | |||
560 | 400-560 | 18-22 | ≦30 | ≦110 | 12r/min | |||
610 | 457-610 | 18-24 | ≦30 | ≦110 | 11r/min | |||
630 | 480-630 | 10-24 | ≦30 | ≦110 | 11r/min | |||
660 | 508-660 | 20-26 | ≦30 | ≦110 | 11r/min | |||
715 | 560-715 | 22-28 | ≦30 | ≦110 | 11r/min | |||
762 | 600-762 | 24-30 | ≦30 | ≦110 | 11r/min | |||
830 | 660-813 | 26-32 | ≦30 | ≦110 | 10r/min | |||
914 | 762-914 | 30-36 | ≦30 | ≦110 | 10r/min | |||
1066 | 914-1066 | 36-42 | ≦30 | ≦110 | 10r/min | |||
1230 | 1066-1230 | 42-48 | ≦30 | ≦110 | 10r/min | |||

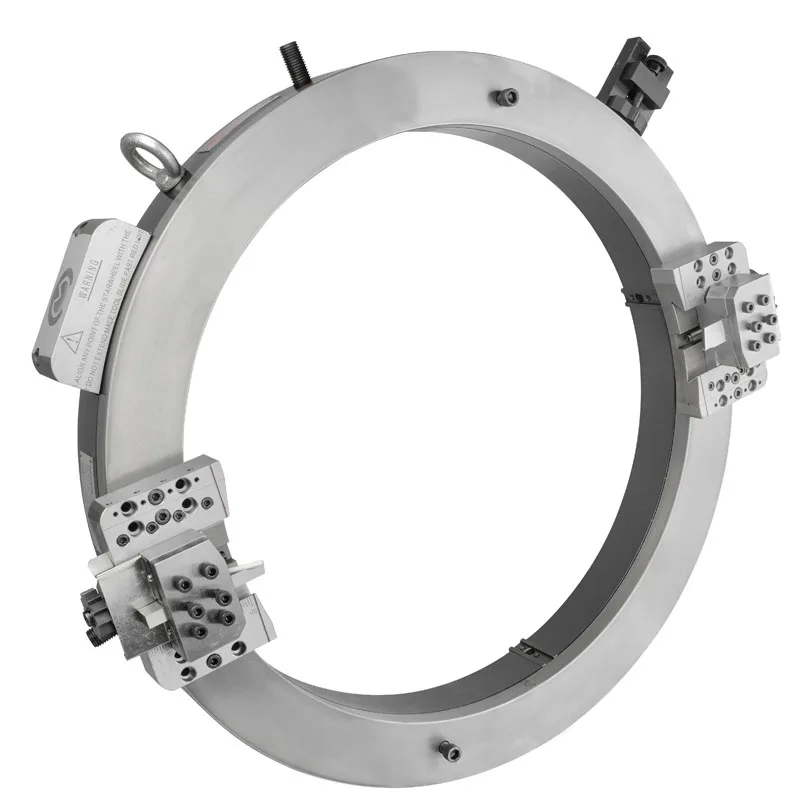

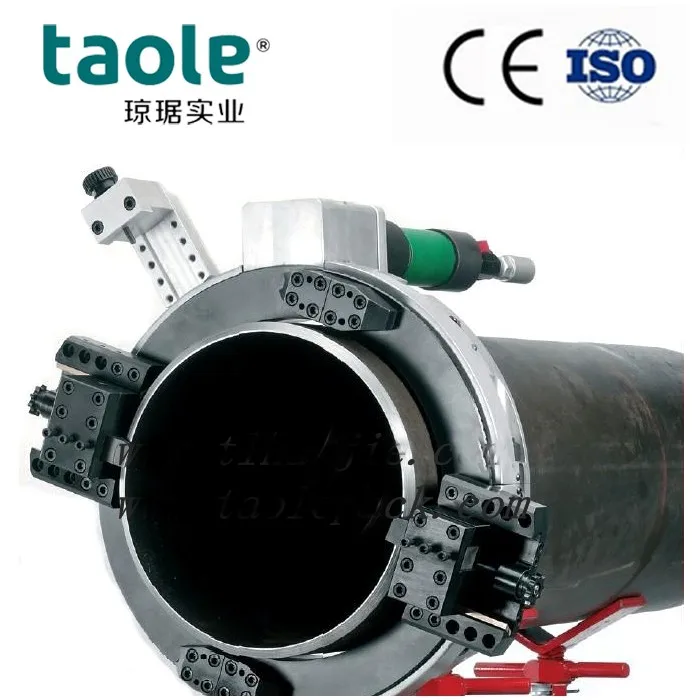

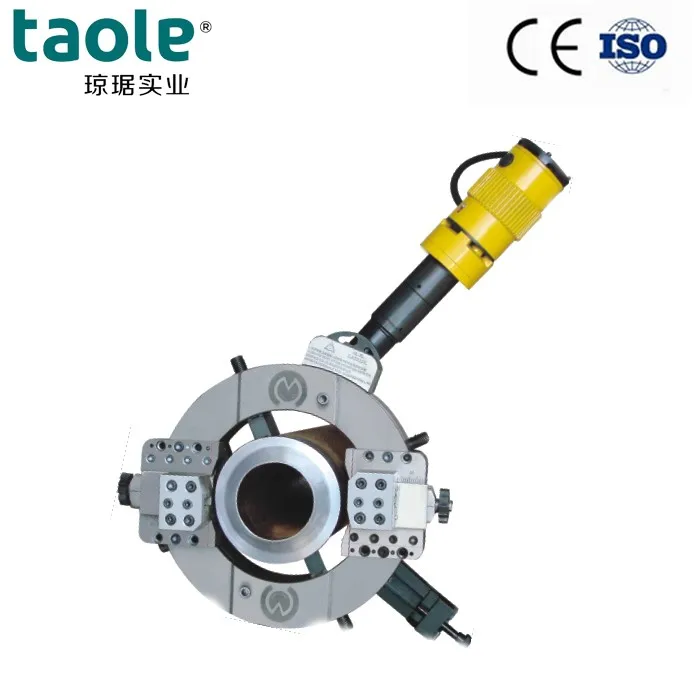

Detailed Images
CERTIFICATIONS
Machine Packing
Spec. | Capacity(ODmm) | N.W/KGS | G.W/KGS | L.W.H/MM |
89 | 25-89 | 28 | 43 | 565*520*320 |
168 | 50-168 | 48 | 72 | 670*670*320 |
230 | 80-230 | 50 | 76 | 720*680*320 |
275 | 125-275 | 56 | 86 | 800*685*320 |
305 | 150-305 | 60 | 92 | 800*685*320 |
325 | 168-325 | 62 | 97 | 800*760*320 |
377 | 219-377 | 68 | 100 | 860*830*320 |
426 | 273-426 | 72 | 108 | 930*730*340 |
457 | 300-457 | 80 | 113 | 930*730*340 |
508 | 355-508 | 92 | 145 | 980*800*360 |
560 | 400-560 | 102 | 152 | 1010*860*360 |
610 | 457-610 | 115 | 162 | 1020*900*360 |
630 | 480-630 | 120 | 185 | 1030*920*360 |
660 | 508-660 | 128 | 190 | 1050*1030*360 |
715 | 560-715 | 135 | 200 | 1010*860*360 |
762 | 600-762 | 150 | 221 | 1060*1060*380 |
830 | 660-813 | 172 | 260 | 1100*1100*380 |
914 | 762-914 | 210 | 284 | 1220*1220*340 |
1066 | 914-1066 | 280 | 360 | 1385*1385*380 |
1230 | 1066-1230 | 360 | 460 | 1600*1600*380 |

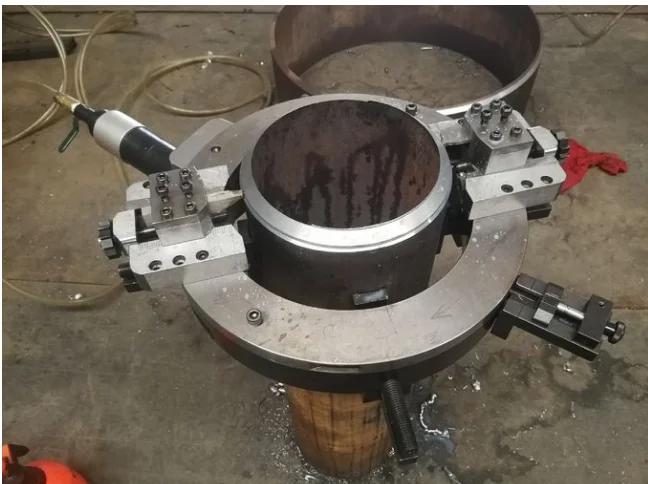

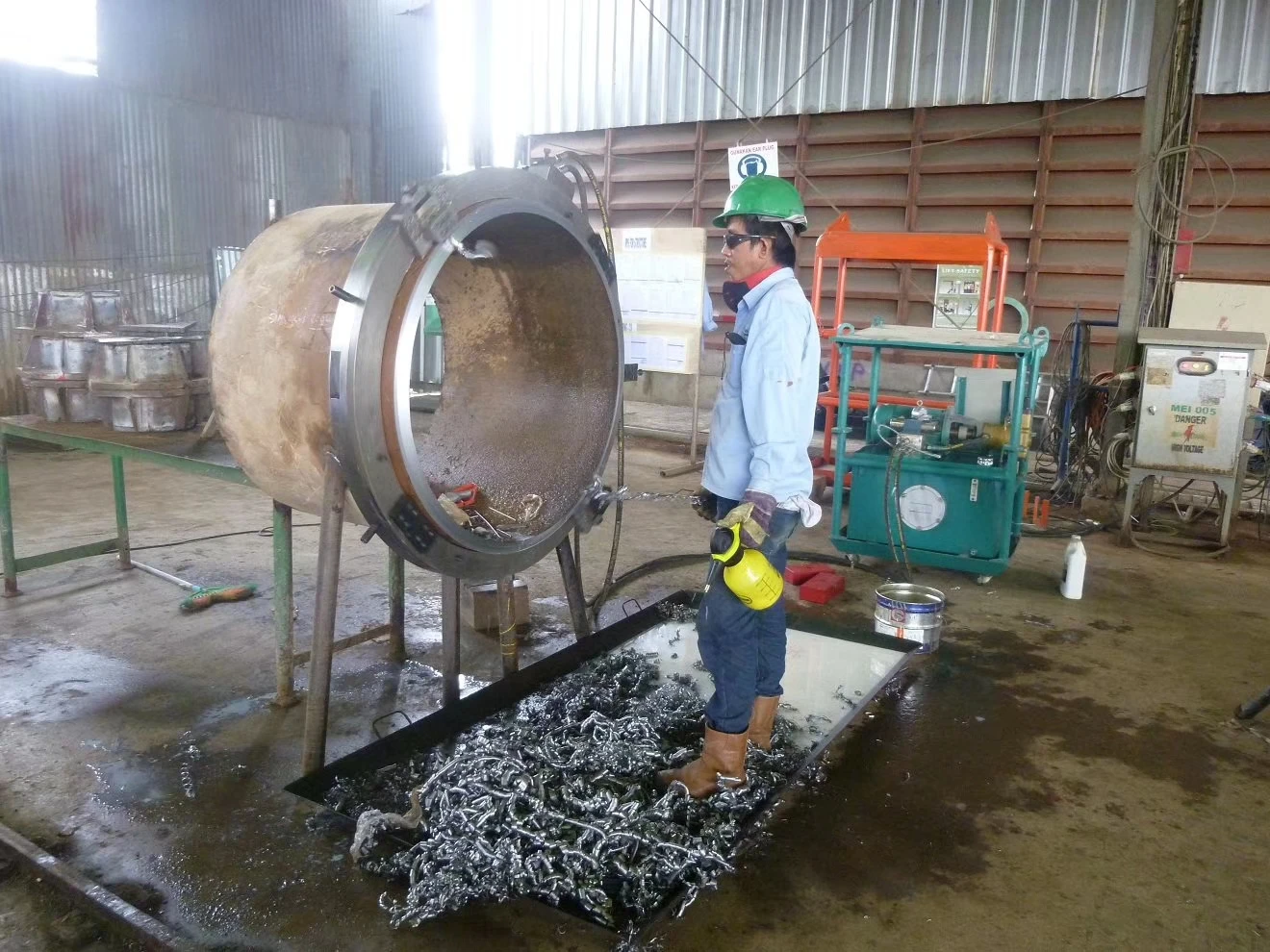

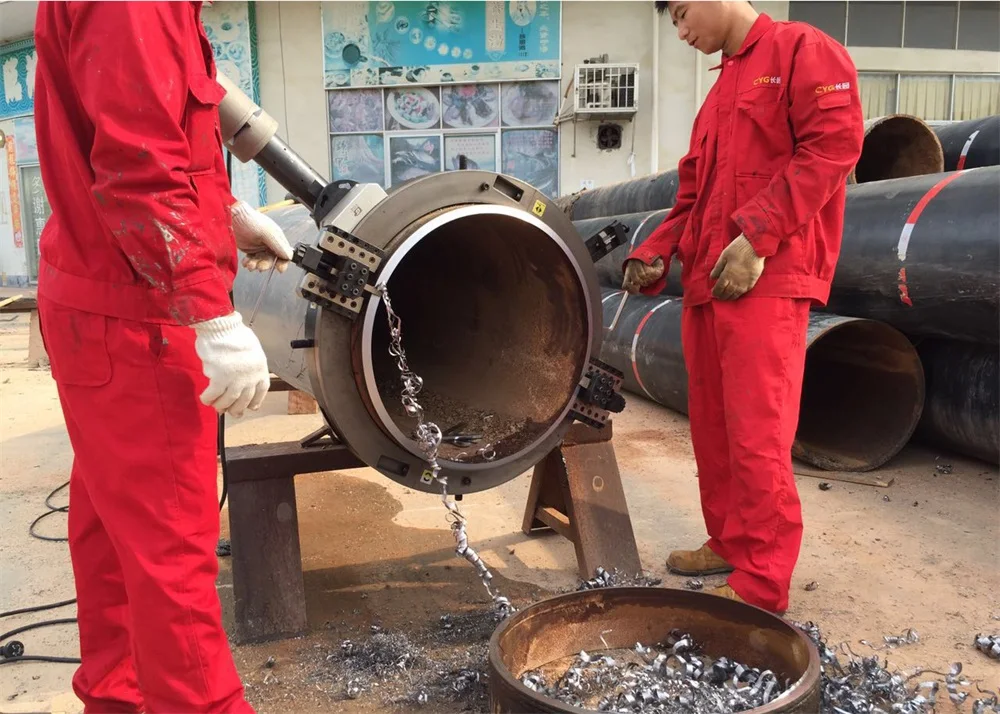

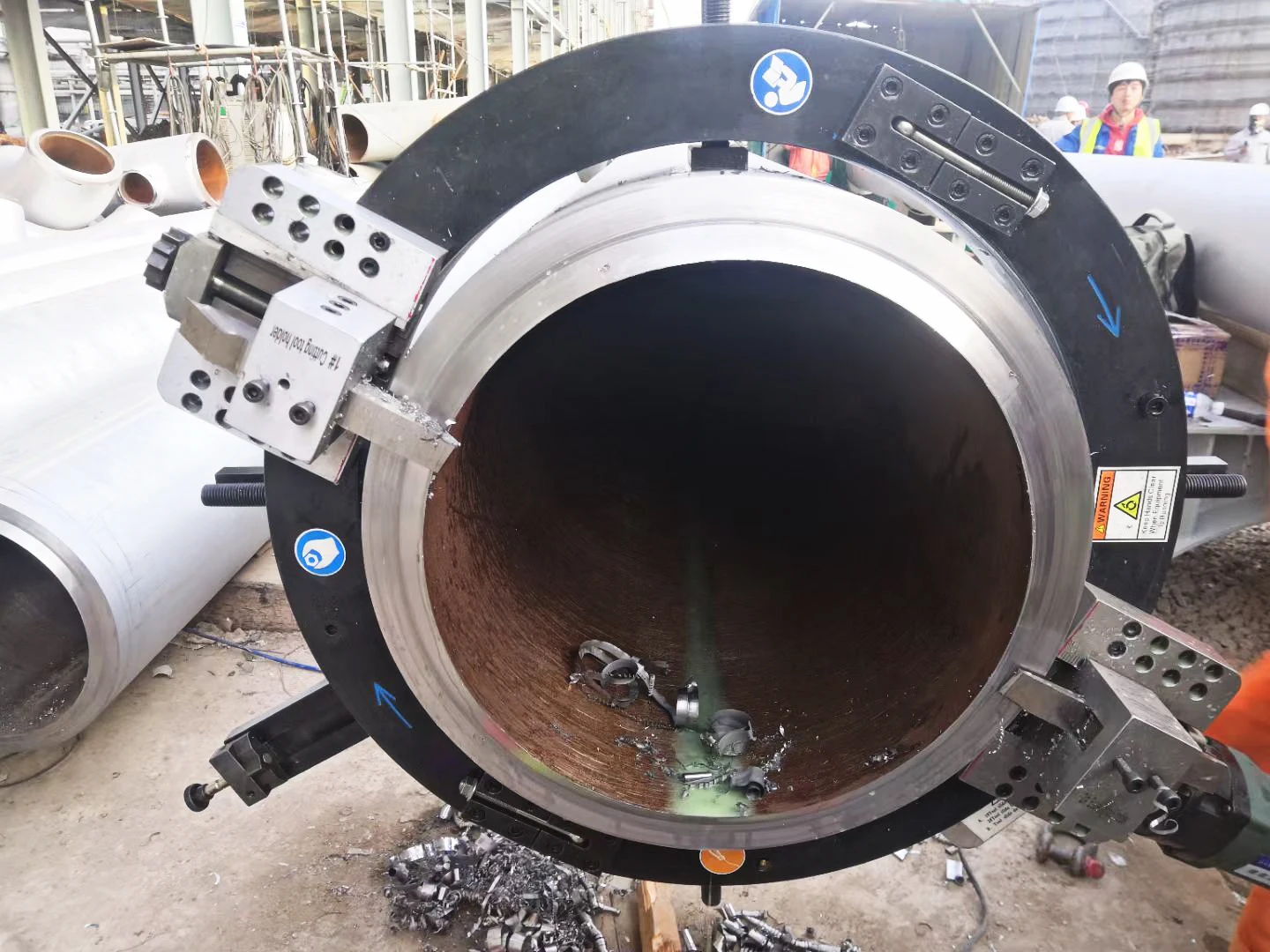

Successful Project
SIMILAR PRODUCTS
ISE
-Power Supply:220-240V 1PH 50-50HZ
-Motor Power:1.2-2KW
-Work capacity from size ID18-820MM
-Wall thickness <=15mm-75mm
-The groove angle can be arbitrarily selected between 0°-45°
-Fast loading and operation
-Light weight and stable performance
ISP
-Power supply: 0.8-1.0MPa,1000-2000L/Min
-Work capacity from size ID18-820MM
-Wall thickness <=15mm-75mm
-The groove angle can be arbitrarily selected between 0°-45°
-The groove angle can be arbitrarily selected between 0°-45°
-Explosion Proof
-Stable Performance
-Simple structure makes easy to miantence
-Occasionally overload won't burn

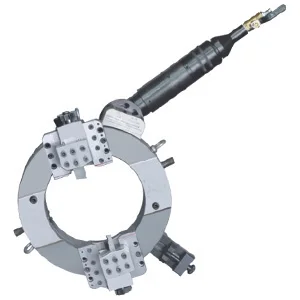

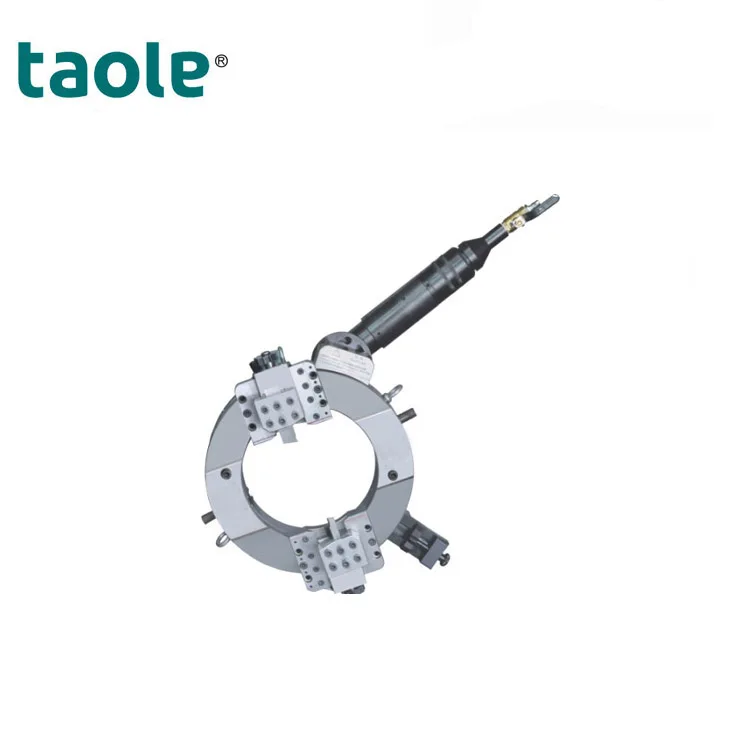

OCP
-Cold Cutting and Beveling improves safety -Cutting and Beveling simultaneously -Split Frame design for easy mounted on pipeline
-Tools feed automatically optional
-Machining heavy-wall pipe from 1'' up to 72'' -Optional tools for suitable for multi pipe materials with vary wall thickness
-Tools feed automatically optional
-Machining heavy-wall pipe from 1'' up to 72'' -Optional tools for suitable for multi pipe materials with vary wall thickness
OCH
-Hydraulic Type
-Working power of hydraulic station
5.5KW,7.5KW ,11KW
-Power supply:380V/50Hz 3PH Rated
Tungsten Electrode Grinder
-Electrode Grinder using reliable and quality micro motor with R.P.M controlled electronically.
-Unique design for with dust collection to reduce human harm.
-Easy adjust on bevel angel and tungsten diameter and portable design.
-High Precision on surface to improve welding quality.
-Unique design for with dust collection to reduce human harm.
-Easy adjust on bevel angel and tungsten diameter and portable design.
-High Precision on surface to improve welding quality.
FAQ
Q: Are you manufacture?
A; Yes. We are China manufacture. Our main products including ergonomic pallet strapping machine system,battery powered strapping tools and carts, pneumatic strapping tools for steel and pet bands.
Q: What is your deliver Time?
A:Standard machine can be ready in 3-7 days. Customized machine will be 25-45 days.
Q: What about payment terms?
A:We will suggest 100% by T/T while amount less than USD 10000 while machine ready in few days. 50% deposit, 50% balance for bigger amount or customizedprojects.
Q: What about your after sales service?
A: It is a simple machine tools on operation and we have English manual with machine.Machine can direct use after your receive it. In furhter any problems. We can provide video and remote service by Email,Phone and supply with necessary spare parts etc. Thank you.
