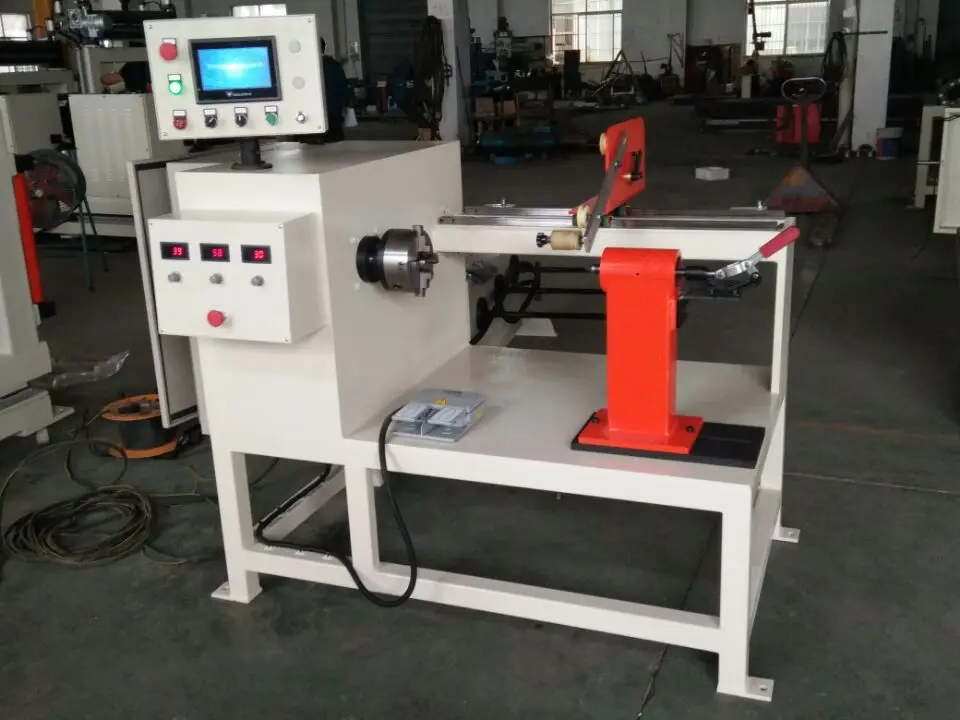

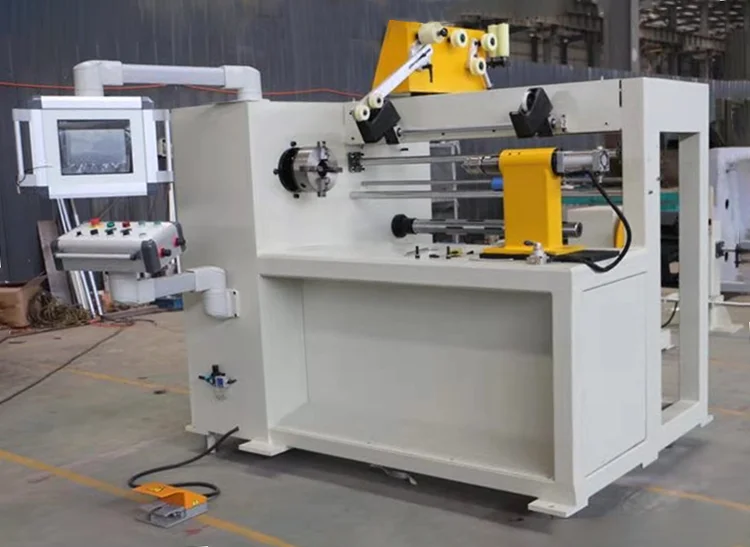

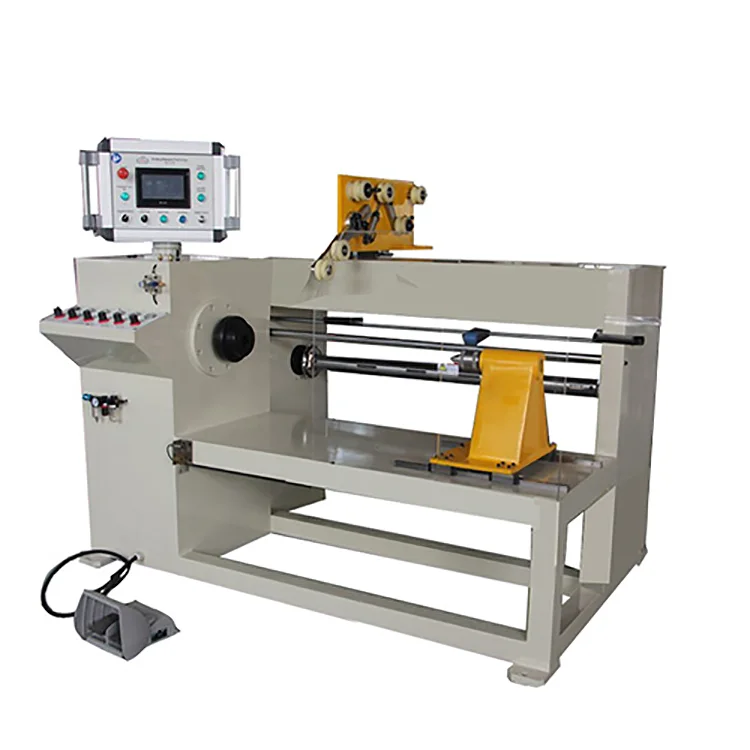

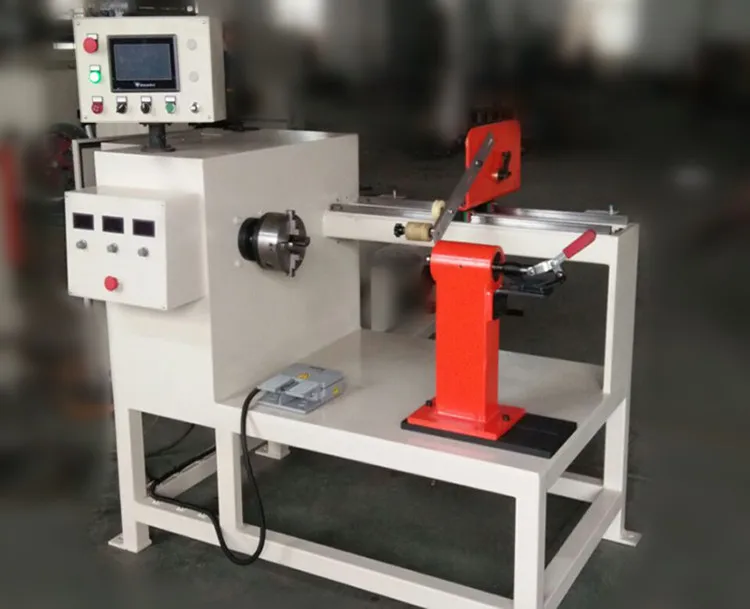

PLC Control Copper Wire Winder Distribution Transformer Coil Winding Machine With Counter
- Category: >>>
- Supplier: Zhu Tang (Suzhou) Technology Co. Ltd.
Share on (1600599060879):
Product Overview
Description
PRODUCT DESCRIPTION
Automatic PLC Control Copper Wire Winder Distribution Transformer Coil Winding Machine
Usage:

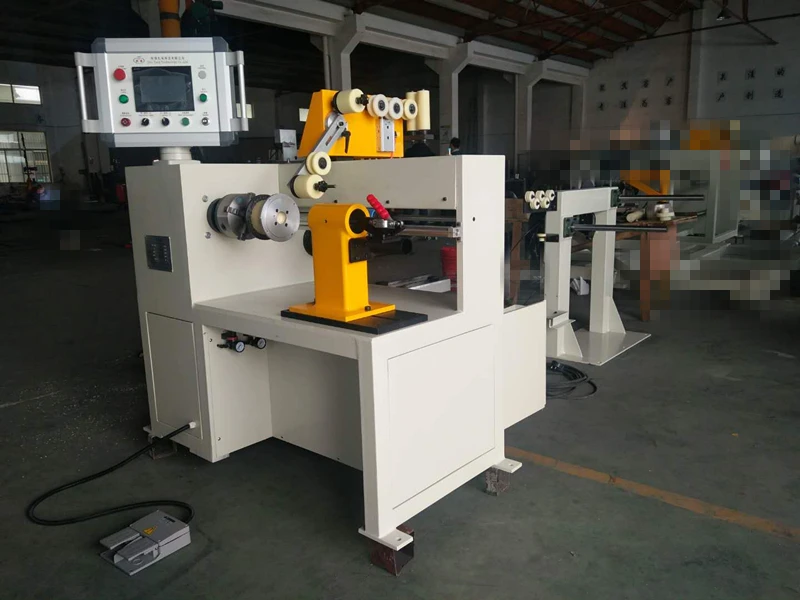

Automatic PLC Control Copper Wire Winder Distribution Transformer Coil Winding Machine ZPX400 is for winding copper or aluminium wire coil, which can be used in transformers, reactors and other similar products.
Features:
- Slow starting, smooth running, strong torque;
- Easy to operate;
- Winding round and flat wire;
- Automatic wire laying

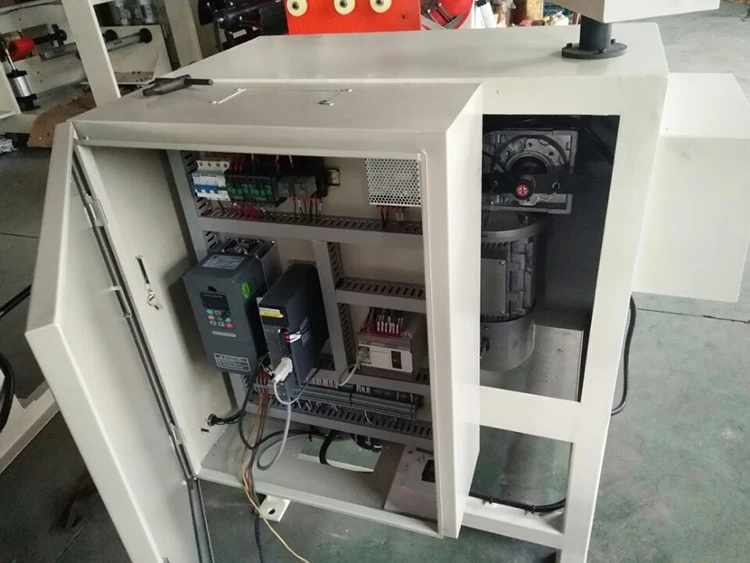

Main Components
1. Winding motor
2. Servo motor
3.VFD
4.PLC
5.Pneumatic system
Similar Model Parameters Comparison
| Item | ZPX400 | ZPX600 | ZPX800 |
| Center Height: | 900mm | 900mm | 900mm |
| Finished Coil Height: | ≤400mm | ≤600mm | ≤800mm |
| Winding Power: | 1.5kw | 4kw | 4kw |
| Winding Speed: | 0-250rpm | 0-200rpm | 0-160rpm |
| Speed Regulation: | stepless regulation | stepless regulation | stepless regulation |
| Max. Flat Wire Size: | - | 5x12mm | 5x12mm |
| Round Wire Diameter | 0.3-3.5mm | 0.3-5.0mm | 0.3-5.0mm |
| Finished Coil OD.: | ≤350mm | ≤800mm | ≤800mm |
| Loading Capacity: | ≤300kg | ≤500kg | ≤700kg |
| Min. Spread Pitch: | 0.01mm | 0.01mm | 0.01mm |
| Counting Range: | 0 - 9999.9 | 0 - 9999.9 | 0 - 9999.9 |
Send Inquiry
Similar Products
Company Information
Packaging & Shipping
EXIBITION
FAQ
1) Q: Are you manufacturer or trading company?
A: We are manufacturer and trading company .
2) Q: Are you responsible for installing and training operators overseas?
A: We will do it if you need.
3) Q: How do you provide after sales service?
A: We provide technical support online as well as overseas services provided by our skilled technicians.
A: We provide technical support online as well as overseas services provided by our skilled technicians.
4) Q: How does your factory control product quality?
A: Every machine has to be tested before loading.
5) Q:How can I trust you that machines pasted testing before shipping?
A: 1) We can record the testing video for your reference if you need, or;
2) You can come to our factory for acceptance.
6) Q: Do you sell only standard machines?
A: Besides standard machines, we can also manufacture these machines as requested.
