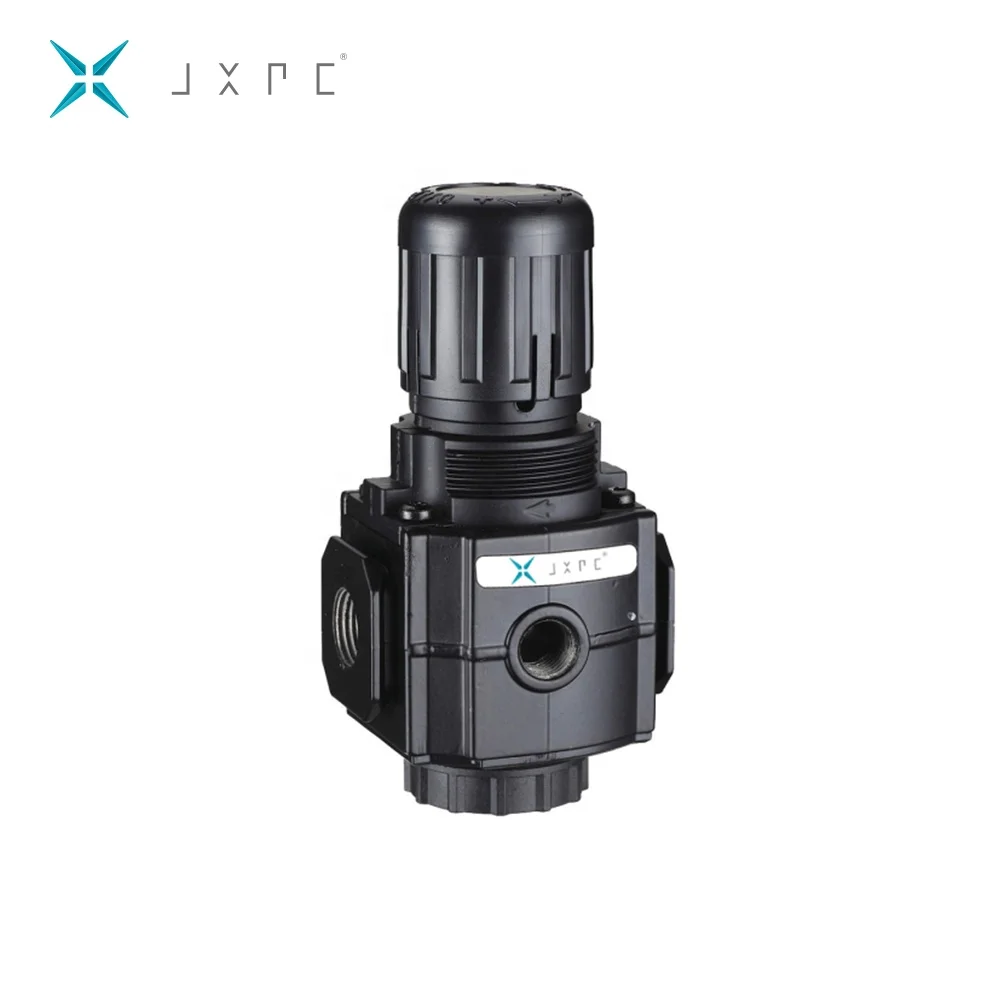

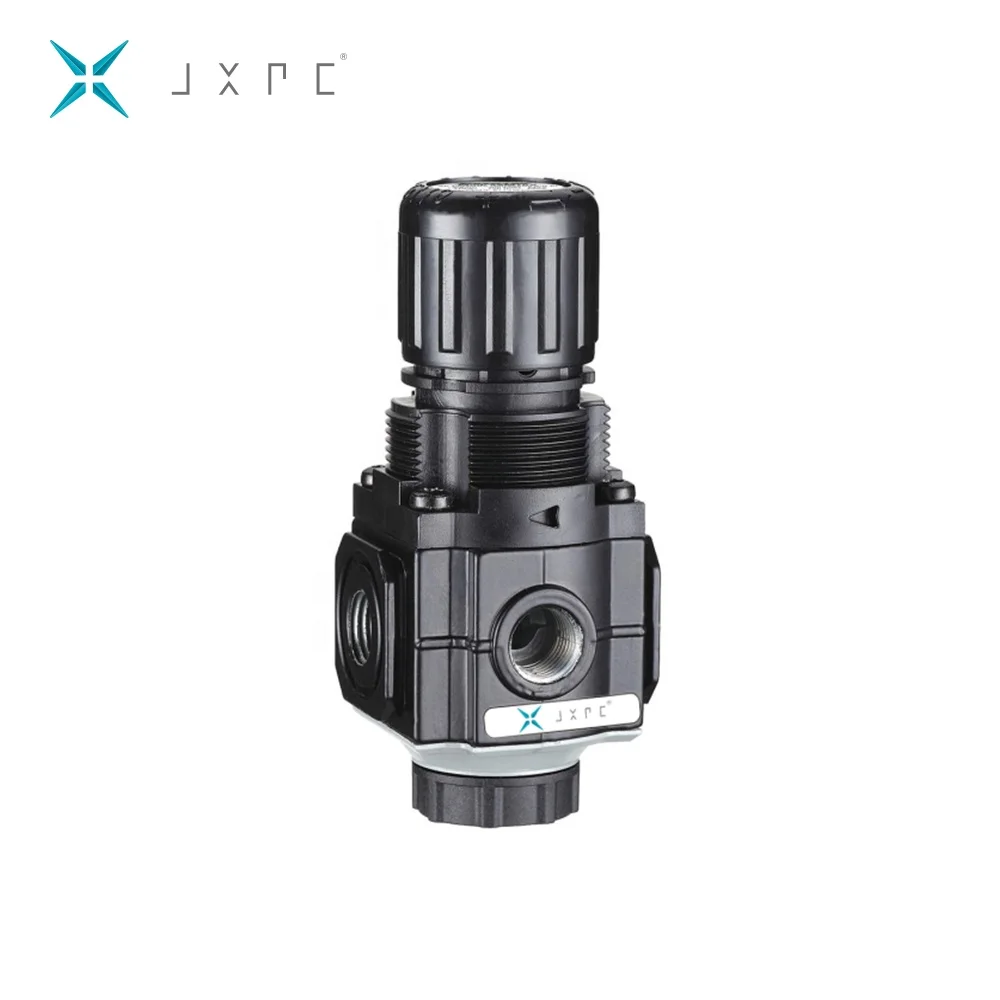

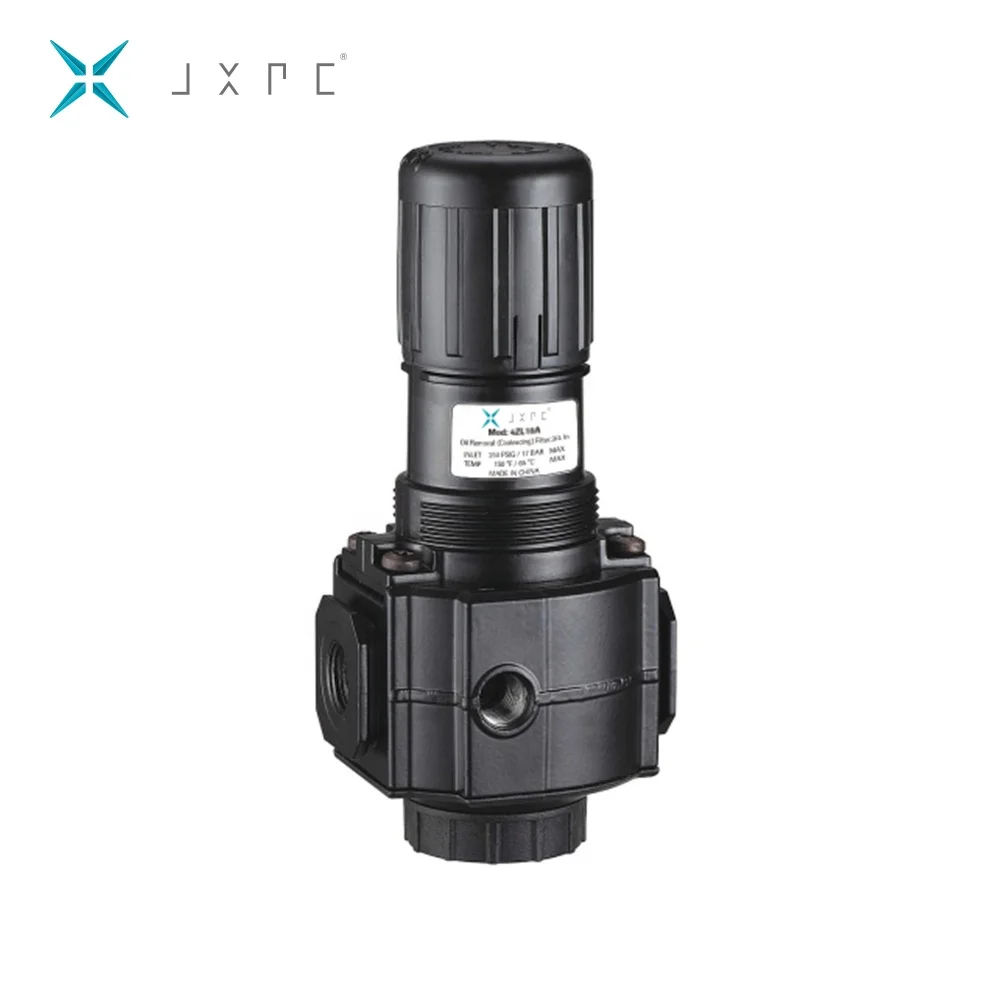

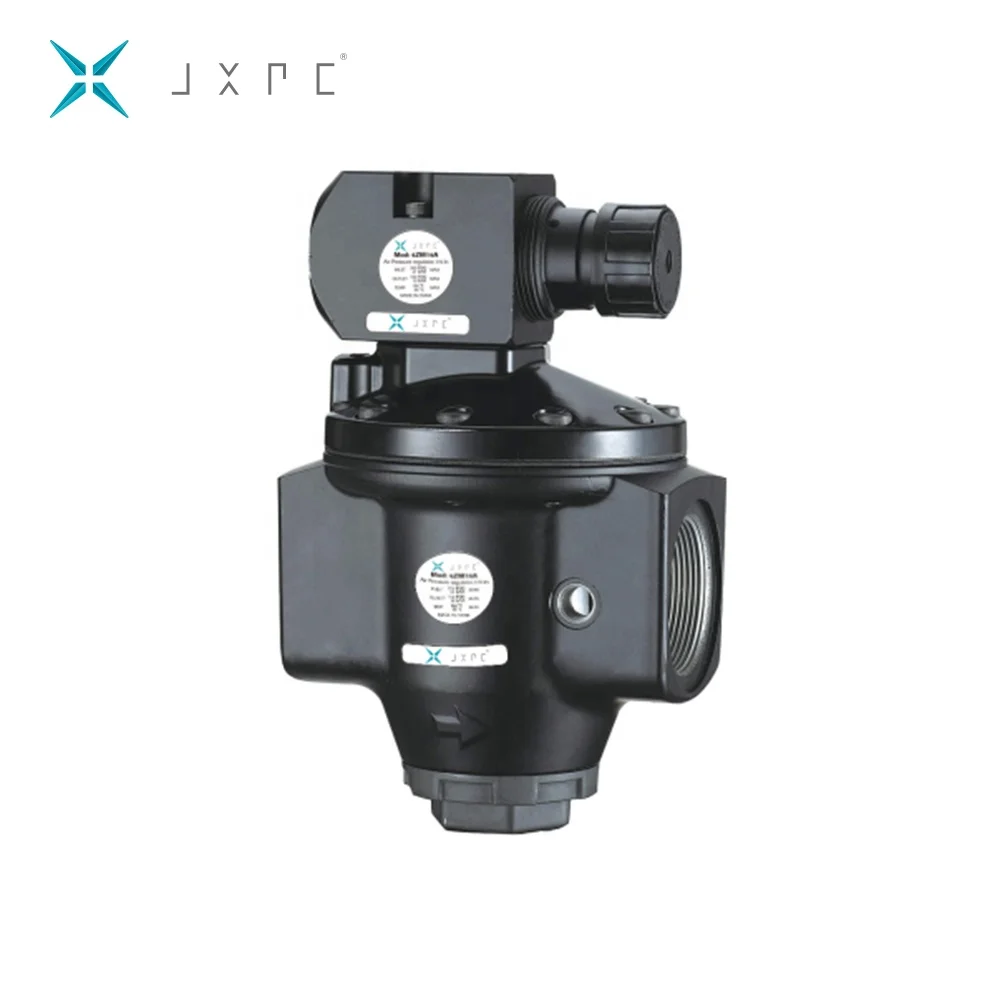

JXPC Type Intermediate 4ZM 18 Pneumatic Air Regulator

Product Overview

Description

PRODUCT DESCRIPTION

•   Temperature Range: 0-60 Degree


•   Primary Pressure:1-16 bar


•   Body Material: Aluminum Die-casting Forming


•   Prepares Air Properly For All Types Of Compressed Air Tools And Equipment


•   The Filter Removes Solid Particles And Condensates With Compressed Air


•

Specification	4Z Series Air Regulator
	Minature	Minature		Minature(Brass body)		Compact		Compact(Manifold
Model Type	4ZM13	4ZM07	4ZM08	4ZM05	4ZM06	4ZM14	4ZM15	4ZM16	4ZM17
Medium	Compressed Air
Pressure Adjusting Range	0.05-0.85MPa(5 psi-125psi)					0.05-1MPa(5psi-150psi)
Max. Working Pressure	1.7MPa(250psi)	2MPa(300psi)		2.7MPa(400psi)
Working Temperature	5-60
Flow Rate(cfm)	12	14	15	10	10	70	70	83	83
Weight(KG)	0.12	0.16	0.15	0.23	0.23	0.45	0.45	0.45	0.43
Port Size(NPT)	1/4	1/8	1/4	1/8	1/4	1/8	1/4	1/4	3/8
Pressure Gauge	NPT 1/8
Specification	4Z Series Air Regulator
	Intermediate			Standard Compact			Heavy Duty
Model Type	4ZM13	4ZM07	4ZM08	4ZM05	4ZM06	4ZM14	4ZM15	4ZM16	4ZM17
Medium	Compressed Air
Pressure Adjusting Range	0.05-0.85MPa(5 psi-125psi)					0.05-1MPa(5psi-150psi)
Max. Working Pressure	1.7MPa(250psi)	2MPa(300psi)		2.7MPa(400psi)
Working Temperature	5-60
Flow Rate(cfm)	12	14	15	10	10	70	70	83	83
Weight(KG)	0.12	0.16	0.15	0.23	0.23	0.45	0.45	0.45	0.43
Port Size(NPT)	1/4	1/8	1/4	1/8	1/4	1/8	1/4	1/4	3/8
Pressure Gauge	NPT 1/8
