YTB 8600 High Speed EPC system 8 colour copy paper flexo printing machine
- Category: >>>
- Supplier: Ruian Hwasen Machinery Co. Ltd.
Share on (1600599075434):
Product Overview
Description
YTB-8600 High Speed EPC system 8 colour copy paper flexo printing machine
1.Use:
This machine is suitable for printing such packing materials as polyethylene, polyethylene plastic bag glass paper and roll paper etc. And it is a kind of ideal printing equipment for producing paper packing bag for food, supermarket handbag, vest bag and clothes bag, etc.
2.Characteristics:
1)Reasonable structure, advanced technology, easy operation, stable performance, accurate color register.
2)Adopting high-quality motor, high-quality inverter, save the electricity, reduce the run fluctuation.
3)When the machine is stopped working, printing rolls still keep moving; when rise the printing roller ,ink motor running automatically ;when fallen the printing roller, ink motor stop running automatically.
4)The machine is equipped with blower and heater; and the heater employed central temperature control system.
5)The use of individual drying oven and cold wind system can effectively prevent the ink adhesion after printing.
6)Roller adopts special steel processing, and through special treatment, greatly reduce the beating range.

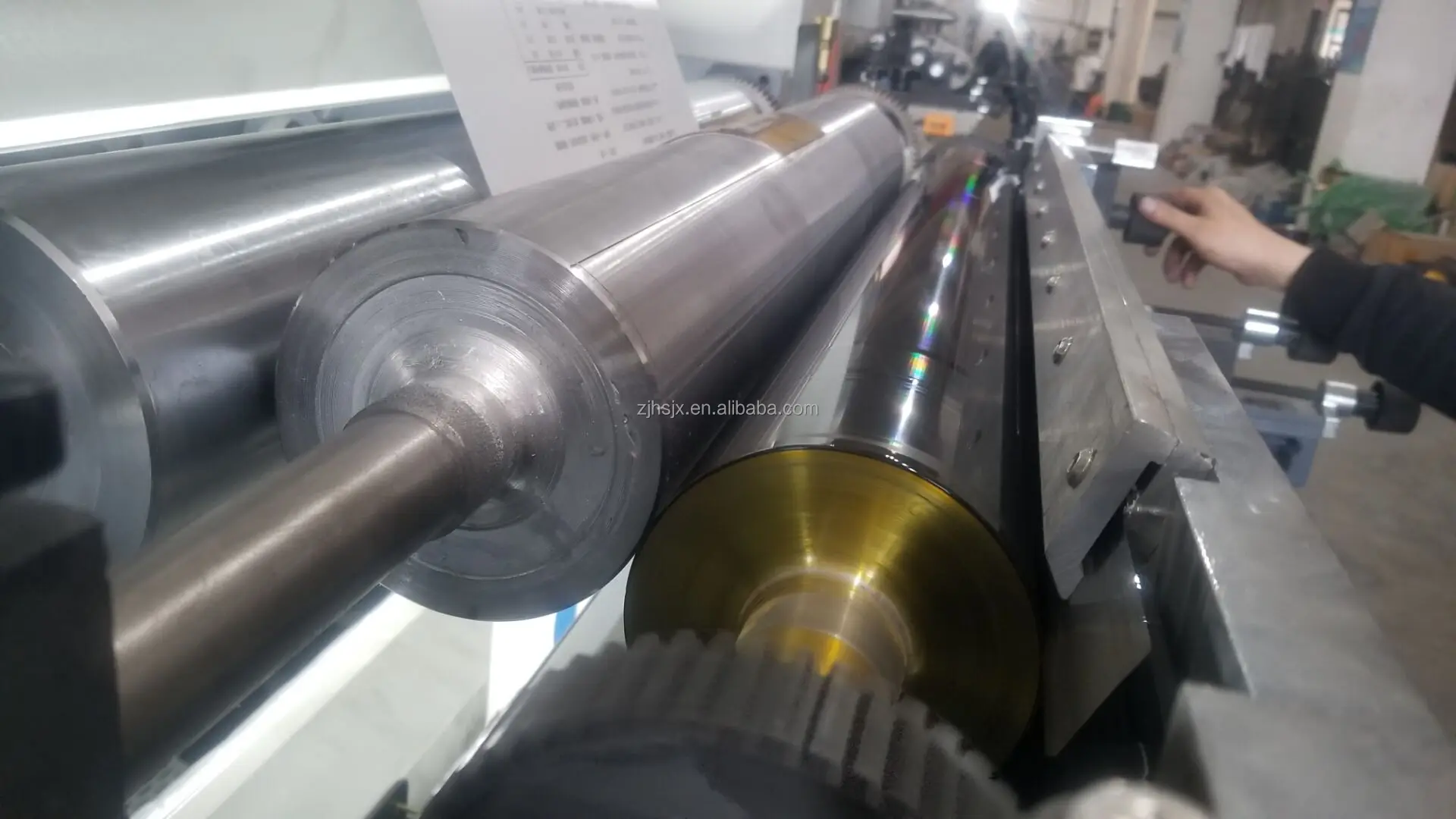

7)Printing roller uses static balance and dynamic balance processing, hard anode oxidation treatment, small resistance, beating small, achieves finally perfect printing effect.
8)Accurate printing effect achieved by special gear transmission device.
9)The printing machine all can choose advance configurations to achieve the high quality, the high-definition effect.
3.Suitable material
Kraft paper:40-350g/ single-sided coated paper:30-350g/copy paper:15-350g/firecrackers and paper:40-350g/paper money and incense:25-350g/silicone paper:50-350g/coated paper:30-350g/dust-free paper:25-350g/Release paper:40-350g/composite paper:30-350g/ |
PVC:10-120g/ OPP:10-120g/PE :10-120g/PET: 10-120g/CPP:10-120g |
4. Main Technical Specification
2.1 Main parameter | ||
Model | YTB-8600 | |
Max unwind width | 600mm | |
Max. Effective print width | 560mm | |
Material | Non-woven fabric:15-120g; Paper:15~400g; PVC:15~120μm; OPP:10~100μm; BOPP:10~100μm; PE:15~150μm; NY:15~120μm; PET:15~100μm | |
Printing color | 8 colors | |
Max.Length of Printing | 200-800mm | |
Machinery mechanical speed | 10-100m/min | |
Max.Speed of Material Printing | 10-90m/min | |
Rubber plate thickness | 2.38mm | |
Total power | 50kw | |
machine weight | 6000kg | |
machine dimension | 5×2.6×2.6m | |
Power condition | 380V,3PH,50HZ/220V,3phase,60HZ | |
2.2 Unwind Unit | ||
Max.unwind roller width | 1900mm | |
Max.effective length | 1200mm | |
Max.Unwind diameter | 800mm | |
Type of Unwind | auto tension with magnetic powder | |
Unwinder Magnetism device | 5kg | |
Unwind auto tension controller | 2—20kg | |
Unwind EPC system | Electrical EPC system | |
Feeding shaft | Air shaft | |
Axis core diameter | 76mm | |
2.3 Traction Unit | ||
Constitution of Traction | Aluminum roller,Chrome plated Roller | |
Traction Zones | 6Zones | |
2.4 Printing Unit | ||
Constitution of Printing | Anilox roller, Rubber roller, Chrome plated roller, Version roller Resin version, Scraper | |
Girth of Pressing Roller | 200-1100mm | |
Material of Plate | Resin or Rubber | |
Principle of Work | Gears Drive | |
Adjusting of Register | Manual | |
Overprint Precision | Horizontal:+-0.15mm,Vertical:+-0.2mm | |
Plated-glued roller adjusting | hydraulic type of plate-cylinder | |
Anilox Roller | Ceramic Anilox Roller:1 pcs/per color | |
Rubber rollers | 1 pcs/per color | |
Scraper | Ordinary | |
2.5 Heating and Drying Unit | ||
Type of Heating and drying | blowing first then heating | |
Heating Zones | 12 zones | |
Power of Heating | 15kw | |
Assistance of Drying Length | 2m | |
Blowers | 8 Fans | |
Power of Blowers | 1.5kw×2pcs; 0.2kw×6pcs | |
2.6 Electrical Parts | ||
Main motor | 4.5kw | |
Ink-Transfer Motor | 0.2kw | |
Inverter | 4.5kw | |
Tension test | 2--30kg | |
2.7 Wind Unit | ||
Max. Rewind roller width | 1900mm | |
Max. Rewind diameter | 600mm | |
Type of Wind | Auto tension with magnetic powder | |
Rewinder Magnetism Powder | 5-10kg | |
Collect Reducer Motor | 1.5kw | |
Auto tension controller | 2—20kg | |
The receiving shaft | Air shaft | |
Axis core diameter | 76mm | |

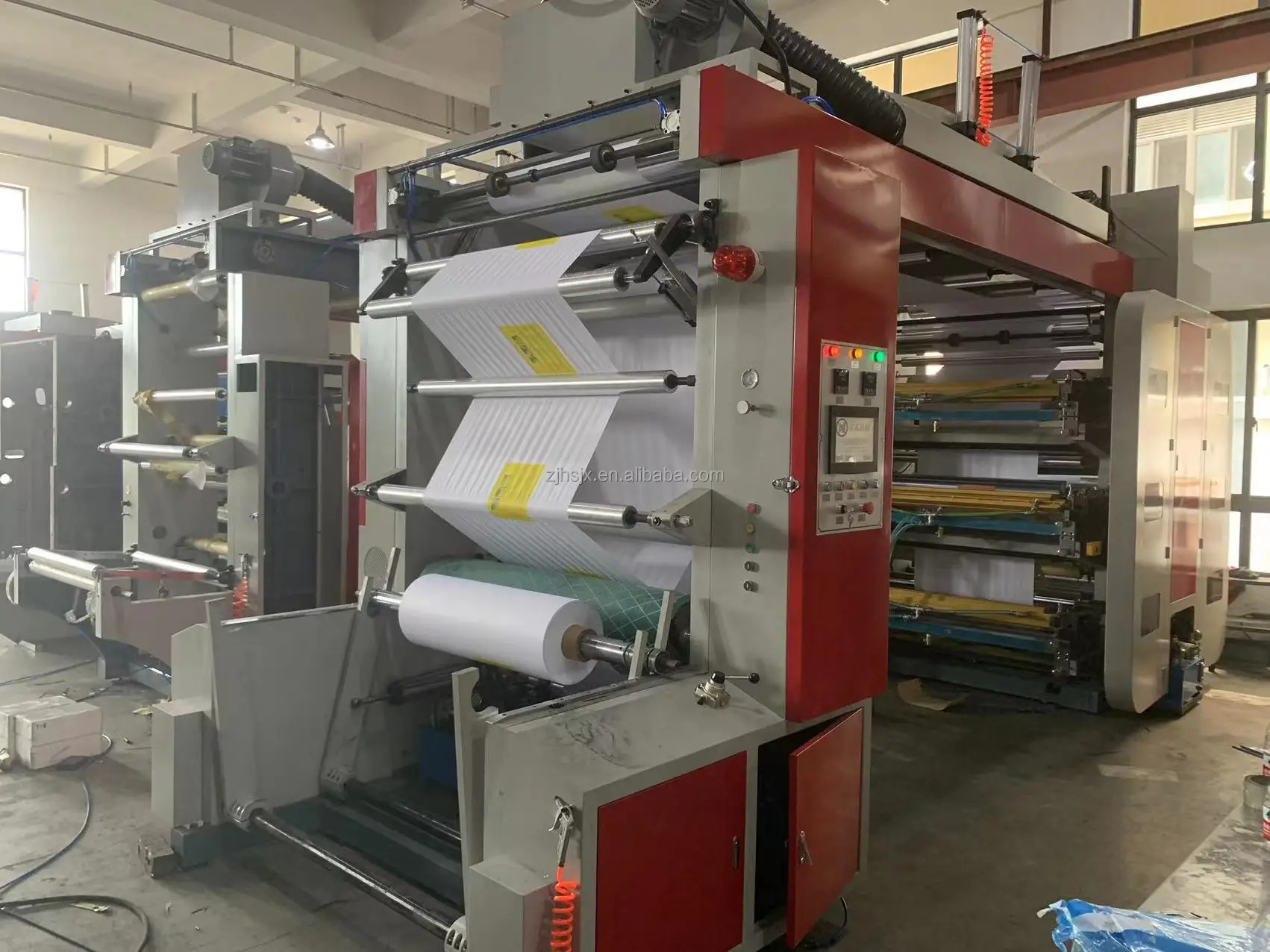

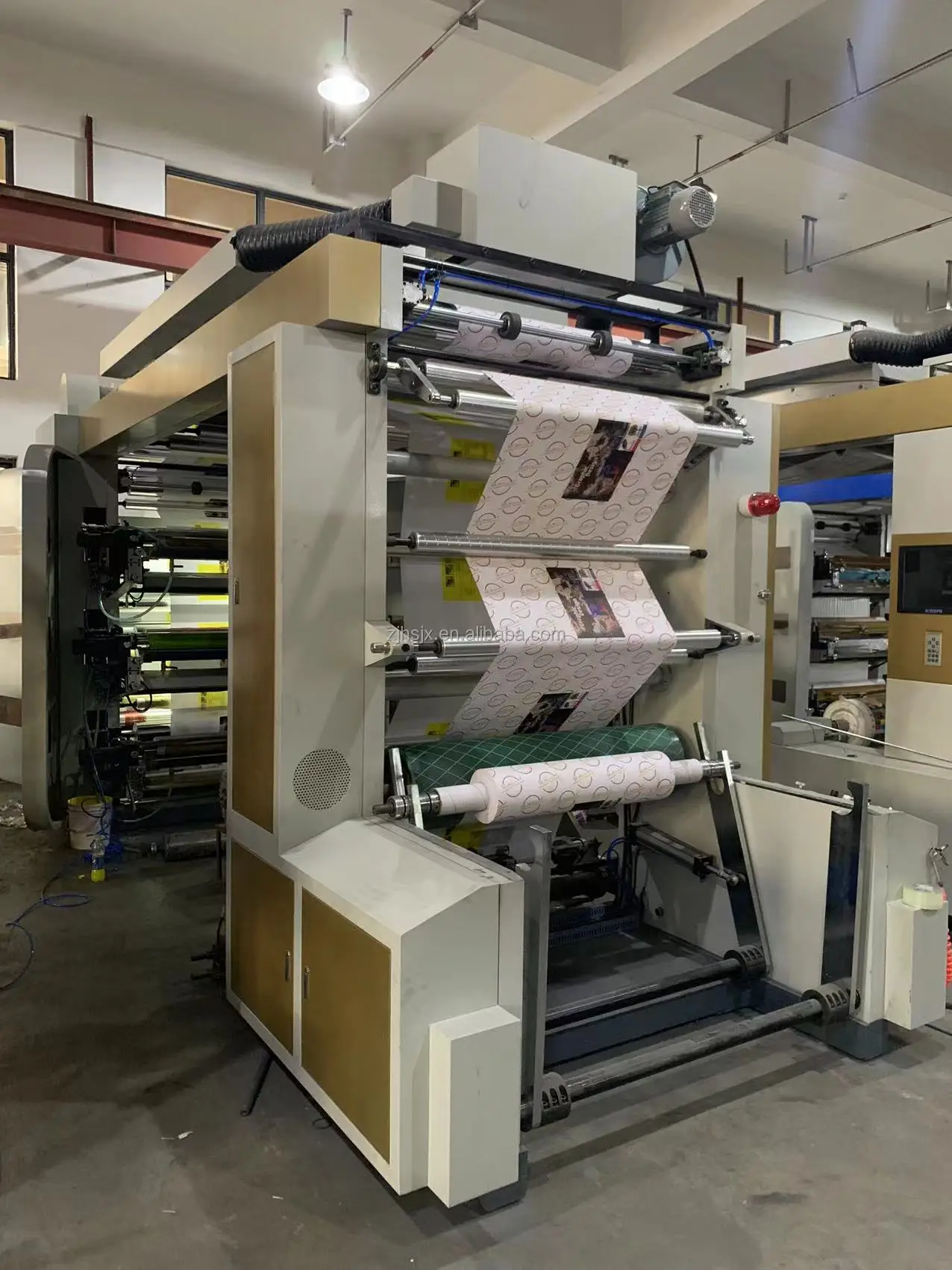

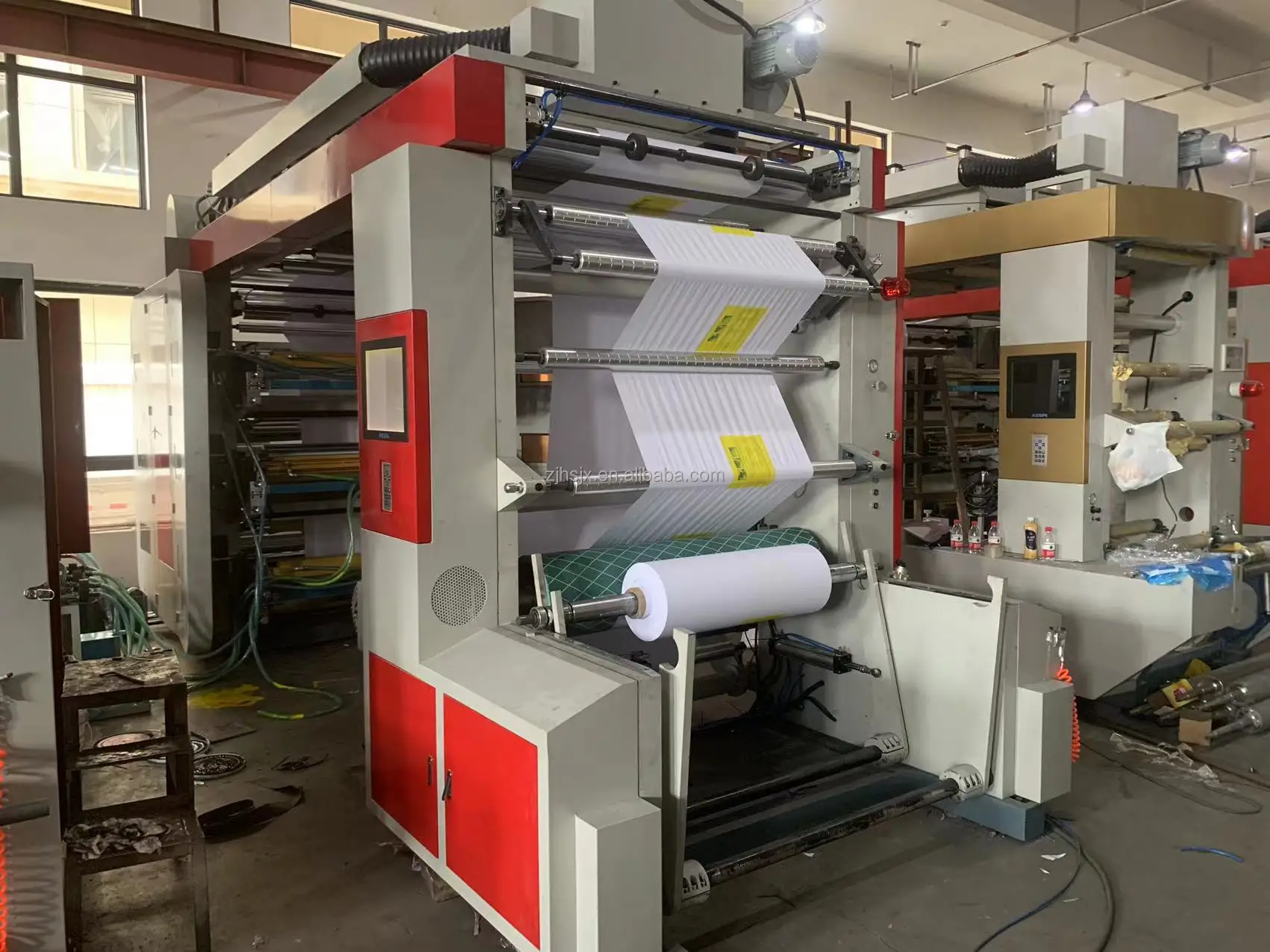

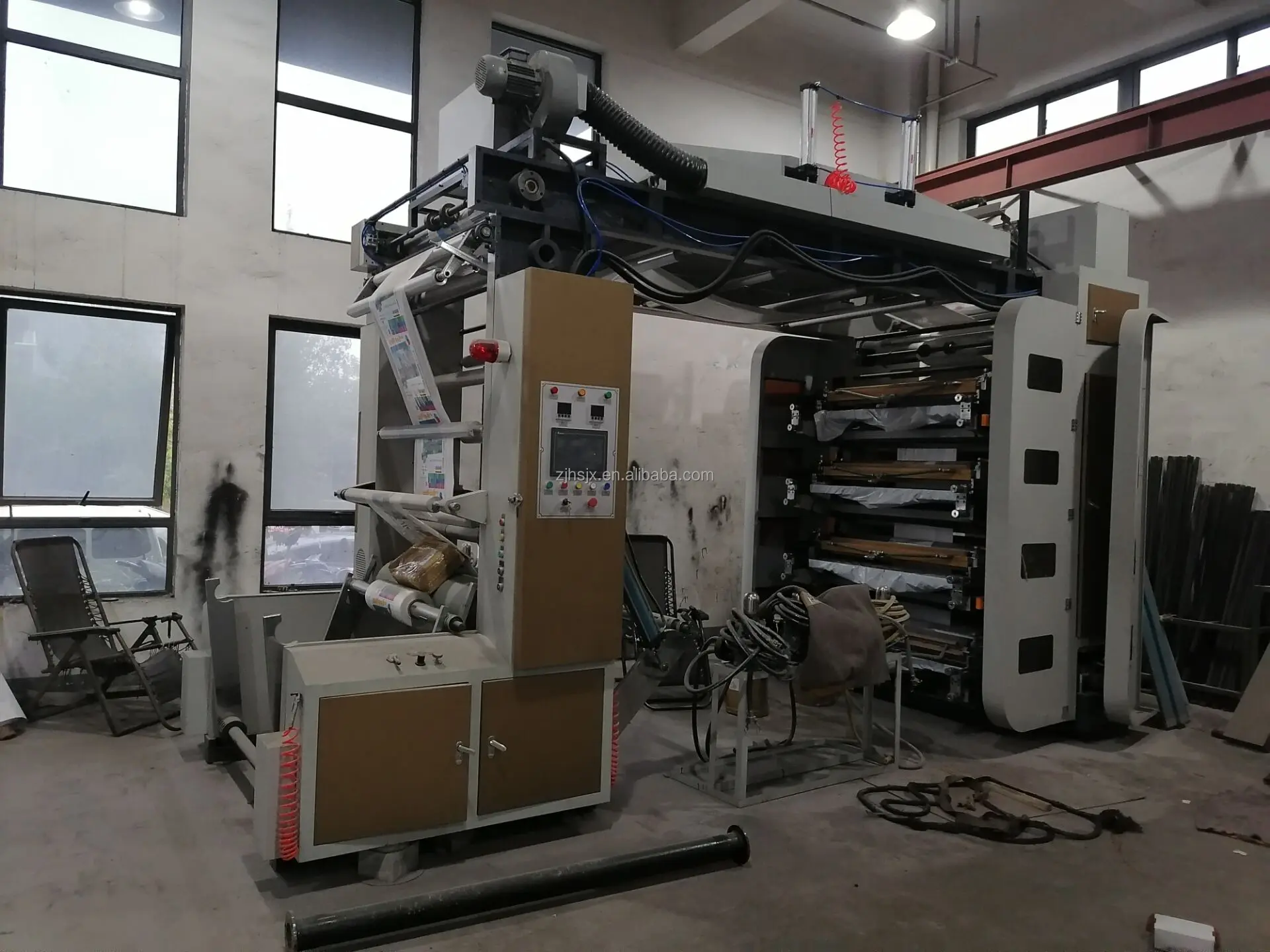

6. Detail picture display
