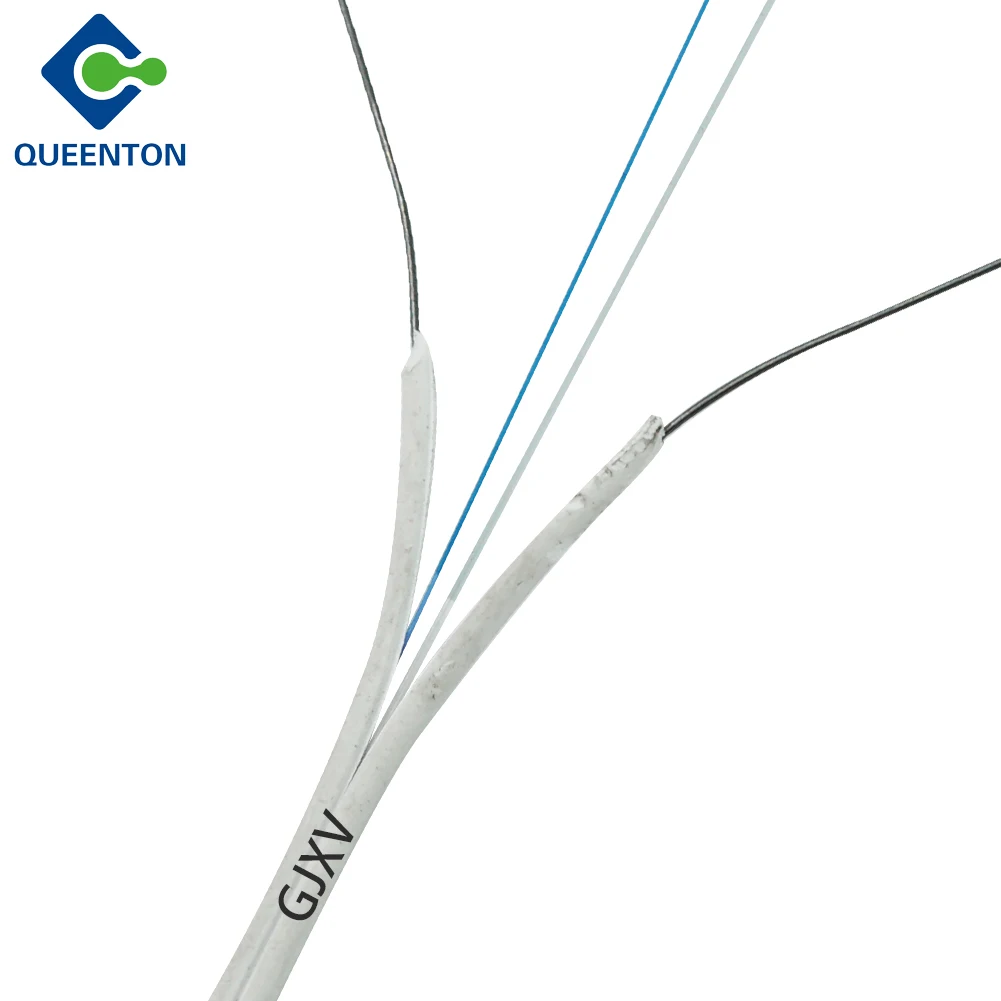

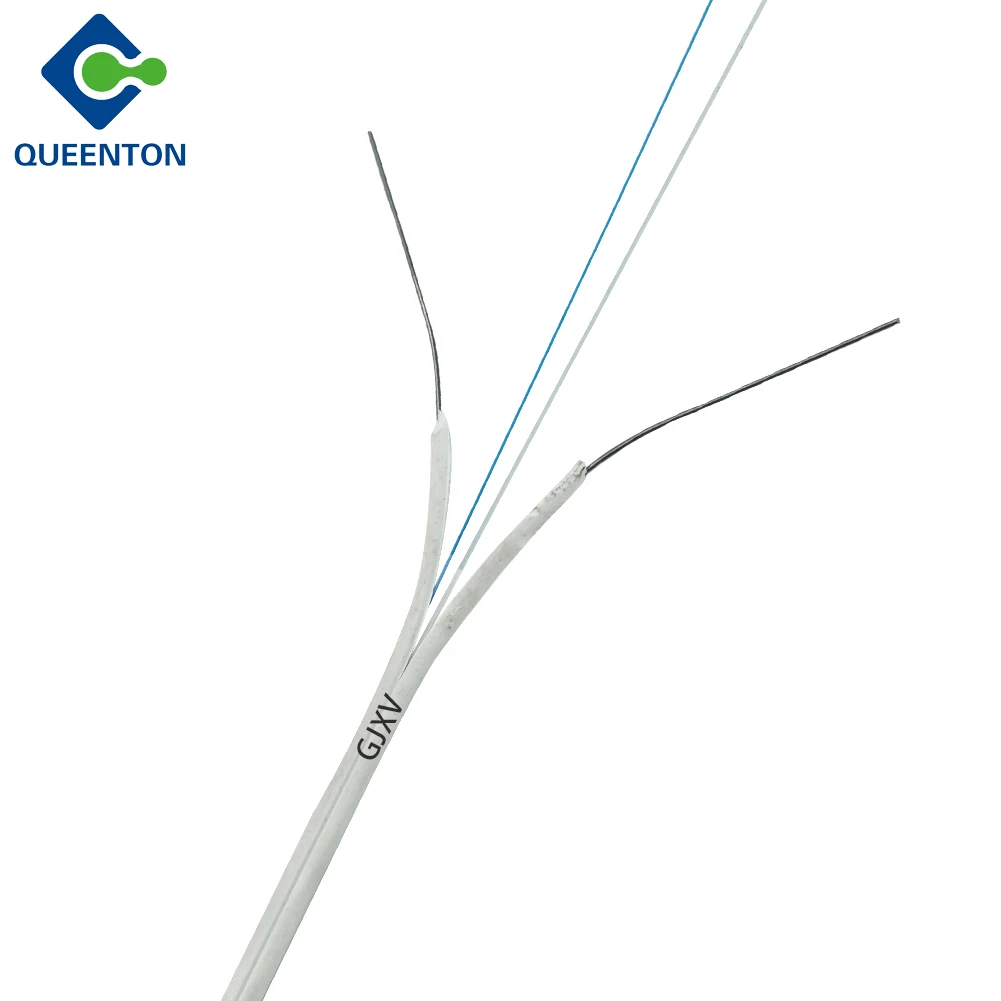

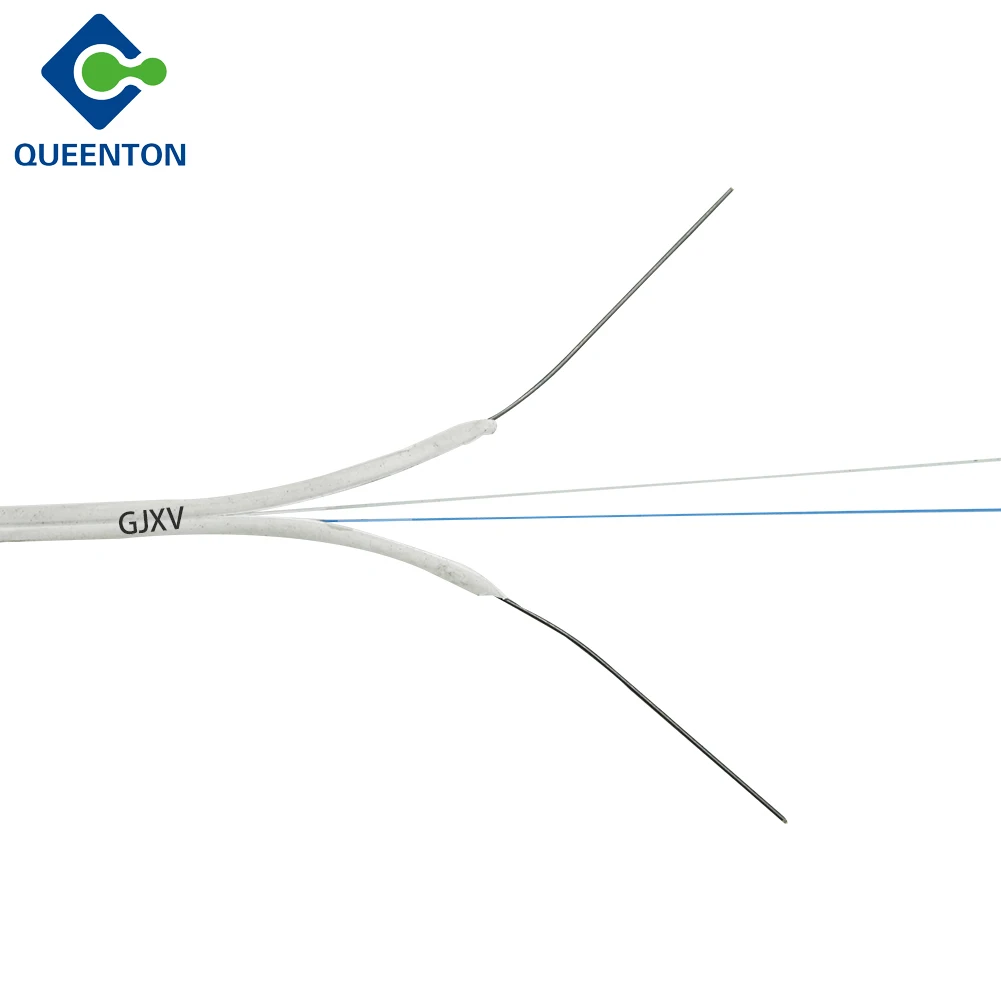

Network Building Self Support Outdoor Single Mode Fiber Optic Cable GJXV 1 12 Cores G657A Indoor Fiber Optic Drop Cable
- Category: >>>
- Supplier: Guangzhou Qiton Electronics Technology Co. Ltd.
Share on (1600599087323):
Product Overview
Description

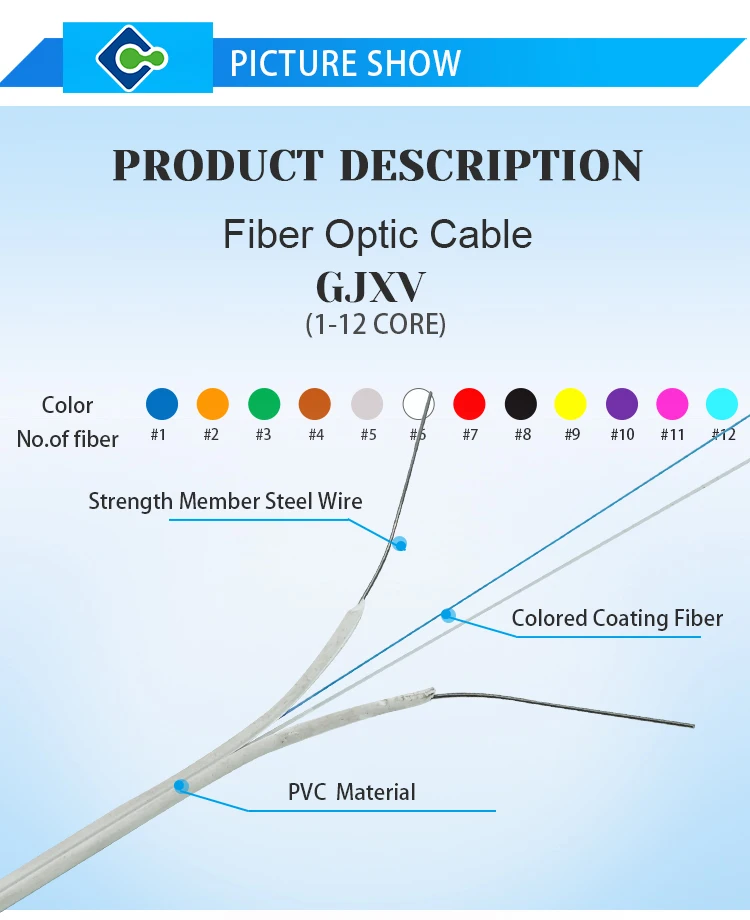

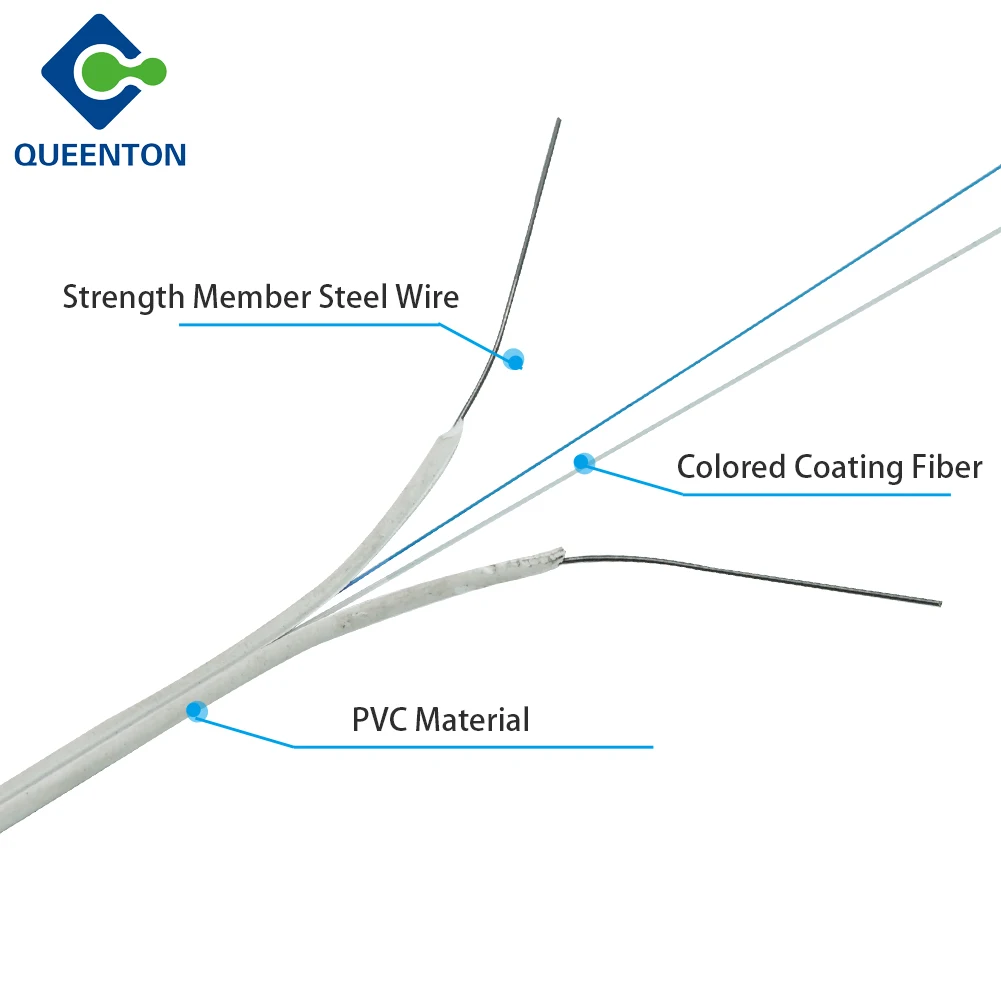

China FTTH Water Swell able Material 1Core/2Core GJXV Drop Cable Single Mode Fiber Optic Cable
Product Description
| Technical Parameters | ||||||
| Fiber Count | Cable Diameter(mm) | Cable Weight(kg/km) | Tensile Strength(N/100mm) | Crush Resistance (N/100mm) | ||
| Short Term | Long Term | Short Term | Long Term | |||
| 1-4 | 3.0*2.0 | 9.0 | 80/200 | 40/100 | 1000/2200 | 500/1000 |
| Optical Characteristics | ||||||||||||
| Fiber Type | Attenuation | Ovrfilled launch Bandwidth | Effective Modal Bandwidth | 10GB/S Ethernet link length | Min Bending Radius | |||||||
| Conditions | 1310/1550nm | 850/1 300nm | 850/1300nm | 850nm | 850nm | |||||||
| Unit | dB/km | dB/km | MHZ.km | MHZ.km | m | mm | ||||||
| G652D | 0.36/0.22 | 16 | ||||||||||
| G657A1 | 0.36/0.22 | 10 | ||||||||||
| G657A2 | 0.36/0.22 | 7.5 | ||||||||||
| 50/125 | 3.0/1.0 | > 500/500 | 30 | |||||||||
| 62.2/125 | 3.0/1.0 | > 200/500 | 30 | |||||||||
| OM3 | 3.0/1.0 | ≥1 500/500 | ≥2000 | ≥300 | 30 | |||||||
| OM4 | 3.0/1.0 | ≥3500/500 | ≥4700 | ≥550 | 30 | |||||||
| B1-OM3 | 3.0/1.0 | ≥1 500/500 | ≥2000 | ≥300 | 7.5 | |||||||
| B1-OM4 | 3.0/1.0 | > 3500/500 | > 4700 | ≥550 | 7.5 | |||||||
Product Functions

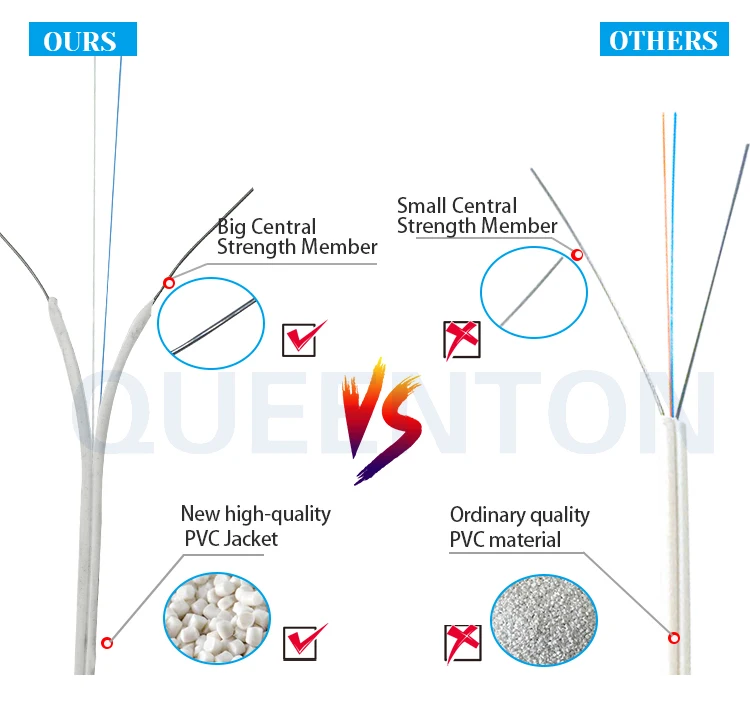

| Product Feature |
Good mechanical and environmental characteristics. |

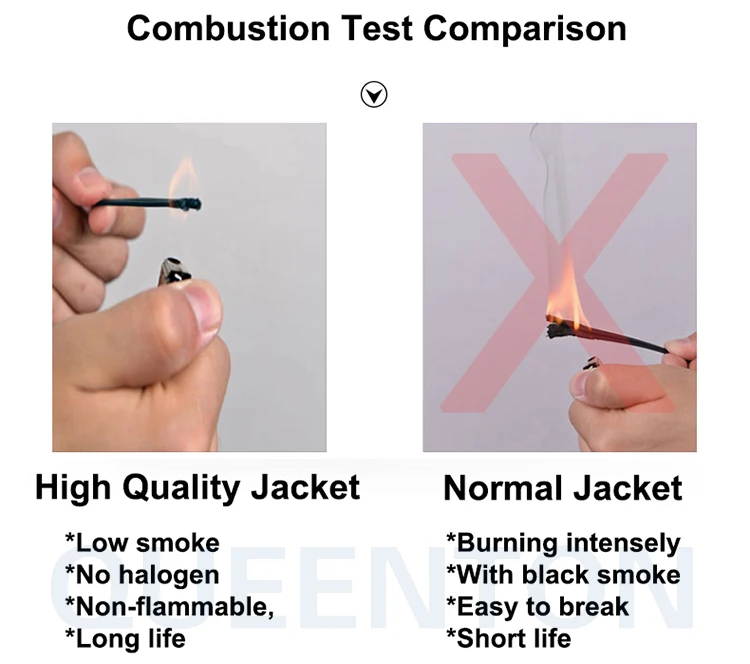

| Rame retardant characteristics meet the requirements of relevant standards. |
| The mechanical characteristics meet the requirements of relevant standards. |
| Soft, flexible, easy to lay and splice, and with big capacity data transmission. |
| Meet various requirements of market and clients. |
| Product Applications |
| Used as access building cable. |

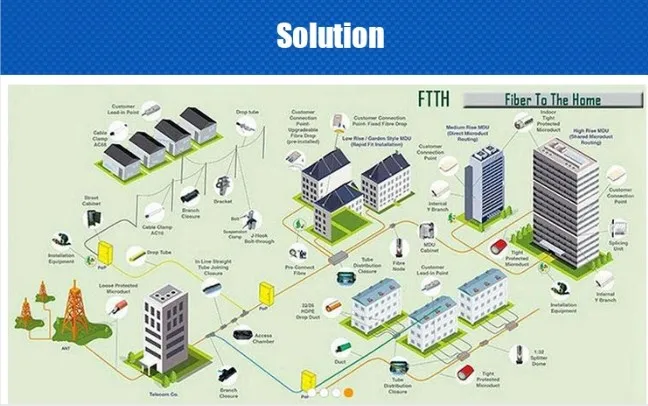

| Used in indoor cabling, especially used for FTTH. |
Why Choose Us
Company Information
Product packaging
FAQ
Q1:What is your main products?
A:Our company, Queenton supply ONUs, OLTs, Business Board, and fiber optic accessories, like fast connectors, adapters, splitters, drop cable, patch cord.
Q2:What is your payment terms?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the prepared photos of the products and packages before you pay the balance.
Q3:Can we get free samples?
A:Sorry, it is not available for initial order.
Q4:is your terms of trade?
A: We offer EXW,FOB,CIF and CNF or as your request.
Q5:How long is the warranty?
A:ONUs and OLTs have 1 year warranty.
Q6:How about your delivery time?
A: Generally, it will take 3 to 5 days after receiving your deposit. The specific delivery time depends on the items and the quantity of your order.Large quantity will delivery faster.
Q7:Do you test all your goods before delivery?
A:Yes, we have professional engineer to test all devices before shipping.
Q8:How do you make our business long-term and good relationship?
A: 1. We keep good quality and steady price to ensure our customers benefit ;
A: 2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
A: T/T 30% as deposit, and 70% before delivery. We'll show you the prepared photos of the products and packages before you pay the balance.
Q3:Can we get free samples?
A:Sorry, it is not available for initial order.
Q4:is your terms of trade?
A: We offer EXW,FOB,CIF and CNF or as your request.
Q5:How long is the warranty?
A:ONUs and OLTs have 1 year warranty.
Q6:How about your delivery time?
A: Generally, it will take 3 to 5 days after receiving your deposit. The specific delivery time depends on the items and the quantity of your order.Large quantity will delivery faster.
Q7:Do you test all your goods before delivery?
A:Yes, we have professional engineer to test all devices before shipping.
Q8:How do you make our business long-term and good relationship?
A: 1. We keep good quality and steady price to ensure our customers benefit ;
A: 2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
