450 Kg 1000kg mobile trailer hydraulic lift scissor lifting platform 6 m 20m 25m
- Category: >>>
- Supplier: Henan,Welift,Machinery,Co.,Ltd.
Share on:
Product Overview
Description
Products Description
scissor lift table with wheels Of Main Features:
Built-in ladder
Giant pneumatic tire,solid rubber tire or polyurethane tire
Deep gray enamel finish , powder coating
Manually propelled, semi-auto manually
Totally enclosed platform
Self-storing outriggers
Rated Capacity 1000 lbs., at least four person
Customized 220 volt AC power (raise and lower) with thermal overload protection
Built-in ladder
Giant pneumatic tire,solid rubber tire or polyurethane tire
Deep gray enamel finish , powder coating
Manually propelled, semi-auto manually
Totally enclosed platform
Self-storing outriggers
Rated Capacity 1000 lbs., at least four person
Customized 220 volt AC power (raise and lower) with thermal overload protection

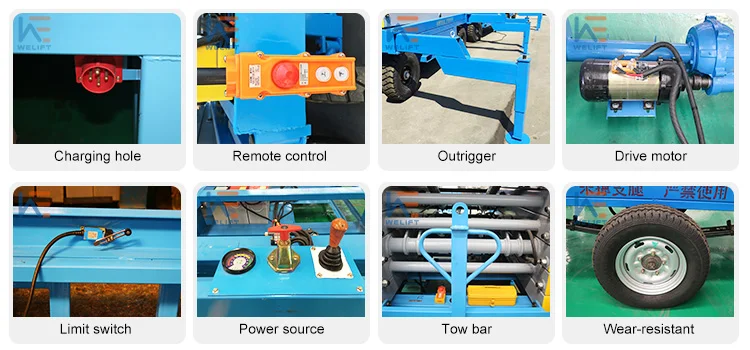

Details Images
Model | Table Size | Load capacity | Platform Height | Working Height | Dimension |
SJY0.5-4 | 2100*830mm | 500kg | 4m | 6m | 2250*950*1100mm |
SJY0.5-6 | 500kg | 6m | 8m | 2250*950*1200mm | |
SJY0.5-7 | 500kg | 6.8m | 8.8m | 2250*950*1280mm | |
SJY0.5-8 | 2100*930mm | 500kg | 8m | 10m | 2250*1060*1380mm |
SJY0.5-9 | 500kg | 9m | 11m | 2250*1060*1500mm | |
SJY0.5-10 | 500kg | 10m | 12m | 2250*1350*1530mm | |
SJY0.3-11 | 300kg | 11m | 12.7m | 2250*1350*1650mm | |
SJY0.5-12 | 2500*1530mm | 500kg | 12m | 14m | 2790*1670*1750mm |
SJY0.5-14 | 2800*1530mm | 14m | 16m | 3060*1730*1810mm | |
SJY0.3-16 | 2800*1600mm | 300kg | 16m | 18m | 3060*1810*2080mm |
SJY0.3-18 | 3070*1600mm | 18m | 20m | 3321*1810*2080mm |
1.Strong basket fixed on the platform to ensure safety of operator
2. Plastic spraying paint to make rust protection better

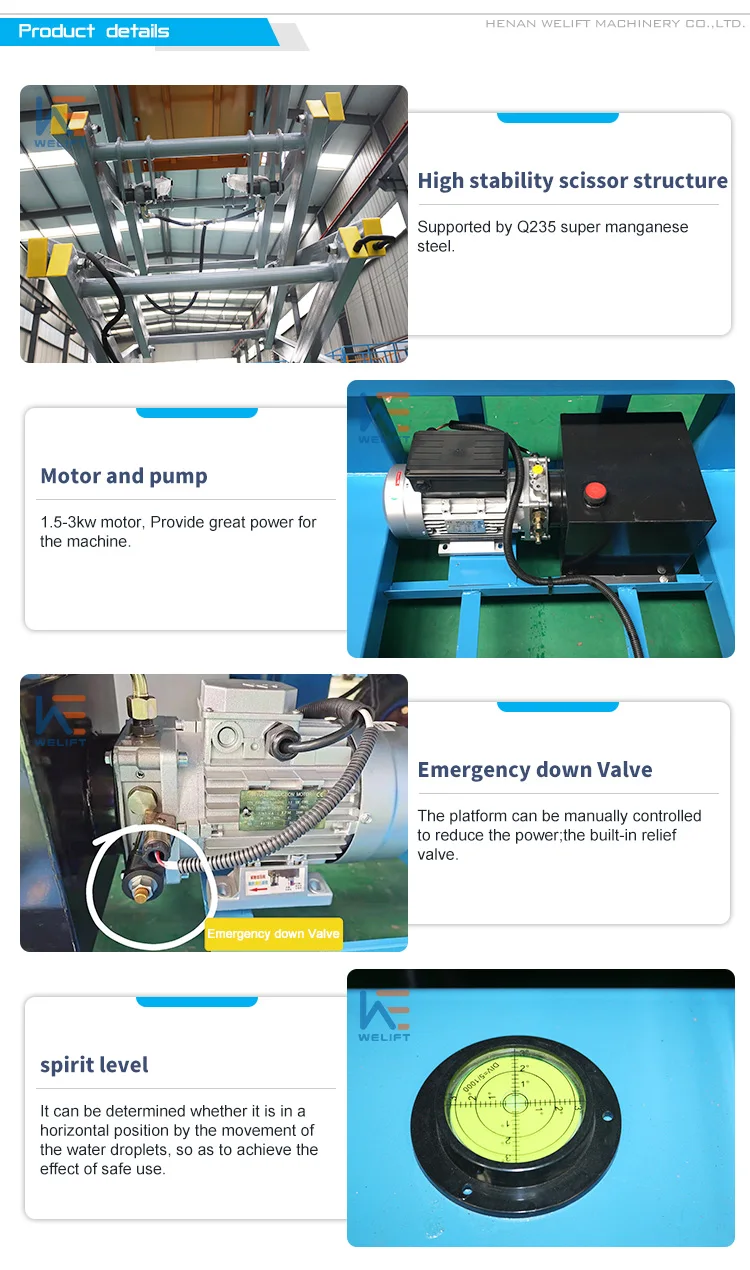

3.Mobile scissor lift platform adopts high-strength manganese steel structure, much stronger material Q235. High stability scissor aerial work platform, four wheels are easy to move.
4. The conventional configuration is AC power, DC battery or AC+DC are available.
5. Overloading of the lift provided to prevent hydraulic line rupture safety
6. Emergency lowering protection valve device in case of power outage
7.The mile meter can clearly see the speed per kilometer, And the rotary switch of AC And DC can be switched by one button. The Emergency Stop Device can ensure maximum construction safety
8. Double layer steel mesh rubber tube prevent breakage and breakage strong and sturdy
9. There are 4 safety outrigger on the equipment, when the lift working in height,open them to make the lift safe, close them when the lift platform down
10. Well designed manual trailing bar, it is convenient to move the lift by well designed manual trailing bar
10. Well designed manual trailing bar, it is convenient to move the lift by well designed manual trailing bar
11. To ensure safety before lifting up, when the bubble of the level indicator in the middle, it means OK to lift after the outriggers being opened.
