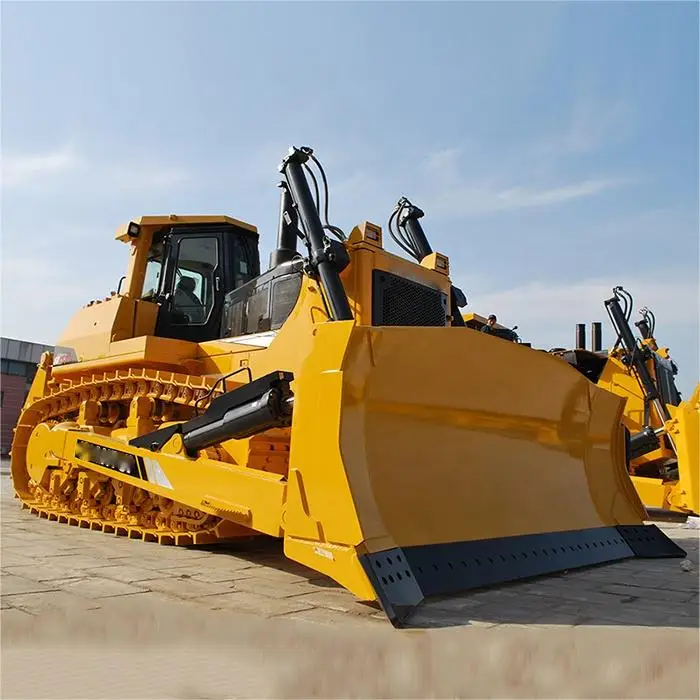

Высокое качество гусеничный бык бульдозер SD42 3 для продажи гусеничный бульдозер
Высокое качество гусеничный бык бульдозер SD42-3 для продажи гусеничный бульдозер
Высокое качество гусеничный бык бульдозер SD42-3 для продажи гусеничный бульдозер

Высокое качество гусеничный бык бульдозер SD42 3 для продажи гусеничный бульдозер

Share on (1600599100198):


Price:679 000,00 $ - 900 000,00 $

Quantity:


Product Overview

Description



Products Description


High Quality Tracked Bull Dozer SD42-3 for sale Crawler Bulldozer
* DH08B2 features China Stage II emission Weichai mechanical engine that meets the national non-road machinery emission requirements, the parts are versatile and the maintenance cost is low.
* Intelligent matching technology to achieve the highest efficiency and the most reasonable fuel economy.
* The ergonomic hexahedron integrated cab has large space, good view and tight seal.
* Suspended single-throttle pedal, small size, large foot movement space, comfortable operation.
* The adjustable range of seat and armrests provides the driver with the most comfortable posture.
* Standard cab + air-conditioning, the whole cab adopts a sealed vibration damping system equipped with sound-absorbing sponge, vibration noise is small and the driver's ear noise can be reduced to 85 decibels. * Intelligent display and control terminal integrated instrument, cigarette lighter, USB charging port, radio, toolbox, sunshade,
fire extinguisher, etc., to provide a richer humanized driving experience, comfortable and safe driving environment.
* The vehicle safety passage system ensures the safety of the driver.


Technical parameters


Engine
Model & type
A19-C525 , In-line, water-cooled, 4-cycle, turbo charged, intercooled, direct injection
Horsepower
Gross power: 340/450/2000 kW/HP/rpm //
Net power: 313/450/2000 kW/HP/rpm
Number of cylinders
6—150 x 150 mm (bore x stroke)
Piston displacement
15.9 L
Operating weight
54.5 t (Ripper included)
Power
transmission
system
Torque converter
3-element, 1 stage, 1 phase
Transmission
Planetary gear, multi-disc clutch,hydraulically connected, forced lubrication
Main drive
Spiral bevel gear, splash lubrication
Steering clutch
Wet, multi-disc, spring loaded,hydraulically separated, hydraulic control
Steering brake
Wet, floating band, hydraulic control
Final drive
1-stage spur gear,1-stage planetary speed reduction, splash lubrication
Travel speed
Gear
1st
2nd
3rd
Forward
0~3.7 km/h
0~6.8 km/h
0~12.2 km/h
Reverse
0~4.4 km/h
0~8.2 km/h
0~14.8 km/h
Undercarriage
system
Type
K type elastic suspended structure,connection with frame pivot
Gradeability
30°
Stability
35°
Track gauge
2260 mm
Ground length
3560 mm
Number of carrier rollers
2 (each side)
Number of track rollers
7 (each side)
Number of track shoes
41 (each side)
Track type
Link master, seal, lubricated type
Width of track shoes
610 mm
Pitch
260.35 mm
Hydraulic
System
Maximum pressure
14 MPa
Pump type
Gear pump
Discharge
243 L/min
Bore of working
cylinder × no.
110 mm × 2
Blade
Blade Type
Semi-U blade
Dozing capacity
16 m3
Blade width
4314 x 1875 mm
Max. drop below
ground of blade
700 mm
Maximum lift height
1545 mm
Riipper
(Optional)
Ripper type
Single-shank ripper
Ripping depth of ripper
1400 mm
Lifting height of ripper
1130 mm


Details Images




Sales Service




About Us






Packaging & Shipping




FAQ




1:Are you original manufacture?
A:Yes, we are an official leading manufacture in constrution machinery in china and we have the whole series products you need.
2:What kind terms of payment can be accepted?
A:Normally we can work on T/T term or L/C term.
3:Whick incoterms 2010 terms can we work?
A:Normally we work on FOB,CFR,CIF.
4:What about the delivery time?
A:7-30 days after receving the deposit.
5:What about the warrenty time?
A:12 months afer shipment or 2000 working hours.
6:What about the Minimum Order Quantity?
A:The MOQ is 1 pcs.
