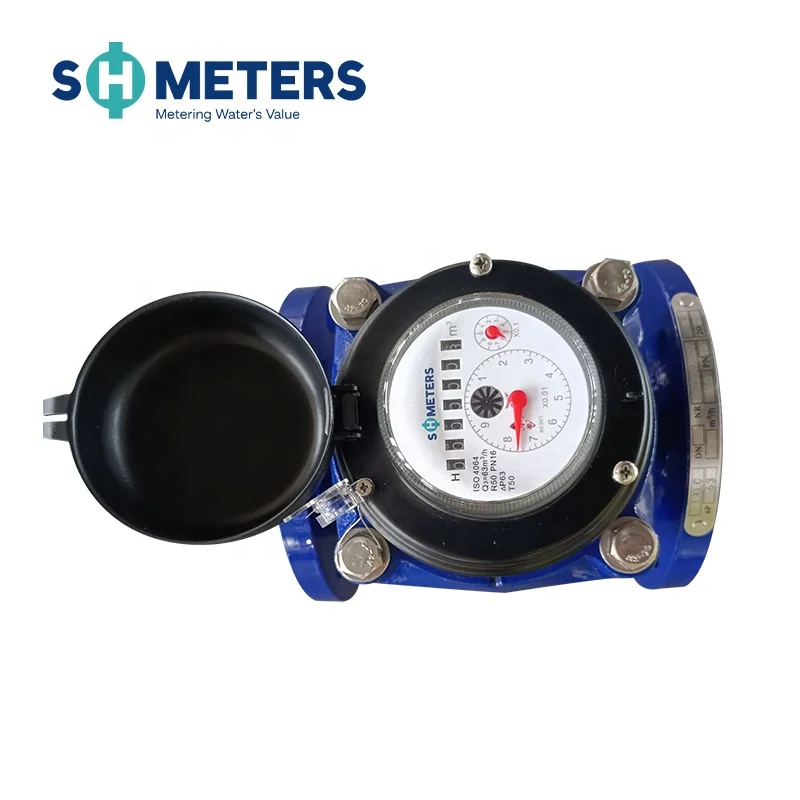

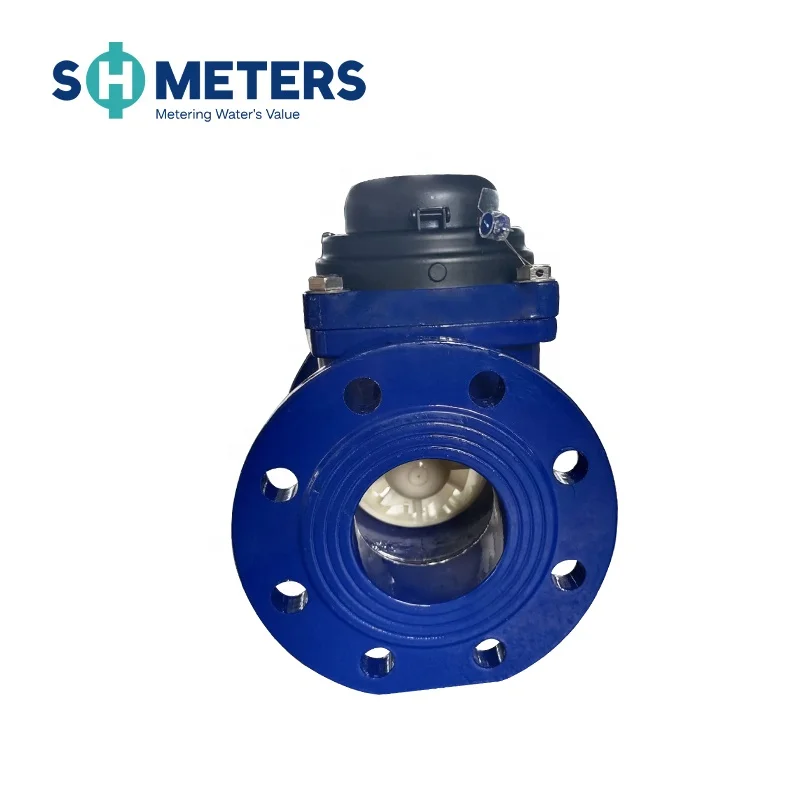

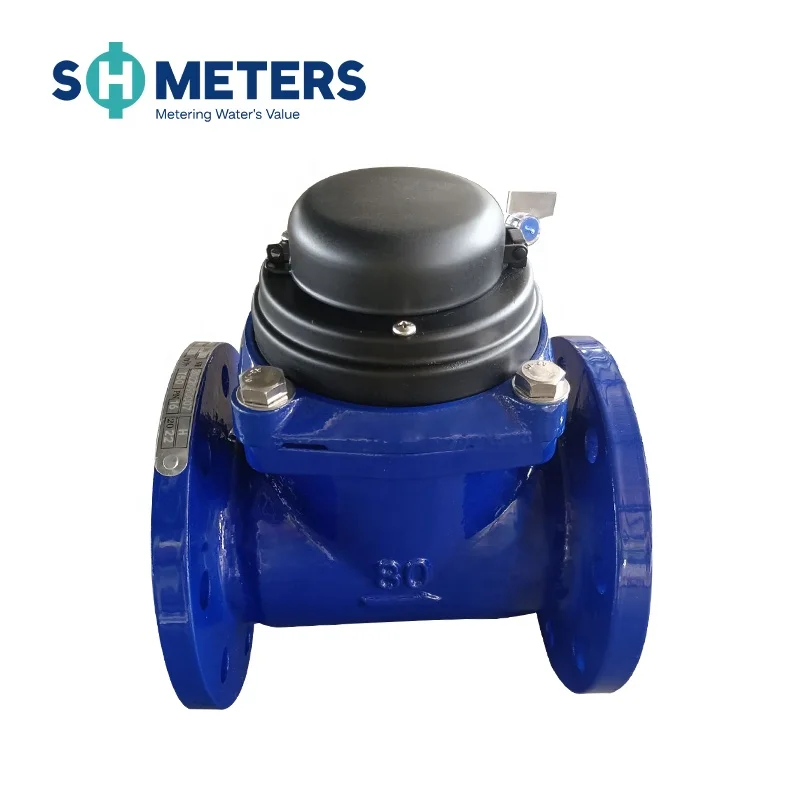

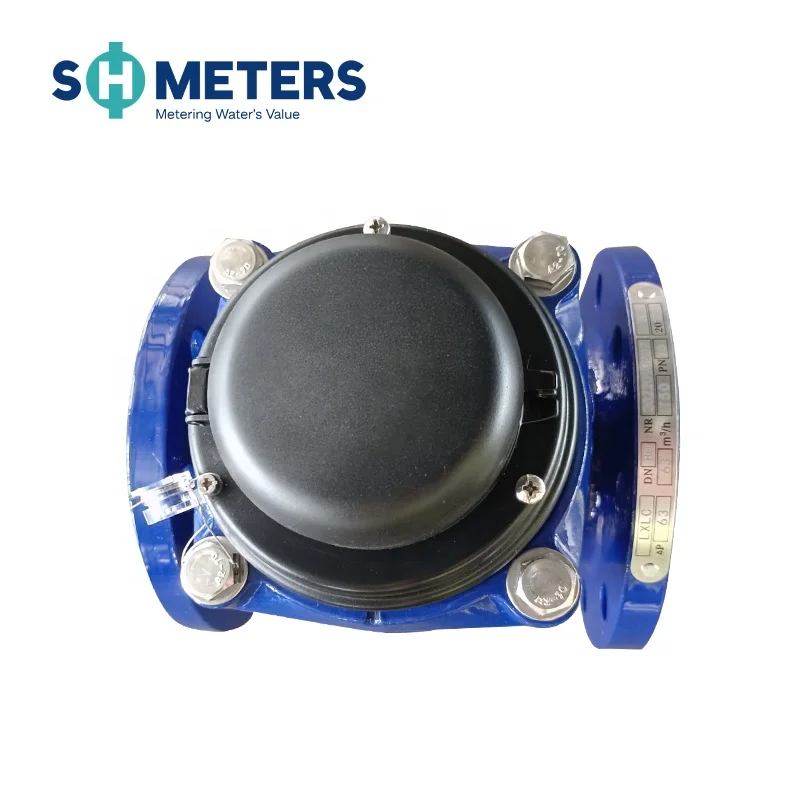

High accuracy industrial woltman dn 300 water meter
- Category: >>>
- Supplier: Hebei Shanghong Meters Technology Co. Ltd.
Share on (1600599122576):
Product Overview
Description
Product Description
Specification
Features | Optional Features | ||||||||
1.Removable element structure, easy installation and maintenance,register for universal use within this range detachable without Removing the meter from the pipeline. 2.Dry-dial, Magnetic drive sensitive action, small pressure loss. 3.Vacuum sealed register ensures the dial keep free from fog and Keep the reading clear in a long term service. 4.Selected high quality materials for steady and reliable characteristic. 5.Technical data conform to international standard ISO 4064. | 1.Plastic register, copper register and full glass register. 2.Accuracy: R=50. 3. Size: DN50-600mm. 4.Cold/ hot water. 5.Reed switch option. 6.Flange standard can be choose. 7.360 degree rotate can be choose. 8. Cast iron, Ductile iron, SS304 ,SS316 body can be choose. 9. Working pressure: PN16/25. 10.Color can be change on body and cover. | ||||||||
Standards Compliance | Working Conditions | ||||||||
Measuring the volume of cold (hot) water passing through the pipeline. | 1.Water temperature: 0.1°C~50°C (0.1°C~90°C for hot water meter). 2.Water pressure: PN10/1 6/25. | ||||||||
Central Gear
The center gear is equipped with four samarium cobalt magnets,which are not easy to
weathering,degaussing and losing data.This ensures the life of the central transmission
part of the water meter and the accuracy of measurement.
The center gear is equipped with four samarium cobalt magnets,which are not easy to
weathering,degaussing and losing data.This ensures the life of the central transmission
part of the water meter and the accuracy of measurement.

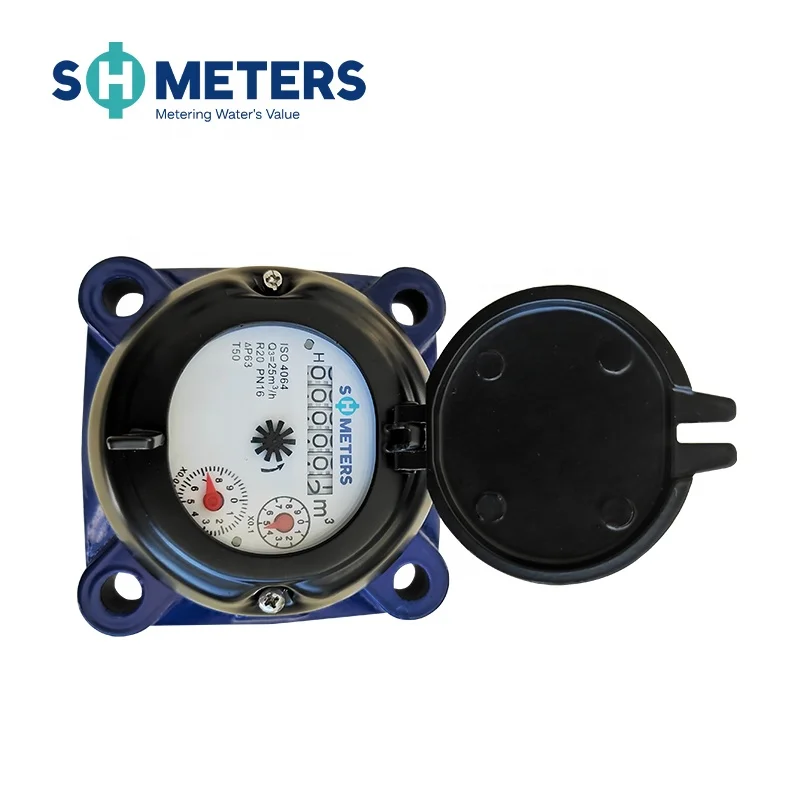

Dial Cover
lt's made of food grade PC(polycarbonate) with transparent material.
Fixed with screws,easy to replace.With double reed switch design, if one of them is damaged,
it can still work normally.
lt's made of food grade PC(polycarbonate) with transparent material.
Fixed with screws,easy to replace.With double reed switch design, if one of them is damaged,
it can still work normally.
Anti Magnetic Ring
When the reed switch is installed, the anti-magnetic ring is added, the pig iron material is
required, and the signal strength of the magnet steel is required to be 3,000-4,000 gauss,
which ensures the stable output of the pulse signal.
Upper Bearing Plate
Selection of copper plate, good magnetic transmission effect,not easy to crack, high durability.
Transmission Gear
Drive gear,well-made, no burr, to ensure the accurate operation of the counting part.
When the reed switch is installed, the anti-magnetic ring is added, the pig iron material is
required, and the signal strength of the magnet steel is required to be 3,000-4,000 gauss,
which ensures the stable output of the pulse signal.
Upper Bearing Plate
Selection of copper plate, good magnetic transmission effect,not easy to crack, high durability.
Transmission Gear
Drive gear,well-made, no burr, to ensure the accurate operation of the counting part.
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
