72V 40Ah Lithium Battery for Electric Dirt Bike
- Category: >>>
- Supplier: Foshan Uni Technology Co. Ltd.
Share on (1600599127256):
Product Overview
Description
Product Description
Specification of Battery | ||||||
Model Number | TX7240 | TX7250 | TX7260 | |||
Capacity | 72V 40Ah | 72V 50Ah | 72V 60Ah | |||
Battery Cell Specification | Li(NiCoMn)O2 | |||||
Weight | 21kg | 22kg | 23.6kg | |||
Size | 16*21*31cm | 16*21*31cm | 16*21*32.5cm | |||
Maximum Discharge Current | 300A(5s) | |||||
160A Discharge | 5minutes | |||||
120A Discharge | continuously | |||||
Rated Voltage | 72V | |||||
Cell Rated Voltage | 3.2V | |||||
Voltage Range | 60-84V | |||||
Series Connection Number | 20S | |||||

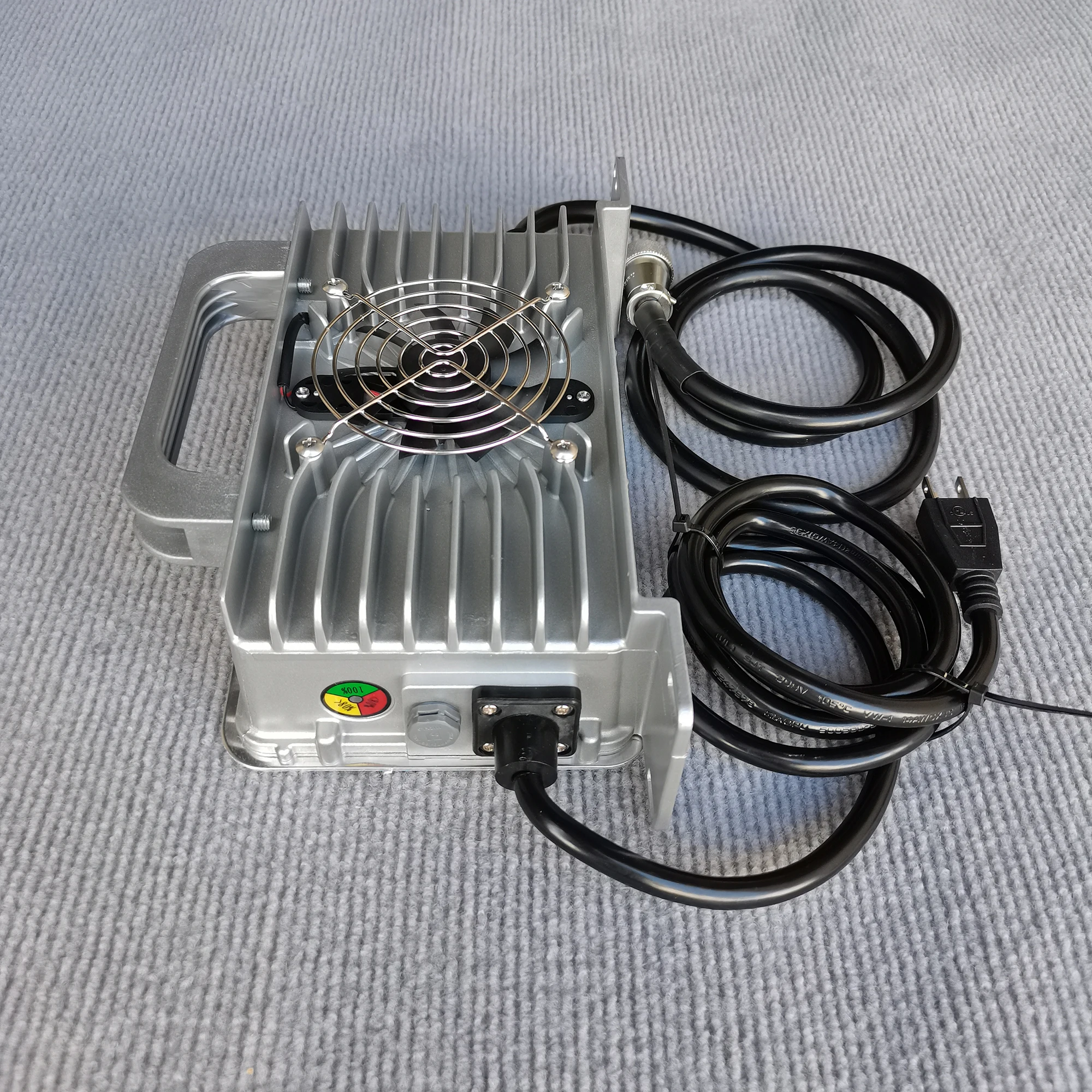

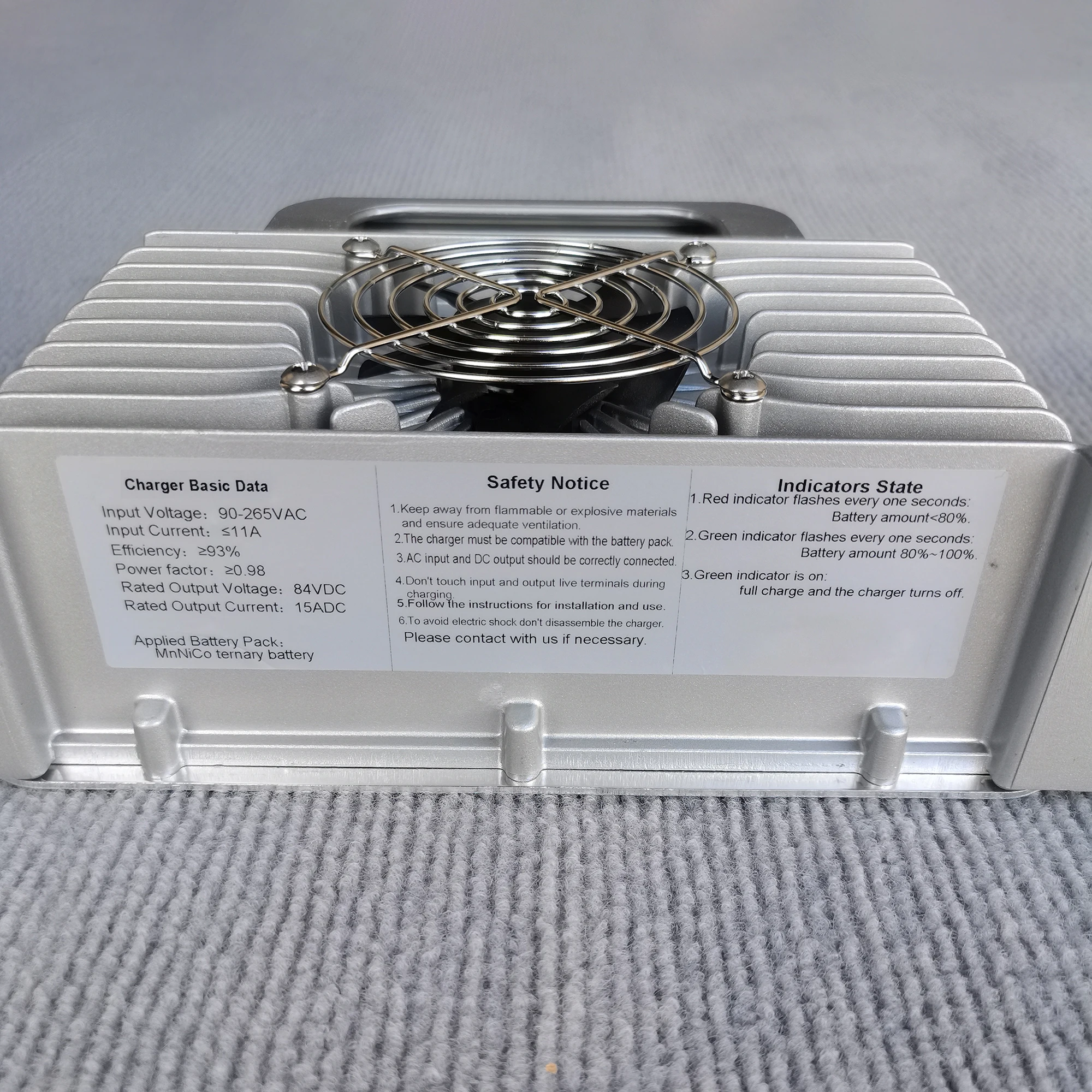

Specification of Charger | ||||||
Input Voltage | 90-265VAC | Input Current | ≤11A | |||
Efficiency | ≥93% | Power Factor | ≥0.98 | |||
Rated Output Voltage | 84VDC | Rated Output Current | 15ADC | |||
Lithium Battery Safety Applicable Specifications
Please be sure to use the battery correctly in accordance with this specification. Our company is not responsible for any safety problems caused by violation of this specification.
1. The battery needs to be handled with care during use to avoid damage to the internal components. The battery is not allowed to be used in series or in parallel.
2. The battery is placed inside the battery case, and should not be loose, shaken, squeezed or deformed. If the battery is found to be deformed or loose inside, please stop using it immediately.
3. It is strictly forbidden to insert the positive and negative electrodes of the battery into each other, reverse the load, or connect it with unmatched loads such as electric vehicles. It is forbidden to directly contact the positive and negative ends of the battery with conductors.
4. When the battery leaves the factory, there is only a small amount of power. Please start using it after it is fully charged. After the battery is discharged, it needs to be charged in time, or within 24 hours after being placed. During the battery storage period, the battery needs to be charged every 30 days.
5. It must be charged with the matching charger, and it is strictly prohibited to use the lead-acid battery charger to charge it
6. It is strictly forbidden to disassemble and modify the battery without permission.
7. It is strictly forbidden to place the battery next to a heat source or high temperature source (such as fire, heater, etc.)
8. It is strictly forbidden to immerse the battery in water or other liquids. When not in use, it should be placed in a cool and dry environment
9. The battery is forbidden to be charged indoors
10. During the installation, testing and use of the battery, it must be carried out under the guidance of a professional battery engineer
11. Battery applicable temperature range -10℃~45℃
12. Please dispose of scrapped batteries under the guidance of professional battery engineers
1. The battery needs to be handled with care during use to avoid damage to the internal components. The battery is not allowed to be used in series or in parallel.
2. The battery is placed inside the battery case, and should not be loose, shaken, squeezed or deformed. If the battery is found to be deformed or loose inside, please stop using it immediately.
3. It is strictly forbidden to insert the positive and negative electrodes of the battery into each other, reverse the load, or connect it with unmatched loads such as electric vehicles. It is forbidden to directly contact the positive and negative ends of the battery with conductors.
4. When the battery leaves the factory, there is only a small amount of power. Please start using it after it is fully charged. After the battery is discharged, it needs to be charged in time, or within 24 hours after being placed. During the battery storage period, the battery needs to be charged every 30 days.
5. It must be charged with the matching charger, and it is strictly prohibited to use the lead-acid battery charger to charge it
6. It is strictly forbidden to disassemble and modify the battery without permission.
7. It is strictly forbidden to place the battery next to a heat source or high temperature source (such as fire, heater, etc.)
8. It is strictly forbidden to immerse the battery in water or other liquids. When not in use, it should be placed in a cool and dry environment
9. The battery is forbidden to be charged indoors
10. During the installation, testing and use of the battery, it must be carried out under the guidance of a professional battery engineer
11. Battery applicable temperature range -10℃~45℃
12. Please dispose of scrapped batteries under the guidance of professional battery engineers
