Manufacture Tuya Wifi wireless smart programmable heating room thermostat
- Category: >>>
- Supplier: Shenzhen Toupwell Technology Co. Ltd.
Share on (1600599135375):
Product Overview
Description
Product Description

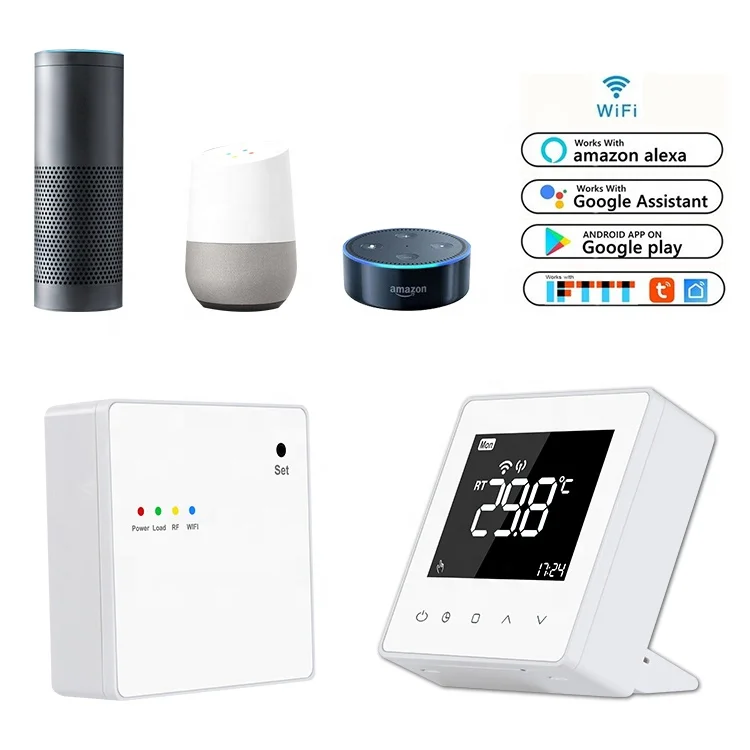

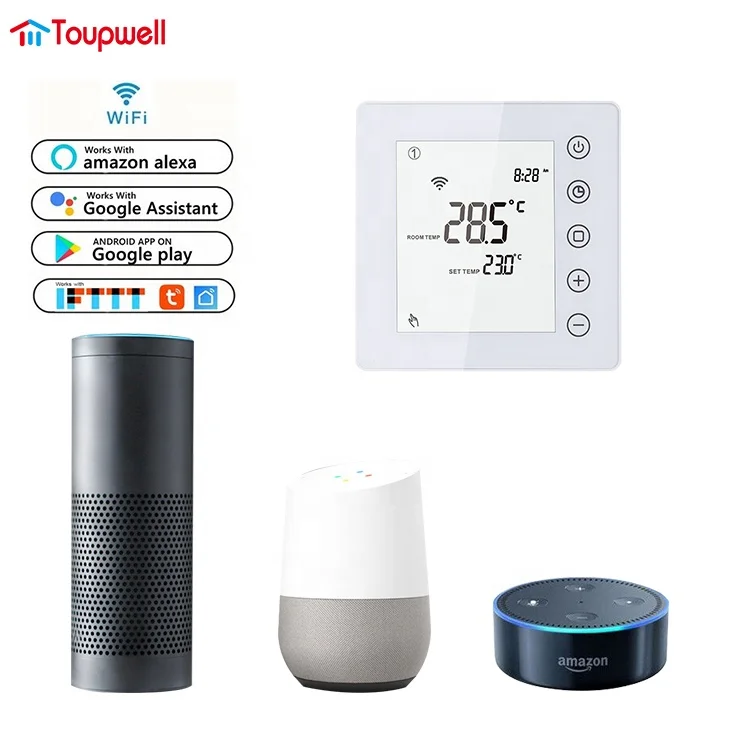

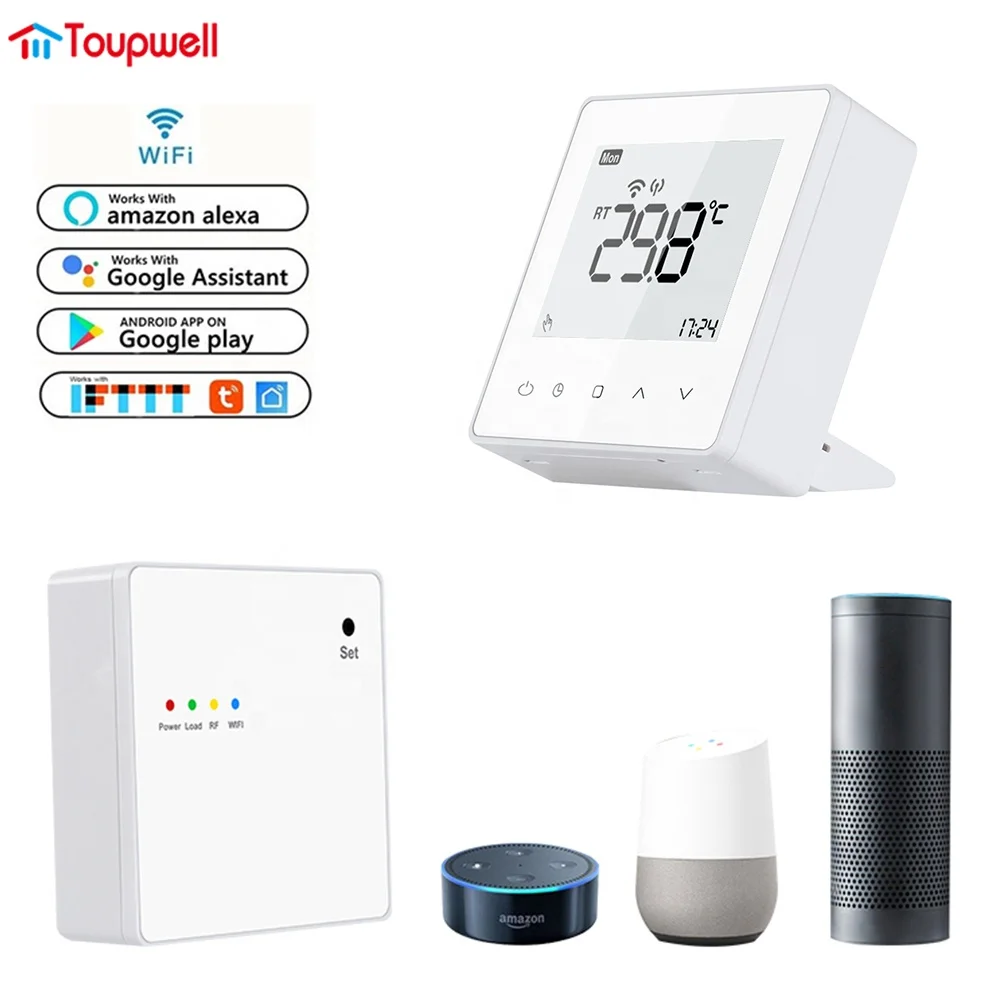

TP618RFW is a new wifi wireless programmable thermostat. TP618RFW can replace most common residential thermostat and is designed to be used with electric, gas or oil heating control system.

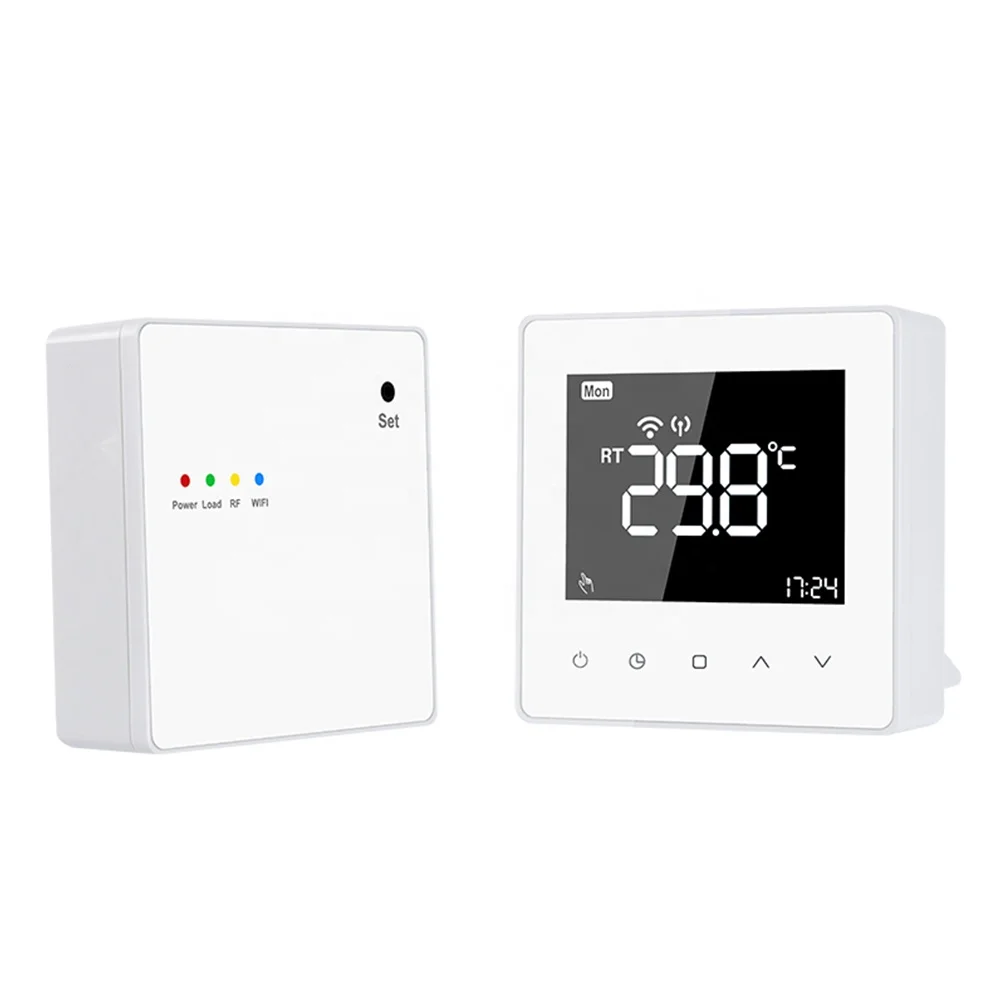

Unlike ordinary single unit design thermostat, this unit is a new type of thermostat separating the thermostat function into twounits. Receiver TR618RE and Control Centre TP618SE. The Receiver serves for wiring connections and heat on/off control. The Control Centre serves as user interface and temperature sensing/control. User can put the control Centre nearby and can read/control the temperature of really the living area while put the Receiver besides the heating system.
Unlike ordinary single unit design thermostat, this unit is a new type of thermostat separating the thermostat function into twounits. Receiver TR618RE and Control Centre TP618SE. The Receiver serves for wiring connections and heat on/off control. The Control Centre serves as user interface and temperature sensing/control. User can put the control Centre nearby and can read/control the temperature of really the living area while put the Receiver besides the heating system.
WIFI wireless Thermostat Features
1. Can be placed anywhere in the home to detect and control the temperature of an area of the user’s choice.
2.Not limited by power control wiring locations.
3.Link with the Receiver via RF. Control distance 100M open site.

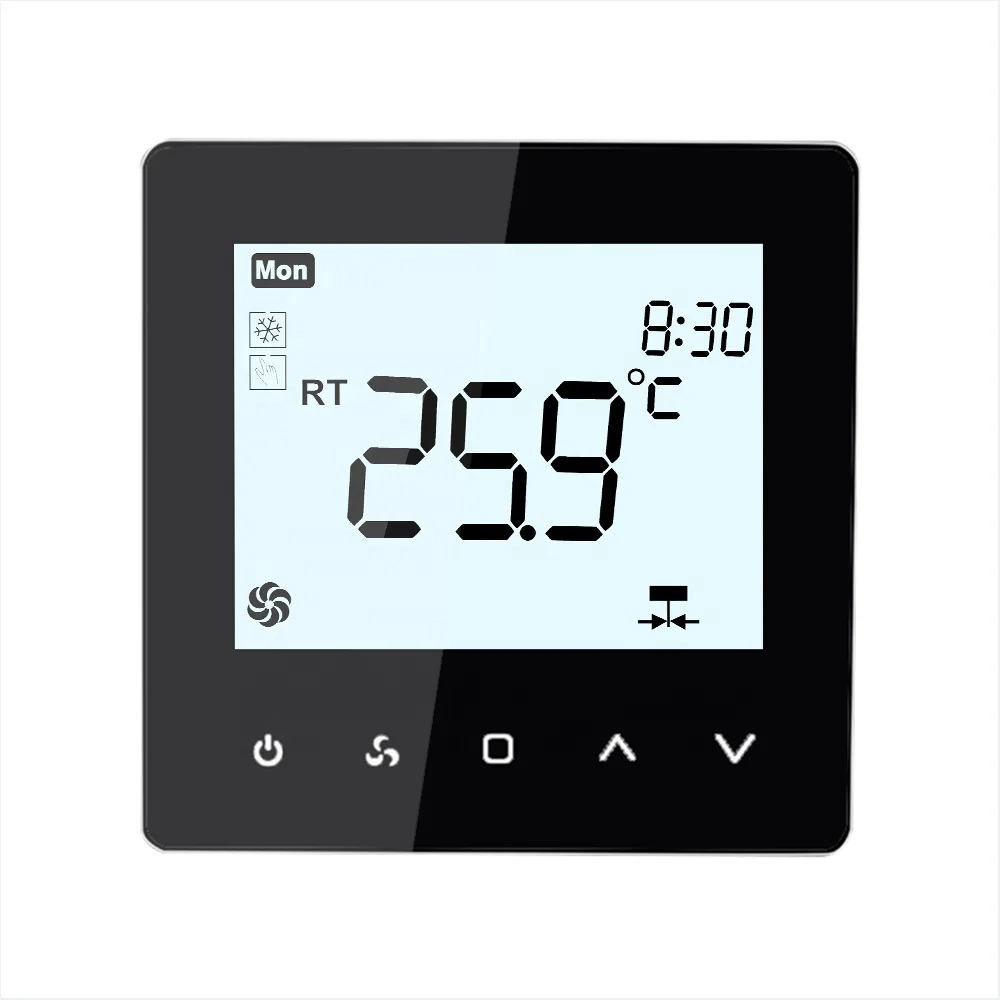

4.Large LCD displaywith touch button
5.The screen displays the set temperature and the room temperaturealso time simultaneously
6.Permanent user setting and program setting retention during power loss
7.Temperature display of Celsius
8.Optional programming Period: 7 individual day or Separate 5-day (weekday) and 1-day/1-day (Saturday/Sunday) programming with 4 or 6 separate time/temperature periods per day.
9.Display temperature recalibrates
10.Anti-freezing protection
3.Link with the Receiver via RF. Control distance 100M open site.
4.Large LCD displaywith touch button
5.The screen displays the set temperature and the room temperaturealso time simultaneously
6.Permanent user setting and program setting retention during power loss
7.Temperature display of Celsius
8.Optional programming Period: 7 individual day or Separate 5-day (weekday) and 1-day/1-day (Saturday/Sunday) programming with 4 or 6 separate time/temperature periods per day.
9.Display temperature recalibrates
10.Anti-freezing protection
Specification
Power supply | transmitter:2AA batteries power supply Receiver:220V 50/60Hz | Frequency | 868Hz option |
Current load | 3A/10A/16A option | Communicate way | WIFI 2.4G |
Accurancy | 1℃ | Dimension | Trasmitter:86*86*28mm Receiver:86*86*28mm |
Set Temp | 5℃-35℃ | Comsumption | <0.3W |
Limited Temp Range | 5℃-45℃ | IP Class | IP20 |
Thermostats Wiring
Details Images
Other releated products
Packing & Delivery
Carton Package(50pcs/carton)
Carton Size: 49CMx50CMx45CM
Gross Weight: 14.0KGS
Net Weight:13.50KGS
Carton Size: 49CMx50CMx45CM
Gross Weight: 14.0KGS
Net Weight:13.50KGS
Goods could ship by what you prefer.By sea ,air or express.
Company Profile
Toupwell is one of the main HVAC products suppier in China.Inlcuding room thermostats ,valves ,sensors .With more than 1years of HVAC line.We have strong R&D experiences .Fast reaction ,Quickly delivery.These help us have many famous brand partners.We are locted in ShenZhen nearby HongKong.This is very convenient to export products or meet customers..
Thermostat produce Steps
Certifications
FAQ
Q1.Why choose us?
A:With more than 10years experiences in room thermostats and valves line.We are confidient about our products could
satisfiedcustomers.
B:Quick delivery time, excellent quality and comprehensive superior service we can give our customers complete
satisfaction.
C. 100% QC inspection before shipping.
Q2. What about the lead time?
A:Sampleneeds 3-5 days, mass production time needs 2-4 weeks.
Q3. Do you have any MOQlimit for your prodcuts?
A: 50pcs. 10pcs for samplechecking is available.OEM/ODM order MOQ:300PCS
Q4. How do you ship the goods and how long does it take to arrive?
A: Samples we usually ship byDHL, UPS, FedEx, TNT.It usually takes 3-5 days to arrive.
Bulk orders,We generally choose airline and sea shipping is also optional.
Airline need 3-6 days and sea shipping need 20-35 days.
Q5 Payment
Acturally, payment would be preferred: Normally we choose in T/T, usually is 30% deposit and pay the balance before shipment.
Q6. How to proceed an order ?
Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q7:Whats the warranty of your product?
Normally 18months after goods shipping out. Human damaged item do not including
Q8:Do you have certificate of your products?
Yes.All items are approved by CE.Some have Rohs
A:With more than 10years experiences in room thermostats and valves line.We are confidient about our products could
satisfiedcustomers.
B:Quick delivery time, excellent quality and comprehensive superior service we can give our customers complete
satisfaction.
C. 100% QC inspection before shipping.
Q2. What about the lead time?
A:Sampleneeds 3-5 days, mass production time needs 2-4 weeks.
Q3. Do you have any MOQlimit for your prodcuts?
A: 50pcs. 10pcs for samplechecking is available.OEM/ODM order MOQ:300PCS
Q4. How do you ship the goods and how long does it take to arrive?
A: Samples we usually ship byDHL, UPS, FedEx, TNT.It usually takes 3-5 days to arrive.
Bulk orders,We generally choose airline and sea shipping is also optional.
Airline need 3-6 days and sea shipping need 20-35 days.
Q5 Payment
Acturally, payment would be preferred: Normally we choose in T/T, usually is 30% deposit and pay the balance before shipment.
Q6. How to proceed an order ?
Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q7:Whats the warranty of your product?
Normally 18months after goods shipping out. Human damaged item do not including
Q8:Do you have certificate of your products?
Yes.All items are approved by CE.Some have Rohs
