small scale corn chips machines for processing doritos chips tortilla chip
- Category: >>>
- Supplier: Jinan Xilang Machinery Co. Ltd.
Share on (1600599136248):
Product Overview
Description
PRODUCTS DESCRIPTION

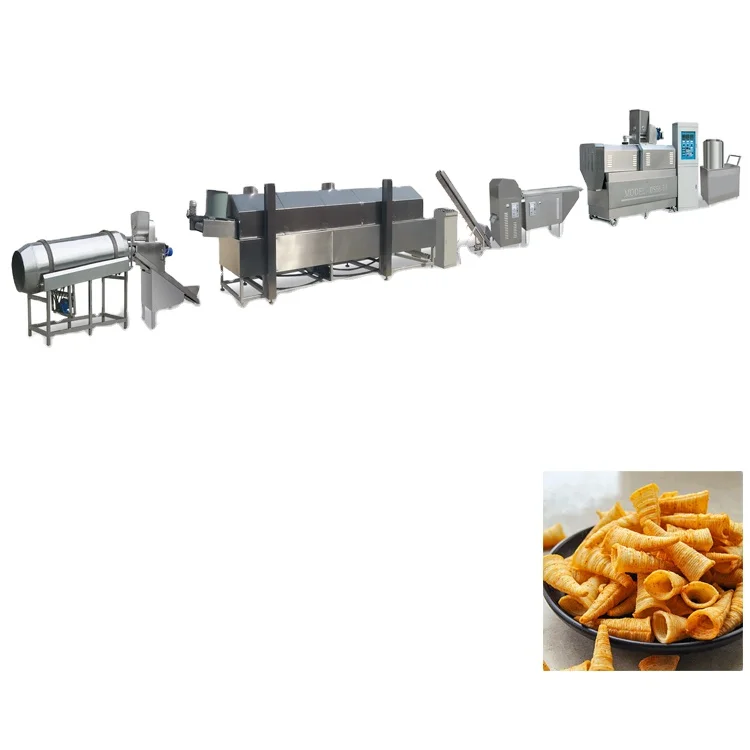

small scale corn chips machines for processing doritos chips tortilla chip
Puffed Snack food production line adopts advanced extrusion technology. In the extruder the ingredients are cooked under intense heat and pressure. At the extruder exit, molding dies and cutting tools equipped. The expanded products can obtain various sizes and shapes by changing molds and cutter.
Raw material of Low price sweet corn puff machine cereal production line rice snacks making machine
Corn, rice, millets, wheat, oat, barley etc as ingredients. Please note that all the materials should be in powder(flour) or grits form.
products of Low price sweet corn puff machine cereal production line rice snacks making machine

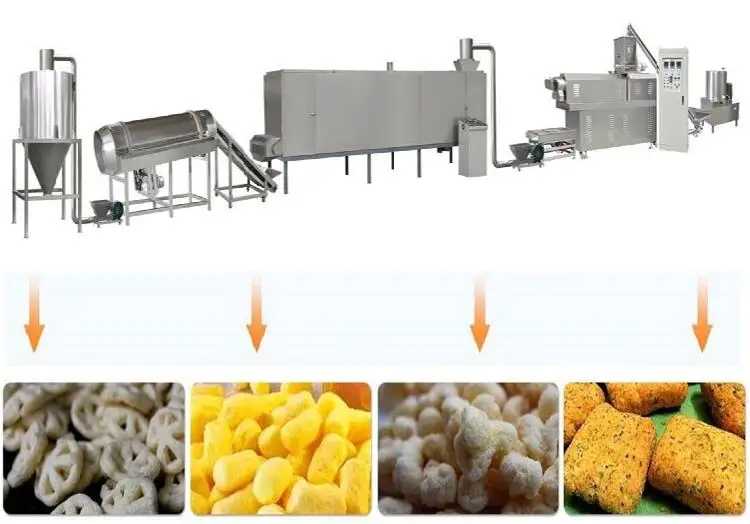

Variety shapes like ball, tube, stick, ring, fruit loop, star, wheel, flower and heart etc. are available by adjusting the mould
in the extruder.
in the extruder.
PRODUCT SPECIFICATIONS
Model | Installed capacity | Power consumption | Output | Size |
65 Snack food proessing line | 73kw | 50kw | 100-120kg/h | 15000x800x1600mm |
70 Snack food proessing line | 103kw | 73kw | 200-300kg/h | 16000x800x1600mm |
65 Jam center food proessing line | 80kw | 55kw | 100-120kg/h | 18000x800x1600mm |

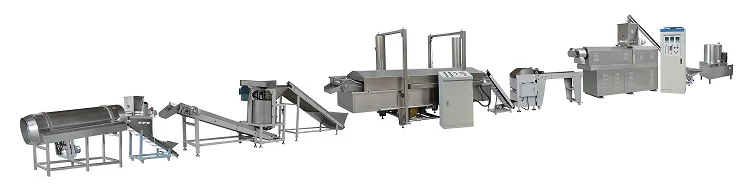

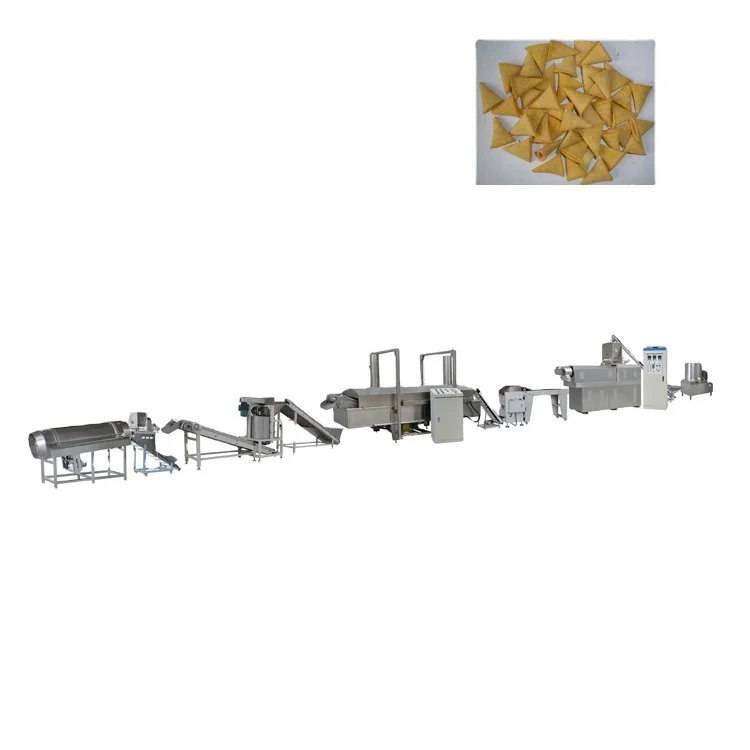

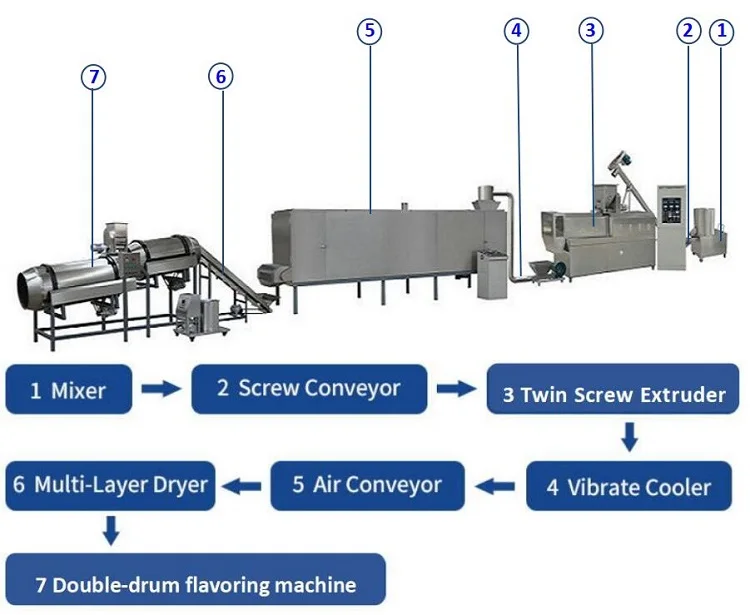

FLOW CHART
small scale corn chips machines for processing doritos chips tortilla chip
The whole processing line of Low price sweet corn puff machine cereal production line rice snacks making machineraw material milling -- mixing -- extruding -- drying -- flavoring -- cooling -- packaging
Equipments list of Low price sweet corn puff machine cereal production line rice snacks making machine
mixer --- screw conveyor --- twin screw extruder --- air conveyor ---muti-layer dryer --- air conveyor --- oil sprayer ---

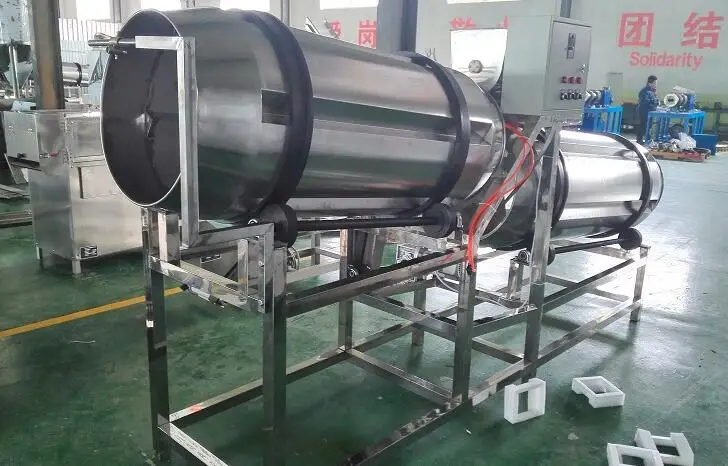

double-roller flavoring machine --- cooling conveyor
double-roller flavoring machine --- cooling conveyor
NO. | Machine Name | Power | Function |

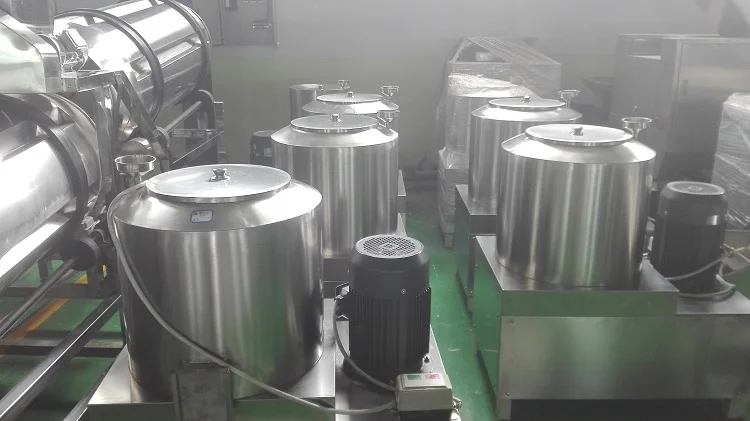

1 | Mixer BFJ-I | 3KW | Mixing the raw material and other additives fully. |

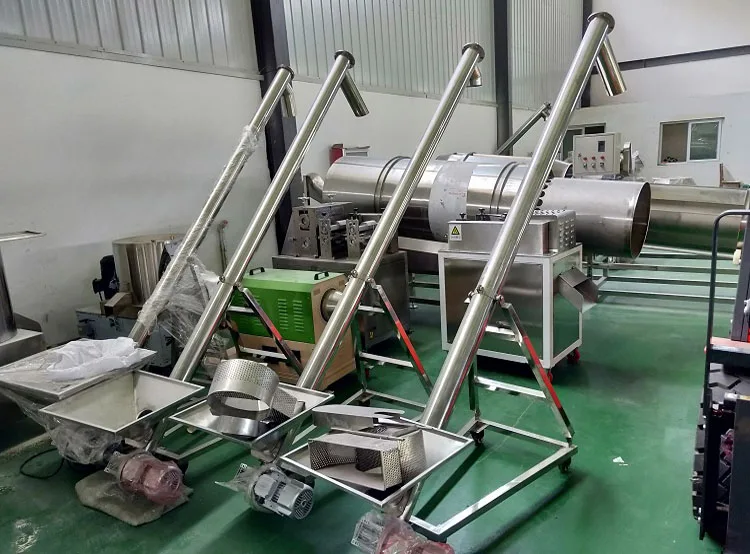

2 | Screw conveyor LXSL-I | 1.1KW | Screw turns to make the raw material convey in the sealed tube,no leaking and no pollution |

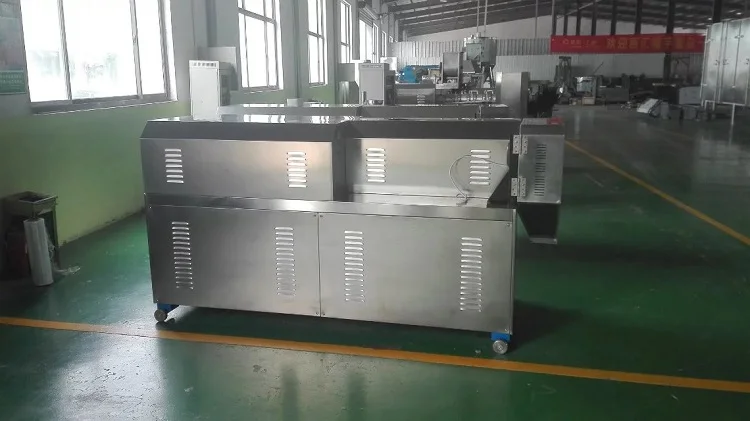

3 | Twin screw Extruder XL65- II | 36KW | The material is fully matured under high temperature and pressure, through the outlet mold expansion, form foods of various shapes. |
4 | Air Conveyor FSJ- 1.1 | 1.1KW | 1.conveys the food relying on the wind-force from the blower |

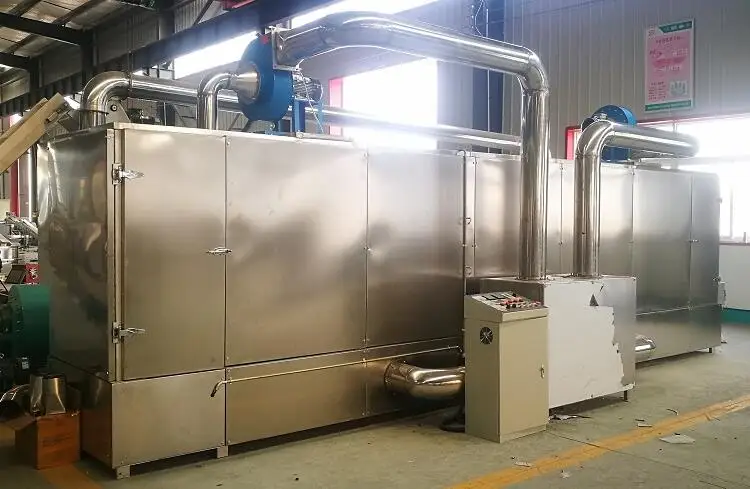

5 | Dryer KX-5-5D | 37.5KW | 1.Used to bake and dry food 2.Net belt running speed can be controlled and change the food drying time in the dryer. 3.Heating adopts the electric heat tube |

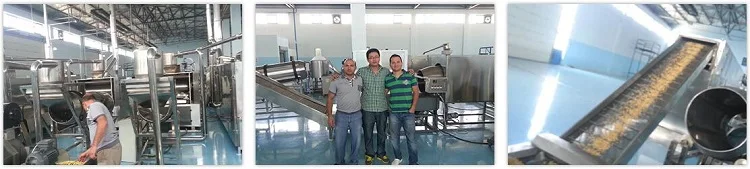

SAMPLE PHOTOS

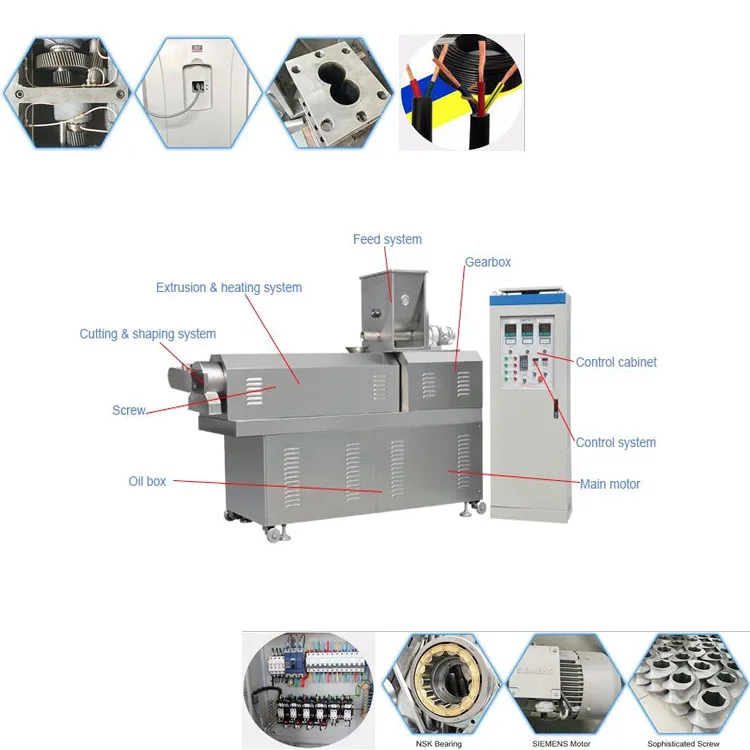

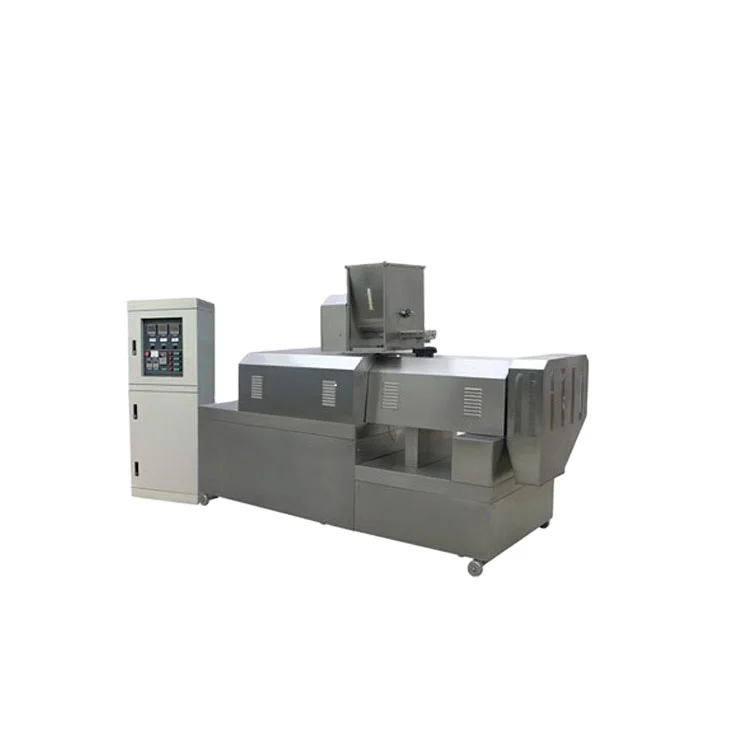

EXTRUDER FEATURES
1.Pure copper motor, low heat, sufficient power and stable performance
2. The control cabinet adopts a visual automatic temperature control system, the temperature of each zone can be adjusted separately, the temperature control is intuitive, and the parameters are accurate
3. Double spiral in the same direction, controlled by a separate control cabinet
4. The screw is made of high wear-resistant materials with hardness above HRC55 and has a long service life
5. International brand power supply devices, strong stability, can run continuously for more than 700 hours
2. The control cabinet adopts a visual automatic temperature control system, the temperature of each zone can be adjusted separately, the temperature control is intuitive, and the parameters are accurate
3. Double spiral in the same direction, controlled by a separate control cabinet
4. The screw is made of high wear-resistant materials with hardness above HRC55 and has a long service life
5. International brand power supply devices, strong stability, can run continuously for more than 700 hours

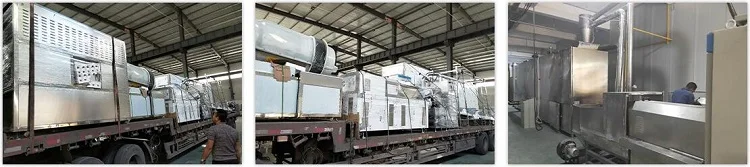

PACKING AND SHIPPING
Packing Details
1.Inner packing: Stretch film
2.Outside packing: Standard export wooden cases
3.The package also can be according to customer requirements.
2.Outside packing: Standard export wooden cases
3.The package also can be according to customer requirements.
COMPANY PROFILE
Jinan Xilang Machine Co.,ltd is a professional Manufacturer specializing in researching and producing Extrusion
machinery,Industrial microwave drying and sterilizing equipment and related ancillary equipment.The Company is located in Jinan,the spring city of Shandong. With the strong design strength,advanced producing technology and rich manufacturing experience,the company`s products get good comments from domestic and abroad customers.
machinery,Industrial microwave drying and sterilizing equipment and related ancillary equipment.The Company is located in Jinan,the spring city of Shandong. With the strong design strength,advanced producing technology and rich manufacturing experience,the company`s products get good comments from domestic and abroad customers.
Our main products include machinery and equipment for pasta system, corn flakes system, breakfast cereal system, baby food system, corn puff snacks system, fried pellets system, fortified nutrition rice system,soy nuggets system, pet food system , fish feed system , various type drying oven system, corn meal milling system etc.
Our machines have been exported to many countries of Asia, America, Africa, Europe etc. So Don't hesitate to contact us. Xilang team from pre -service to after-service will show your choice is worth it.
FAQ
Q1: Are you a trade company or a manufacturer?
A:We are a manufacturer,we have own factory and R&D department.SGS has certified our company on site.welcome to visit our factory and check the machines.
Q2: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 20-35 days if the goods are not in stock, we could discuss before contract.
Q3: Could you supply all the parameters about the machines?
A: Yes, we will supply all the parameters, price, layout drawing, factory design etc.
Q4. Can you provide food or feed formula?
A: We can provide basic formula for produce the food etc. And help customer to produce new products according to customer’s formula.
Q5: What is your terms of payment ?
A: 30% T/T in advance ,70% balance before shippment after inspection.
Q6: How about the after-service?
A: We will send 1 engineer to the buyer's factory for 7-14 days period installation and training to the operators.
A:We are a manufacturer,we have own factory and R&D department.SGS has certified our company on site.welcome to visit our factory and check the machines.
Q2: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 20-35 days if the goods are not in stock, we could discuss before contract.
Q3: Could you supply all the parameters about the machines?
A: Yes, we will supply all the parameters, price, layout drawing, factory design etc.
Q4. Can you provide food or feed formula?
A: We can provide basic formula for produce the food etc. And help customer to produce new products according to customer’s formula.
Q5: What is your terms of payment ?
A: 30% T/T in advance ,70% balance before shippment after inspection.
Q6: How about the after-service?
A: We will send 1 engineer to the buyer's factory for 7-14 days period installation and training to the operators.
