Spray Double Component Polyurethane Foam Closed Cell Raw Material

Product Overview

Description

Introduction of Spray Double Component Polyurethane foam Insulation PU Foam

      Water based Flexible PU foam is an environmental protection type using water as blowing agent, with good performances of low density ( 8~10kg/m 3 ), open cell, flame retardant( B3 grade) etc.
During spray process in site, the breathing small open cell filled with air, without producing toxic gas to destroy the Ozone layer( traditional blowing agent: F-11, HCFC-141B), which is environment friendly, low-carbon new construction materials.
    This spray PU foam with performances of thermal insulation, gas resistance, damp proof insulation,water proof and sound absorption, it can give us a more quiet, more healthy and more energy saving buildings.

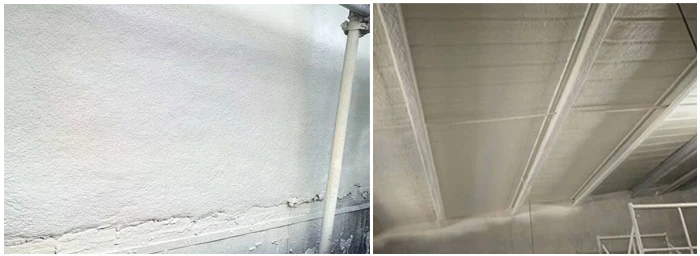

It applies to all kinds of thermal insulation engineering which uses the spray technology, such as cold rooms, pots, large-scale pipelines and construction metope etc.

Parameter of Open cell water based Flexible soft PU polyurethane spray foam for buildigs

Physical Properties

Appearance                   Hydroxyl Value                mgKOH/g Dynamic Viscosity (25 ℃)       mpa.s Specific gravity (20 ℃ )           g/ml Storage Temperature             ℃ Storage Stability               month

Pale yellow to brown viscous liquid 200-300 100-200 1.12-1.20 10-25 6

Recommended Ratio

	pbw
DJD-105  blend polyols Isocyanate	100 100-105

Reactivity Characteristics

(The temperature of the system is 20℃,and the exact value varied depending on processing condition)

Cream Time                  s Gel Time                     s

3-5 6-10

Foam Performances

items	Test Method	Index
Spray Density                 Closed-cell Rate           Initial Thermal Conductivity(15℃)        Compressive Strength Adhesive Strength    Elongation at break Dimentional Stability  24h  -20℃        24h   70℃  Water Absorption                      Oxygen Index	GB 6343 GB 10799 GB 3399 GB/T8813 GB/T16777 GB/T9641 GB/T8811   GB 8810 GB 8624	>40kg/m3                ≥90%      ≤24mW/(m.K) ≥150kPa  ≥120kPa                 ≥10%                 ≤1%                 ≤1.5%                 ≤3%                 ≥26

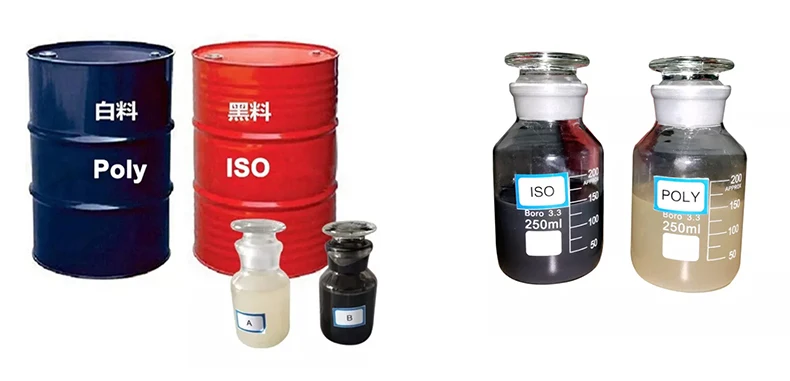

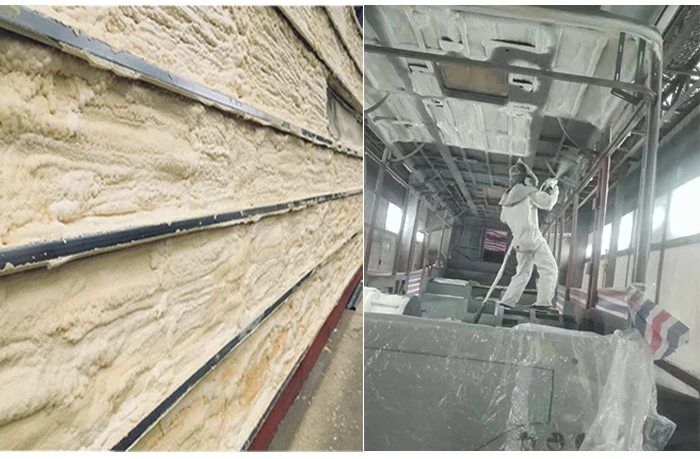

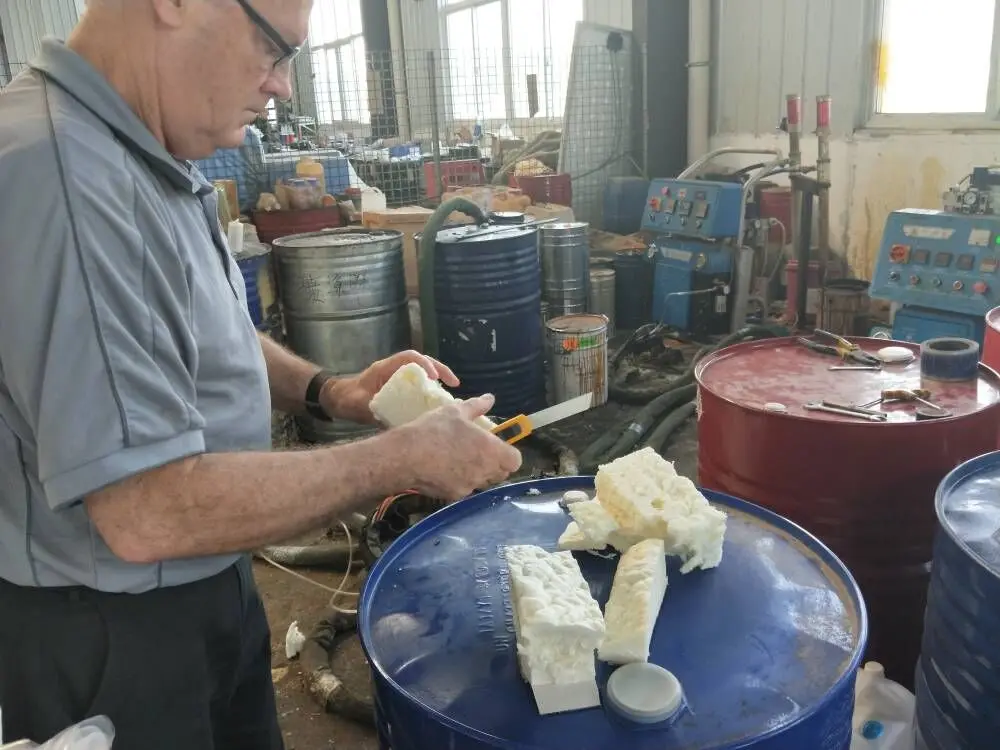

Images of Double Component Polyurethane Foam Material
