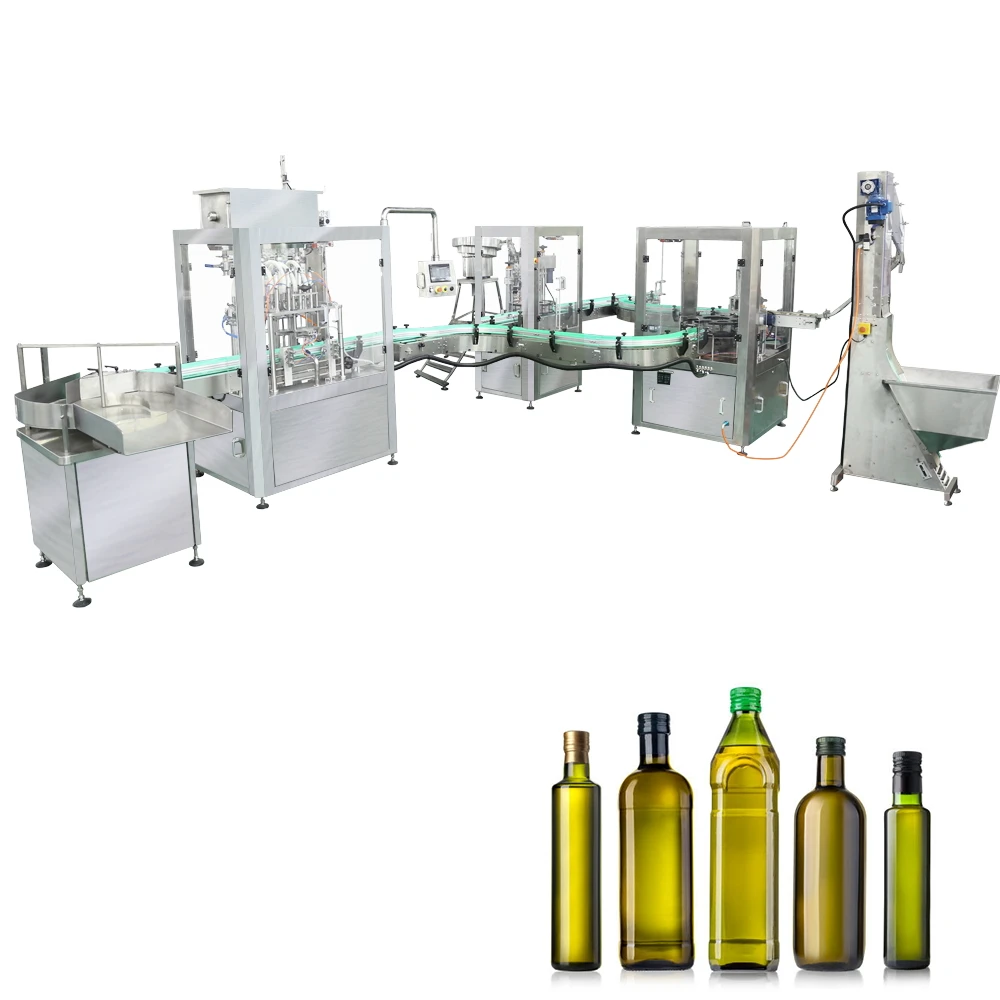

Automatic edible seed olive oil high quality chili oil hot sale cooking oil filling bottling capping labeling machine
- Category: >>>
- Supplier: Shanghai Xiepai Machinery Equipment Co. Ltd
Share on (1600599143317):
Product Overview
Description
Shanghai Xiepai Machinery Equipment Co.,Ltd is a professional manufacturer of filling line for over 12 years, customized filling lines for different industry customers like food and beverage, cosmetic, medical industry, chemical industry and etc, lots of successful cases for your reference. The full automatic liquid filling machine is designed for saving time on adjusting and testing machine, it can fill liquid or paste accurately by entering a certain filling volume. The PLC control method makes it easy to operate and thigh speed working efficiency is ideal for different scale production. It can work with the automatic capping machine and labeling machine and other equipment based on customer requirement. XIEPAI filling line is widely used in the following industries:
* Beverage Filling Machine Line (such as water, juice, beer, liquor, vodka, wine etc.)
* Food Filling Machine Line (such as honey, sauce, oil, chocolate, vinegar etc. )
* Chemical and Pharmaceutical Filling Machine Line (such as syrup, eye drop, alcohol, reagent, ampoul, syringe etc. )
* Cosmetics Filling Machine Line (such as perfume, body spray, nail polish, cream, lotion, detergent, hand gel etc. )
* Beverage Filling Machine Line (such as water, juice, beer, liquor, vodka, wine etc.)
* Food Filling Machine Line (such as honey, sauce, oil, chocolate, vinegar etc. )
* Chemical and Pharmaceutical Filling Machine Line (such as syrup, eye drop, alcohol, reagent, ampoul, syringe etc. )
* Cosmetics Filling Machine Line (such as perfume, body spray, nail polish, cream, lotion, detergent, hand gel etc. )

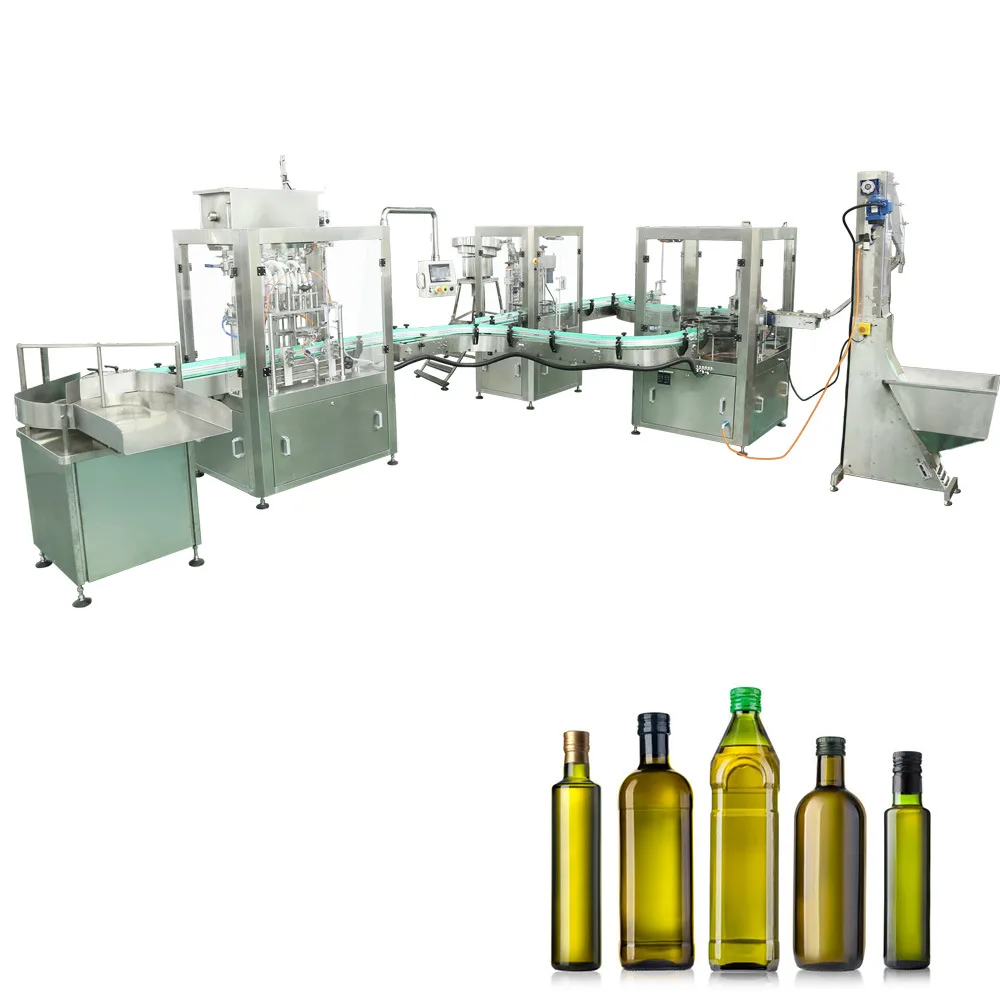

The fully automatic bottle filling capping machine is with CE & ISO 9001 certification.The machine is applied to glass or plastic bottles with different sizes and shapes, and suitable for different filling volume. By adjusting the filling volume on touch screen, it can fill liquid with quick speed and high precision. It is widely used for juice, water, oil, wine, or other liquid filling.
Product | Liquid Filling Machine Production Line |
Output | 1500-6000BPH |
Filling Volume | 10-5000ml |
Control | PLC and Touch Screen |
Bottle Size | Customized |
Cap Feeding | Elevator |
Cap Motor | Magnetic Motor |
Torquing Range | 0-100N |
Loading Way | Motor Pump Loading |
Capping Type | Screw, Pressing, Crimping, etc |
Bottle Type | Glass, Plastic, Metal, etc |
Driving Motor | Servo Motor |
Power | 1.8KW |
Voltage | 220/380V, 50/60Hz |
Machine Frame Material | SS304 |
BOTTLE FEEDING TABLE
Variable speed rotary bottle feeding table is the basic feeding system of filling line, operator will put empty bottles on the table, with gear motor driving, the bottle will be arranged to smarter filler input interface correctly. With flexible output tunnel, the machine will be able to work with different size bottle.

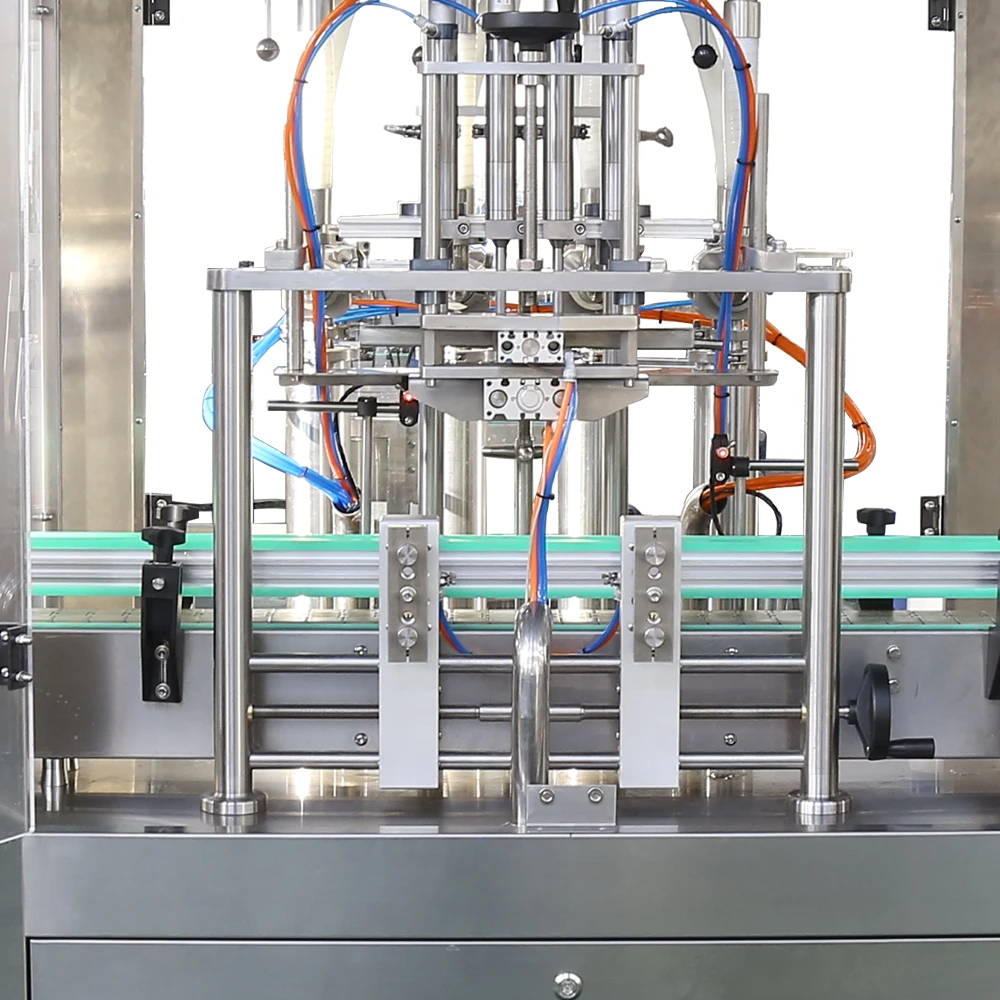

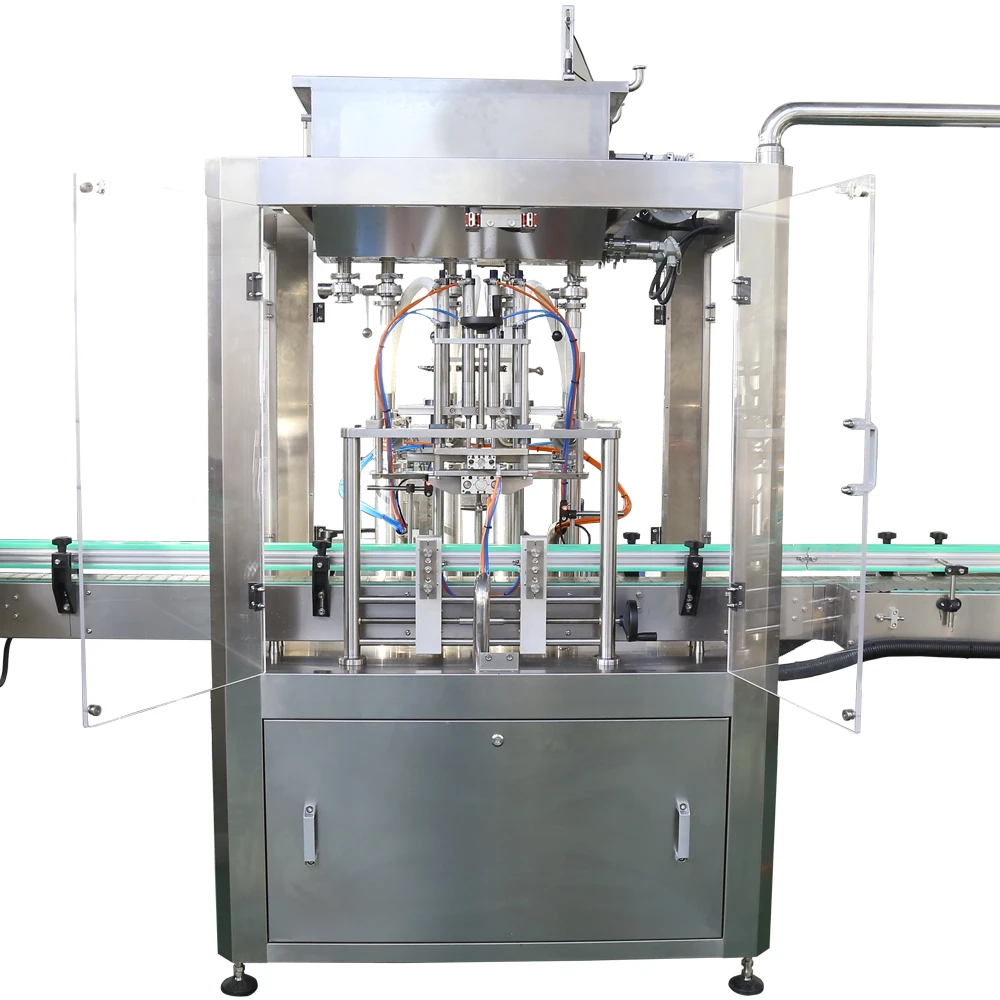

PISTON PUMP FILLING
This is wheel type piston pump filling machine which is designed for small bottle and low capacity filling task, driven by servo motor with high precision. The filling nozzles are made of SS316, resist high temperature filling. drip-proof , via photoelectric detection to ensure no bottle no filling.
CAP VIBRATOR
Cap vibrator is an automatic assembling equipment for capping process line, which can assort the caps in a series for an automated line. It is combined with automatic capping machine to feed the caps to the bottle automatically.

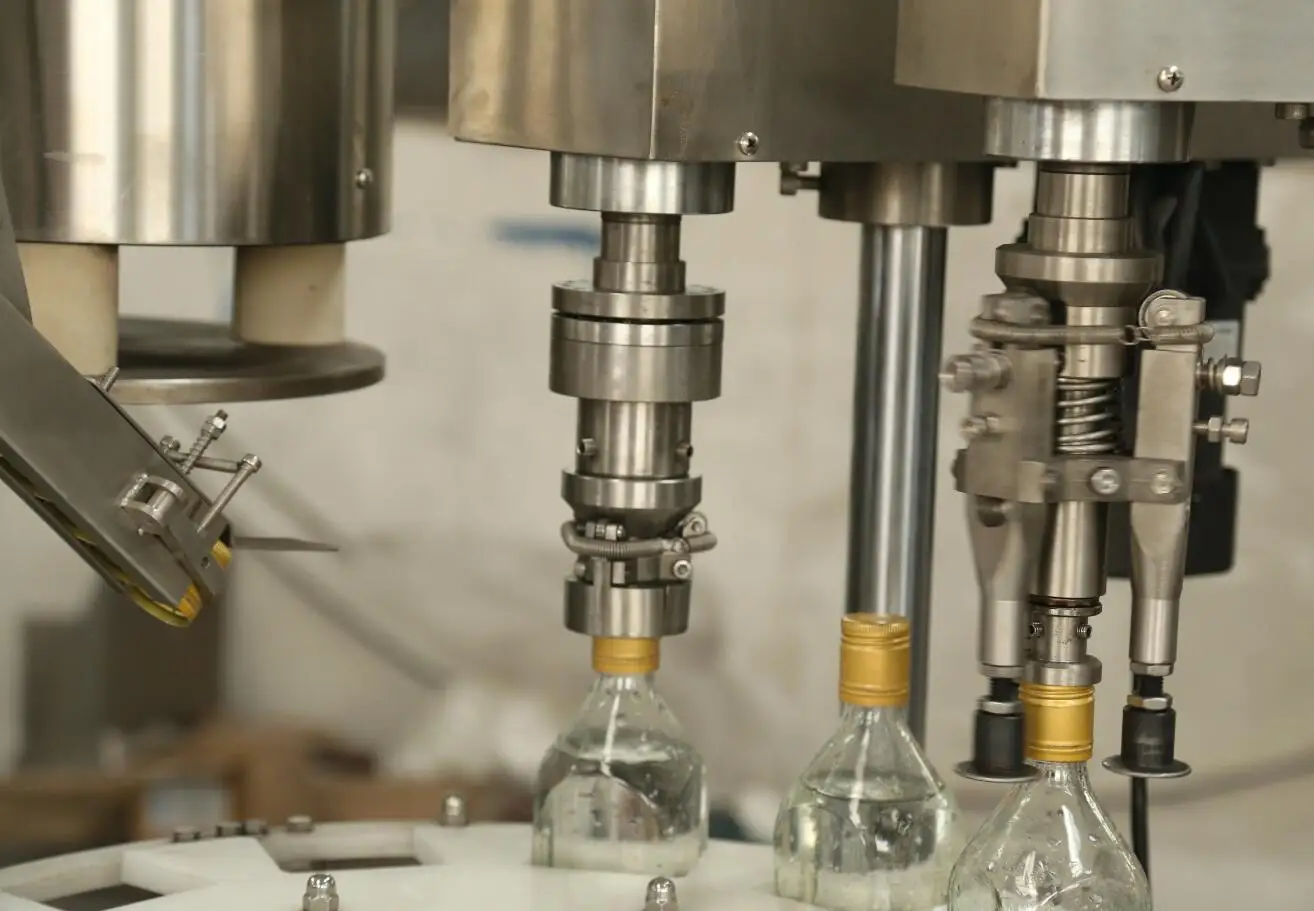

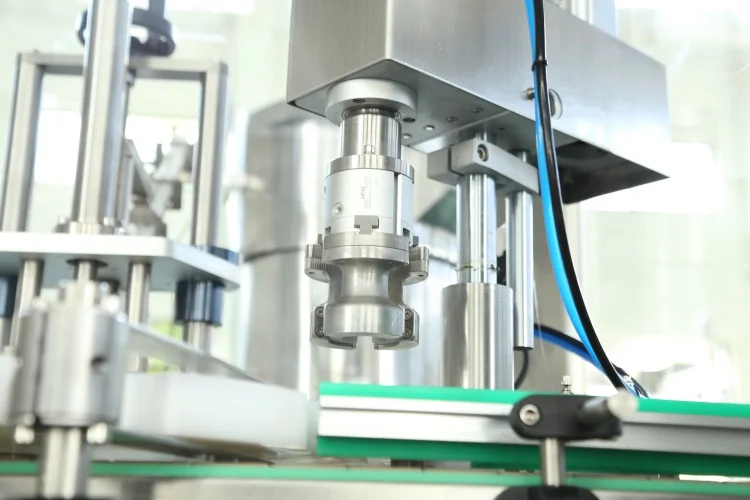

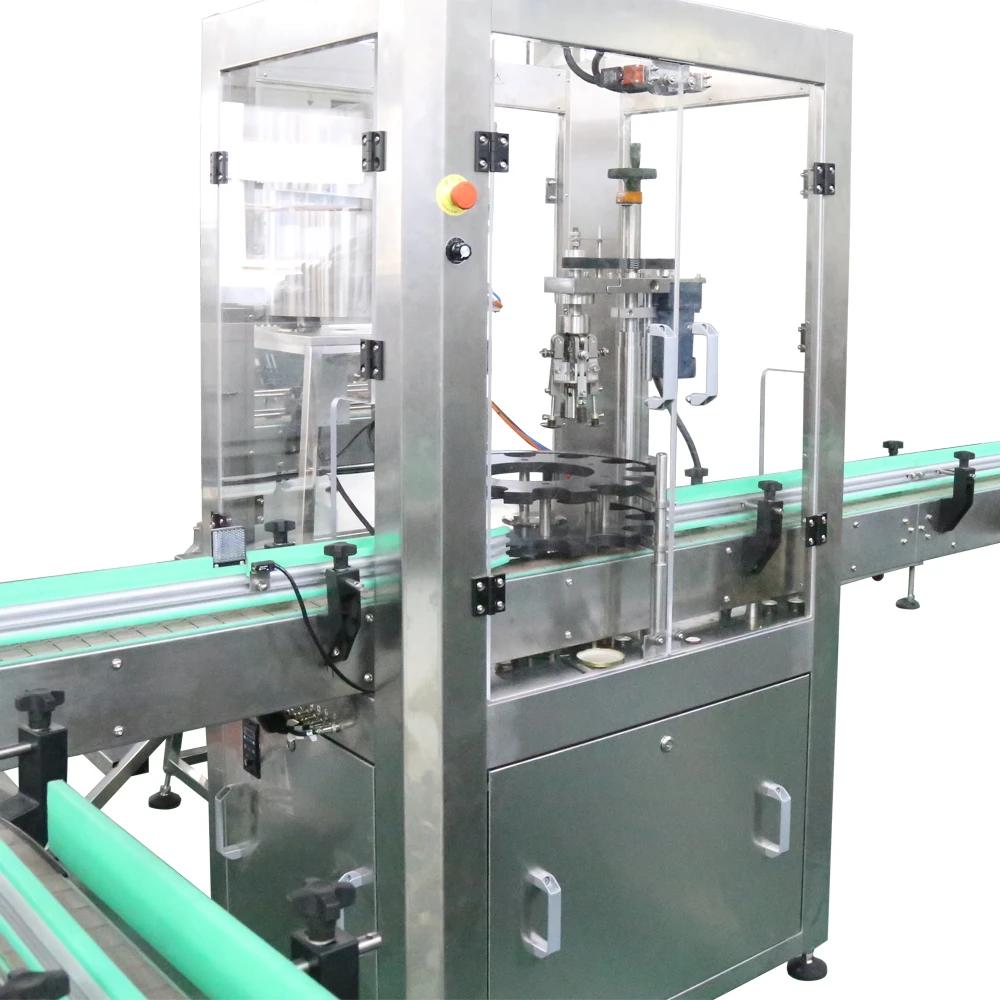

MAGNETIC TORQUE SCREWING CAPPING MACHINE
With three-jaw capping head, the capping machine is able to work with different kinds of lid torquing process. Contradicted to traditional machinery adjustment in capping torque, new smart filler adapt Magnetic torque motor in driving, which control torque by switch. Human-friendly design is always convenience.
CRIMPING CAPPING MACHINE
Crimping capping machine is mainly used for aluminium cap, It is widely used in various non-gas beverages, fruit juices, wine anti-theft caps, ideal equipment for wineries, beverage factories and other manufacturers. Human-friendly design is always convenience.
ROUND BOTTLE LABELING MACHINE
The newest smart round bottle labeling machine is working with different kinds of bottle and labels, infrared detection sensor is work with transparent label. With adjustment handle, it is able to work with high, lower, fat, thin bottle and apply labels into accurate station.
BOTTLE COLLECTING TABLE

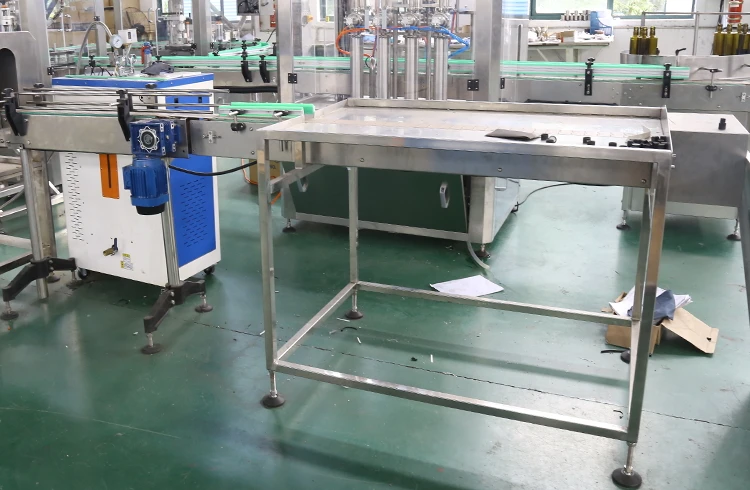

The rectangle bottle collecting table is designed for collecting the bottles automatically and convenient for workers to stand by the table and packing into box.
A SERIES OF INSTALLATION AND TECHNICAL GUIDE VIDEOS, EASY TO LEARN
